Michi X430 Integrated Amplifier
Powerful Class AB Performance with High-Resolution Digital Connectivity
The Michi X430 is a high-performance integrated amplifier combining powerful Class AB amplification, advanced digital connectivity, and refined analog circuitry in a single premium component. Delivering 340 watts per channel into 4 ohms and 210 watts per channel into 8 ohms, the X430 uses custom-tuned push-pull high-current output transistors to provide exceptional dynamics, control, and transparency with demanding loudspeakers. At the heart of the X430 is an ESS SABRE ES9039Q2M 32-bit DAC, supporting high-resolution digital playback through three coaxial, three optical, and PC-USB inputs. PC-USB supports PCM up to 32-bit/384kHz and DSD256, while Bluetooth provides wireless streaming with aptX HD and AAC support. HDMI ARC enables convenient connection to a compatible TV for a seamless 2.1-channel system. The X430 also features a Moving Magnet phono input, three RCA line-level inputs, a balanced XLR input, dual subwoofer outputs, and two sets of user-selectable A/B speaker terminals. Its large, customizable full-color display can show spectrum analyzer and VU meter views, while the precision-machined aluminum construction, glass front panel, and knurled volume control reflect Michi's premium design philosophy.
Feature Highlights
- 340W Class AB Power
Delivers up to 340W per channel into 4Ω and 210W per channel into 8Ω for powerful, dynamic performance and excellent loudspeaker control.
- High-Current Push-Pull Output Stage
Custom-tuned high-current output transistors provide exceptional dynamics, control, and transparency with demanding loudspeakers.
- ESS SABRE ES9039Q2M DAC
Features a premium 32-bit ESS SABRE DAC for high-resolution digital-to-analog conversion and accurate music reproduction.
- Hi-Res PC-USB Audio
Supports PCM audio up to 32-bit/384kHz, DSD256 up to 11.2MHz, and DoP up to DSD128.
- Extensive Digital Connectivity
Provides three coaxial and three optical digital inputs for flexible connection of digital source components.
- HDMI ARC
Supports HDMI ARC with CEC control and 2-channel PCM audio up to 24-bit/48kHz for convenient TV integration.
- Bluetooth aptX HD & AAC
Enables high-quality wireless music streaming from compatible Bluetooth devices.
- Moving Magnet Phono Input
Dedicated MM phono circuitry provides direct connection for compatible turntables.
- Balanced XLR Input
Provides a balanced analog input for connection to compatible high-quality source components.
- Dual Subwoofer Outputs
Two subwoofer outputs support flexible integration of one or two powered subwoofers in a 2.1-channel system.
- A/B Speaker Terminals
Two sets of speaker terminals provide user-selectable Speaker A/B connection flexibility.

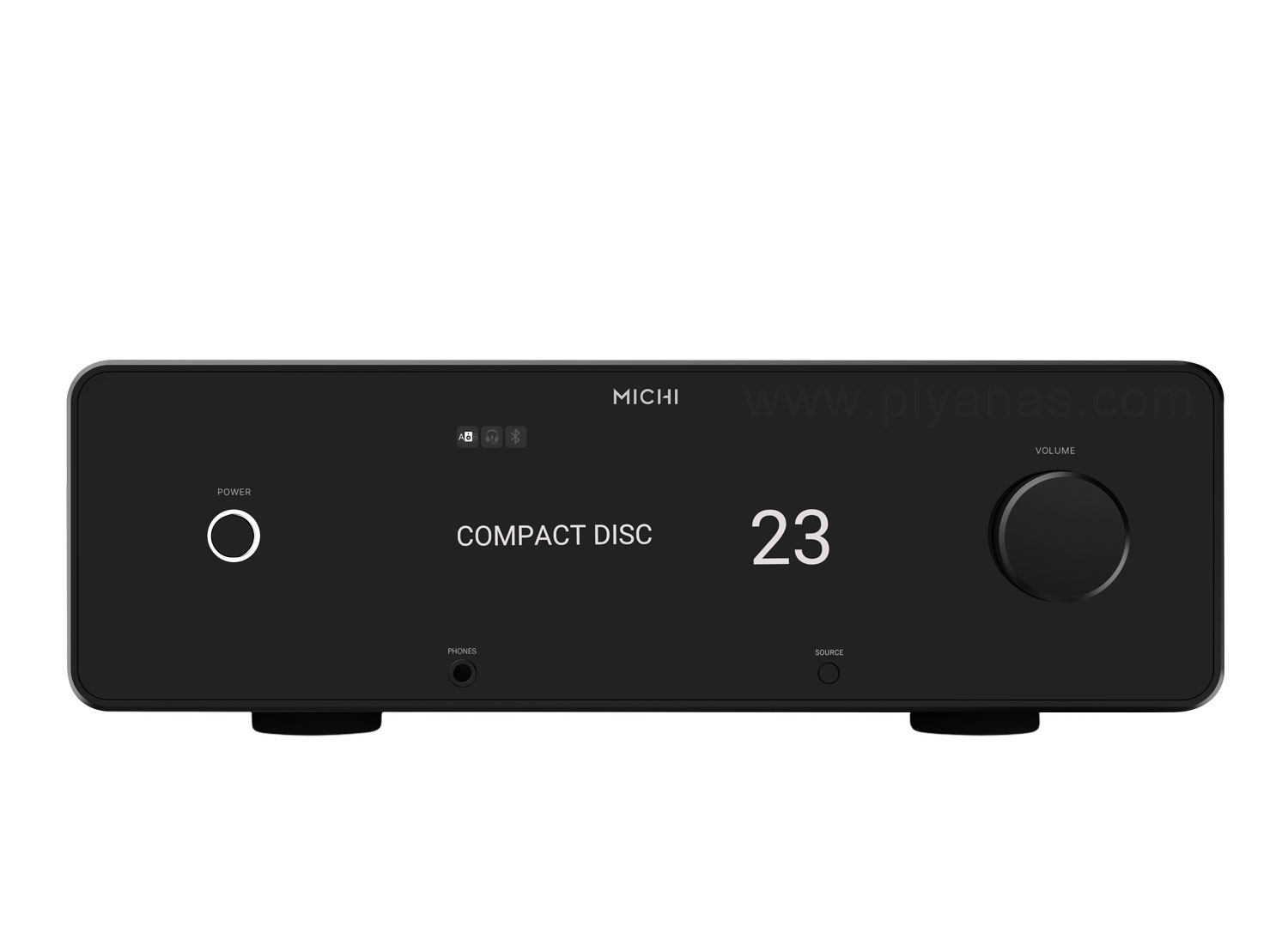

- Customizable Full-Color Display
The high-resolution display offers user-selectable spectrum analyzer and VU meter views.
- Premium Toroidal Power Supply

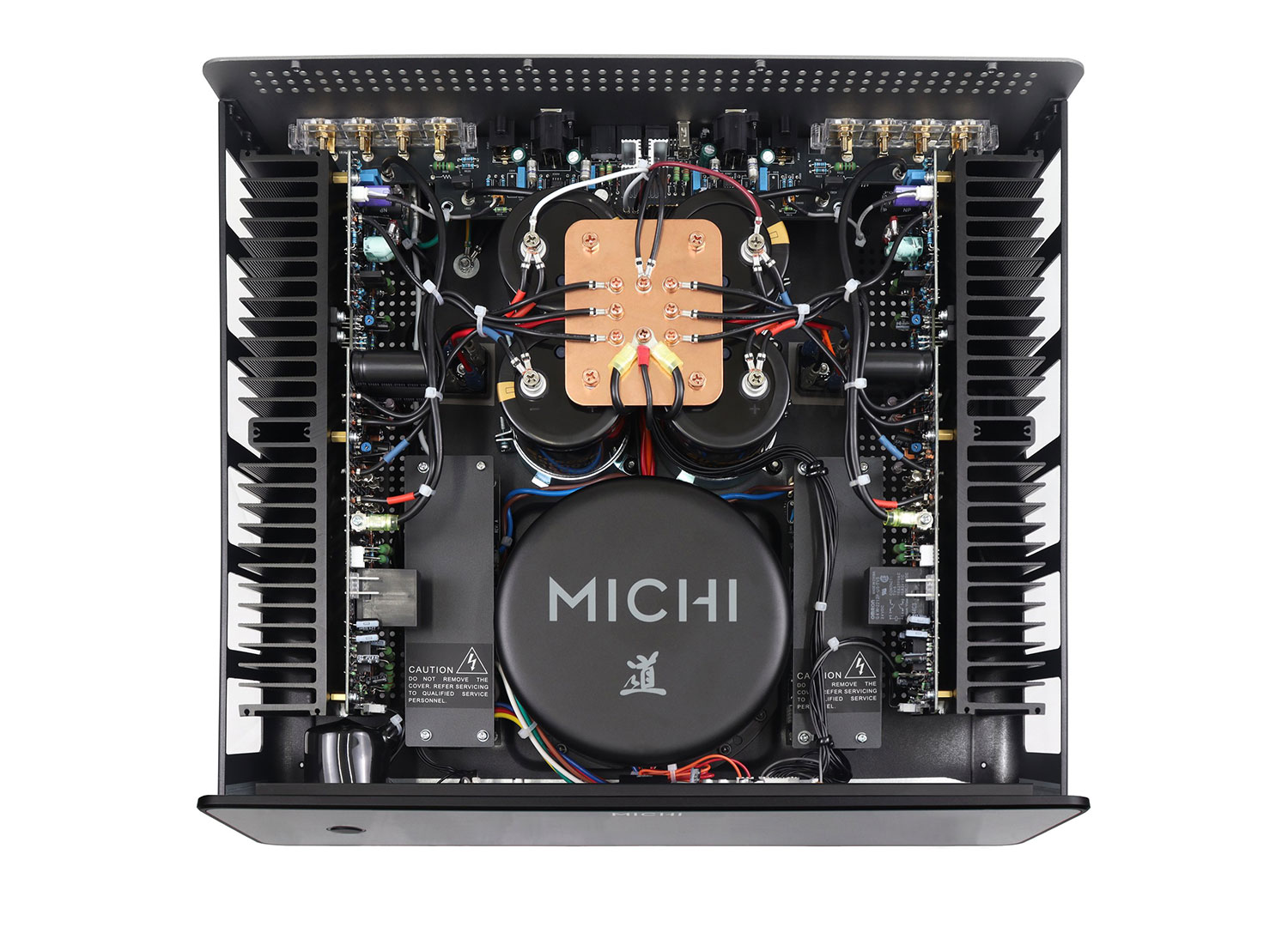

An in-house manufactured toroidal transformer and isolated power supply architecture are designed to minimize noise and distortion.
- Roon Tested
Certified Roon Tested for integration with the Roon music platform.
Technical Specifications
Amplifier Section
- Power Output (FTC): 220W/Ch, 8Ω
- Maximum Power Output (Non-FTC): 340W/Ch, 4Ω
- Continuous Power Output (Non-FTC): 210W/Ch, 8Ω
- Amplifier Design: Class AB
- Total Harmonic Distortion (THD): <0.03%
- Intermodulation Distortion: <0.03%
- Damping Factor: 260 (20Hz–20kHz, 8Ω)
- Channel Separation: >55dB
Frequency Response
- Line Level Inputs: 10Hz–100kHz (+0dB, -0.5dB)
- Digital Inputs: 10Hz–20kHz (+0dB, -0.4dB, Max)
- Phono Input: 20Hz–20kHz (+0dB, -0.5dB)

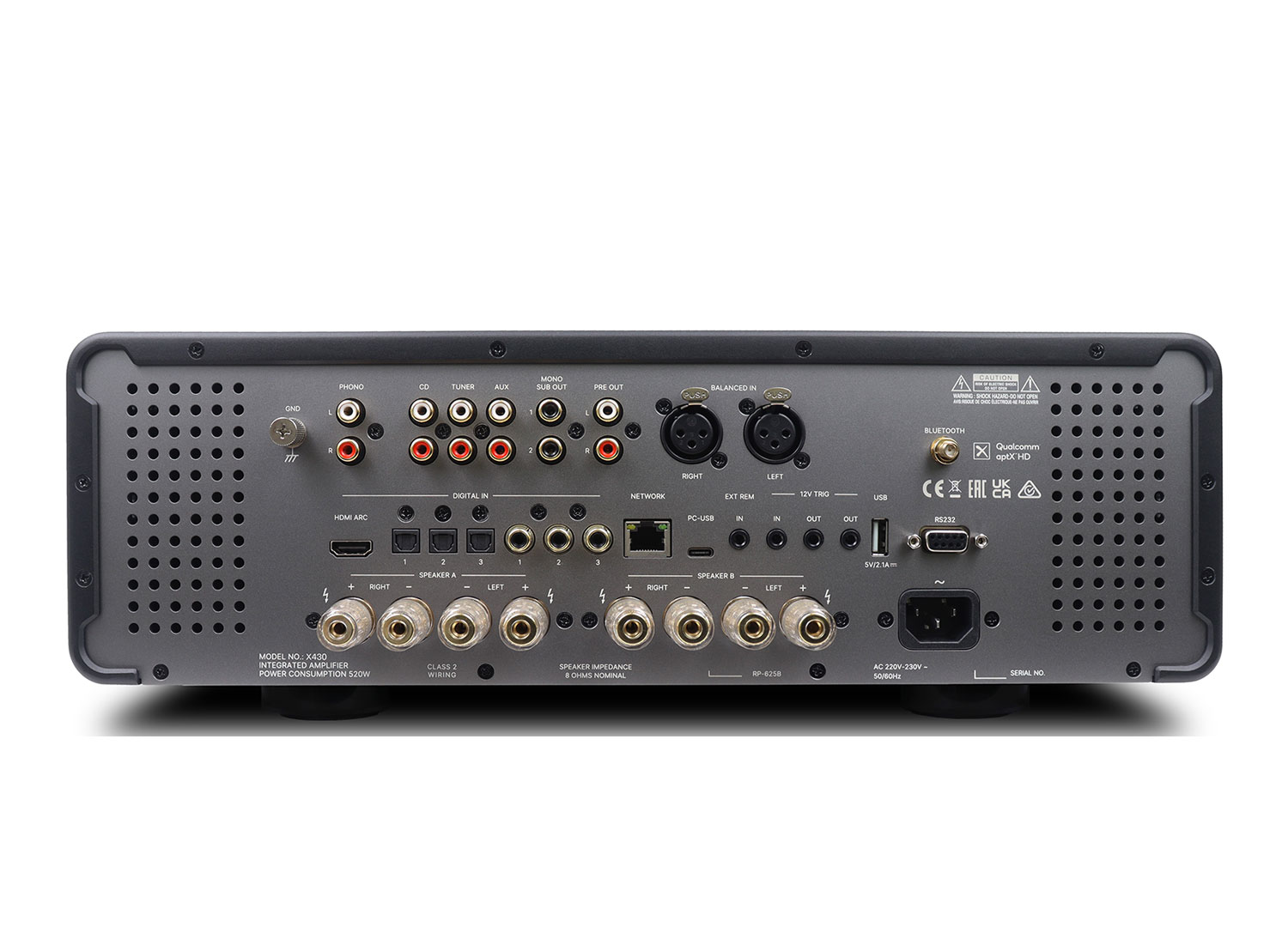

Analog Inputs
- Phono Input: Moving Magnet (MM)
- Line Level Inputs (RCA): 3 pairs
- Balanced Line Input (XLR): 1 pair
Digital Inputs
- Coaxial Digital Inputs: 3
- Optical Digital Inputs: 3
- PC-USB: USB Audio Class 2.0
- Bluetooth: aptX HD and AAC
- HDMI ARC: 1
Digital Audio
- Digital-to-Analog Converter: ESS ES9039Q2M DAC
- Coaxial/Optical: SPDIF LPCM up to 24-bit/192kHz
- PC-USB PCM: Up to 32-bit/384kHz
- DSD: Up to DSD256 / 11.2MHz
- DoP: Up to DSD128 / 5.6MHz
- HDMI ARC: 2-channel PCM up to 24-bit/48kHz
- Roon Tested: Yes
Analog Outputs
- Speaker Outputs: Two sets, A/B user-selectable
- Subwoofer Outputs: 2
- Preamp Output: 1.92V / 100Ω
- Line Output: 1
- Balanced Output (XLR): 1 pair
- Digital Output: 1
Signal-to-Noise Ratio
- Phono Input: >80dB
- Line Level Inputs (RCA): >105dB
- Line Level Inputs (XLR): >100dB
- Digital Inputs: >110dB
Input Sensitivity / Impedance
- Phono Input (MM): 5.56mV / 47kΩ
- Line Level Inputs (RCA): 356mV / 100kΩ
- Line Level Inputs (XLR): 743mV / 50kΩ
Tone Controls
- Bass: ±10dB at 100Hz
- Treble: ±10dB at 10kHz
Control & Connectivity
- Network Connection: 1
- RS232: 1
- 12V Trigger: Input/Output
- External IR Remote Input: 1
- Rear USB: For software updates
- Remote Control: Included
General
- Power Requirements: 230V, 50Hz
- Power Consumption: 520W
- Standby Power Consumption: <0.5W
- Network Wakeup: <2W
- BTU Rating: 1476 BTU/h
- Dimensions (W × H × D): 431 × 148 × 422mm
- Front Panel Height: 132mm
- Net Weight: 16.9kg
- Finish: Black
