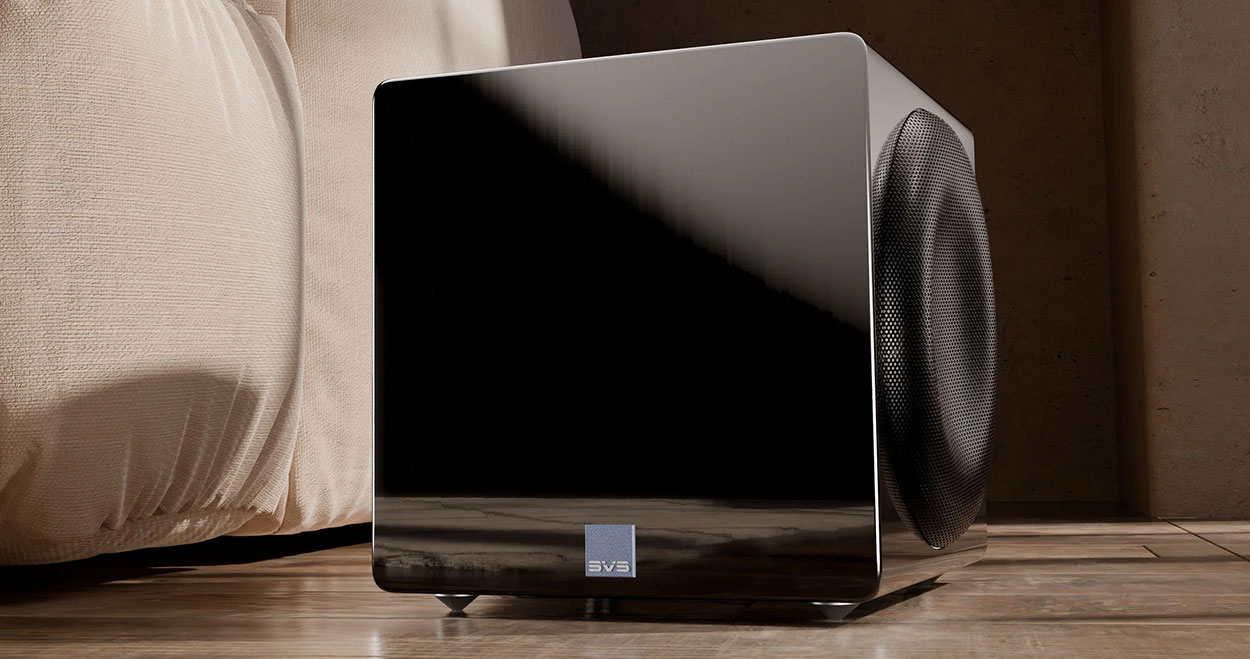

The SVS 3000 Micro R|Evolution brings reference-level subwoofer performance into an exceptionally compact 11-inch cabinet. Featuring dual opposing 9-inch long-throw active drivers, a 1,200-watt continuous Class D amplifier, and advanced 295 MHz DSP processing, it delivers deep, powerful and highly controlled bass extension down to 20Hz. Designed for both high-end 2-channel music systems and home theater, the 3000 Micro R|Evolution combines remarkable output, low distortion and musical precision in a compact enclosure that fits almost anywhere.

Feature Highlights

• Reference Performance in a Micro Form:
  Delivers powerful, authoritative bass extension down to 20Hz from an exceptionally compact 11-inch cabinet.
• Dual Opposing 9-inch Active Drivers:
  Two high-excursion drivers fire in opposite directions to generate massive output while mechanically cancelling cabinet vibrations for exceptionally clean bass.
• 1,200-Watt Class D Amplifier:
  The SVS R|Evolution amplifier provides 1,200 watts of continuous power and more than 4,000 watts of peak power for effortless dynamic performance.
• 295 MHz Advanced DSP:
  A high-resolution Analog Devices DSP provides more than five times the processing power of previous-generation SVS subwoofers for precise control, tuning and real-time power management.
• SVS Subwoofer Control App:
  Bluetooth control provides convenient adjustment of volume, low-pass filter, phase, polarity, six parametric EQs, room gain compensation and power management directly from a compatible mobile device.
• SVS Auto Room EQ:
  Automatically measures the acoustic response of the subwoofer in the room and calculates precision equalization filters to optimize performance at the listening position.
• Sealed Cabinet Design:
  A heavily reinforced MDF enclosure with internal bracing and acoustic insulation provides a rigid, resonance-resistant cabinet for accurate and controlled bass reproduction.
• Balanced XLR and RCA Inputs:
  Provides both balanced XLR and unbalanced RCA connectivity for integration with consumer, high-end audio and professional audio systems.
• Low-Distortion Driver Technology:
  Advanced motor, voice coil, suspension and aluminum cone technologies maintain linearity and control during extreme excursion.
• Compact Lifestyle-Friendly Design:
  The compact enclosure measures less than 12 inches in every dimension, allowing powerful subwoofer performance to fit discreetly into a wide range of rooms and systems.

Key Features

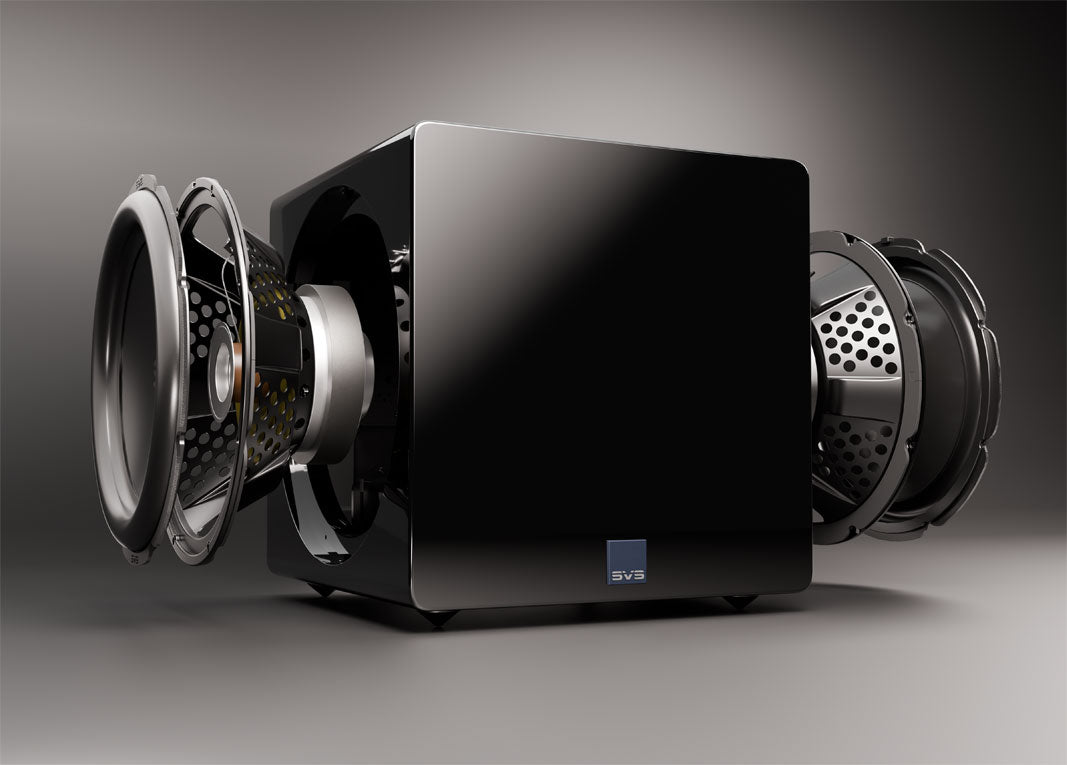

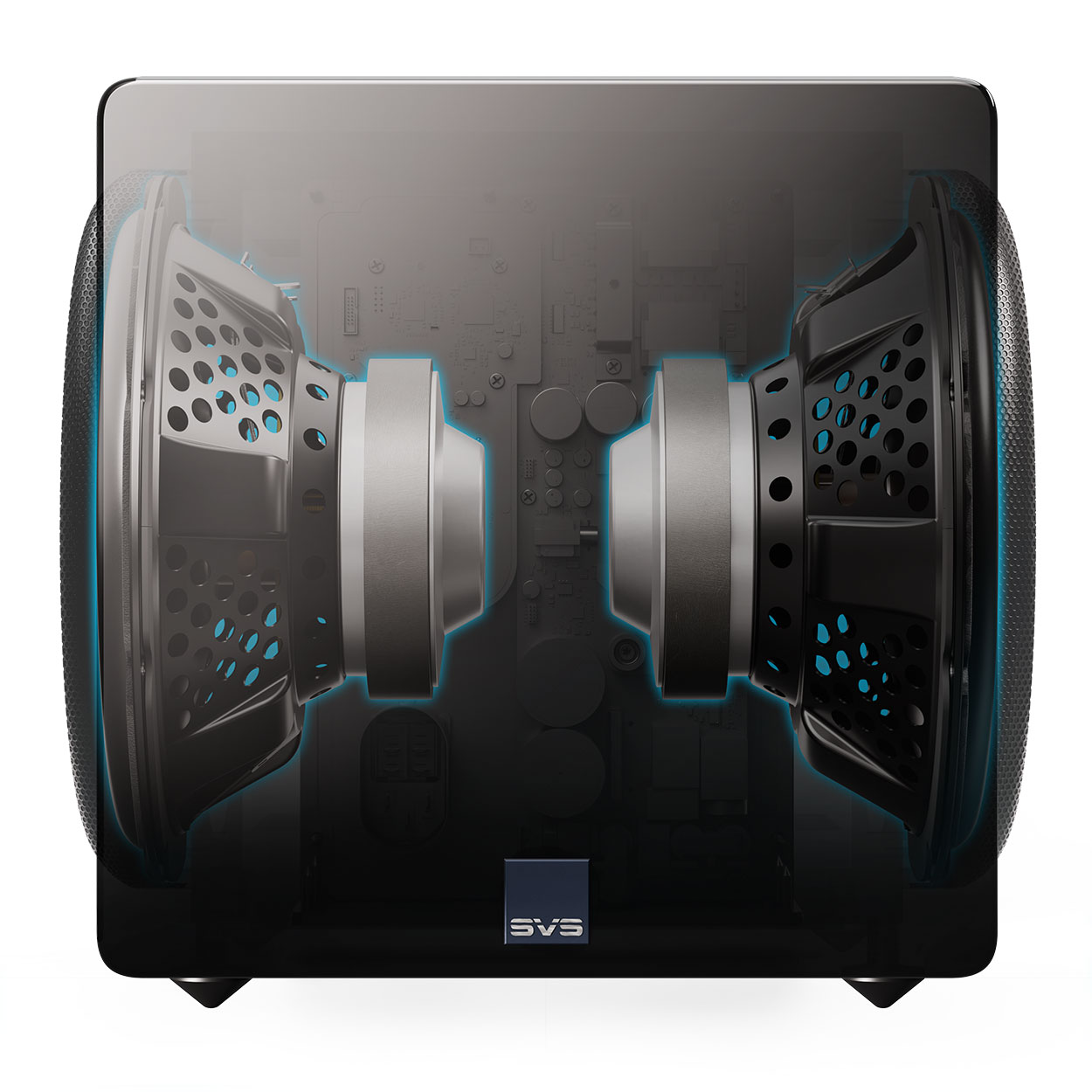

• Force-Balanced Dual Opposing Drivers:
  The two side-firing 9-inch active drivers operate acoustically and electrically in parallel. Their opposing configuration cancels mechanical forces to minimize cabinet vibration and deliver clean, controlled bass.
• High-Excursion 9-inch Drivers:
  Each driver features a 27.3mm Xmax and 32.6mm Xmech excursion capability, allowing the compact enclosure to move substantial amounts of air at very low frequencies.
• SVS R|Evolution Amplifier:
  The STA-1200D2 amplifier combines Class D efficiency with fully discrete MOSFET output stages, delivering high current and precise control to both active drivers.
• Advanced Power Supply:
  A digitally controlled switch-mode power supply maintains a regulated 160V rail voltage while monitoring AC input conditions for consistent amplifier performance.
• 56-bit Digital Audio Processing:
  Premium digital processing and DAC technology provide greater headroom, low noise and high signal integrity with more than 120dB signal-to-noise ratio.
• Comprehensive DSP Control:
  The DSP continuously monitors amplifier power, driver excursion and current thousands of times per second to maintain optimized output, efficiency and protection.

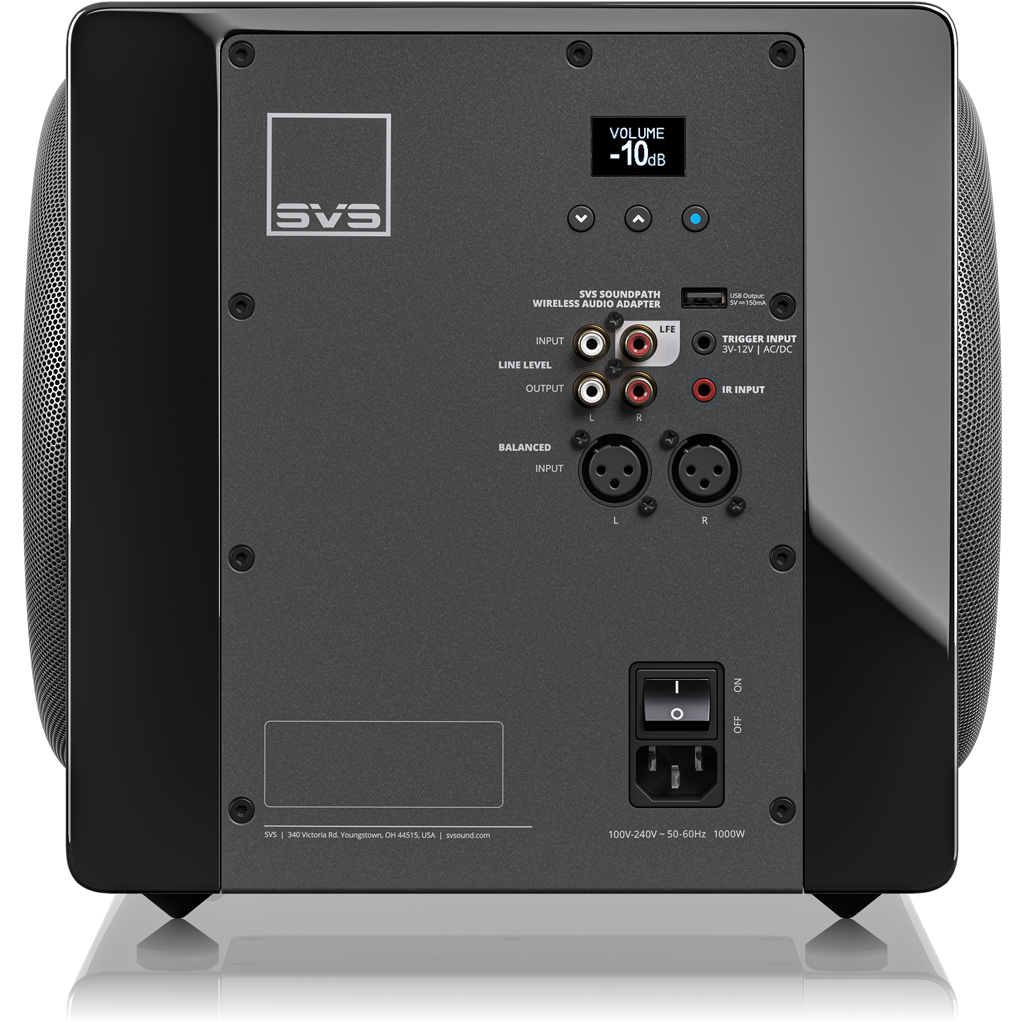

• Rear OLED Control Interface:
  The rear-panel OLED display and control interface provide direct access to important settings, including a convenient Display Flip function.
• Wireless Audio Ready:
  A USB connection can provide power to the optional SVS SoundPath Wireless Audio Adapter, allowing wireless connection from a compatible source component.
• Flexible System Integration:
  A 3.5mm trigger input and IR input provide convenient integration with home theater, custom installation and control systems.

Technical Specifications

• Type:
  Sealed powered subwoofer
• Frequency Response:
  20Hz – 230Hz ±3dB
• Drivers:
  Dual opposing 9-inch long-throw active drivers
• Driver Configuration:
  Side-firing, acoustically and electrically in parallel
• Maximum Linear Excursion:
  27.3mm Xmax
• Maximum Mechanical Excursion:
  32.6mm Xmech
• Amplifier Type:
  Class D with fully discrete MOSFET output stage
• Continuous Amplifier Power:
  1,200 watts
• Peak Amplifier Power:
  4,000+ watts
• DSP:
  295 MHz Analog Devices Audio DSP with 56-bit digital filtering
• Signal-to-Noise Ratio:
  More than 120dB
• THD+N:
  Less than 0.05% at rated power
• RCA Input:
  Unbalanced RCA, 10kΩ input impedance, compatible with inputs up to 4Vrms
• XLR Input:
  Balanced XLR, 18kΩ input impedance, compatible with inputs up to 4Vrms / +14dBu
• Trigger Input:
  3.5mm trigger input, 3–12V AC/DC
• IR Input:
  3.5mm IR input for integration with compatible control systems
• Standby Power Consumption:
  0.5 watts
• Dimensions:
  10.9" H × 11.8" W × 10.8" D (278 × 298.8 × 273.6mm), including grilles
• Weight:
  22.5 lbs (10.2kg)
• Finish:
  Piano Gloss Black or Piano Gloss White
• Cabinet Construction:
  Reinforced MDF with internal bracing and acoustic insulation
• Grilles:
  Protective non-resonant perforated steel metal mesh grilles
• Control:
  Rear OLED interface and SVS Subwoofer Control App via Bluetooth
• App Compatibility:
  Apple iOS, Google Android and Amazon Fire platforms
• App Equalization:
  Six parametric EQ bands, adjustable low-pass filter, phase, polarity, room gain compensation and SVS Auto Room EQ
• Memory Presets:
  Three user memory presets
• Included Accessories:
  Isolating elastomer feet, heavy-duty 6-foot power cord and Quick Start Guide
