Product Power Amp Klipsch Klipsch KA-1000-THX
Category : Power Amp
Add to wishlist     สถานะสินค้า In Stock
Klipsch KA-1000-THX
Klipsch KA-1000-THX
80,000 THB.
สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

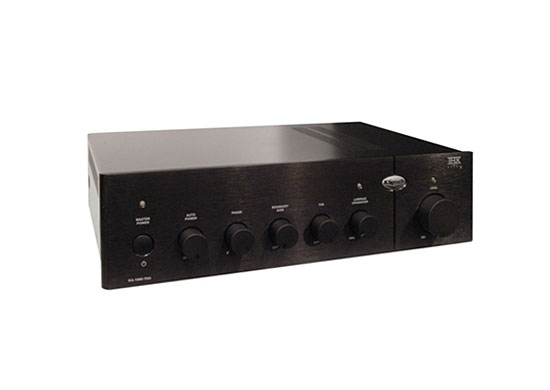

Klipsch KA-1000-THX
1,000-Watt THX Ultra2 Certified Subwoofer Amplifier

The KA-1000-THX subwoofer amplifier is the powerful driving force behind the new Klipsch THX® Ultra2 system. This model offers rock-solid dependability under the most demanding conditions and allows listeners to experience all the power, detail and emotion of their favorite music and movies.


  • Delivers 1000-watts into a 4 ohm load
  • Can support two high performance subwoofers
  • Finished in black with a machined aluminum front panel and knobs

Designed exclusively for use with Klipsch KW-120-THX subwoofers, the KA-1000-THX is a THX Ultra2 certified monoblock power amplifier capable of 500 watts continuous output into 8 ohms (a single KW-120-THX subwoofer, for example) or 1,000 watts continuous into 4 ohms (two parallelconnected KW-120-THXs). It incorporates front-panel controls for level, crossover frequency, phase, and room-gain ompensation.

The crossover can be bypassed to feed the amplifier directly from the subwoofer output of an A/V preamplifier, processor, or receiver. Line-level input and output connections are via gold-plated left/right RCA jacks. The amplifier has two parallel-wired speaker outputs with
NL2 SpeakOn™ jacks for correct, secure cable connections.


ENCLOSURE TYPE Use only with KW-120-THX subwoofer enclosures (either one or two)
AMPLIFIER High-Efficiency Class D
AMPLIFIER POWER FTC Rated Power: 500W into 8 ohms,
1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD
Dynamic Power: 2050W into 8 ohms,
3025W into 4 ohms @ 5% THD
AUTO POWER ON 2 second ON delay, 15 minute OFF delay
LOW PASS CROSSOVER Continuously variable from 40-120Hz,
24dB/octave slope above 120Hz
(non-THX mode)
INPUTS 2 Gold-plated RCA phono jacks
OUTPUTS 2 Gold-plated RCA phono jacks (unfiltered) /
2 Speakon® NL2 jacks
PHASE Continuously variable from 0 to 180 degrees
DIMENSIONS 4.75" (12.1cm) H x 17.5" (44.5cm) W x
12.25" (31.1cm) D
WEIGHT 27 lbs. (12.3kg)
FINISH Black anodized aluminum
VOLTAGE 110/120 VAC 60Hz
FEATURES THX On/Off, Boundary Gain
Compensation On/Off
