Product CD Player Esoteric K-03 (SILVER)
Esoteric
ESOTERIC :
K-03 (SILVER)
Category : CD Player
Add to wishlist     สถานะสินค้า In Stock
K-03 (SILVER)
K-03 (SILVER)
K-03 (SILVER)
K-03 (SILVER)

PRICE :
349,000 THB.
SPECIAL :
239,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน

  • Overview
  • Specifications

ESOTERIC K-03 (SILVER)


ESOTERIC releases the K-01, the flagship model of our all-in-one advanced D/A converter and Super Audio CD/CD player series, capitalizing on ESOTERIC's state-of-the-art technology and derived from our award winning P-01/D-01 series separates. It has been seven years since the debut of the original X-01, with its high-precision and high-rigidity VRDS-NEO SACD/CD transport mechanism. The X-01/X-03 series, which have stayed at the top of ESOTERIC's all-in-one SACD/CD player lineup, have been completely updated and make their debut as the all-new "K" series in November 2010.

The design concept of the K series is extremely clear and simple -- a 2-channel D/A converter and stereo player that gives a stress-free musical experience, without adding or removing anything from the original source material. All aspects of the design and engineering process for the K series had extremely tough requirements to further advance ESOTERIC's top technology. Design and engineering was completed applying all of ESOTERIC's know-how in mechatronics technology, state-of-the-art audio technology, and evolutionary materials including DAC implementation, for which cost was not a consideration. The K series is committed to advancing the "state of the art" for the 2 channel audio purist, for both high resolution audio files and disc based audio playback applications.

The K-03 is equipped with our new VRDS-NEO "VMK-3.5-10" mechanism, which has further advanced substantially beyond existing VRDS models, and a dual mono configuration of 32-bit monaural D/A converters with four parallel/differential DAC circuits per channel. The analog audio circuit has a separate power transformer. The on-board high-precision clocking circuit has also been advanced. Three sets of 192 kHz/24-bit digital inputs supporting the most advanced high-sampling digital sources are also built-in. USB driver software supports 192 kHz/24-bit asynchronous transmission for connecting with a PC.

The K-03 is a high performance model that follows the philosophy of the top-end all-in-one K-01 digital source, 2-channel playback device.

Compatible disc types Super Audio CD, CD (CD-R/CD-RW compatible)

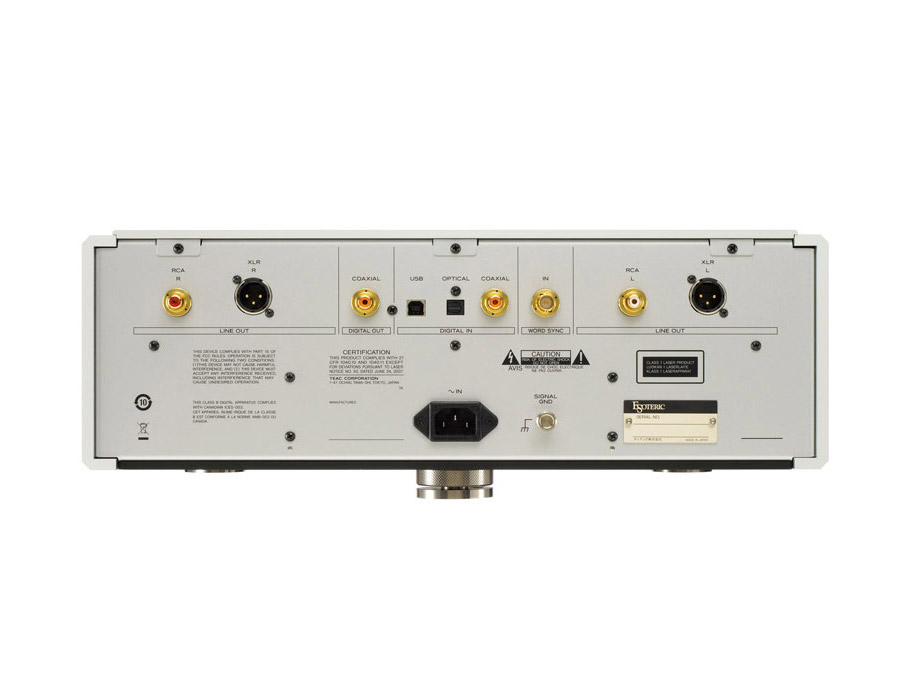

Analog audio output Jacks
  • XLR jacks (2 channel) x 1
  • RCA jacks (2 channel) x 1
  Output impedance
  • XLR: 100 ohms
  • RCA: 47 ohms
  Maximum output level
(1 kHz, full scale, 10 k ohms)
  • XLR (Gain: 0 dB): 2.45 Vrms
  • RCA: 2.45 Vrms
  Frequency response 5 Hz to 55 kHz ( 3 dB)
  Signal-to-noise ratio (S/N) 115 dB
  Total harmonic distortion 0.0015% (1 kHz)
Digital audio output Coaxial RCA jack x 1 0.5 Vp-p/75 ohms
Digital audio input Coaxial RCA terminal x 1 (input impedance 75 ohms)
  Optical digital terminal x 1 24.0 to 14.5 dBm peak
  USB port ? ? ? ?B connector USB 2.0 / 192 kHz-24 bit async.
Word synchronization input format Jack BNC
  Input impedance 75 ohms
  Input level
  • Rectangle wave: equivalent to TTL levels
  • Sine wave: 0.5 to 1.0 Vrms/50 to 75 ohms
The K-03 can accept and synchronize to the following frequencies received from external
clock devices: 44.1 kHz, 88.2 kHz, 176.4 kHz, 10 MHz
(the accuracy of locking range limited within ?15 ppm)
D/A Converter K-03 32bit AK4399 x4 DACs / per channel
General Power supply
  • AC 230 V, 50 Hz
  • AC 120 V, 60 Hz
  • AC 220 V, 60 Hz
  Power consumption 27 W
  External dimensions (W x H x D) 445 x 162 x 438 mm
(17 1/4" x 6" 3/8 x 13 1/4")
(including protrusions)
  Weight 28 kg (61 3/4 lbs)
  Accessories
  • Remote control unit (RC-1156) x 1
  • Batteries (AA) x 2
  • Power cord set x 1
  • Felt pads x 3
  • Owner's manual x 1
  • Warranty card x 1
