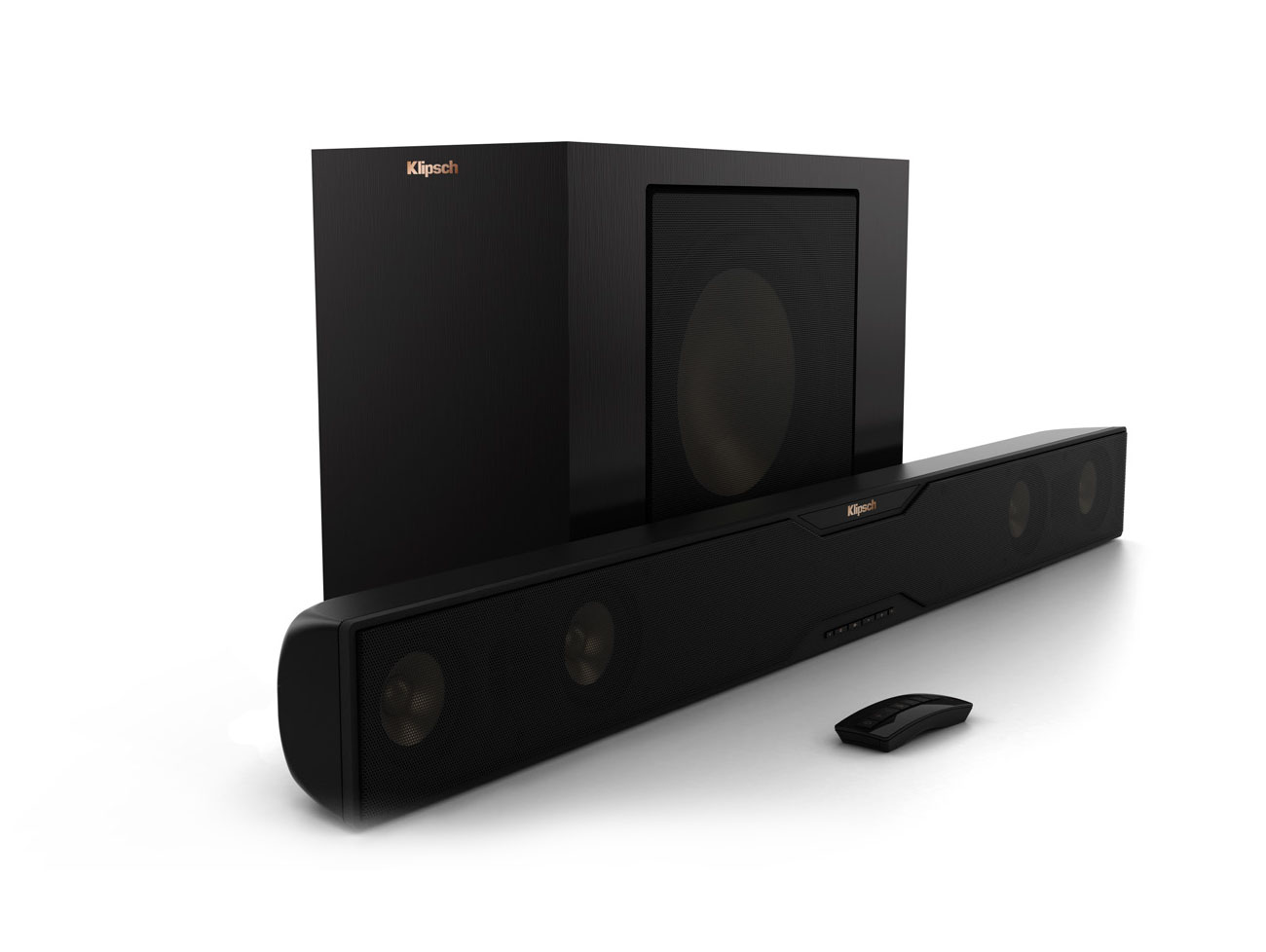

Klipsch R-20B (SOUNDBAR)
A soundbar should be more than just a larger and louder version of the diminutive TV speakers it is replacing. Another primary function should be to increase sonic details, especially in the midrange frequency area and above, in order to significantly improve dialogue clarity that is extremely lacking with most of today’s flat panel TVs.
The Klipsch Reference R-20B addresses this need with a proven technology consistently refined over Klipsch’s legendary 68 years plus loudspeaker experience: horn-loading.
BETTER SOUND THROUGH TECHNOLOGY
Klipsch Reference soundbars are designed to quickly connect to your television for an instant home theater solution. The built-in Dolby® Digital Decoder takes over and allows Klipsch Reference soundbars to automatically reproduce detailed, high-output sound in almost any size room no matter what format of sound is coming from the TV’s output.
EASY PLUG AND PLAY SET UP WITH DOLBY®DIGITAL DECODING
The Klipsch Reference R-20B soundbar is designed to quickly connect to most TVs. An included digital optical cable connects to your TV’s digital output to the back of the soundbar. For the few TVs without an optical audio output, there is a 2-channel analog input. Once connection to your TV is made, you just plug the soundbar into a standard electrical outlet and turn it on. The built-in Dolby Digital Decoder takes over and allows the Klipsch Reference R-20B to automatically reproduce detailed,
high-output sound in almost any size room no matter what format of sound is coming from the TV’s output.
TRUE 2-WAY SOUNDBAR
Two 3/4” horn loaded textile dome tweeters with 90° x 90° Tractrix® horns deliver crisp highs. Two 3” polypropylene woofers round out the enhanced sound with crisp vocals and dynamic soundtracks.
With 10” side-firing driver and solid MDF cabinet with a slot-port design for deep, powerful bass.
COMPATIBLE WITH MOST BLUETOOTH® WIRELESS TECHNOLOGY ENABLED DEVICES
Including mobile phones, audio devices and computers for wide-ranging use.
APTX™AUDIO CODING TECHNOLOGY
Enables lossless, high-quality music streaming.
DOLBY® DIGITAL DECODER
Allows the soundbar to automatically reproduce detailed, high-quality sound no matter what format of sound is coming from the TV’s output.
3-D SURROUND MODE
Delivers simulated surround sound for immersive listening.
2.4 GHZ TECHNOLOGY
Automatically connects the soundbar and subwoofer together wirelessly.
1 optical digital and 1 dual RCA analog.
REMOTE CONTROL FLEXIBILITY

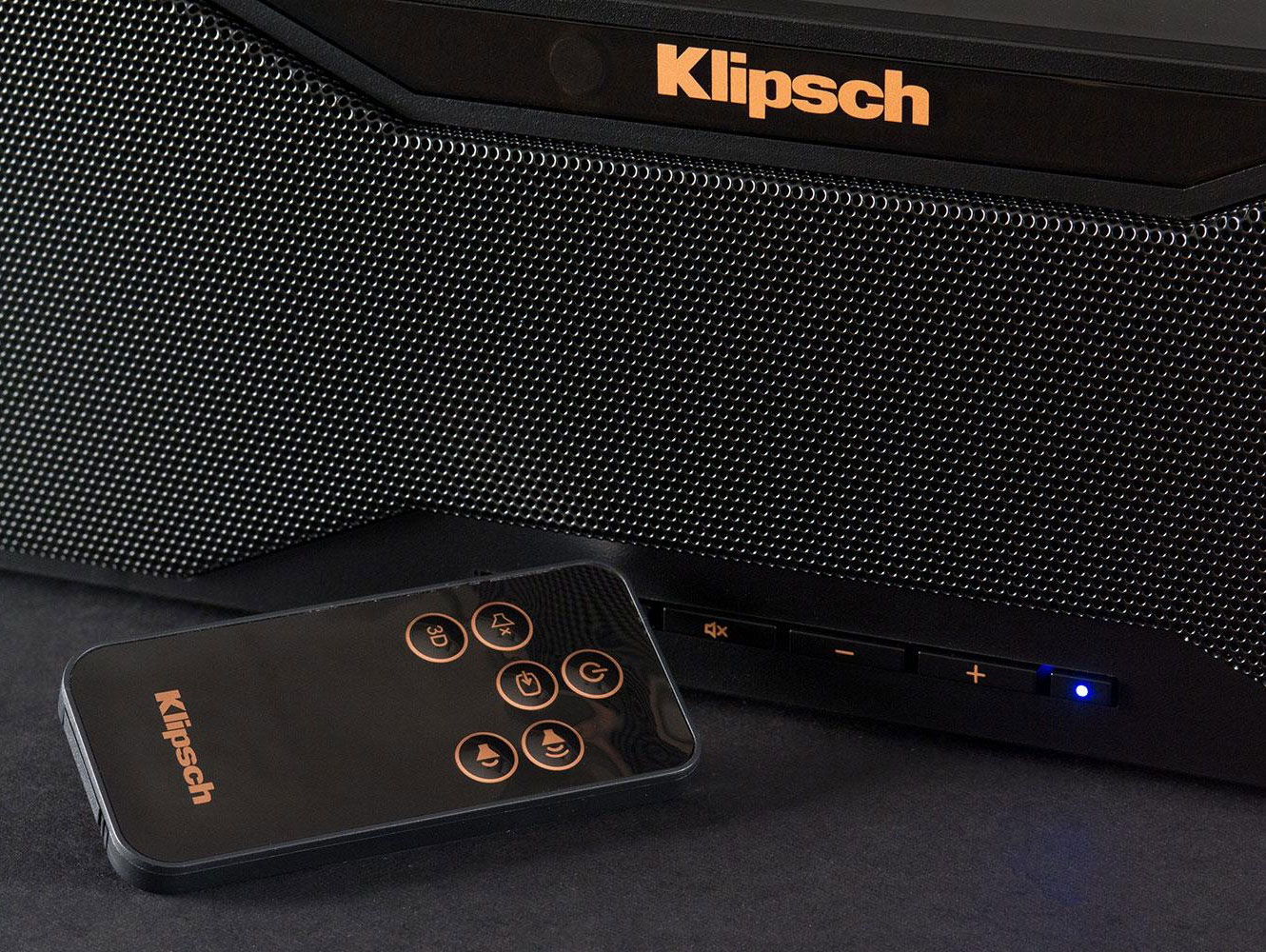

Easily program your existing remote control, or use the included ergonomic remote.
Distinctive Klipsch Reference copper cones and detailing make the Klipsch Reference R-20B a quality statement piece.
REMOVABLE FEET AND KEYHOLE MOUNTS
Allows you set the soundbar in front of your television or mount
|SPEAKER SYSTEM||2-way soundbar with 10” wireless subwoofer|
|PEAK AMPLIFIER OUTPUT||250 Watts peak system power|
|SYSTEM FREQUENCY RESPONSE||27.5Hz – 20kHz +/- 3dB|
|SUBWOOFER FREQUENCY RESPONSE||27.5Hz – 129Hz +/- 3dB|
|MAX ACOUSTIC OUTPUT||113dB|
|TWEETER||Two .75” (19mm) textile dome tweeters mated to dual 90° x 90° Tractrix® Horns|
|MIDRANGE||Four 3” (76mm) polypropylene drivers|

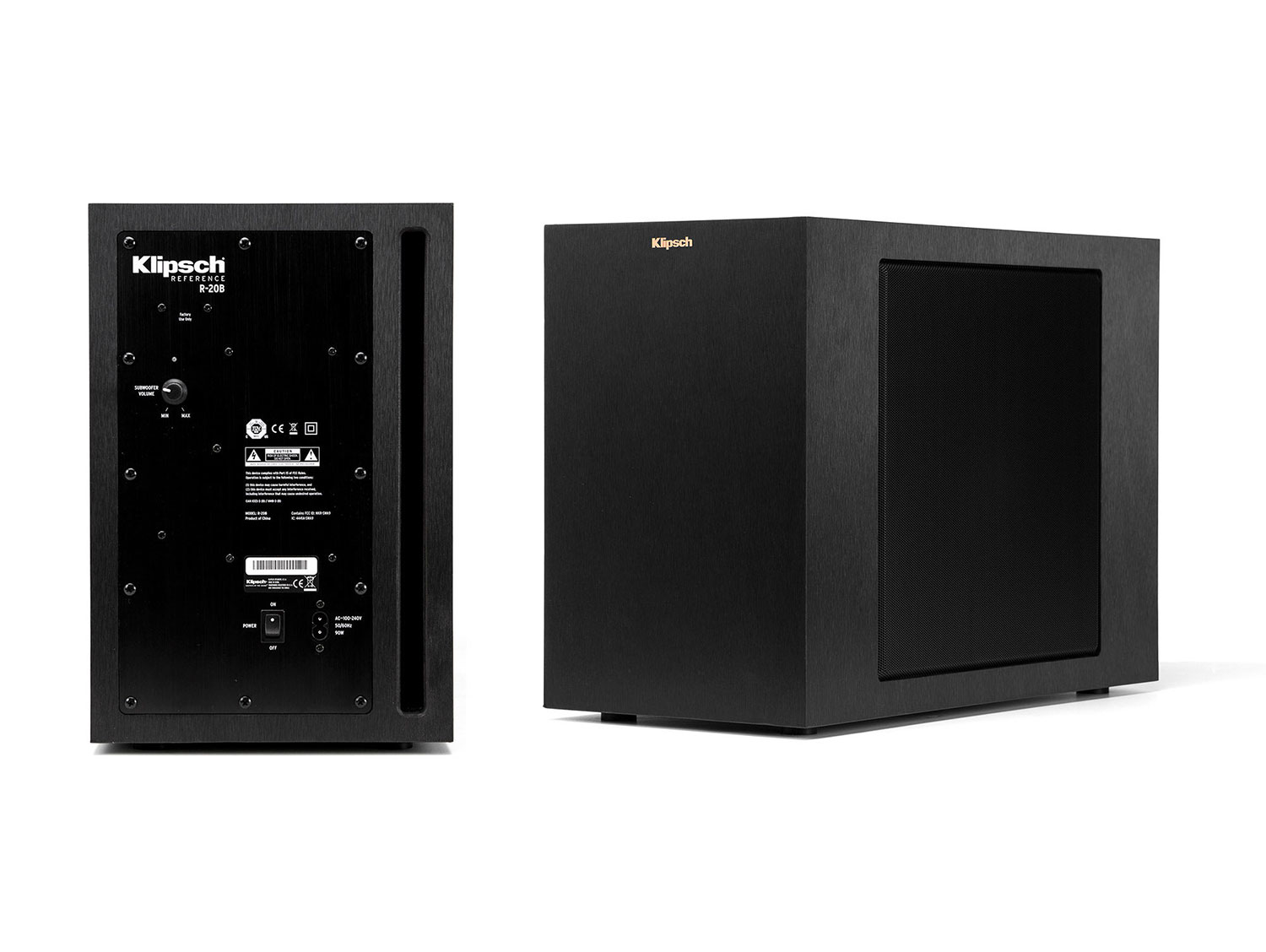

|SUBWOOFER||One 10” (254mm) side-firing fiber composite cone/ported enclosure. MDF cabinet|

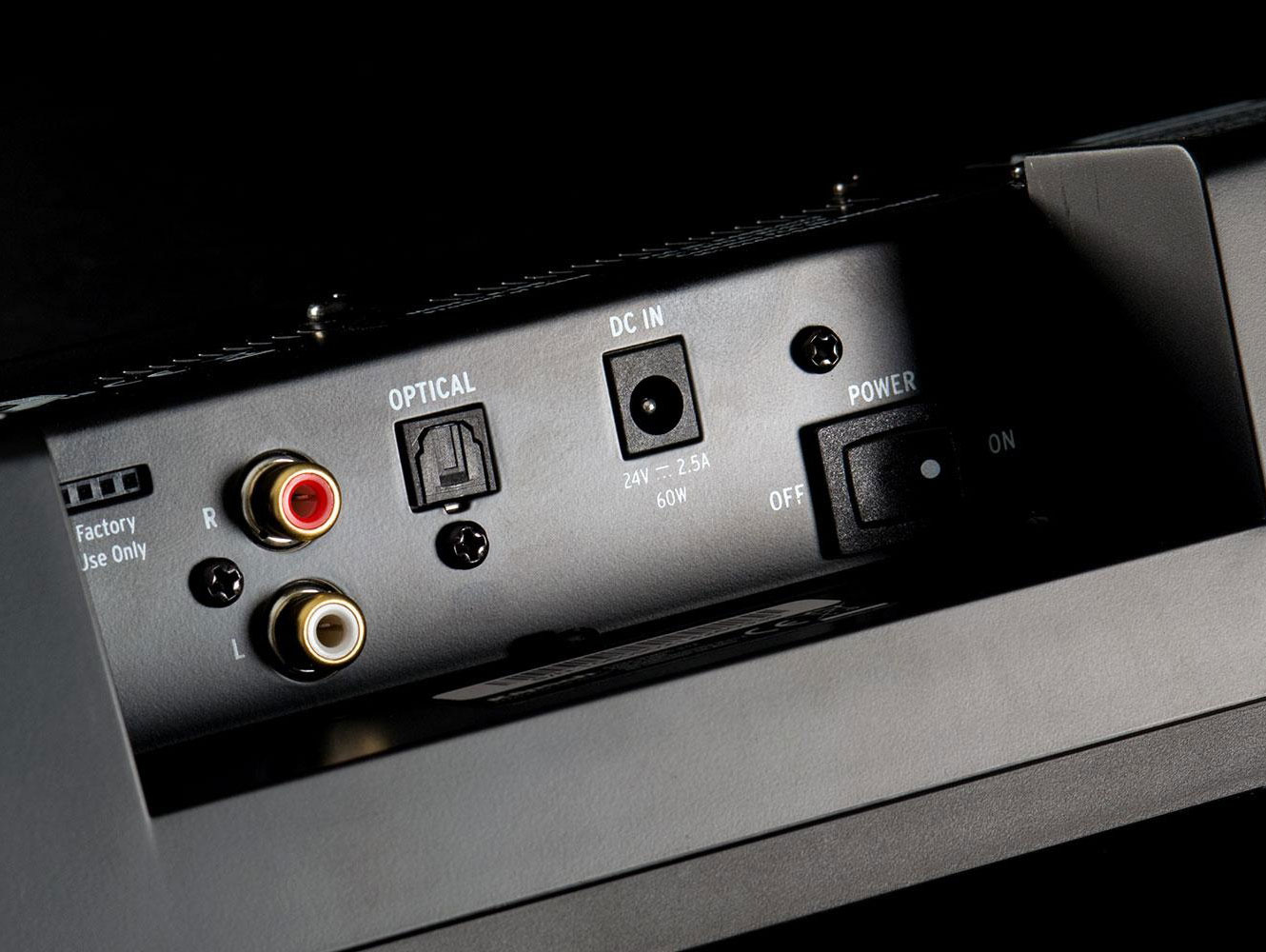

|INPUTS||1 Optical digital, 1 Stereo RCA, Bluetooth® with aptX® audio coding technology|
|SOUNDBAR DIMENSIONS||40” (1015.8mm) W x 2.8” (71mm) D x 4.1” (105.1mm) H|
|SUBWOOFER DIMENSIONS||9.1” (230mm) W x 18” (457mm) D x 13.7” (349mm) H|
|WEIGHT||Soundbar: 8.5 lbs (3.9kg)
Subwoofer: 26 lbs (11.8 KG)
|MAX LOAD WEIGHT||Packaged product 49.4 lbs (22.4 kg)|
|FINISH||Soundbar: Satin black
Subwoofer: Brushed Black Vinyl
Grille: Perforated Metal
|MOUNTING OPTIONS||Two built-in keyhole mounts for wall mounting, also
includes removable rubber feet for tabletop positioning
|INCLUDED ACCESSORIES||One 1.5m optical cable, one pair of rubber feet,
one wall mounting template, one ergonomic
remote control, power supply
