Product D/A Converter MYTEK Brooklyn DAC+ (Silver)
MYTEK
MYTEK :
BROOKLYN DAC+ (SILVER)
Category : D/A Converter
Add to wishlist     สถานะสินค้า In Stock

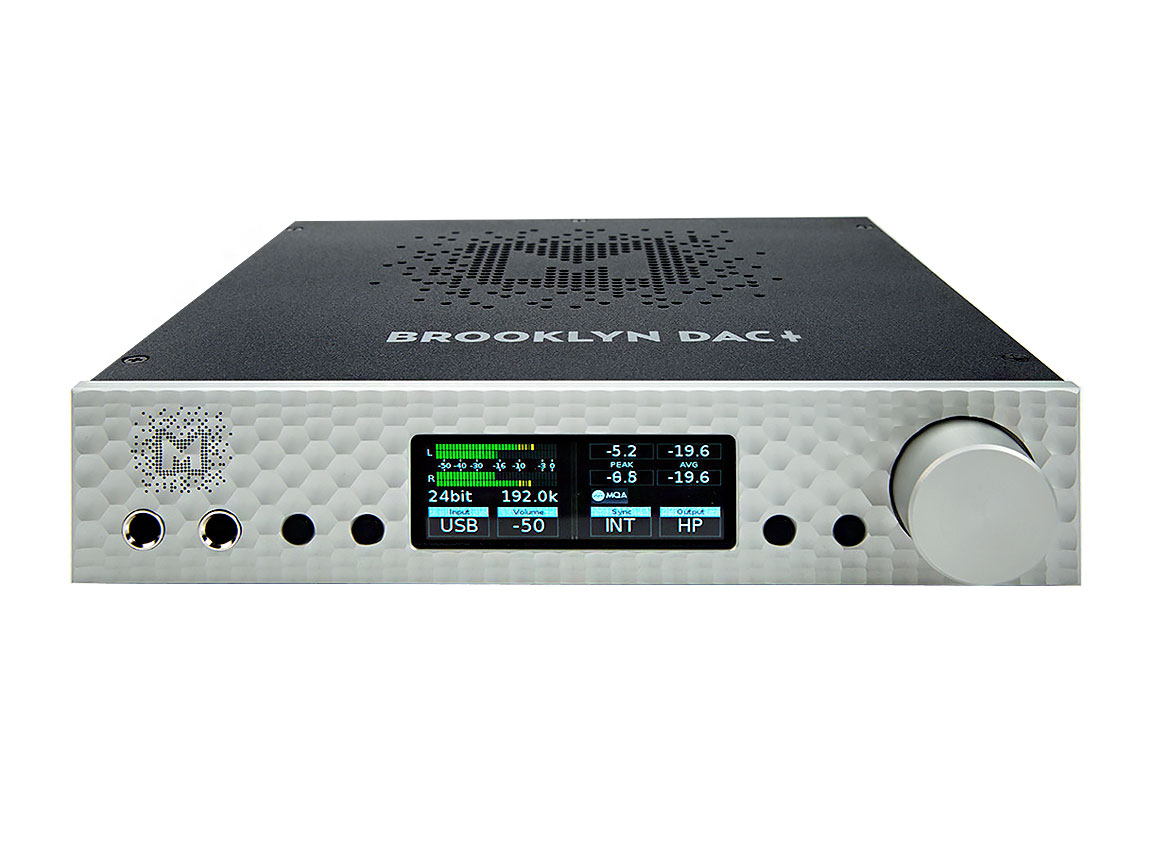

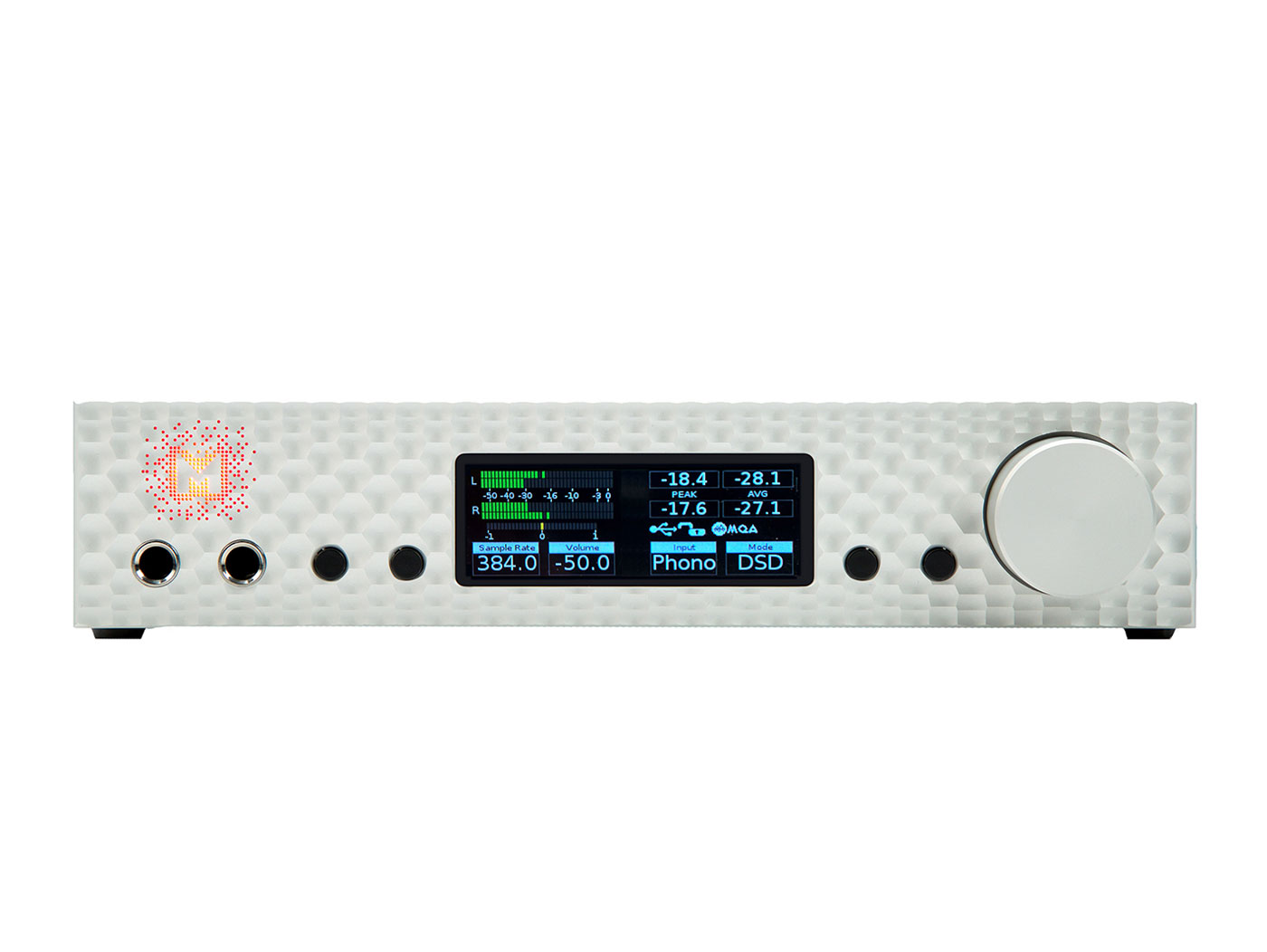

Brooklyn DAC+ (Silver)
Brooklyn DAC+ (Silver)
Brooklyn DAC+ (Silver)
Brooklyn DAC+ (Silver)

PRICE :
85,000 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

MYTEK Brooklyn DAC+ (Silver)

Designed in New York
The only reasonably priced high end DAC with MQA hardware decoder needed to hear full original resolution of Tidal Masters

http://staff-p2.piyanas.com/images/20180709/BURIKnHi_x.jpg

Brooklyn DAC+ is primarily reference USB2 DAC, but also line and phono analog preamplifier and a reference headphone amplifier. It integrates digital and vinyl hi-res playback for reference listening on headphones and speakers. All integrated functions are of the premium grade. Both phono preamplifier as well as a headphone amplifier are of the highest quality, they challenge dedicated units costing thousands of $$.

Brooklyn DAC+ was launched at RMAF 2017 in October 2017 and is now shipping. It replaces Brooklyn DAC which has now been discontinued.

Brooklyn DAC+ features the following improvements as compared to Brooklyn DAC:



  • Sabre 9028 Pro chipset ( 9018 in older model)
  • Higher grade, more transparent and less noisy analog attenuator circuit.
  • Improved analog input performance
  • Improved Phono Stage transparency
  • Improved Headphone Amp sound (more detail, more definition)
  • Dual mono analog path


In other words Brooklyn DAC+ has the same features as Brooklyn DAC but improved sound. It’s not a huge improvement, but noticeable, as Brooklyn DAC is still excellent sounding and best value in the price category when compared to competition.

Brooklyn DAC+ is now in stock and shipping. Brooklyn DAC remaining stock is being sold as well and available while supplies last.


Specifications:


CONVERSION:
up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB Dynamic Range


MQA HI-RES DECODER:
built in certified hardware MQA™ decoder

http://staff-p2.piyanas.com/images/20180709/ieXAzm1u_x.png


DIGITAL INPUTS:
USB2 Class2 (OSX, Linux driverless,
all formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), SDIF3 DSD up to DSD256


CLOCK:
“Mytek Femtoclock Generator™” 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation,
includes mch DSD)


http://staff-p2.piyanas.com/images/20180709/AquL2Yte_x.png

ANALOG OUTPUTS:
RCA, balanced XLR, simultaneous, 50 Ohm impedance


HEADPHONE OUTPUTS:
Reference High Current, High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to drive headphones.

http://staff-p2.piyanas.com/images/20180709/F32efkvW_x.png


BUILT-IN ATTENUATOR:
Choice of 1dB step analog attenuator, separate for main out and head- phones, 1dB step digital 32 bit attenuator and purist relay bypass.


BUILT-IN ANALOG PREAMP:
Line level input or Phono M/M, M/C input, relay controlled.

http://staff-p2.piyanas.com/images/20180709/RJYqARqg_x.png


AUDIO INTERFACE FUNCTION:
All digital inputs can be routed into computer via USB2. Allows connection of external digital sources such as CD Players and digitizing ADCs.


REMOTE:
Included, universal remote capable


FIRMWARE:
Upgradable via USB Control panel


WORLDWIDE POWER SUPPLY


OPTIONAL DC/BATTERY POWER INPUT:
12VDC


DIMENSIONS:
WxDxH=8.5x8.5x1.74”=216x216x44mm


WEIGHT: 4lbs, 2kg

WARRANTY: 2 years
