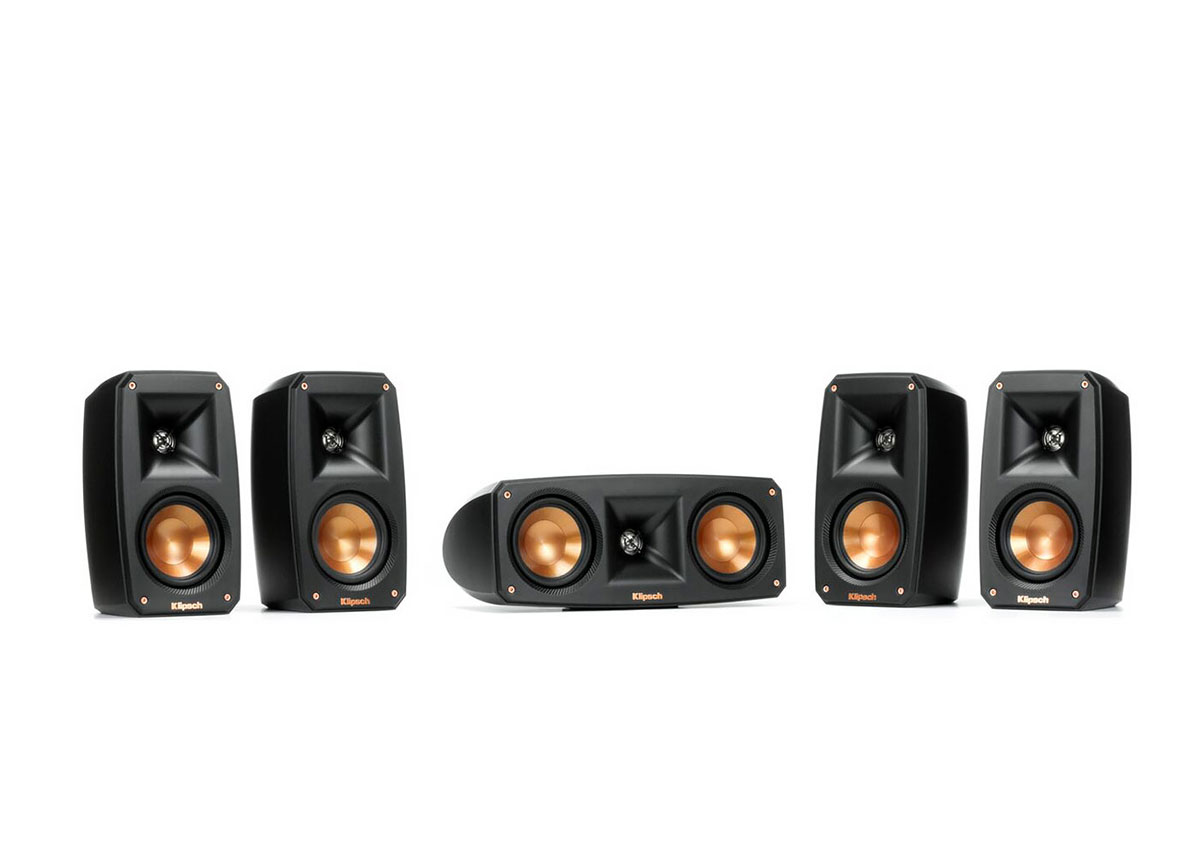

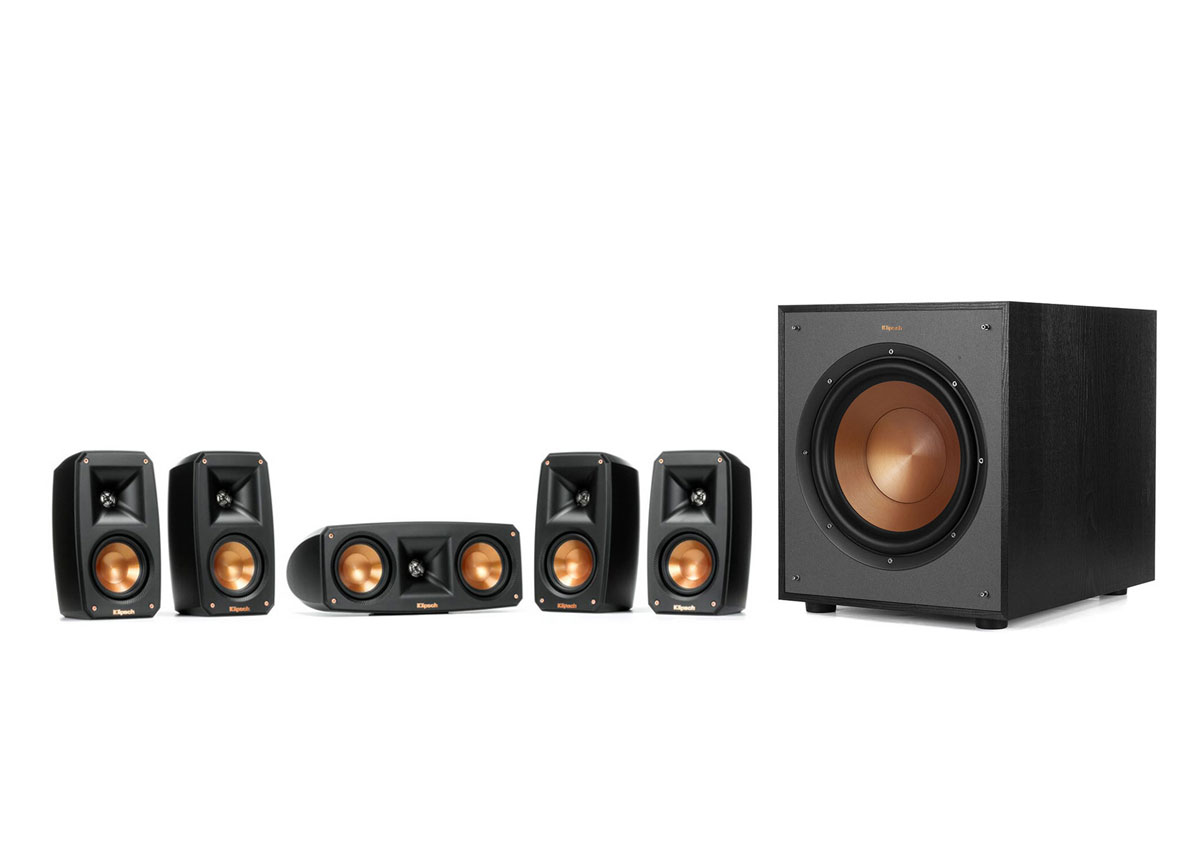

Klipsch Reference Theater Pack 5.0 + R-100SW
The Reference Theater Pack delivers superior acoustic performance by leveraging Injection Molded Graphite (IMG) woofers. These exceptionally lightweight cones are extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion.

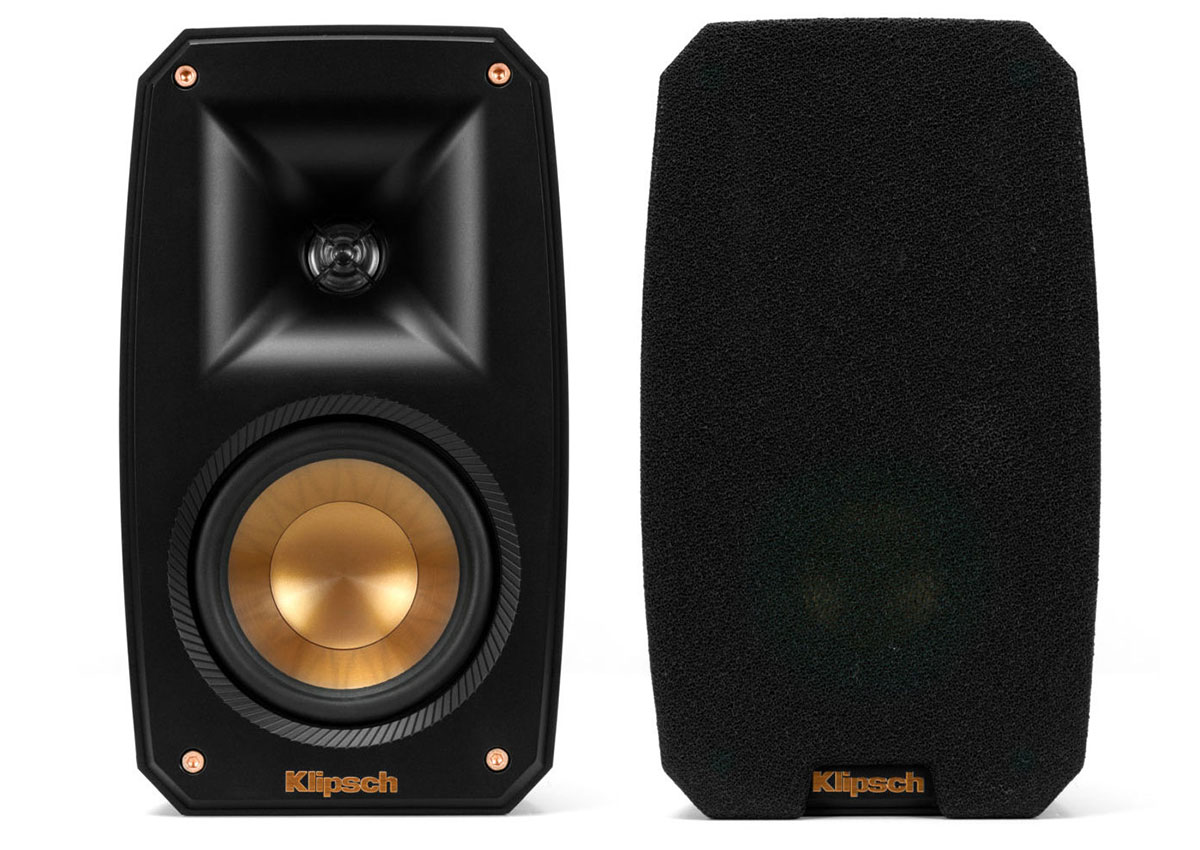

A Linear Travel Suspension (LTS) tweeter minimizes distortion for enhanced, detailed performance. LTS tweeters have been a hallmark of our Reference series product lines, making it a core component of some of the best speakers in the world.
Our exclusive Tractrix Horn Technology and aluminum tweeters deliver the most impressive high-end response and greater extension, enhanced imaging and powerful dynamics. This creates the cleanest, most natural sound possible.

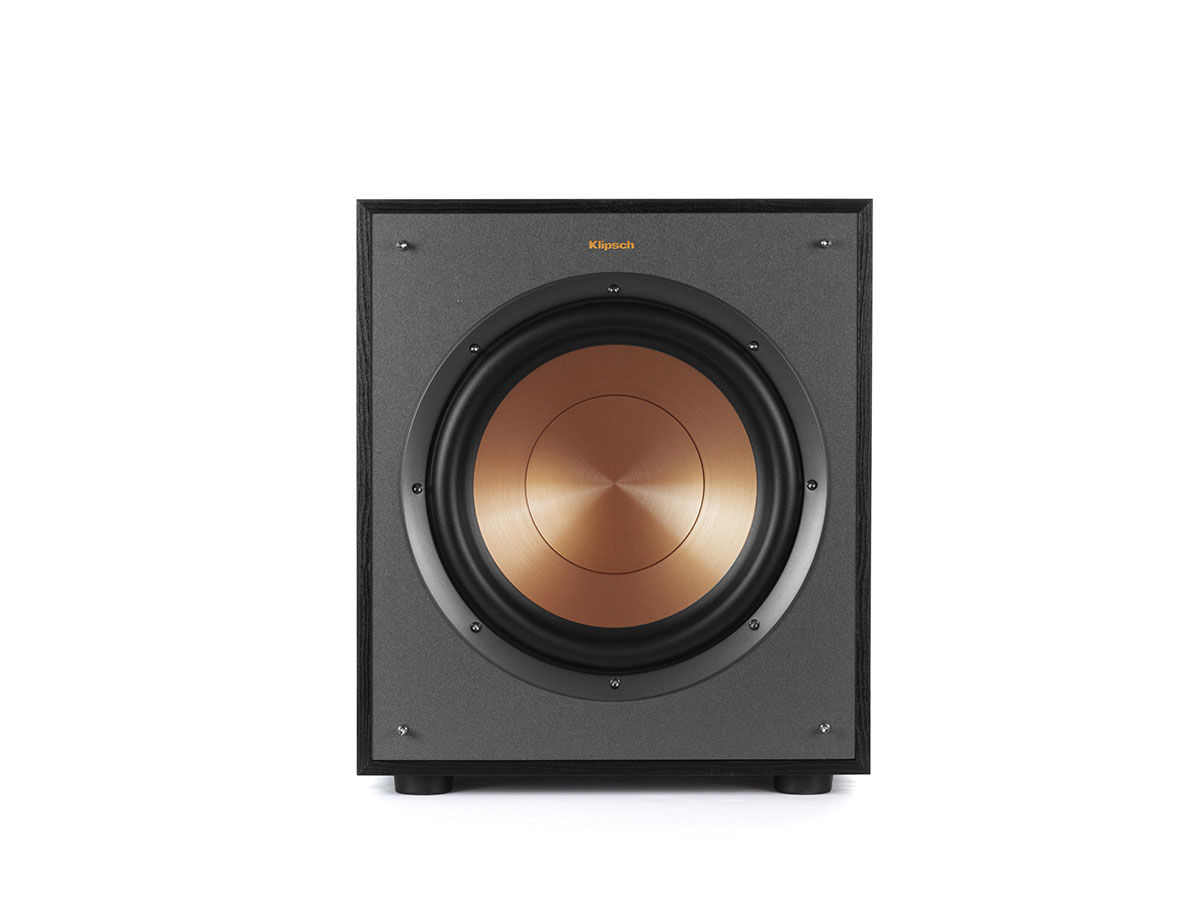

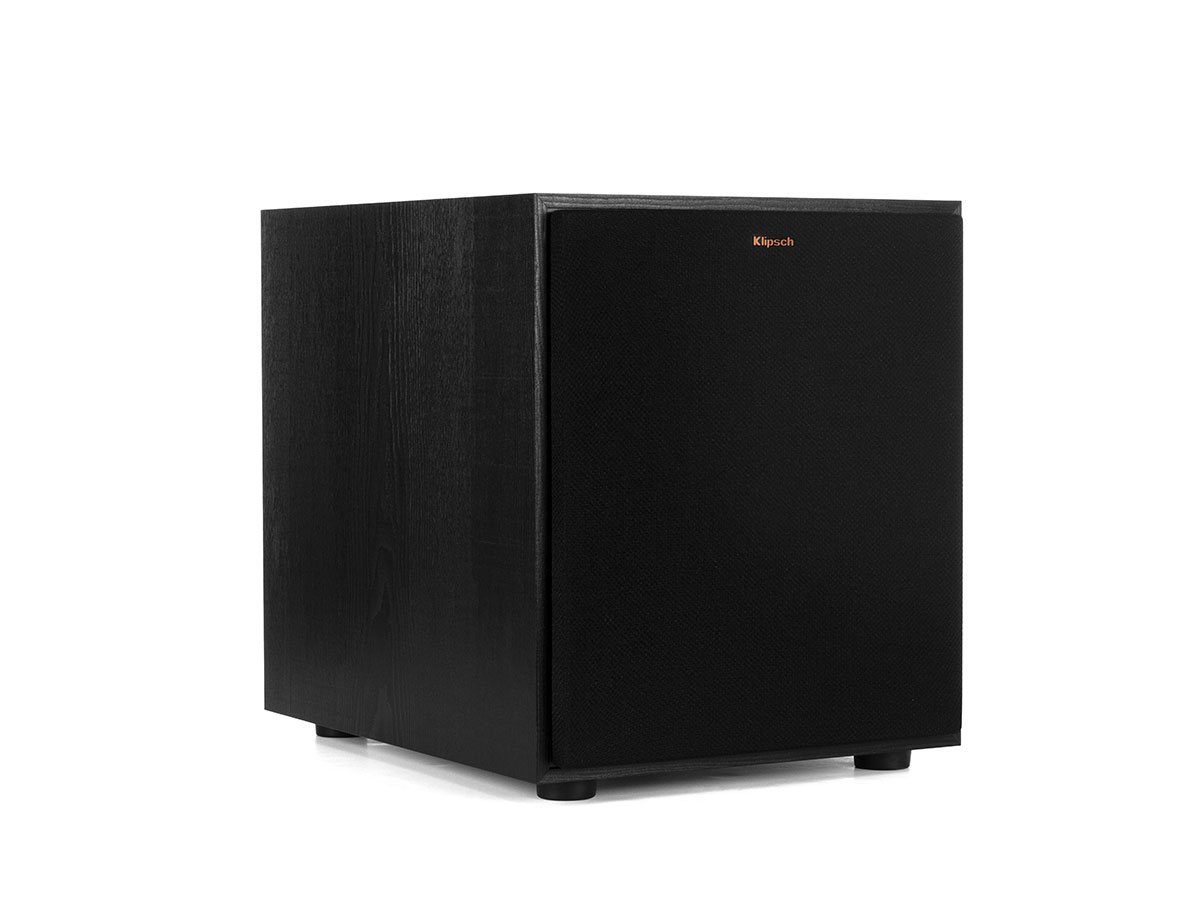

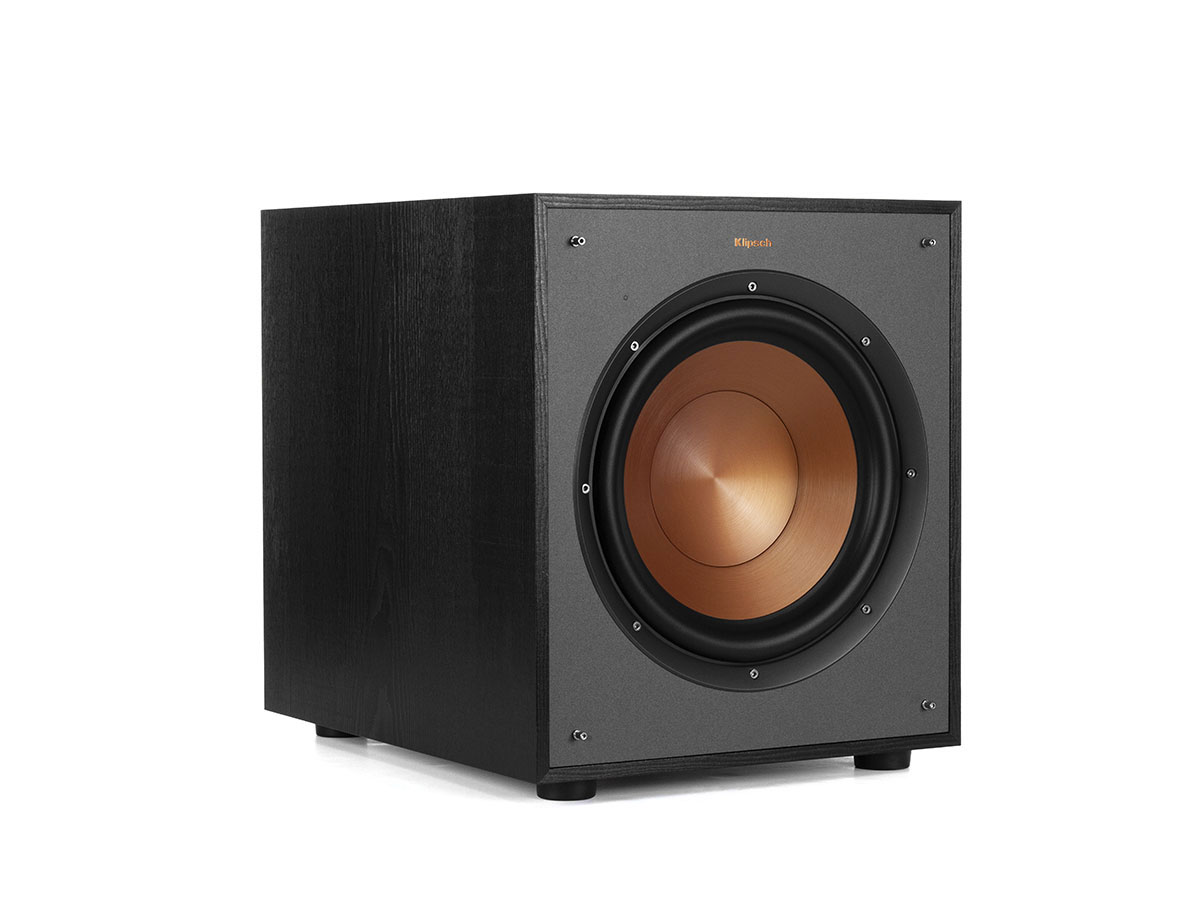

To complement the easy placement of the wireless subwoofer, each satellite speaker has a keyhole mount and a ¼” x 20 threaded insert (the center channel has dual keyhole / inserts) for maximum mounting flexibility.
|FREQUENCY RESPONSE||110Hz – 23kHz +/– 3dB|
|NOMINAL IMPEDANCE||8 ohms compatible|
|SENSITIVITY||Satellite: 91dB @ 2.83 volts / 1 meter
Center: 94dB @ 2.83 volts / 1 meter
|POWER HANDLING||Satellite: 50 watts (200 watts peak)
Center: 75 watts (300 watts peak)
|HIGH FREQUENCY DRIVER||Satellite & Center (1.9 cm) aluminum diaphragm
compression driver mated to 90° x 90° Tractrix® horn
|LOW FREQUENCY DRIVER||Satellite: 3.5” (8.9 cm) copper IMG woofer

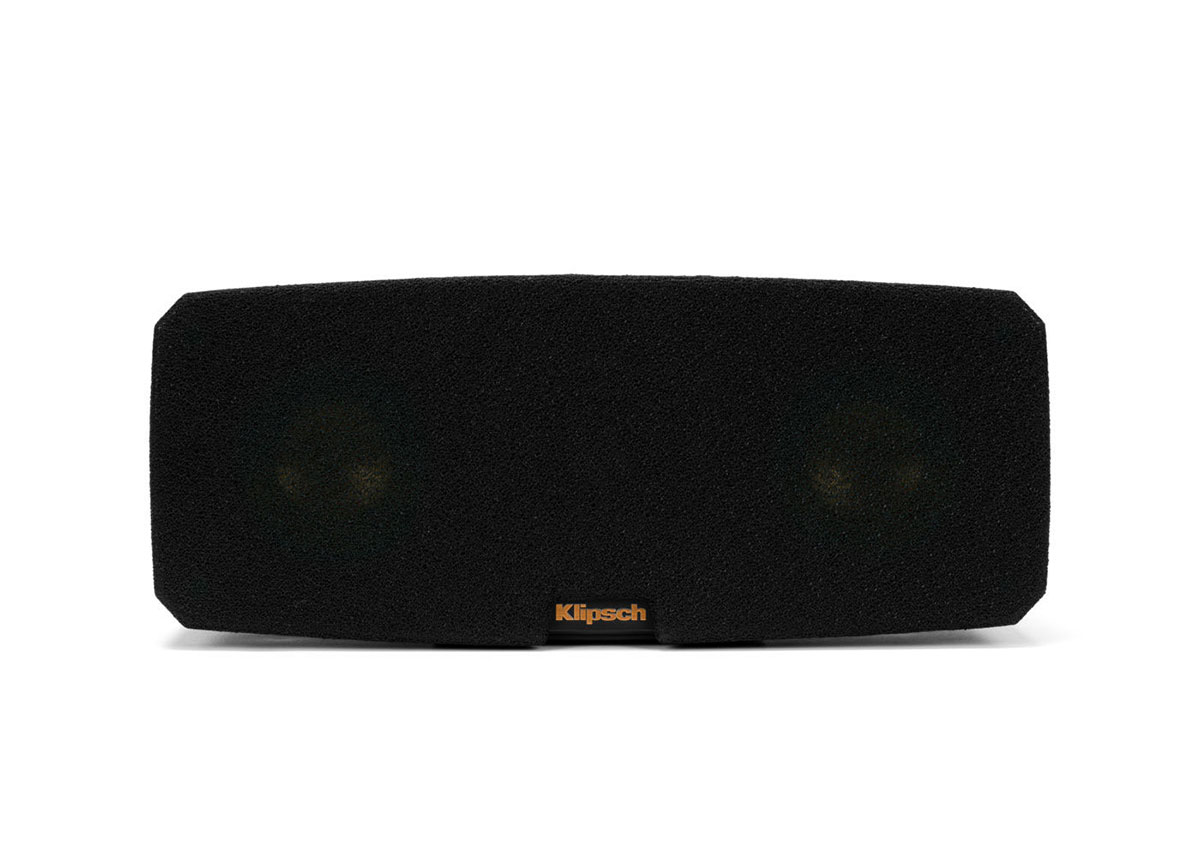

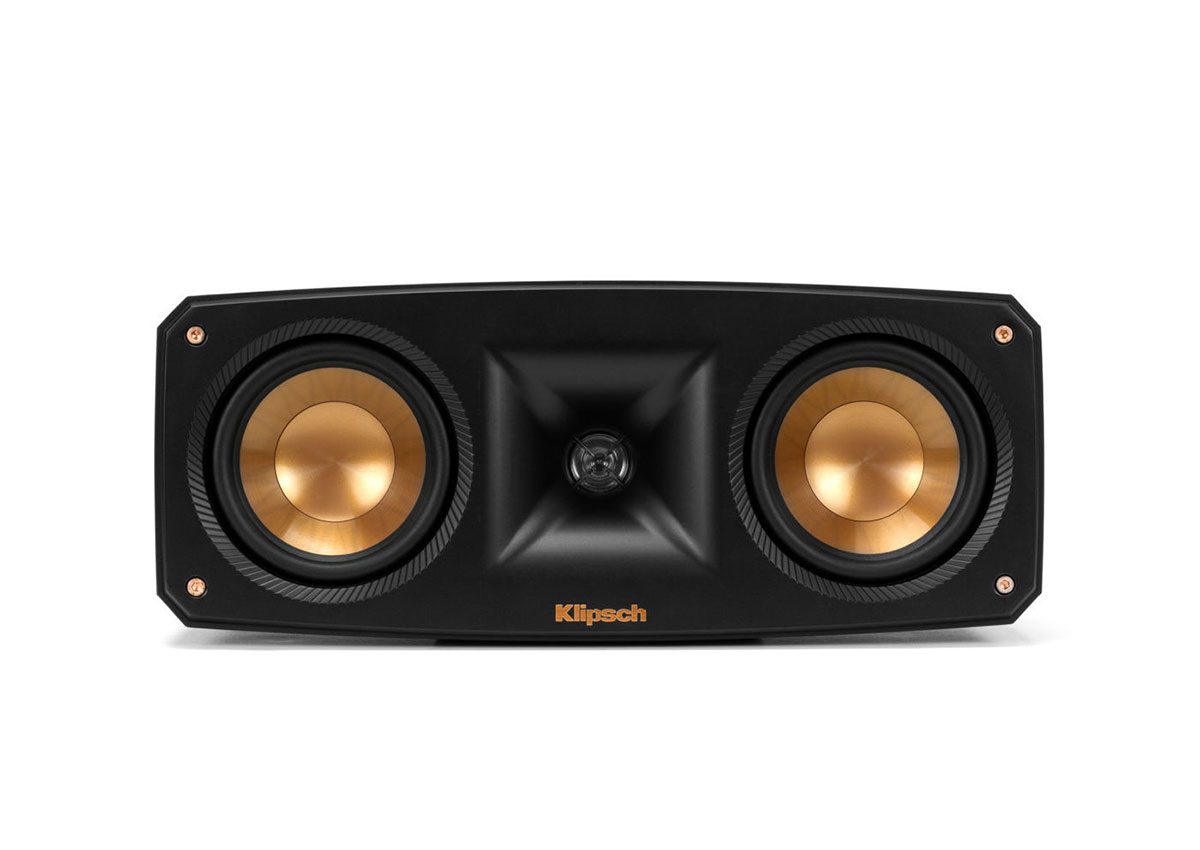

Center: Dual 3.5” (8.9 cm) copper IMG woofer
|DIMENSIONS||Satellite: 7.75” H (19.7cm) x 4.38” W (11.1cm) x 5.37” D (13.7cm)
Center: 4.38” H (11.1cm) x 10.75” W (27.3cm) x 5.37”D (13.7cm)
|WEIGHT||Satellite: 3 Ibs (1.4kg)
Center: 5 Ibs (2.3kg)

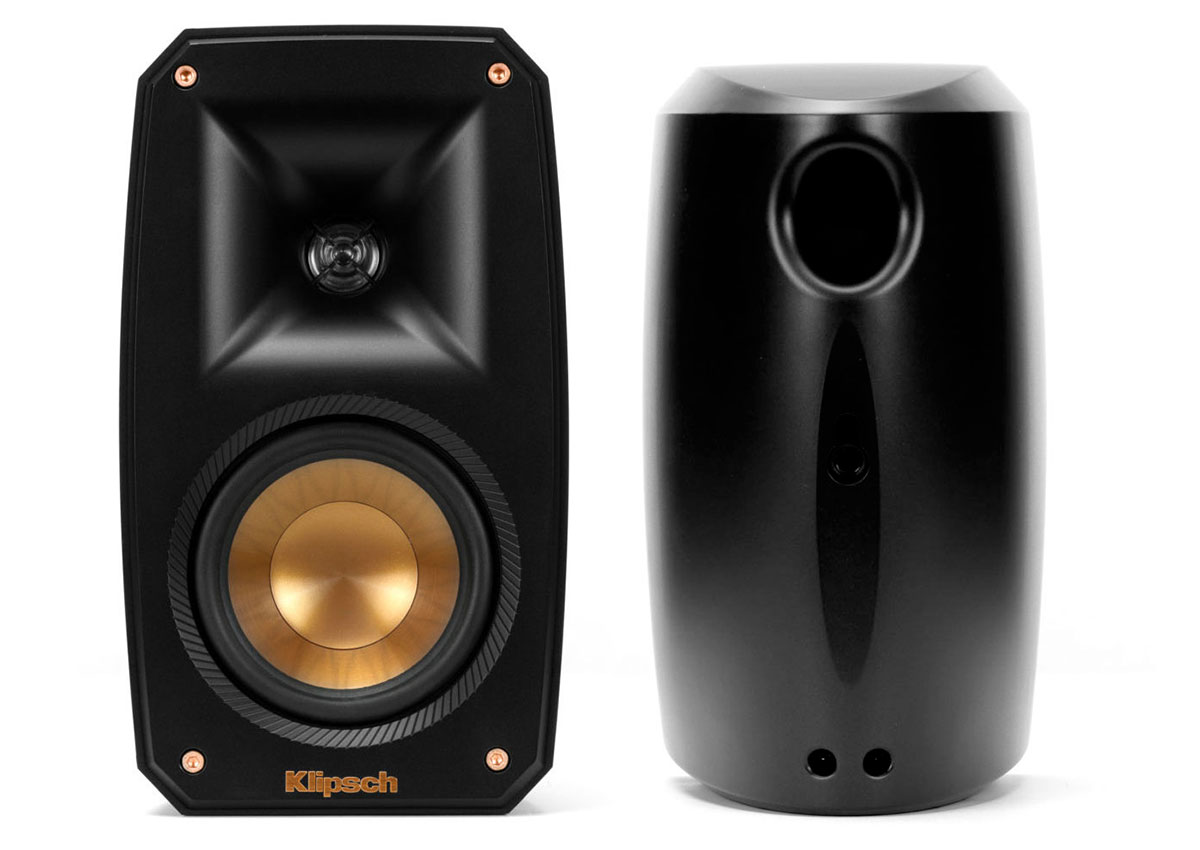

|MOUNTING||Satellite: Keyhole and 1/4” x 20 threaded insert

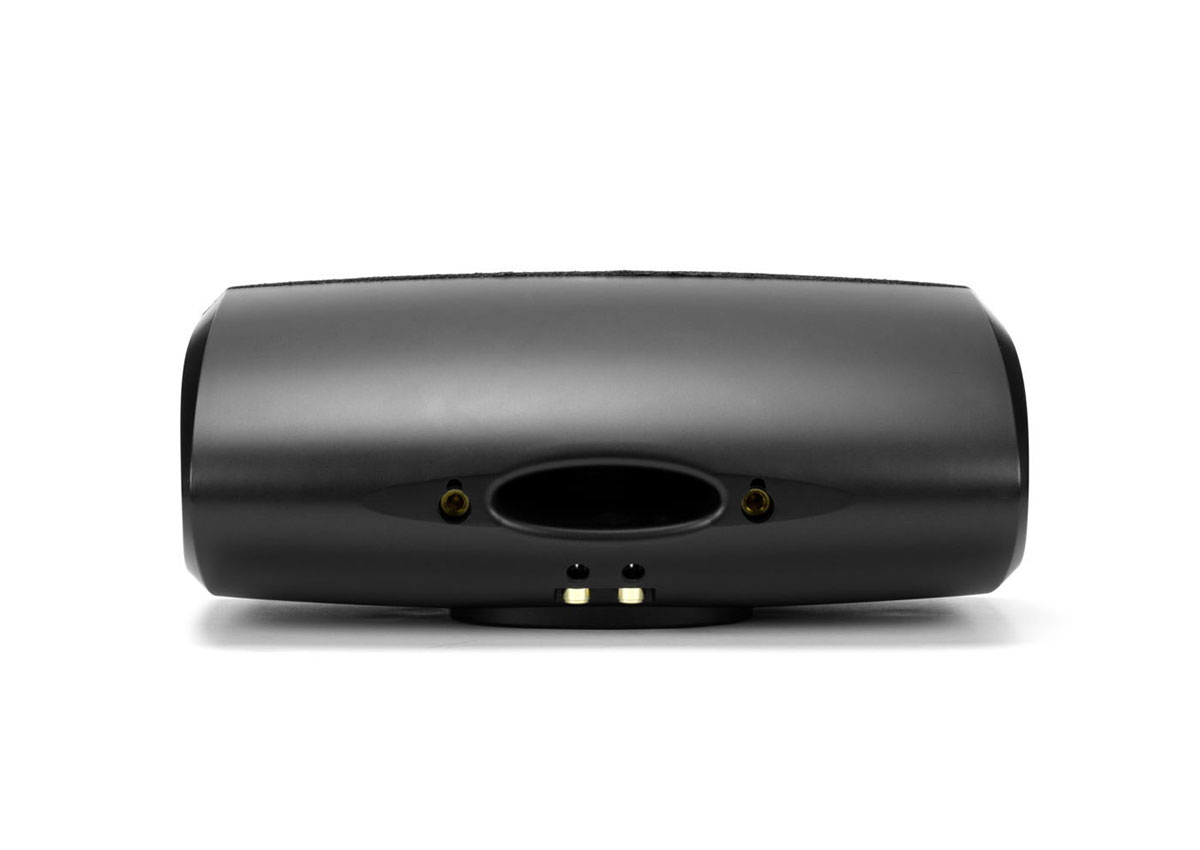

Center: Dual Keyhole with dual 1/4” x 20 threaded insert
|SPEAKER WIRE||14–18 gauge compatible|
