Product D/A Converter AudioQuest DragonFly Cobalt
AudioQuest
AUDIOQUEST :
DRAGONFLY COBALT
Category : D/A Converter
Add to wishlist     สถานะสินค้า In Stock
DragonFly Cobalt
DragonFly Cobalt
DragonFly Cobalt
DragonFly Cobalt
DragonFly Cobalt

PRICE :
9,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง
สินค้าราคาพิเศษ ไม่สามารถใช้คูปองส่วนลดได้

  • Overview
  • Specifications

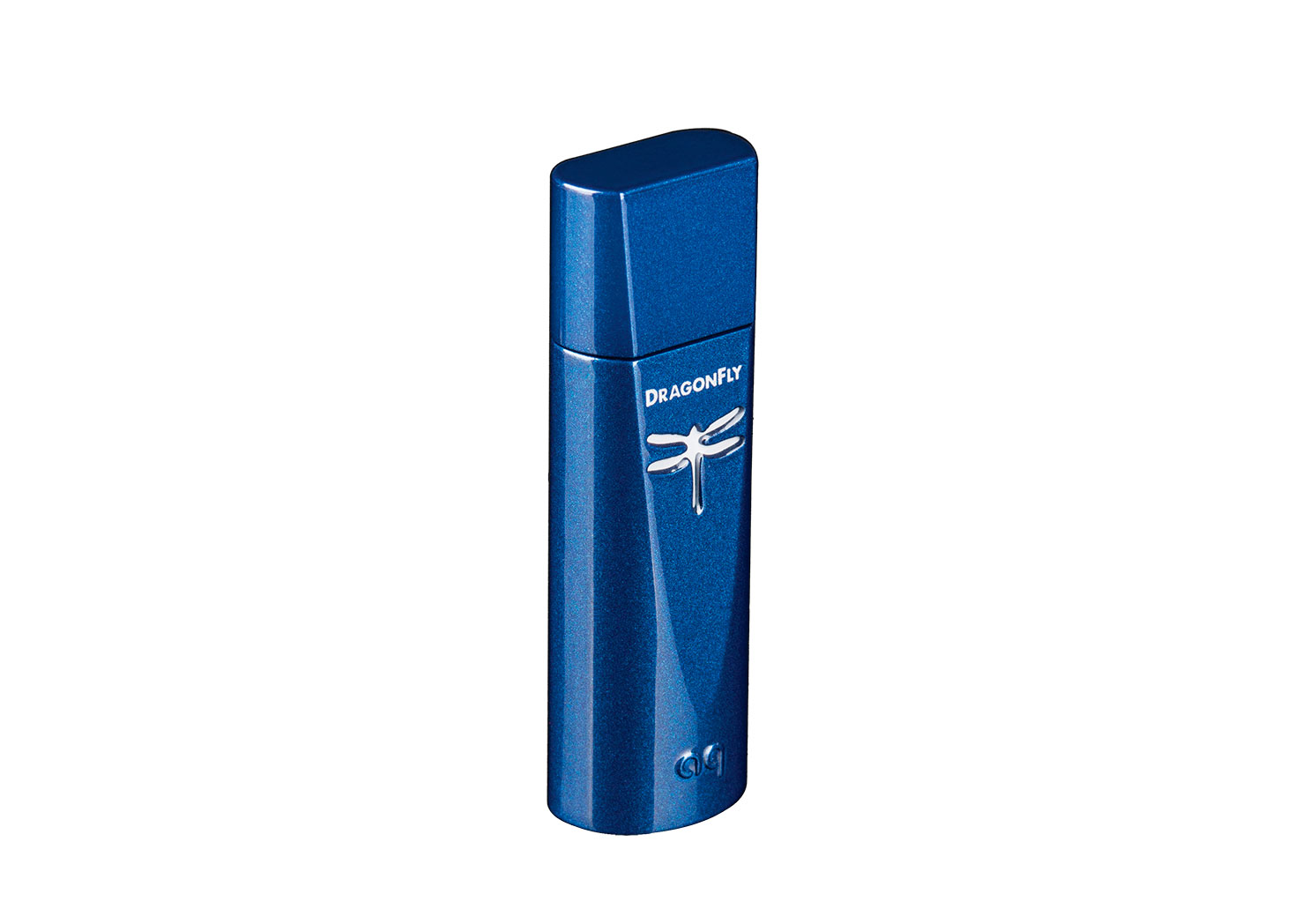

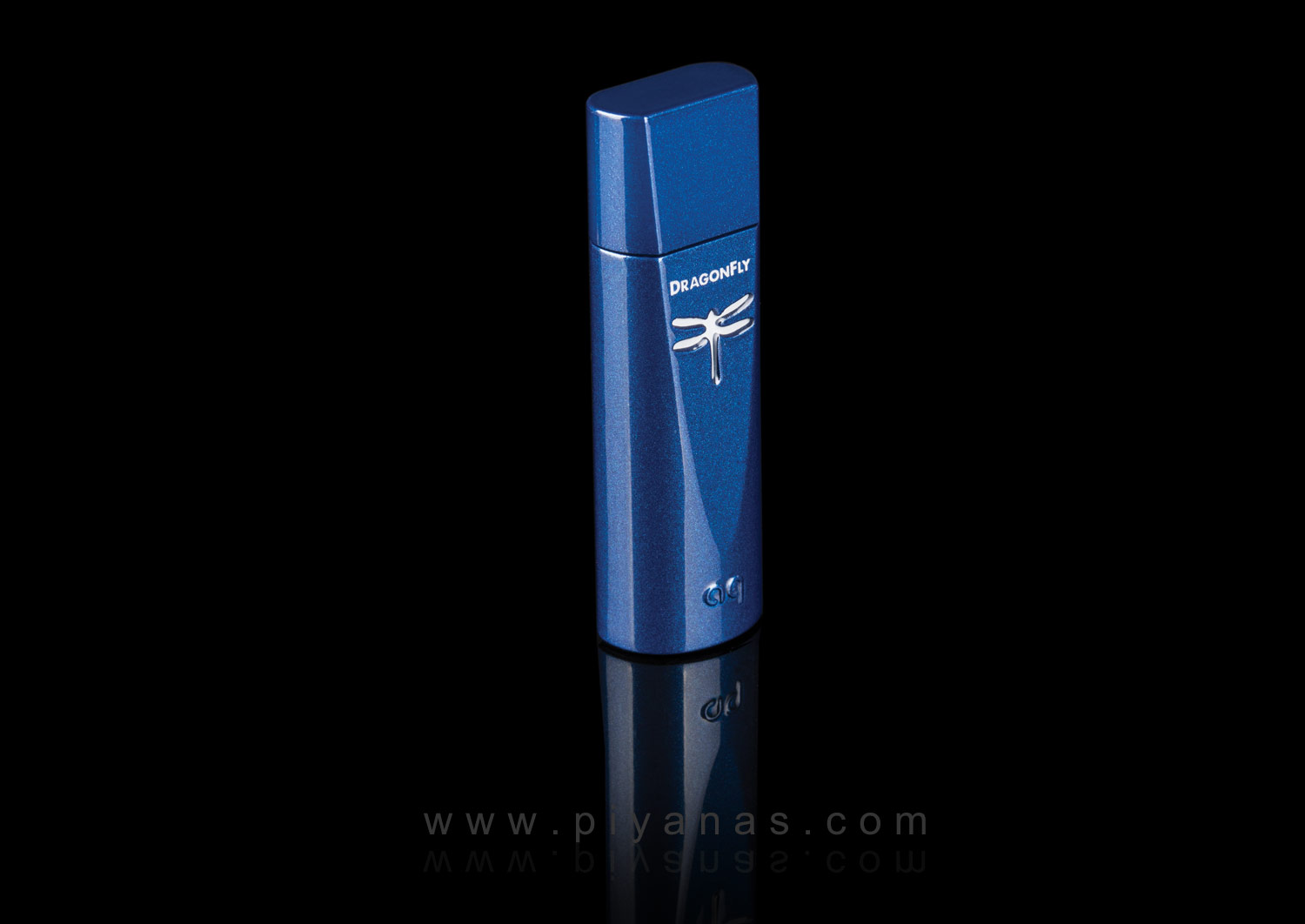

AudioQuest DragonFly Cobalt
USB DAC Preamp Headphone Amplifier

Beautiful Sound from any mobile device or computer

Cobalt’s precedent-setting performance is made possible by multiple significant upgrades:

  • New, more advanced ESS ES9038Q2M DAC chip with a minimum-phase slow roll-off filter for more natural sound.
  • Microchip’s superb PIC32MX274 microprocessor draws less current and increases processing speed by 33%.
  • Improved power-supply filtering that specifically increases immunity to WiFi, Bluetooth, and cellular noise.

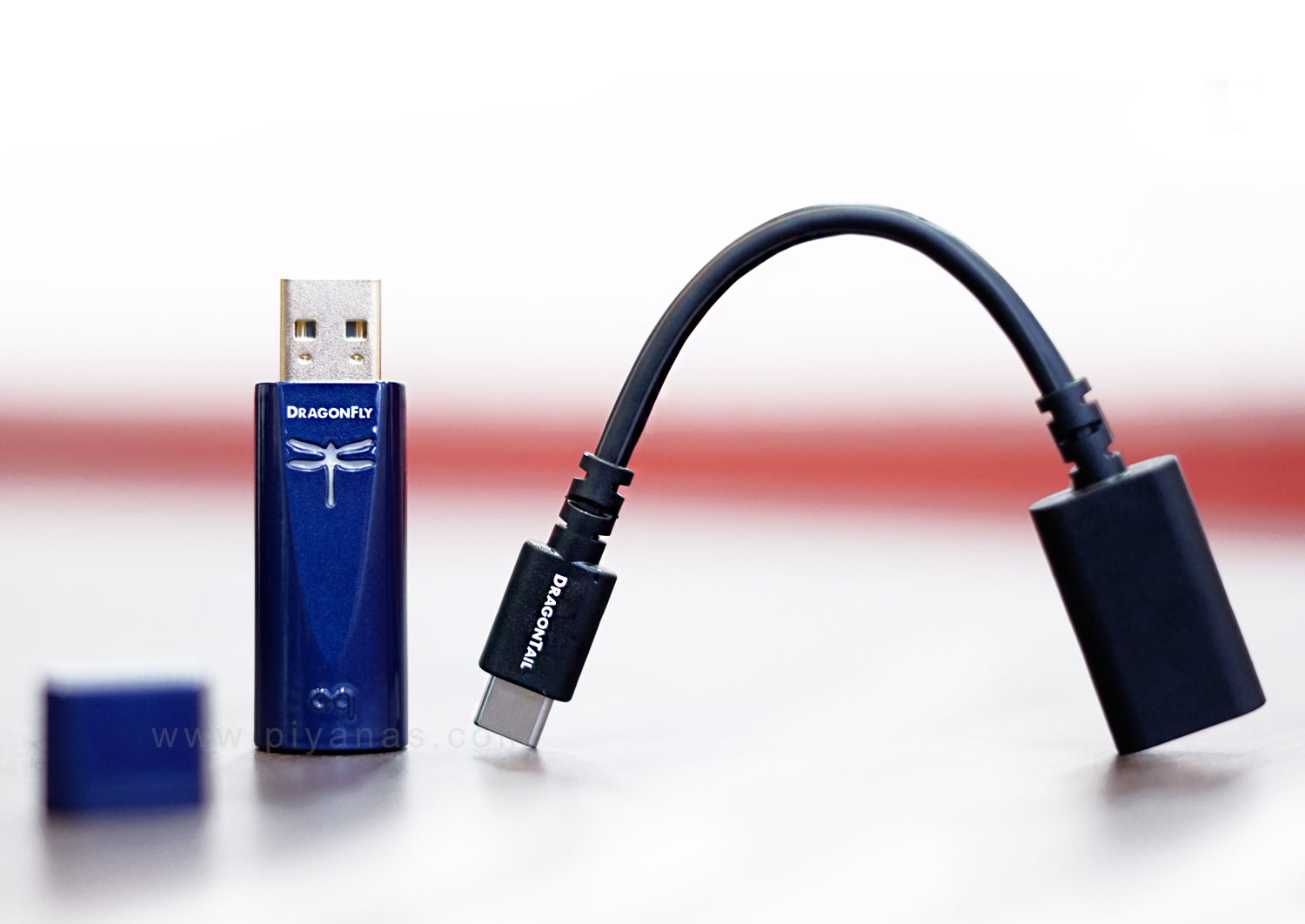

  • Includes a form-fitting DragonTail female USB-A to male USB-C Adaptor. All  DragonTails use AQ’s Carbon-level USB cable.



http://staff-p2.piyanas.com/images/20190709/5Vu30S9C_x.jpg


AudioQuest, Gordon Rankin: A Beautiful Partnership

Like all previous DragonFly models, Cobalt uses Gordon Rankin's precedent-setting StreamLength® asynchronous-transfer USB code. Further, in Gordon's monoClock® technology, a single ultra-low-jitter clock generated from the ESS ES9038Q2M DAC chip runs the ESS chip functions as well as all microcontroller functions. This superior clock enables DragonFly Cobalt to provide greater resolution and clarity than DACs with multiple clocks.


Why the "Slow Roll...?"

Cobalt employs ESS's new flagship ES9038Q2M DAC chip. While the chips used in DragonFlys Black and Red are unbeatable for the price, the minimum-phase slow roll-off filter in the 9038 results in naturally expressive sound that is always emotionally engaging and never fatiguing—a beautiful combination of warmth and detail that we find equally exciting and soothing.


Killing the Noise

In Cobalt, we've taken what we've learned from our recent research and development in noise dissipation to employ power-supply filtering specifically designed to dramatically reduce the increasingly prevalent noise from WiFi, Bluetooth, and cellular signals. Successfully combating this noise is absolutely crucial to the preservation of the lowest-level musical details, particularly when it comes to high-res audio—and especially when applied to a portable-audio device such as DragonFly.


Bit-Perfect Volume Control and 2.1-Volt Output

Cobalt features the same ESS Sabre 9601 headphone amp and bit-perfect volume control that give DragonFly Red its unique combination of power and grip over the music. This solution ensures maximum fidelity, thrilling dynamic contrast, and excellent signal-to-noise ratio. The 2.1-volt output makes Cobalt and Red compatible with a wide range of headphones, including power-hungry, low-efficiency models.


Firmware Upgradeable

DragonFlys Black, Red, and Cobalt are firmware upgradeable via our free Desktop Device Manager. In today's fast-paced digital world, longevity in a hi-fi component is increasingly rare—at any price. AudioQuest believes that today's digital devices should evolve as technology itself evolves, thereby delivering musical pleasure for many years to come. Our Desktop Device Manager will also allow you to identify your DragonFly's serial number and software version to ensure that the device is up to date. Click here to download the latest Device Manager available for your operating system.

http://staff-p2.piyanas.com/images/20190709/cl5Sf17m_x.jpg


Stream Tidal Masters Everywhere

DragonFlys Black, Red, and Cobalt support Tidal Masters (MQA) playback from iPhones and Android smartphones. MQA's technology folds high-resolution files into smaller files that can be streamed on the go. As MQA Renderers, DragonFlys Black, Red, and Cobalt complete the unfolding process, allowing music lovers to enjoy a wider selection of high-res music. Click here to learn more about how MQA works.

http://staff-p2.piyanas.com/images/20190709/ZzTowInL_x.jpg


Now, more than ever before, naturally beautiful sound is right at your fingertips—however you want it, whenever you want it.
Naturally Beautiful Sound is Right at Your Fingertips

Whatever music turns you on, wherever you are, an AudioQuest DragonFly USB DAC delivers inspiring, dynamic, and beautiful sound to earbuds, headphones, powered speakers, or complete audio systems.

With a DragonFly, music appreciation and exploration are limitless: Plug into an Apple or Windows® computer or connect to an iOS® or Android mobile device. Play YouTube or Vimeo videos. Go hunting on Bandcamp or SoundCloud. Explore playlists on Spotify or Pandora. Stream high-res audio from Tidal or Qobuz. No matter the choice of musical pleasure, DragonFly delivers beautiful sound, unraveling the emotional expression and nuance that makes music and movies so enjoyable.

http://staff-p2.piyanas.com/images/20190709/iDLzNRkI_x.gif

คู่มือการใช้งาน



Capabilities:

  • Plays All Music Files: MP3 to 24-bit/192kHz
  • Drives headphones directly
  • Variable output drives powered speakers or a power amplifier
  • Fixed output feeds preamp or AV receiver

Features:

  • 64-position analog volume control
  • Accepts music files up to 24-bit/96kHz resolution
  • Asynchronous Class 1 USB data transfer using the Streamlength protocol
  • Direct-coupled circuitry from the ESS Sabre DAC chip through the analog volume control and output analog driver section
  • Isolated Dual Master Clocks ensure only the correct frequency will be used for the chosen output, no rounding errors

Specifications:

  • Sample rates supported, LED indicator color codes:
  • 44.1kHz (Green), 48kHz (Blue), 88.2kHz (Amber),
  • 96kHz (Magenta)
  • Analog Audio ? Frequency Response:
  • DC - 22 kHz (44.1kHz sample rate)
  • DC - 24 kHz (48kHz sample rate)
  • DC - 44 kHz (88.2kHz sample rate)
  • DC - 48 kHz (96kHz sample rate)
  • Output voltage: ~= 2vrms
  • Minimum driven impedance
  • (headphones, electronic input): ~= 12 ohms
  • Maximum driving power: = 150mW
