Product Speaker Floor Standing Speakers Klipsch RF-7 III (Black)
Klipsch
KLIPSCH :
RF-7 III (BLACK)
Category : Floor Standing Speakers
Add to wishlist     สถานะสินค้า In Stock
RF-7 III (Black)
RF-7 III (Black)
RF-7 III (Black)
RF-7 III (Black)
RF-7 III (Black)
RF-7 III (Black)

PRICE :
159,000 THB.
SPECIAL :
134,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน คู่ (Pair)
สินค้าราคาพิเศษ ไม่สามารถใช้คูปองส่วนลดได้

  • Overview
  • Specifications

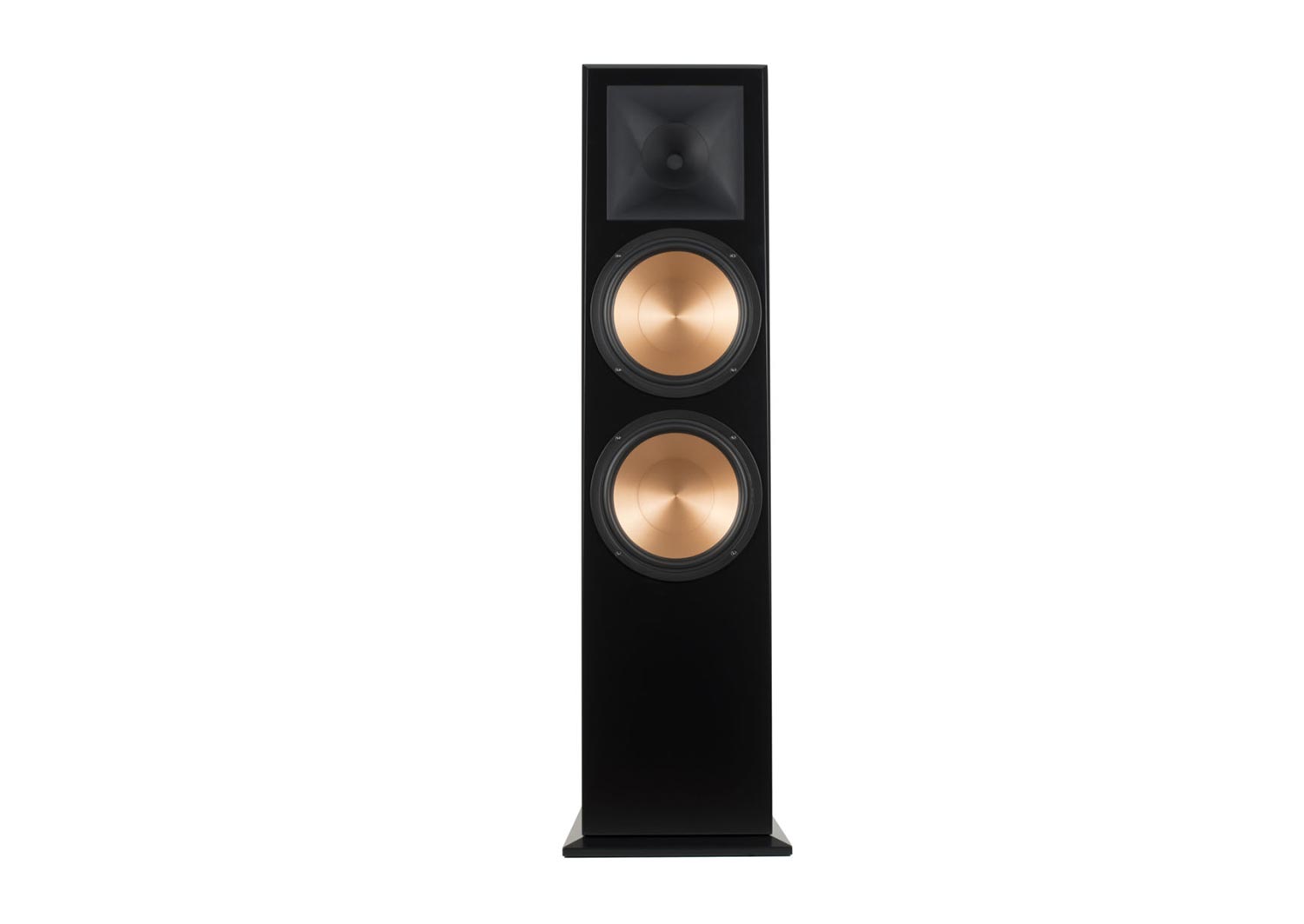

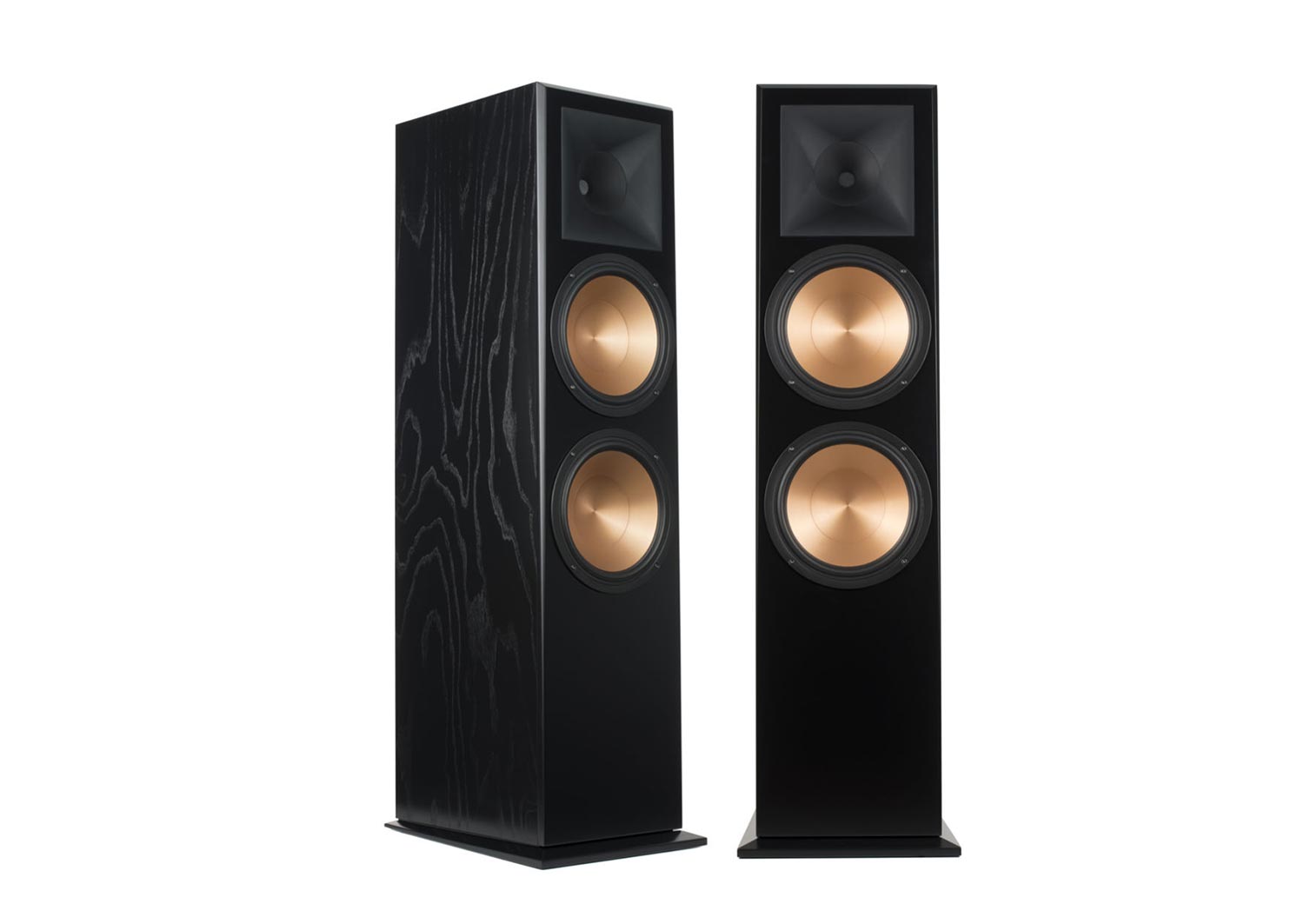

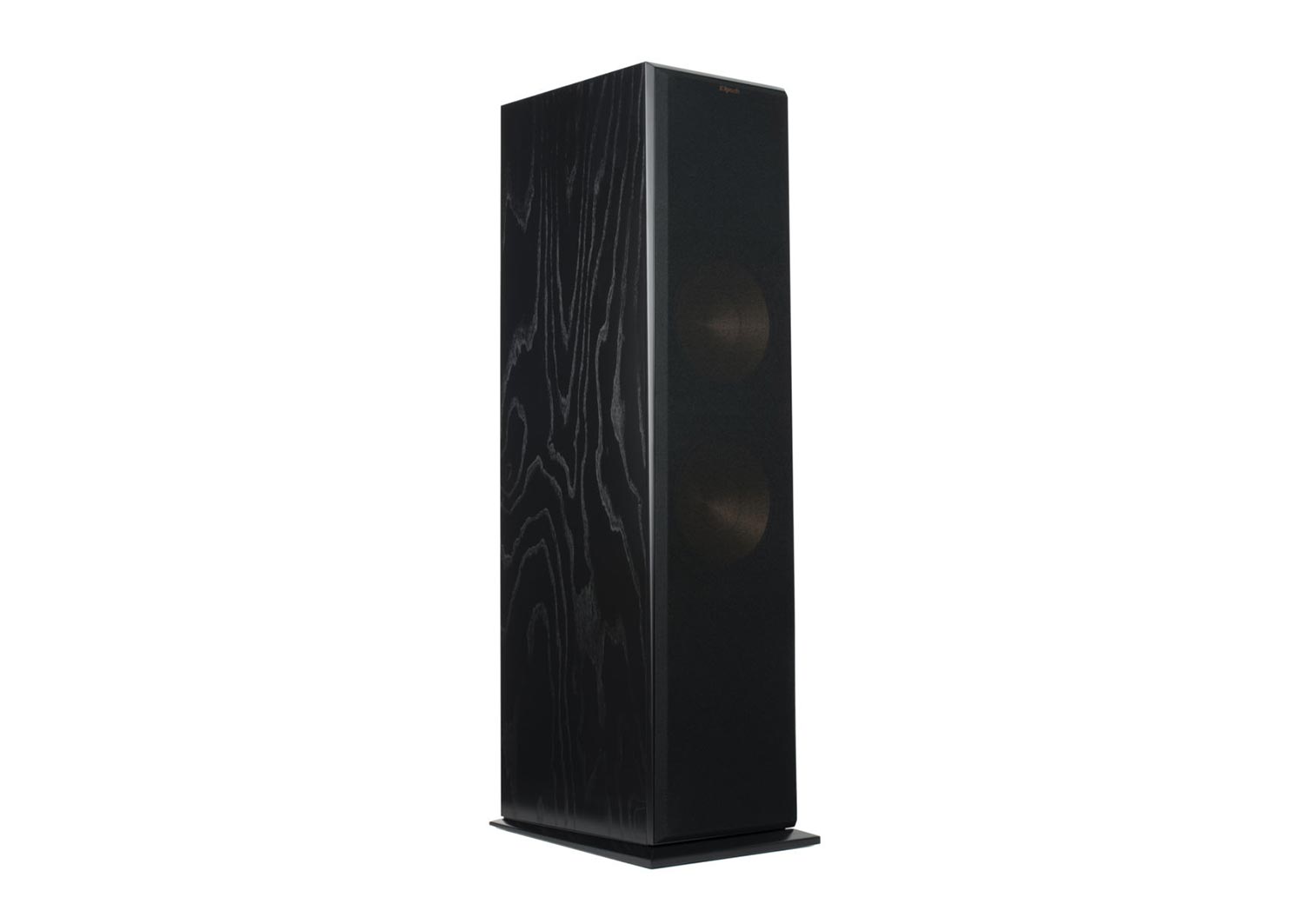

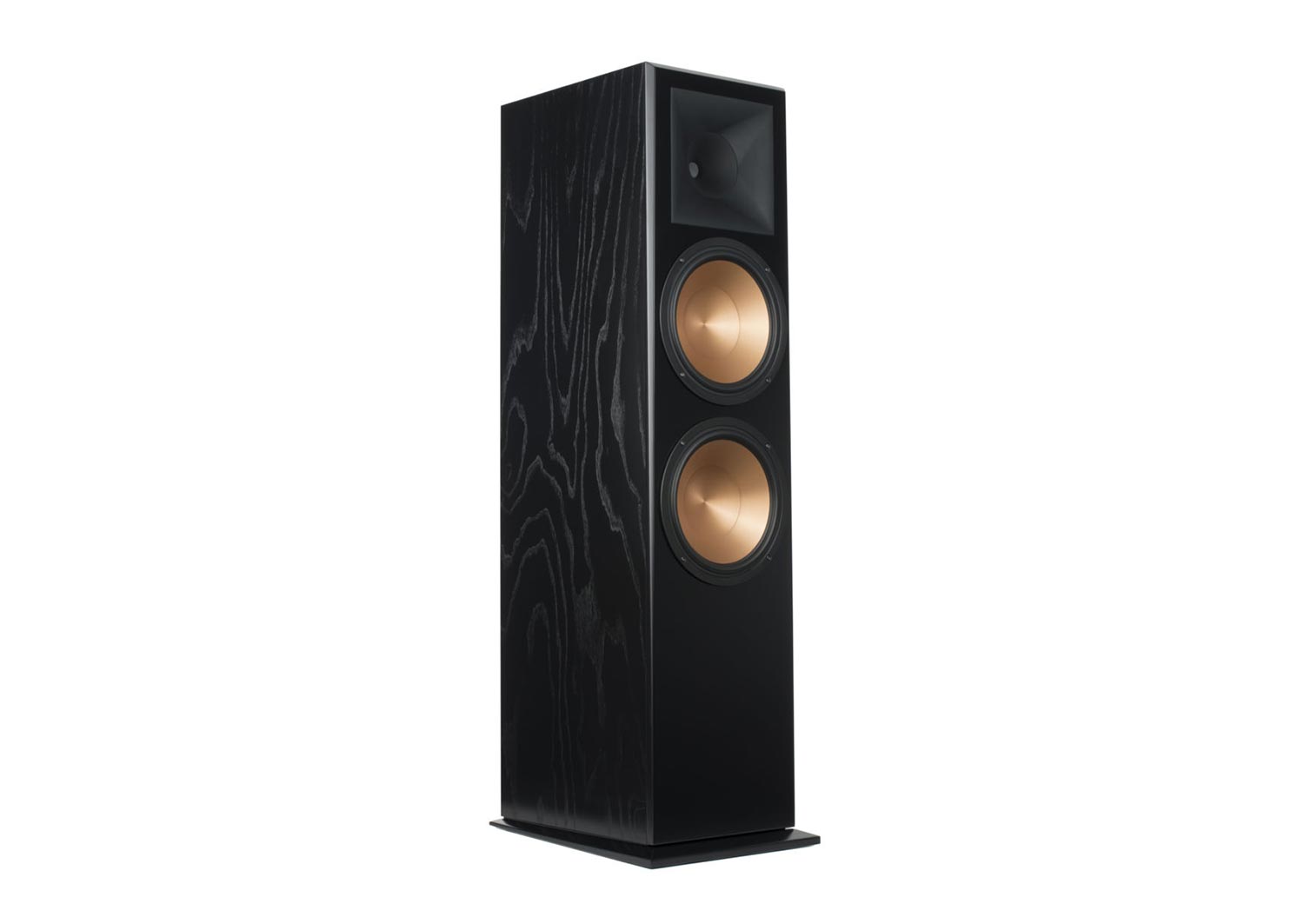

KLIPSCH RF-7 III (Black)
FLOORSTANDING SPEAKER

Featuring an all-new titanium compression driver, 90x90 compressed molded-rubber Tractrix horn, redesigned bifurcated cabinet, cast basket Cerametallic woofers and finished in a premium, furniture-grade wood veneer - the RF-7 III floorstanding speaker champions our legendary, high-performance Klipsch sound.

Features:

  • ​All-New 1 3/4" Titanium Compression Driver
  • 90x90 Compressed Molded-Rubber Tractrix Horn
  • Redesigned Bifurcated Cabinet
  • Dual Tractrix Ports
  • Dual 10" Cast Basket Cerametallic Woofers
  • Premium Furniture-Grade Wood Veneers
  • Assembled in Hope, AR

http://staff-p2.piyanas.com/images/20190710/JwmiENNF_x.jpg

90° x 90° TRACTRIX® HORN

The redesigned Tractrix Horn utilizes a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension, while enhancing imaging and dynamics. The compressed molded rubber construction adds high frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.


http://staff-p2.piyanas.com/images/20190710/Z2tKFrRX_x.jpg

ALL-NEW DRIVING FORCE
1 3/4" TITANIUM DIAPHRAGM COMPRESSION DRIVER

The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.


SPUN COPPER CERAMETALLIC WOOFERS™

Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.


http://staff-p2.piyanas.com/images/20190710/xMuB15Sw_x.jpg

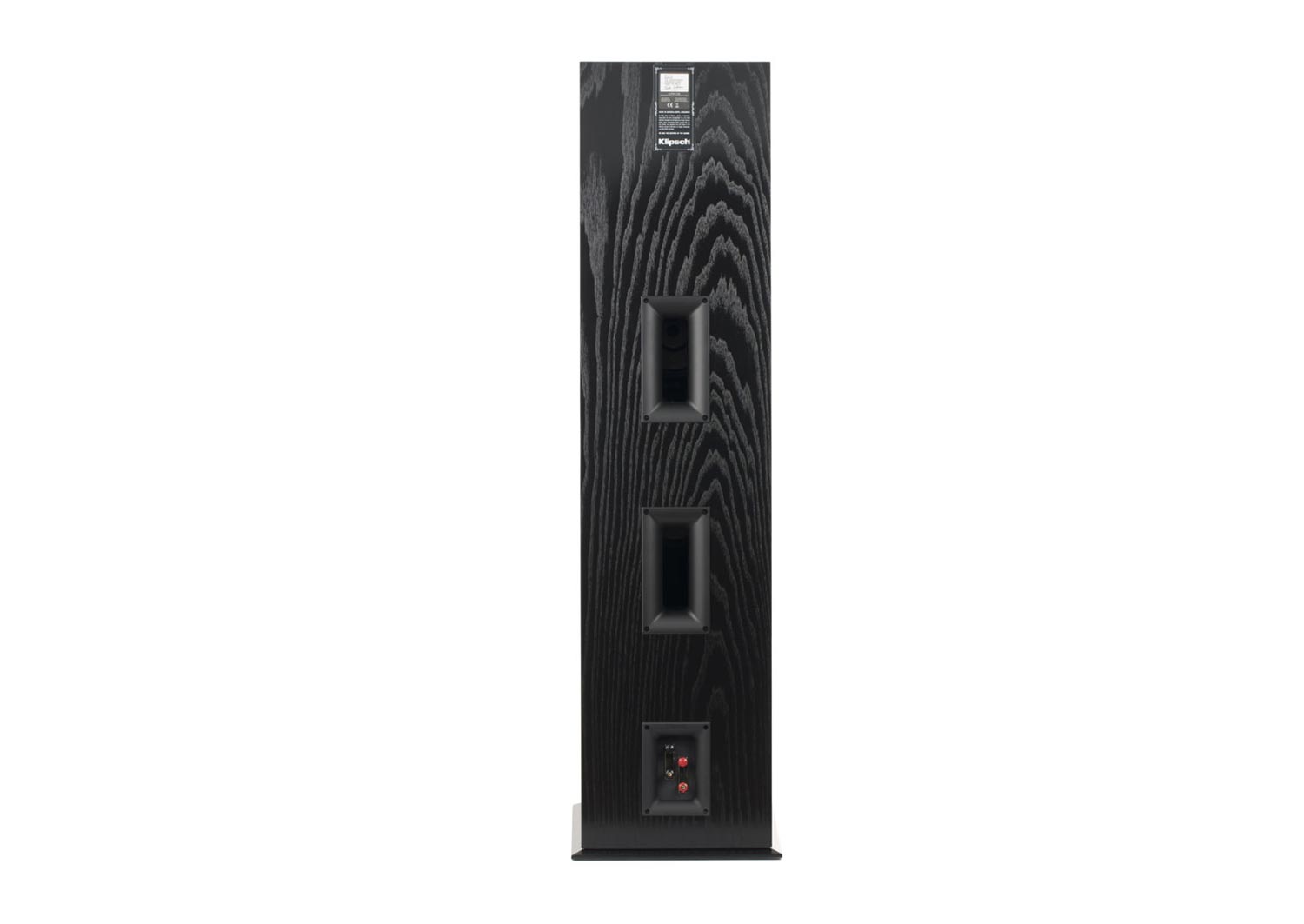

NEW DUAL CHAMBER + TRACTRIX® PORT

The RF-7 III new bifurcated enclosure allows each 10” driver and port to work independently from the other. This improves the linearity of both drive systems, and minimizes standing wave problems inside the cabinet that can cause frequency anomalies in the sensitive midrange frequencies.

Utilizing Tractrix geometry, the new RF-7 III ports allow for the most efficient air transfer from the cabinet — for the cleanest, most powerful low frequency response on the market.


http://staff-p2.piyanas.com/images/20190710/AW0R06CM_x.jpg

CAST FRAME WOOFER DESIGN

Each 10” woofer feature a heavy-duty cast aluminum frame for resonant-free operation. In addition, each woofer incorporates a dual shorting-ring magnet structure design to eliminate modulation of the magnetic flux resulting in improved linearity of cone movement.


FURNITURE GRADE WOOD VENEERS

The RF-7 III floorstanding speaker enclosures all utilize furniture grade wood veneers, and are available in Black Ash, Cherry & Walnut.

FREQUENCY RESPONSE (+/- 4 dB)
 32–25kHz +/– 3dB
SENSITIVITY
100 dB @ 2.83V / 1M
POWER HANDLING (CONT/PEAK)
250W / 1000W peak
MAXIMUM SPL 116dB Continuous
NOMINAL IMPEDANCE
8 ohms Compatible
HIGH FREQUENCY HORN 8.5” square 90 ̊ x 90 ̊ Tractrix® Horn
HIGH FREQUENCY DRIVERS 1.75” (4.45cm) titanium diaphragm compression driver
CROSSOVER FREQUENCY
1,300 Hz
LOW FREQUENCY DRIVER Two 10” (25.4cm) Cerametallic cone woofers
ENCLOSURE TYPE
Dual chambered, bass-reflex — via dual rear-firing Tractrix ports
INPUTS Dual binding posts / bi-wire / bi-amp
HEIGHT 13.875” (35.2cm) including plinth
WIDTH
15.5” (39.37cm)
DEPTH
17.875” (45.4cm) including plinth
WEIGHT
97 Ibs (44.1kg)
