Product Speaker in-Wall Speaker B&W CWM-7.5 S2 (ราคาต่อข้าง)
B&W
B&W :
CWM-7.5 S2 (ราคาต่อข้าง)
Category : in-Wall Speaker
Add to wishlist     สถานะสินค้า In Stock
CWM-7.5 S2 (ราคาต่อข้าง)
CWM-7.5 S2 (ราคาต่อข้าง)

PRICE :
32,900 THB.
SPECIAL :
29,610 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน ตัว (Each)

  • Overview

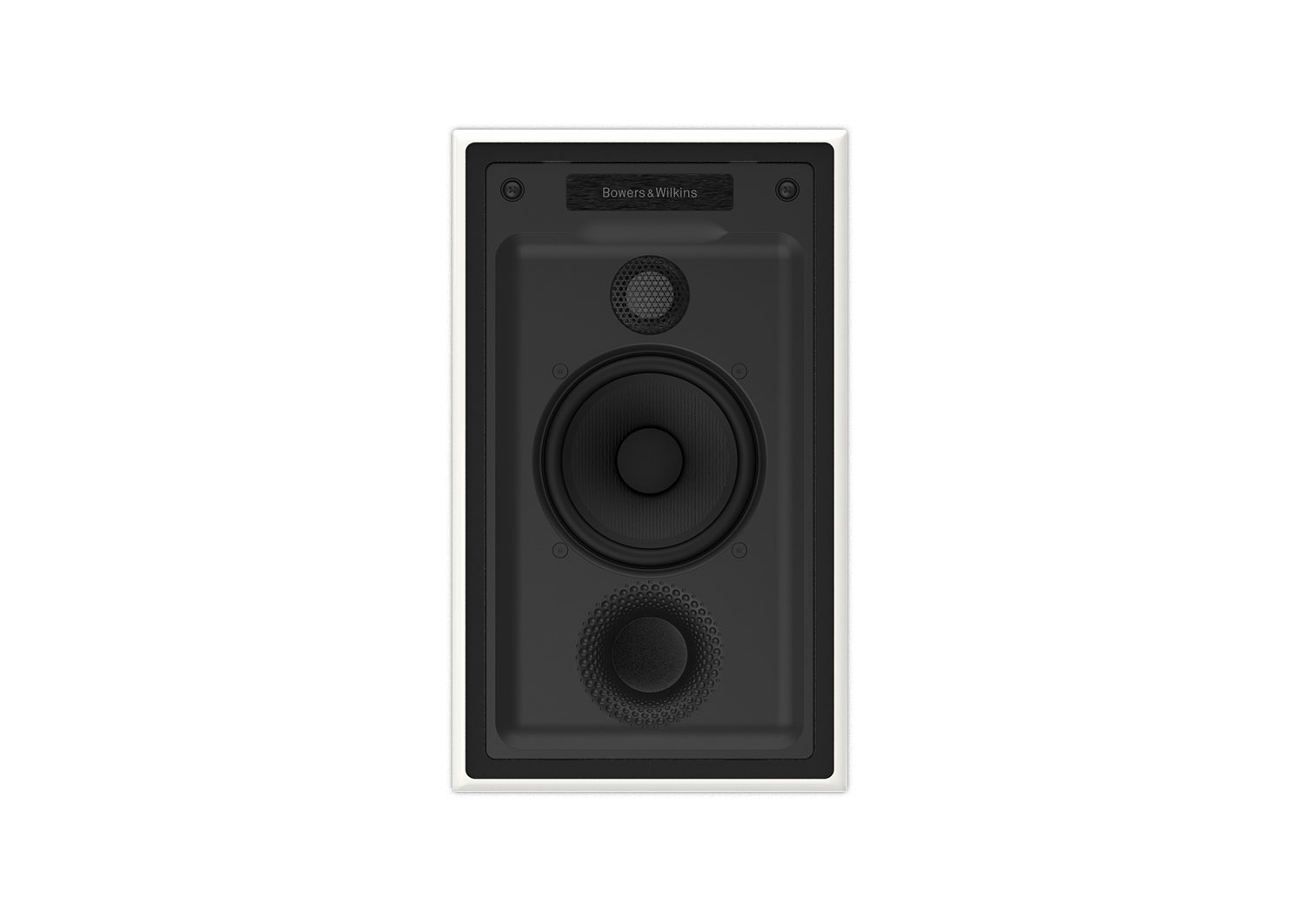

B&W CWM7.5 S2 (ราคาต่อข้าง)
In-wall system with 706 S2 performance levels


Drive Units

  • 1 x 1” Carbon Dome tweeter
  • 1 x 5“ Continuum™ cone mid/bass
  • Flowport
  • Optional Air Reservoir included

See nothing, hear everything

The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing FlowportTM  for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus optimum performance. It’s an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theatre application


Specifications

Description 2-way in-wall system
Technical features Carbon Dome tweeter
Continuum mid/bass
Flowport™
Drive units 1x ø25mm (1 in) Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone mid/bass
Frequency range (-6dB) -6dB at 43Hz and 33kHz
Frequency Response -3dB 45Hz - 28kHz ±3dB
Sensitivity 86dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal Impedance 8Ω (minimum 3.8Ω)
Recommended amplifier power 25W - 150W into 8Ω on unclipped programme
Frame height 356mm (14in)
Frame width 212mm (8.5in)
Depth (behind surface) 102mm (4in)
Cut-out height 331mm (13in)
Cut-out width 187mm (7.4in)
Cut-out height w/PMK 336mm (13.2in)
Cut-out width w/PMK 192mm (7.6in)
Reservoir box height 385mm (15.2in)
Reservoir box width 181mm (7.1in)
Protrusion 8mm (0.32in)
PMK 7.5W
Net weight  3.8kg (8.38 lb)
Finishes Back box: White
Grille:  White
