Designed for excellent sound quality, with a beautiful appearance.
An integrated amplifier with the advantage of digital input.
|High sound quality circuit design based on the ToP-ART (Total Purity Audio Reproduction Technology) concept
ToP-ART Design and ART Base Ensure Optimum Sound When processing and transmission of the audio signal is simple and direct there is less chance of it being affected by noise and distortion. Yamaha’s amplifier design technology called ToP-ART features an I/O (input to output) Direct Symmetrical Design, with left and right channels organised in a straight, symmetrical layout for highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid centre bar provide high-rigidity support and vibration damping. These Yamaha design innovations contribute to this amplifiers’ rich audio reproduction with abundant musicality.
|High Quality Parts for Outstanding Audio Performance
Custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one-point grounding system, aluminium-extruded heat sinks and other top-quality parts effortlessly handle demanding audio signal conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.
Created by Yamaha's Rich Experience and Tradition, and High Technological Expertise
Yamaha, with a long history of over 125 years as a musical instrument maker, also has a high reputation for HiFi components. The A-S301 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of “Natural Sound”, for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.
Pure Direct Mode for Greater Sound Purity
The Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
|Continuously Variable Loudness Control
The A-S301 also feature a new analogue loudness control on the front panel that uses electronic volume for higher sound quality, which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low- and high- frequency sounds, providing full tonal range at any volume level, compensating for the natural loss in the human ear of high and low frequencies at soft levels.
|Digital Audio Input for TV and/or Blu-ray Player
The A-S301 is equipped for digital audio input with both optical and coaxial terminals. The optical is for receiving audio from a TV, and the coaxial for receiving audio from a Blu-ray player. The audio stays in the digital domain, giving you pure, pristine dynamic sound for all your entertainment sources, from sports and other programmes to movies and concerts.
Connection for YBA-11 Bluetooth Wireless Adapter
With the YBA-11, you’ll be able to stream music wirelessly from a Bluetooth capable mobile phone or a PC to the Network receiver. Thanks to the digital connection and aptX® audio coding algorithm, you’ll enjoy wireless music streaming with optimum sound quality. You can also conveniently power the YBA-11 via the DC-out connection on the rear panel of the amplifier.

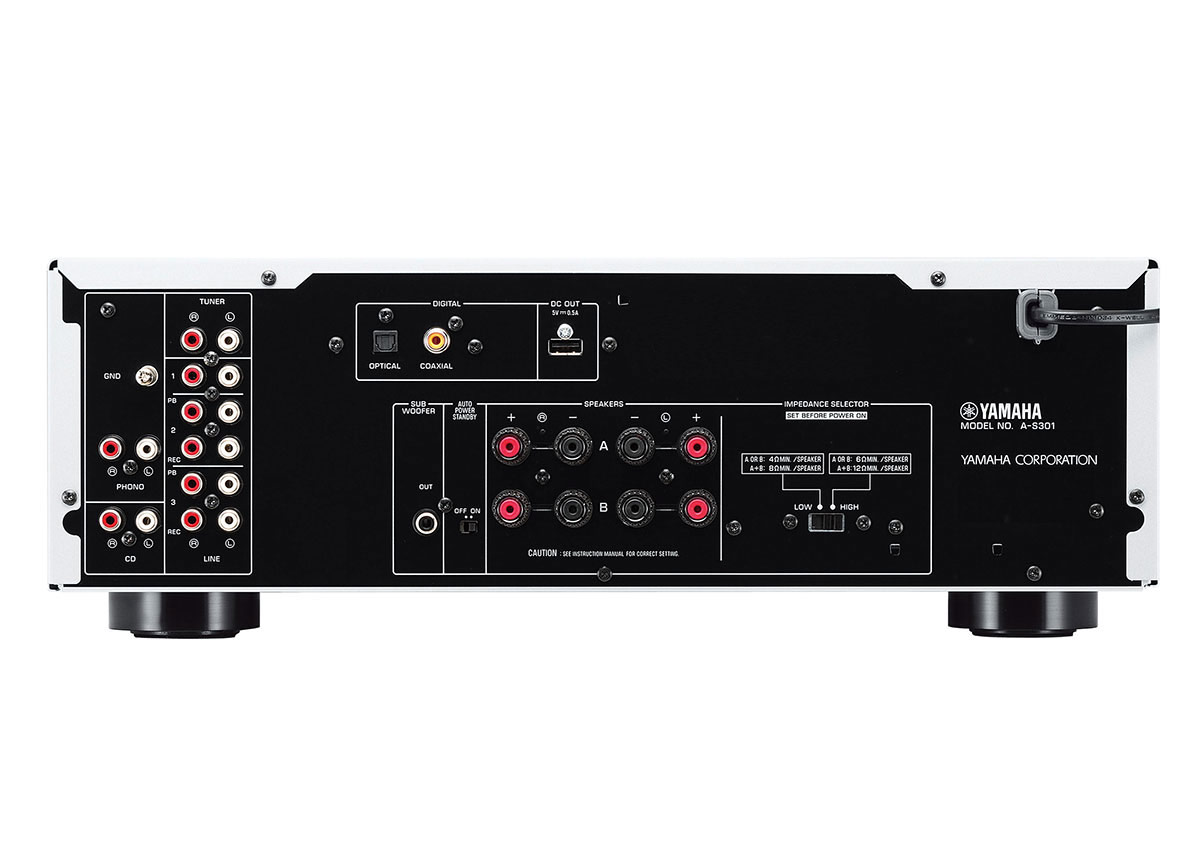

|Speaker A, B or A+B Selection and Speaker Terminals for Two Systems
You can connect two separate speaker systems in different rooms and switch between them, or have them both playing at the same time. There are four terminals, so by just pushing a button, you can switch speakers to match the sound source.
A terminal for connecting a subwoofer is provided, allowing you to increase the bass output of your system for a more powerful sound with better overall sound quality.
Phono MM Terminal
You can connect a turntable with an MM phono cartridge to play vinyl records. This lets you enjoy not only CDs, but also analogue record sound from an amp with the latest digital/analogue technology.

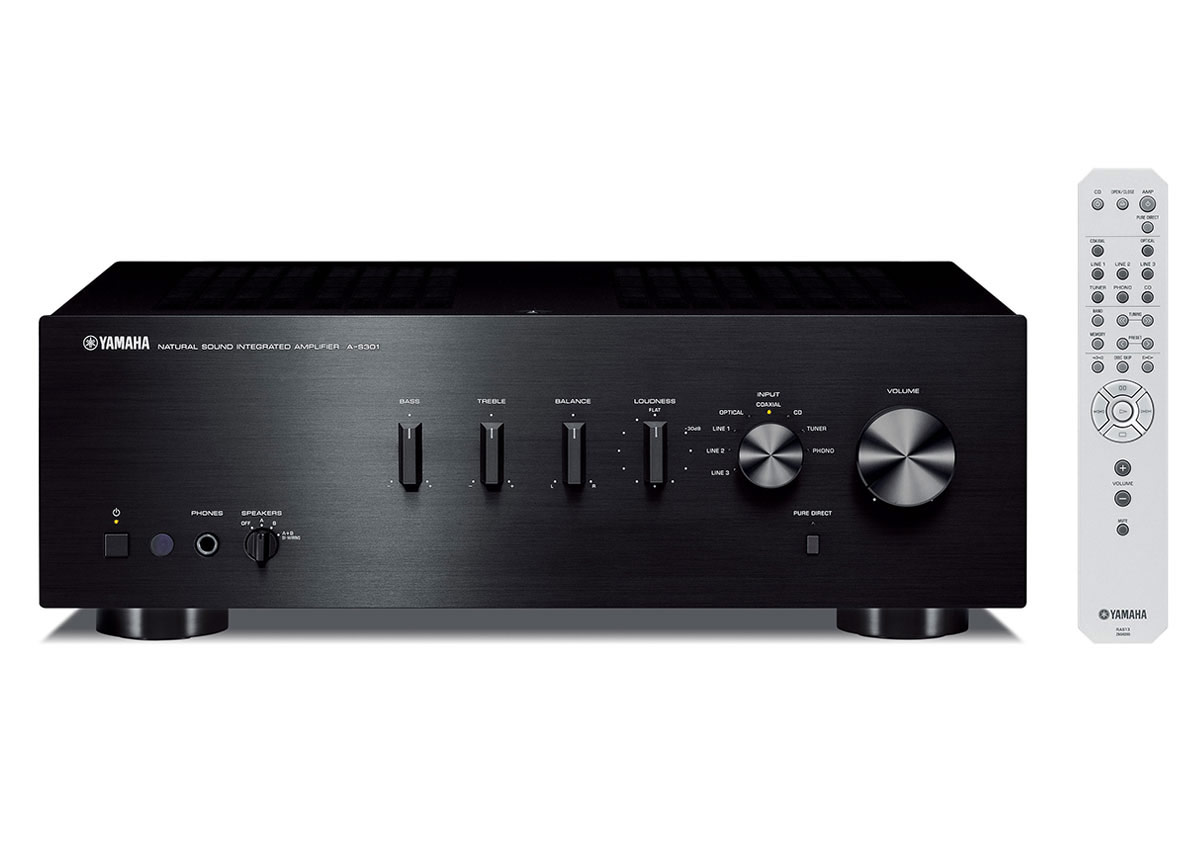

|Simple yet Sophisticated Design
With a beautifully simple and unique design inherited directly from Yamaha’s HiFi audio components, this amplifier also boast an easy-to-operate button layout. The aluminium front panel has a richly textured silver hairline finish. The control knobs are also of the same luxurious construction as used on our top-end models.
|Remote Control with Clean, Simple Design
The clean, simple design of the remote control provides easy-to-understand one-hand operation. The easy-to-use design makes it simple to adjust song volume and order. The unit has a sophisticated looking hairline finish that matches the design of the amplifiers. You can also use the remote to control a Yamaha CD player.
|Rotary Encoder Input Selector with LEDs
The rotary encoder makes it quick and easy to select input sources. The luxury hairline finish material offers a nice tactile feeling. LEDs clearly show which source is selected, so you can easily switch sources even in a dark room.
|Auto Power Standby Function
The amplifier has a power management function that detects when it hasn't been used for a long time (about 8 hours) even though the power is on, and automatically shifts it into standby mode. So even if you forget to turn it off, power consumption will be minimised.
YAMAHA CD-S303 (BLACK)
This high-quality CD player is easy to operate and includes special features like Pure Direct, Intelligent Digital Servo, USB and MP3/WMA/LPCM/FLAC compatibility.
Designed to Deliver Enjoyable Sound Quality
Inheriting many of the sound quality features of the high-end CD player components, the CD-S303 CD player delivers sound that will satisfy devoted music fans. In addition to CDs, it also provides high-quality play of music files stored on USB memory devices via a USB port on the front panel.
Extremely Sophisticated Circuitry and Layout
Yamaha technicians devoted a great deal of time and effort to designing the overall interior layout of parts and circuit boards, a factor that significantly affects sound quality. As a result, the power supplies for the motor drive, display and USB sections, as well as the digital and analog sections, are individually isolated, eliminating electromagnetic interference among them. To achieve ideal weight balance for stable performance, the drive mechanism is located in the center of the unit.
Short Signal Paths
The highly logical and symmetrical internal layout of parts and circuit boards are designed to keep the signal paths on each board as short as possible. This purposeful design also keeps the paths between sections straight and short, minimizing the chance of signal loss or interference; something not easy to achieve.
The CD-S303 offers Pure Direct, which is the same popular feature included in Yamaha amplifiers and receivers. By pressing the button on the front panel or on the remote control, it shuts down the digital audio output and turns off the display. This achieves the lowest possible noise interference and, therefore, the highest sound quality of the analog audio output.
Well-Matched, High-Quality Parts
Each of the individual elements in a CD player influences the sound quality, which is why Yamaha puts a great deal of effort into the selection and matching of parts and materials. A high-grade acoustic capacitor, a new low-noise, high-gain bandwidth op amp and the use of damping material under the transformer and around the signal cables are just a few examples of the Yamaha commitment to great sound quality. In short, the CD-S303's internal sophistication is on a level generally found on much more expensive models.
High-Performance D/A Converter
Utilizing a 192 kHz/24-bit DAC, the high-performance D/A conversion system takes full advantage of the digital technology refined by Yamaha over a period of many years, ensuring excellent conversion precision, S/N ratio and dynamic range.
Enjoy Your MP3, WMA, LPCM, AAC and FLAC Music
The USB port on the front panel gives you an easy way to enjoy high-quality sound from MP3, WMA, LPCM, AAC or FLAC digital music files stored on USB memory devices. You can also play files recorded on CD-R/RW discs.
Laser Pickup Floating Mechanism
The laser pickup is isolated on a floating mechanism so its delicate operation cannot be affected by vibration.
Intelligent Digital Servo
Conventional tracking servo circuitry cannot completely overcome errors caused by a warped disc, dust and other defects. This system uses a dependable DSP (Digital Signal Processor), exclusive for CDs, to monitor the signal, adjusting pickup tracking and focus, as well as spindle motor speed, to compensate for any problems.
3-Mode CD Text Display
Information about the currently playing CD is shown right on the CD player’s display. The 3-mode CD Text display shows the CD’s title, the artist’s name and the title of the track.
Program Play (Audio CDs Only)
It’s extremely easy to program the tracks you want to hear in any order. You can clear the program at any time with a single touch.
Other Notable Features
|Disc Compatibility||CD, CD-R/RW|
|Signal-to-Noise Ratio||105 dB (CD)|
|Dynamic Range||96 dB|
|Harmonic Distortion||0.003% (CD)|
|Frequency Response||2 Hz-20 kHz (CD)|
|Output||Optical, Coaxial and Analog RCA|
|Dimensions (W x H x D)||17 1/8" x 3 3/8" x 10 1/4"|
|Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)||60 W + 60 W (0.019% THD)|
|Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)||95 W + 95 W|
|High Dynamic Power/Channel (8/6/4/2 ohms)||100/120/140/150 W|
|Frequency Response||10 Hz-100 kHz +/-1.0 dB|
|Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)||0.019% (50 W/8 ohms)|
|Signal-to-Noise Ratio (CD)||99dB (input shorted, 200 mV)|
|Audio In / Out||8 / 2|
|Digital Input||Yes (optical / coaxial)|
|Standby Power Consumption||0.5W|
|Power Management (Auto Power Standby)||Yes|
|Dimensions (W x H x D)||435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4”|
|Weight||9.0 kg; 19.8 lbs.|
