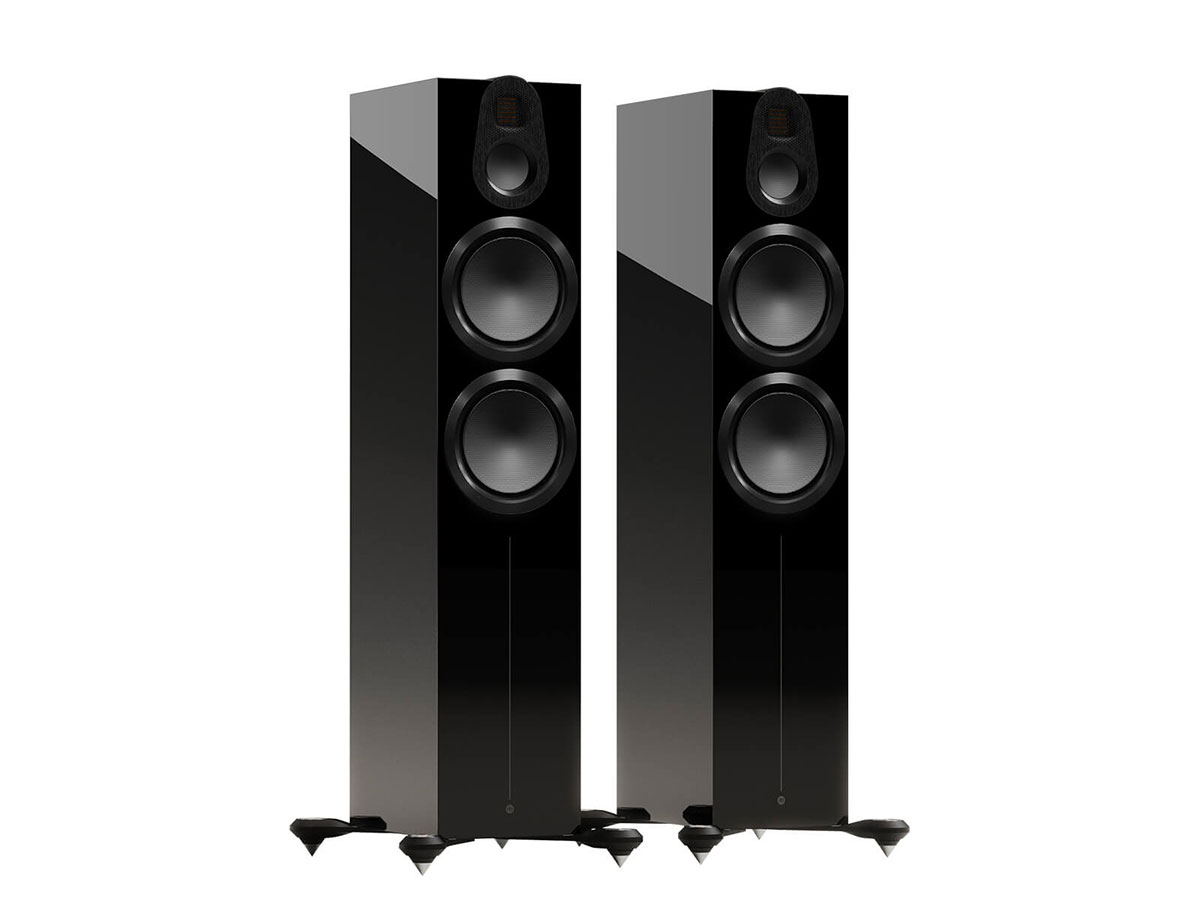

The mid-sized 300 6G is a floorstanding loudspeaker capable of delivering pristine, room-filling sound from its relatively compact dimensions. It boasts the latest MPD III high-frequency transducer alongside an HDT, C-CAM 3-inch mid-driver and twin 6-inch bass drivers.

---

Key Features

• Three-way design
• 1 x MPD III high-frequency transducer
• 1 x 3-inch mid-driver featuring HDT, C-CAM cone technology
• Steel mid-pod enclosure with die-cast aluminium baffle
• 2 x 8-inch bass drivers featuring HDT, C-CAM cone technology
• New crossover design utilising carefully selected high-quality capacitors
• Ported cabinet design using HiVe II port technology and through-bolt technology
• All-new cast aluminium outriggers and plinth/spike assembly featuring a new steel plate for greater structural integrity and improved stability
• Finishes available: Macassar wood veneer, High-Gloss Black and Satin White
• Individual driver ‘Magnetic grilles’ included

---

The Gold 300 6G is the mid-sized floorstanding speaker within the Gold Series 6G. It boats a smaller footprint and slimmer profile compared to the 500 6G and offers outstanding levels of performance and system design at its price. Designed to house the latest MPD III high-frequency transducer alongside the new 3-inch mid-driver and powerful twin 6-inch bass drivers, each of which benefit from the latest HDT, C-CAM cone technology and hugely powerful motor systems. The Gold 300 6G delivers music and movie scores with pure, detailed high-fidelity sound.

---

---

The new HDT, C-CAM cone, coupled with an FEA-optimised surround design, an inverted build ring, and a copper cap, combine to ensure the usable frequency range of the new Gold Series 6G’s 6-inch bass-mid driver has been greatly increased, reducing mid-frequency distortion for improved clarity in two-way systems.
The result is a seamless link from low bass through the frequency range to mid and upper frequencies. This allows the driver to blend smoothly with the MPD III high-frequency transducer for a beautiful high-fidelity presentation that reveals all the detail or excitement of a recording.

• New HDT, C-CAM cone helps disrupt symmetries in the cone breakup to shift its frequency up by 10% over an RST II cone – allowing bass to be presented with total control and precision
• Inverted build ring and copper cap extends the passband, reduces distortion and provides extra mid-frequency clarity and detail
• FEA designed cone surround and spider designs reduce cone breakup Large, powerful motor system for improved power, dynamics and greater pistonic movement

---

Crossover Design – the purest of signals.

Gold Series 6G’s crossovers have been developed using high-quality capacitors and have undergone hundreds of hours of listening by Monitor Audio’s acoustics team. Many iterations have been repeatedly tested to ensure the smoothest, cleanest audio signal is delivered to each drive unit.

---

Machined & Die-Cast Aluminium Details

The exquisite quality of the Gold Series 6G is the result of paying close attention to even the smallest details. Carefully conceived and delivered with conviction throughout the design, these details combine to make the whole special. The machined aluminium, anodised driver trims are precise and clean; the delicate shadow gaps around them offer a subtle lift to provide an element of sophistication atop the beautifully veneered wooden or painted cabinets.

---

Plinth and foot assembly

Providing the most stable platform possible for the Gold Series 6G floorstanding speakers to perform from, cast aluminium outrigger style assemblies with steel bracing allow the user to adjust the speaker level with ease.

A machined magnetic top cap, hides the hex key adjustment – and with a simple twist, the height of the spike or rubber foot (depending on the floor surface) can be adjusted simply to find the perfect level.

---

Specification

System Format
3-way

Sensitivity (2.83v @ 1m, Free-Field)
88.5 dB

Sensitivity (2.83v @ 1m, Installed)
N/A

Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
130 – 600 W

Continuous Power Handling (CTA 426-B)
300 W

Nominal Impedance
4 Ohms

Minimum Impedance (20Hz to 20kHz)
4 Ohms @ 150 Hz

Drive Unit Complement
2 x 8” (203 mm) HDT C-CAM Bass Drivers
1 x 3” (76 mm) HDT C-CAM Mid-Range Driver
1 x MPD III Tweeter

Frequency Response Free-Field (-6dB)
44 Hz – 60 kHz

Frequency Response, In-Room (-6dB)
25 Hz – 60 kHz

Maximum Peak SPL (AES75, Z-weighted)
122 dB

Bass Alignment
HiVe II Ported

Port Tuning Frequency
33 Hz

Crossover Frequency
LF/MF: 700 Hz
MF/HF: 2.6 kHz

External Dimensions with all accessories fitted (H x W x D)
1155 x 383 x 475 mm (451/2 x 151/16 x 1811/16”)

Weight (each)
26.5 kg (58 lb 7 oz)

---
