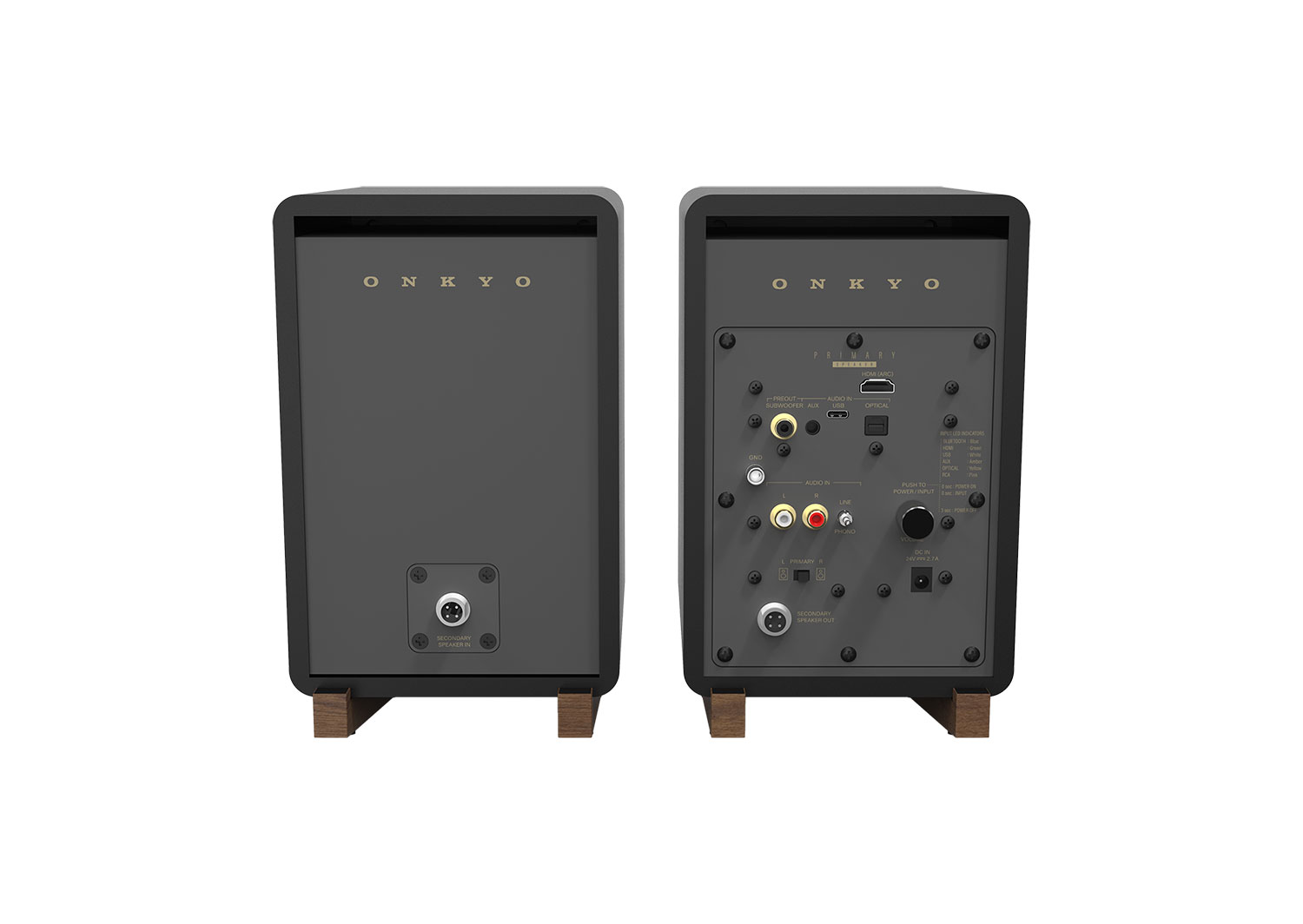

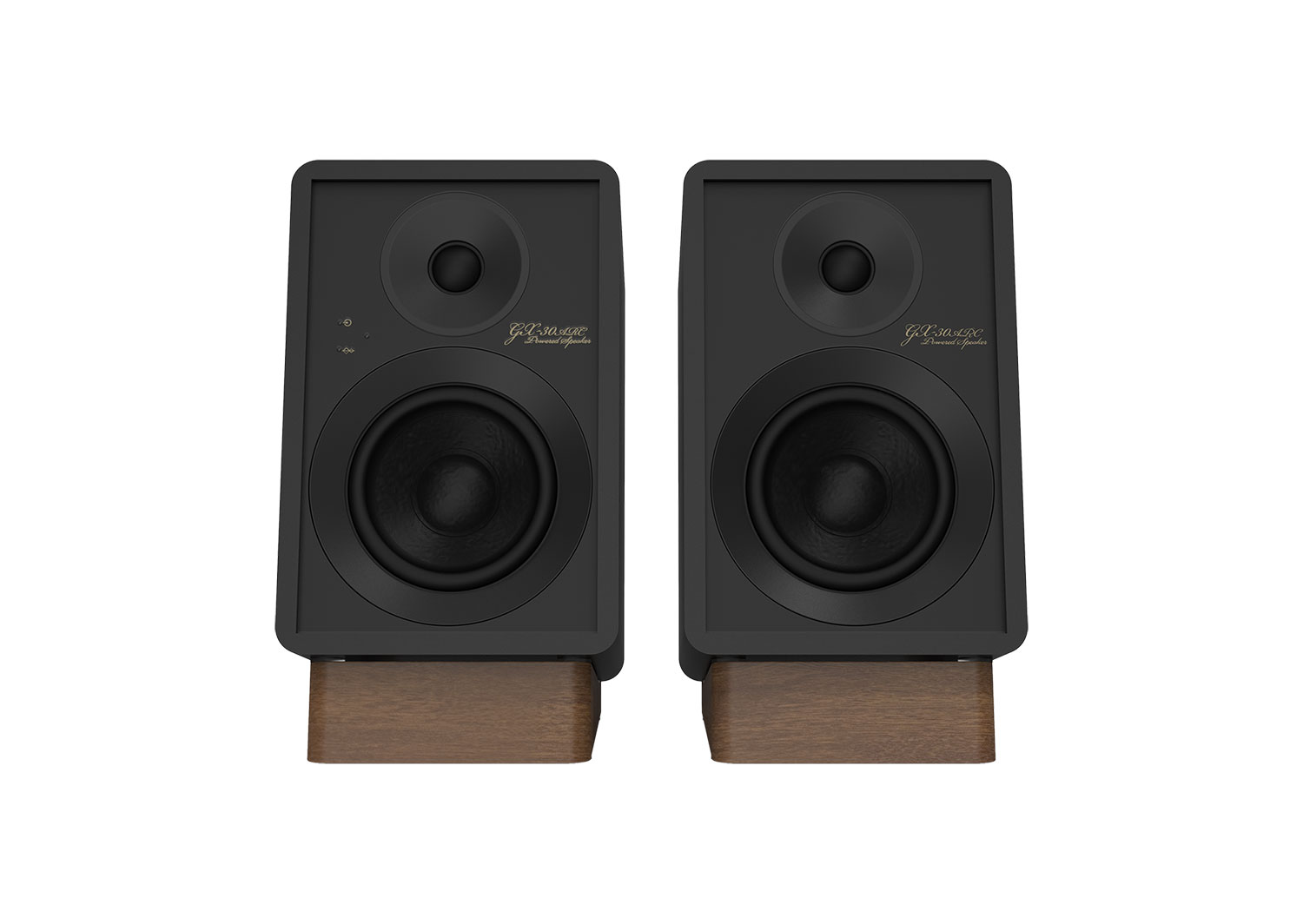

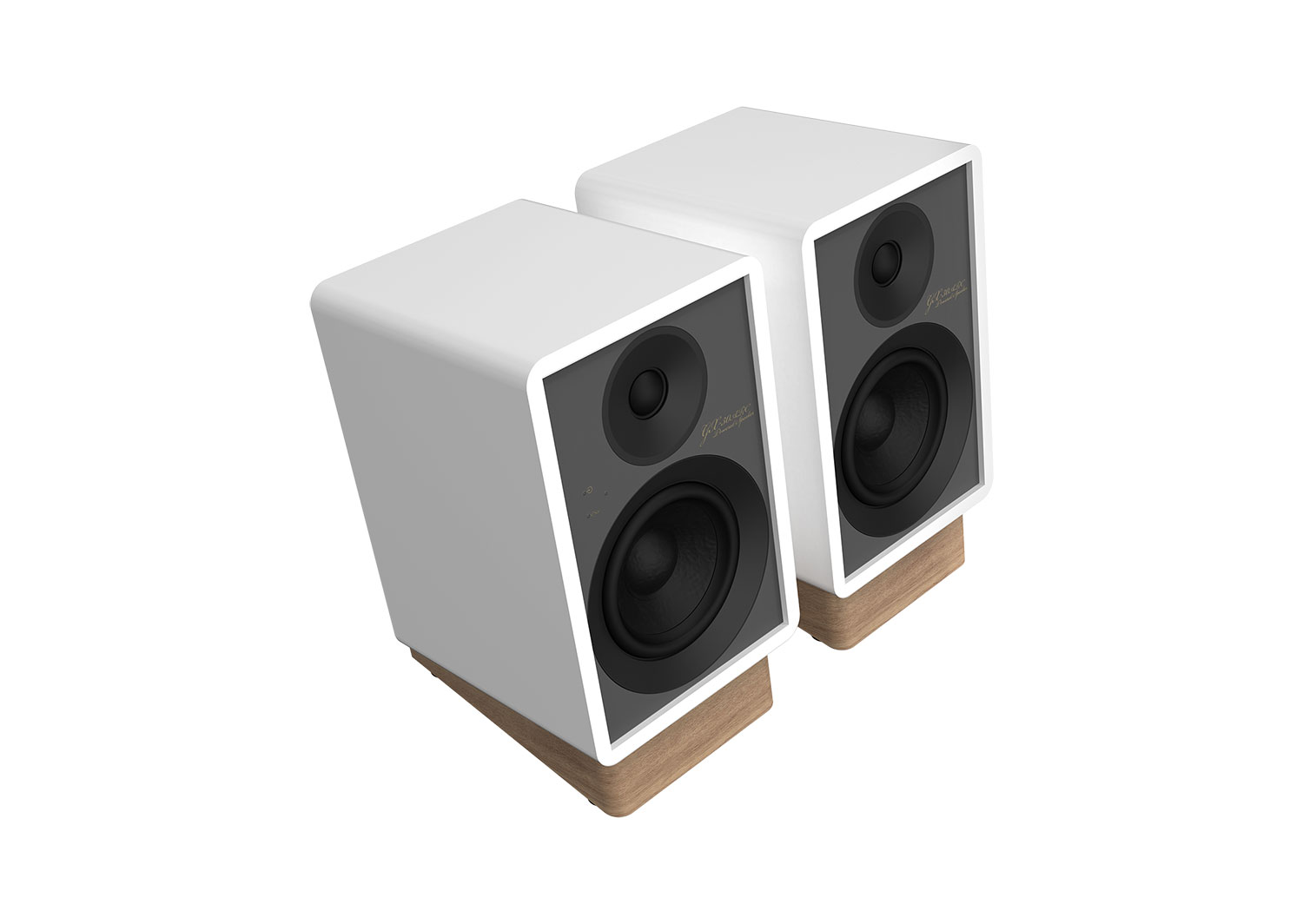

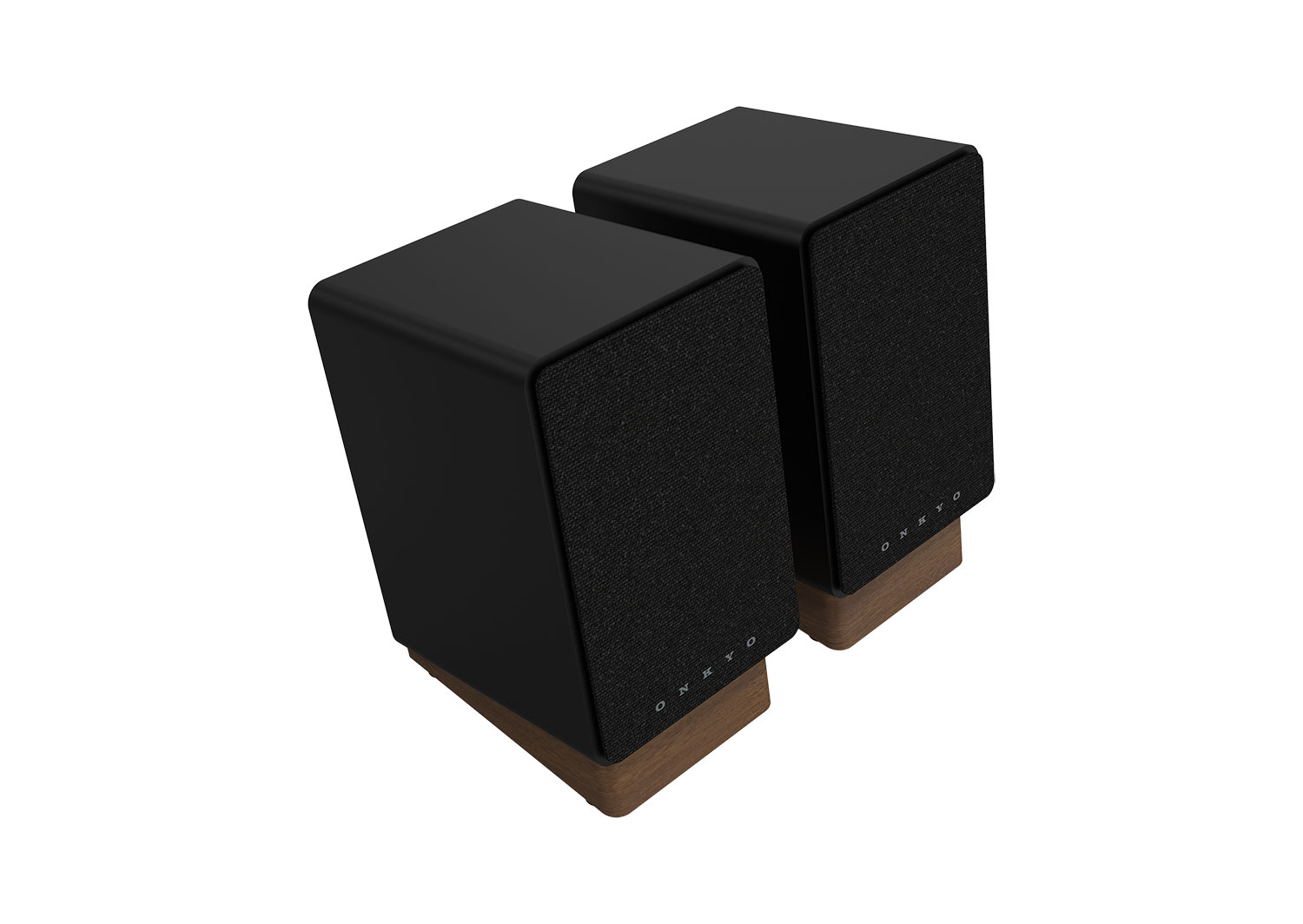

WiiM Ultra + Onkyo GX-30ARC
Free AQ EverGreen (RCA to RCA) (1.0M) มูลค่า 2,900 บาท

Digital Hub for Your Music

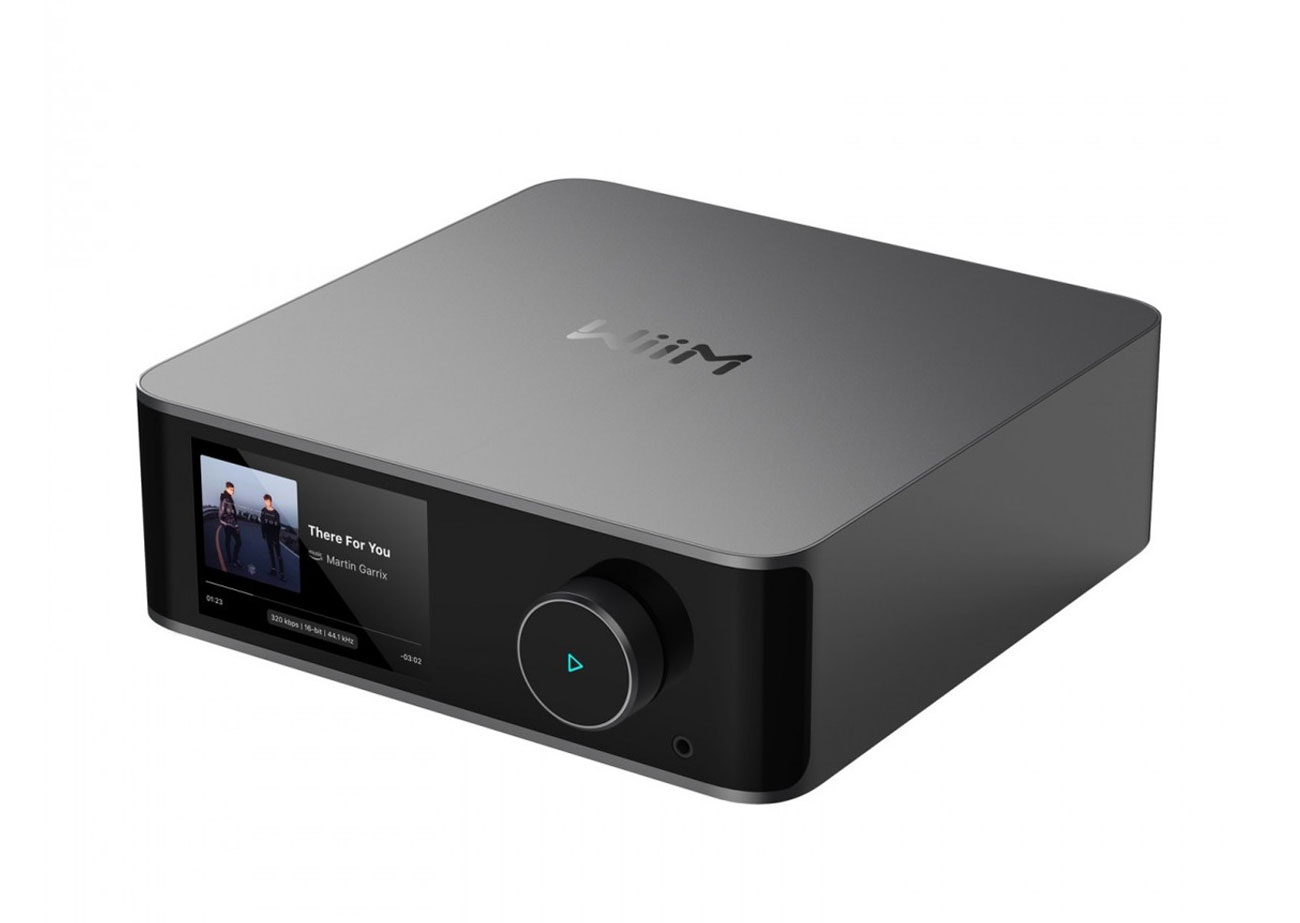

Sleek Design, Superior Build

Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5" glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.

Stream Everything You Love

Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.

Superior Sound Quality

Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.

Connect with Ease

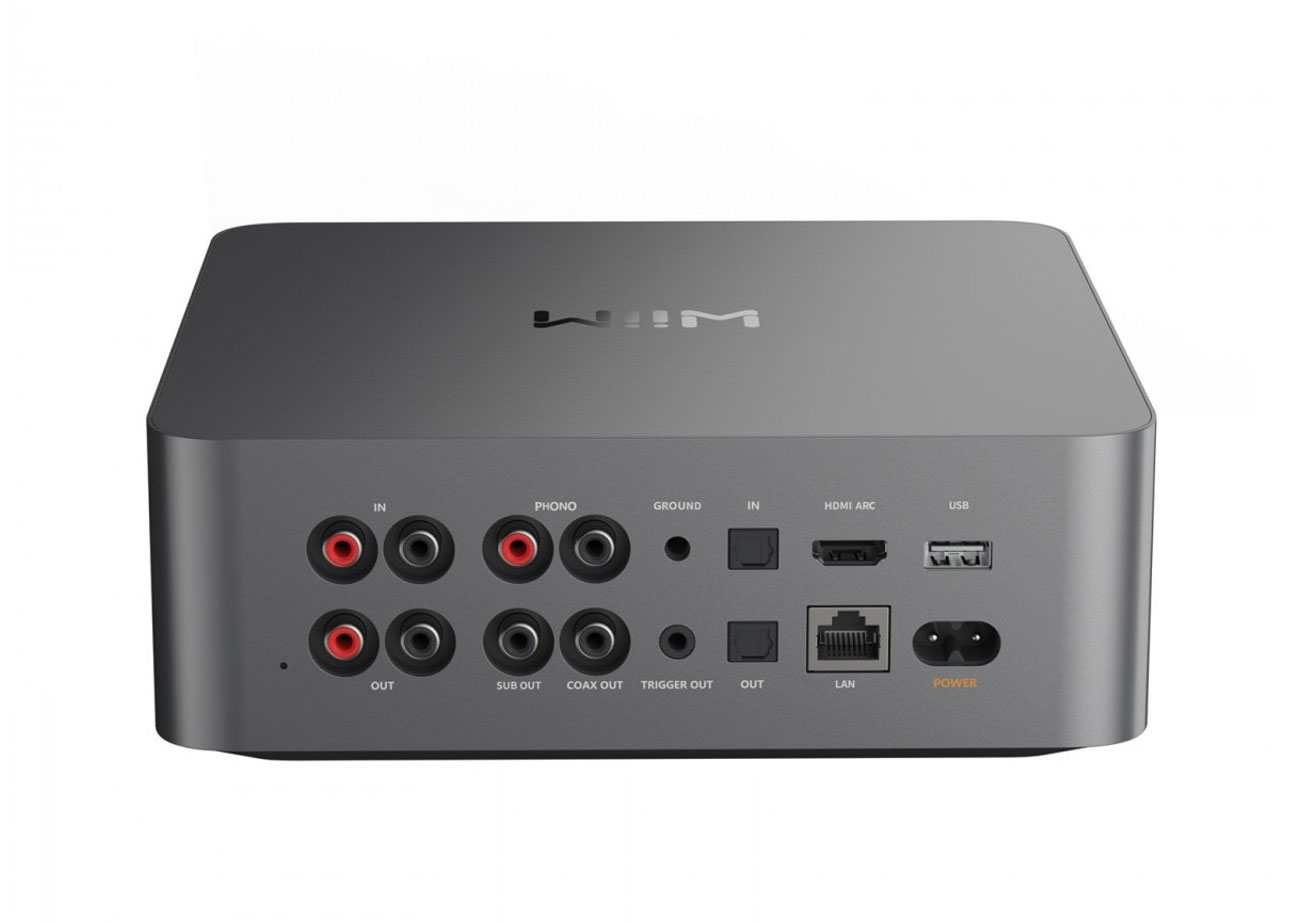

WiiM Ultra’s comprehensive connectivity suite offers USB, Optical, Coaxial, RCA outputs, and HDMI ARC, plus multiple inputs including RCA, Phono, and Optical. It’s designed to flawlessly integrate with both digital and analog systems, enhancing any audio setup with versatility and superior sound.

Cutting-Edge Wireless Tech

Latest Wi-Fi 6E and BT 5.3 with two antennas offering rock solid Bluetooth or Wi-Fi audio streaming

Your Music Looks Great

Features a 3.5" vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customizable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user's actions.

Seamless Multiroom Audio


Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.

---

Customized Hi-Res Audio


Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.

---

Enhance Your Home Theater Experience

Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.

---

Specifications

Touch Display

Glass-covered 3.5" vibrant touchscreen display:
Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings
Guides users through the OOBE and OTA
Provides feedback when there's a change in the play mode

---

Controls

Volume knob, play/pause, setup, and more

---

LED

4 Color RGBW LED indicates the device status

---

Audio Input

HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/ 192 kHz

---

Audio Output

RCA, Headphone, Coax, Optical, and USB, up to 192 kHz/ 24-bit
Wireless to another BT, DLNA receiver
Performance

Line out：

Maximum output: 2.1V RMS
SNR: 121 dB (A-wt)
THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k
FR curve:+/-0.05 dB

Headphone out：

300 ohms: SNR (119 dB), THD+N (-99 dB)
32 ohms: SNR (119 dB), THD+N (-92 dB)

---

EQ

24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ

---

Subwoofer Output

Comprehensive bass management
Adjustable crossover frequency, level, phase, and latency.

---

Power Supply

100-240V AC input, 50/60 Hz, 0.5A Max

---

Network

Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.
10M/100 Mbps LAN

---

External Storage

Access personal media library and use it as a media server for other WiiM and DLNA devices,
Support FAT32, NTFS, and EXT4 file systems.

---

Bluetooth

Bluetooth 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote.

---

Supported Streaming
Protocol

Spotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready

---

Package Contents

User Guide *1
Power Cable *1
RCA Cable *1
HDMI Cable *1
Optical Cable *1
Remote Control *1
Phono Ground Adapter*1
