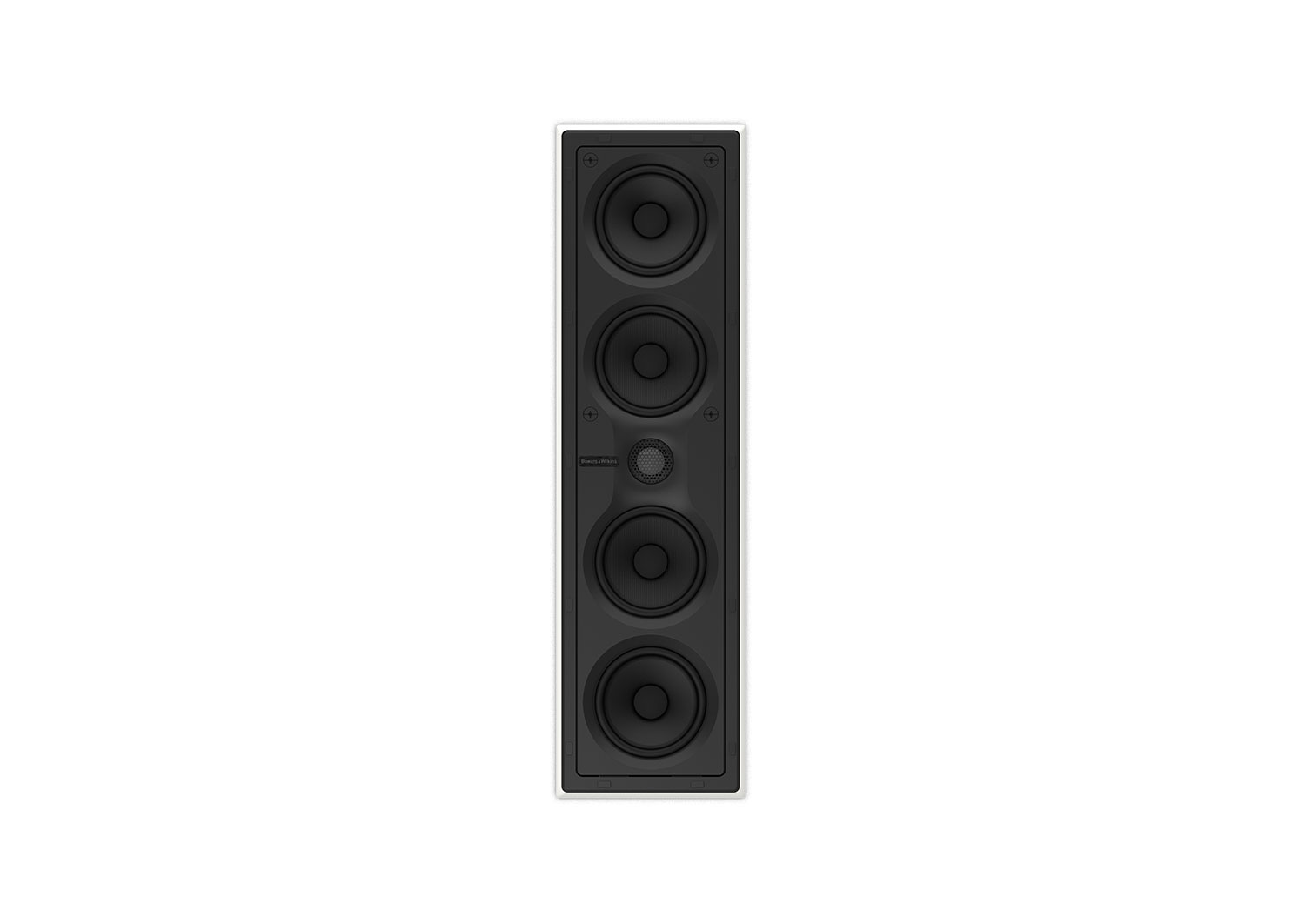

CWM-7.4S2 (ราคาต่อข้าง) [in-Wall Speaker]
คัดลอกลิงก์เรียบร้อยแล้ว!
คุณสามารถส่งลิงก์ให้เพื่อนได้ทันที
in-Wall Speaker
SKU: PRD00387-000
In-wall system with 704 S2 performance levels
Drive Units
See nothing, hear everything
Designed for wall-mounted left, centre and right speaker positions in a discreet home cinema system, CWM7.4 S2 can also be mounted beside, above or below the screen, ensuring crystal-clear dialogue and dramatic special effects. Thanks to Bowers & Wilkins unique QuickDogs™ fixing method, installation is simple, requiring no tools. Its 2.5-way configuration features a single Carbon Dome tweeter, twin 100mm (4in) Continuum cone midrange units and twin 100mm (4in) Aramid Fibre/paper bass cones
Specifications
In-wall system with 704 S2 performance levels
See nothing, hear everything Specifications
| 2½-way in-wall system | ||||||||||||||||||||||||||||||||||||
| Technical features | Carbon Dome tweeter Continuum midrange Aramid Fibre/Paper bass cones | ||||||||||||||||||||||||||||||||||||
| Drive units | 1x ø25mm (1in) Carbon Dome high-frequency 1x ø100mm (4in) Continuum cone FST midrange 2x ø130mm (5in) Aerofoil profile bass | ||||||||||||||||||||||||||||||||||||
| Frequency range (-6dB) | -6dB at 43Hz - 33kHz | ||||||||||||||||||||||||||||||||||||
| Frequency Response -3dB | 45Hz - 28kHz ±3dB | ||||||||||||||||||||||||||||||||||||
| Sensitivity | 86dB spl (2.83Vrms, 1m) | ||||||||||||||||||||||||||||||||||||
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) <1% 80Hz - 33kHz <0.5% 120Hz - 33kHz | ||||||||||||||||||||||||||||||||||||
| Nominal Impedance | 8Ω (minimum 4.9Ω) | ||||||||||||||||||||||||||||||||||||
| Recommended amplifier power | 25W - 150W into 8Ω on unclipped programme | ||||||||||||||||||||||||||||||||||||
| Frame height | 625mm (24.6in) | ||||||||||||||||||||||||||||||||||||
| Frame width | 175mm (6.9in) | ||||||||||||||||||||||||||||||||||||
| Depth (behind surface) | 92.5mm (3.64in) | ||||||||||||||||||||||||||||||||||||
| Cut-out height | 597mm (23.5in) | ||||||||||||||||||||||||||||||||||||
| Cut-out width | 147mm (23.5in) | ||||||||||||||||||||||||||||||||||||
| Protrusion | 8mm (0.3in) | ||||||||||||||||||||||||||||||||||||
| PMK | PMK CWMC7 | ||||||||||||||||||||||||||||||||||||
| Net weight | 6.2kg (13.73 lb) | ||||||||||||||||||||||||||||||||||||
| Finishes | Grille: Whit |
