Product Power Amp Rotel RB-1590 (BLACK)
Rotel
ROTEL :
RB-1590 (BLACK)
Category : Power Amp
Add to wishlist     สถานะสินค้า In Stock
RB-1590 (BLACK)
RB-1590 (BLACK)
RB-1590 (BLACK)


** เฉพาะบัตรเครดิตที่เข้าร่วมรายการ **

PRICE :
157,000 THB.
SPECIAL :
129,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

Rotel RB-1590 (BLACK)
Stereo Power Amplifier

Power - refined, detailed, and plenty of it. Rotel’s new Class AB stereo power amplifier is rated at 350 watts per channel into 8 ohms both channels driven. That is a lot of power, but larger listening rooms or less sensitive loudspeaker designs require it to bring out the best possible performance and attain realistic audio dynamics.

The impressive capabilities of this amplifier begin with a solid foundation consisting of twin, massive toroidal transformers custom made by Rotel. These transformers are just part of a rock-solid power supply that includes eight special British made BHC capacitors, known for their low loss and quick response times. These components will continue to supply all of the voltage and current requirements needed, even under the most difficult load conditions.

But power unrefined has never been a Rotel design goal. Every aspect of circuit design has been carefully considered and each component has been rigorously selected after extensive listening sessions. The circuit topography has been laid out in a true monoblock design ensuring maximum signal separation and improved stereo imaging.

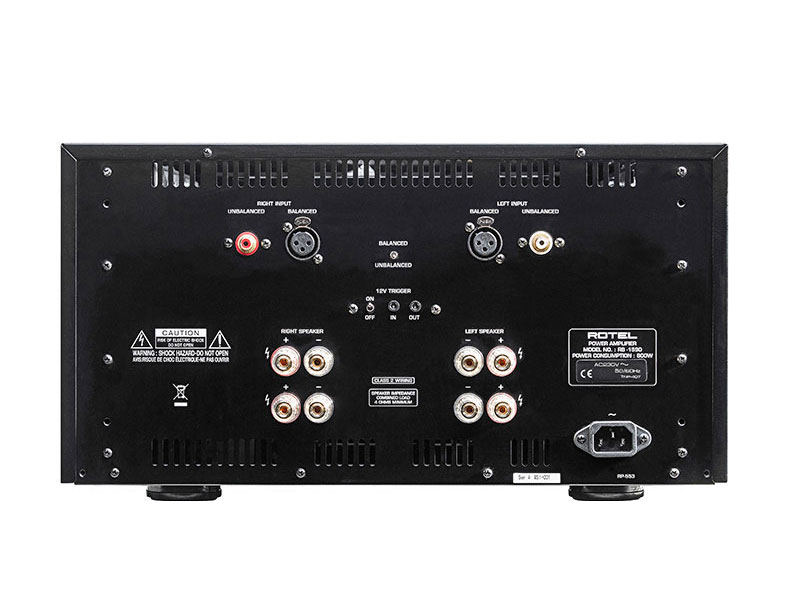

Features include: XLR Balanced and RCA input connections, two pair of 5-way speaker binding posts, 12-volt trigger control, thermal protection circuitry, over-current, over-voltage protection circuitry, dual staged power on relay to reduce surge current and extend longevity, and a detachable IEC power cord all in a 5 U chassis with included rack ears.

The RB-1590 has been designed for the most discerning audio enthusiast and will provide the highest levels of audio performance.

Specifications

Continuous Power Output
(20 - 20kHz, <0.03%, 8 ohms)
350 watts/channel
Total Harmonic Distortion
(20Hz - 20kHz, 8 ohms)
<0.03%
Intermodulation Distortion
(60Hz : 7kHz, 4 : 1)

<0.03%
Frequency Response
(±0.5 dB)
 10Hz - 100kHz
Damping Factor
(1kHz, 8 ohms)

300

Speaker Impedance
4 ohms minimum
Signal to Noise Ratio
(A weighting)
120 dB
Channel Separation
Input Impedance/Sensitivity
>64 dB
Input Impedance/Sensitivity
Unbalance
Balance
12k ohms / 2.2 V

100k ohms / 3.5 V
Gain
Unbalance
Balance
27.5 dB (±0.5 dB)

23.5 dB (±0.5 dB)
Power Requirements
USA
EC
120 volts, 60 Hz

230 volts, 50 Hz
Power Consumption
800 watts
Standby
< 0.5 watts
BTU (4 ohms, 1/8th power)
2100 BTU/h
Dimensions (W x H x D)
431 x 237 x 454mm
17 x 9 3/8 x 17 7/8 in
Front Panel Height
5U / 221mm / 8 3/4 in
Weight (net)
38.1kg, 84 lb
