Product Phono Preamp OCTAVE Phono Module Main (SILVER)
Category : Phono Preamp
Add to wishlist     สถานะสินค้า In Stock

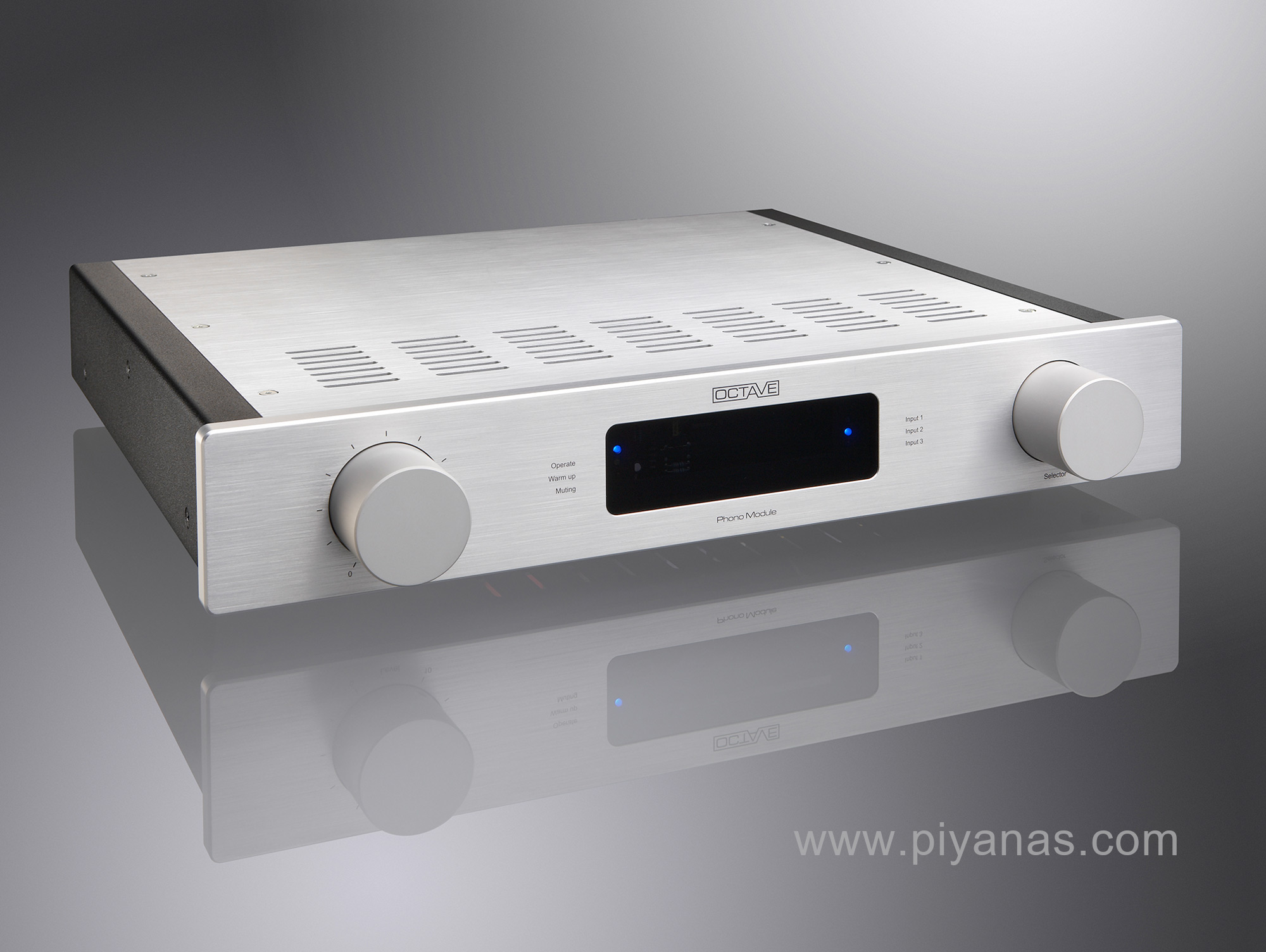

Phono Module Main (SILVER)
Phono Module Main (SILVER)
Phono Module Main (SILVER)
Phono Module Main (SILVER)
183,900 THB.
สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview
  • Specifications


Tube based external phono preamplifiers are the preference of music lovers who prefer the sonic virtues of analogue reproduction. Modern MC (moving coil) pickup systems, with their low output signal, cannot be connected to a tube based phono stage without an additional step up transformer to keep the total noise to an acceptable level.

When OCTAVE was founded, Andreas Hofmann began developing phonostage preamplifiers with an electronic MC input, because transformers are very sensitive to magnetic stray fields and they are limited in respect of the load impedance and the amplification factor. The OCTAVE Phono Module is a full feature phone preamplifier which allows the use of three different Input modules and three different Output modules.

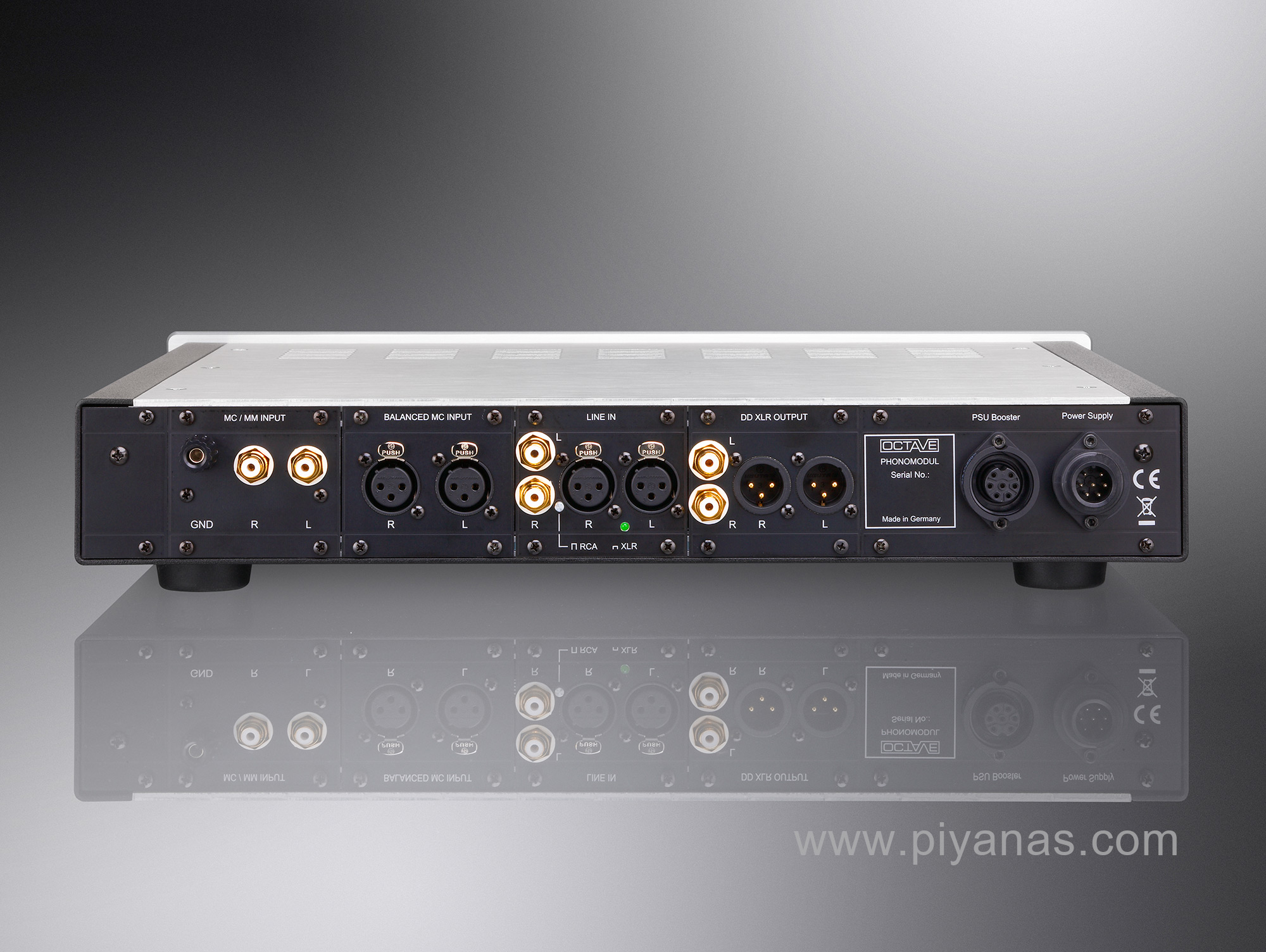

The three Input modules can be used simultaneously. There is an single-ended (RCA) MM (moving magnet) module, with switchable Input Impedance 1k Ohm and 47k Ohm. There is an single-ended (RCA) MC module featuring switchable Input Impedance between 50 to 1k Ohm, with Gain adjustable in two steps.

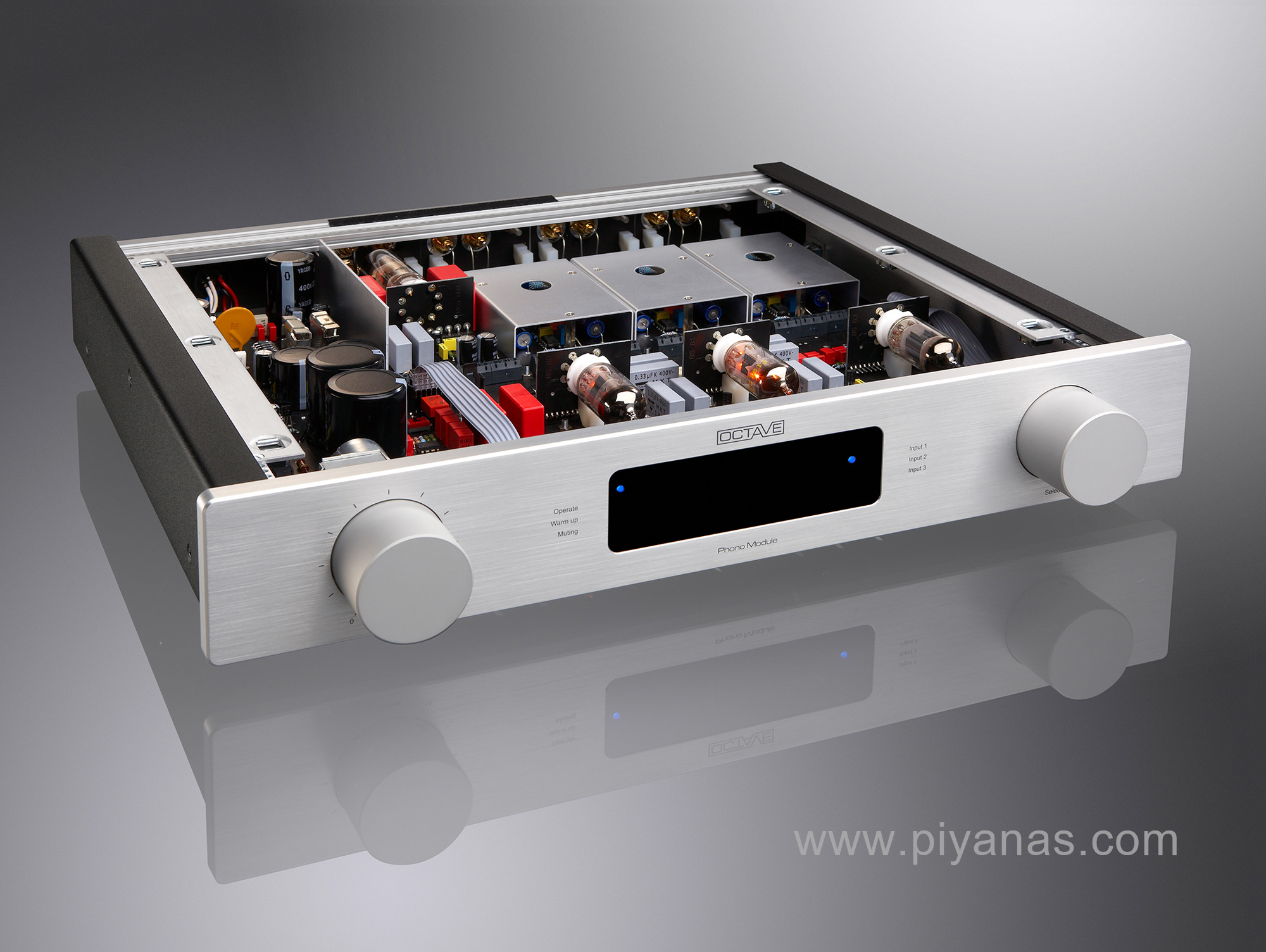

There is a balanced MC Module with XLR input jacks, featuring the same Impedance and Gain adjustment as in the unbalanced MC module. The Phono RIAA equalization stage is realized with a tube circuit based on the phono section of the highly-regarded OCTAVE HP 500 SE preamplifier. The RIAA Stage utilizes three tubes to ensure the high gain required by the RIAA correction.The specific configuration, with solid-state devices in the MC input and tubes in the RIAA output stage, allows the realization of a phono preamplifier which surpasses any and all tube designs in respect to spectral clarity and the signal to noise ratio.

The optional Output modules complete the OCTAVE Phono Module: There is the standard single-ended Output Module featuring dual RCA outputs, one with fixed level, the other with passive regulation. The next is the single-ended “ Direct Drive “ Module, also with dual RCA outputs, where the regulated output is buffered to reach a low output resistance to allow for driving a power amplifier directly.

There is also the Balanced (XLR) “Direct Drive” Module, featuring complex circuitry containing a tube and some integrated circuits that form a perfect balanced converter. This regulated output is also able to drive any power amplifier directly, while also allowing the level of the balanced output to be reduced to operate with the balanced line level inputs of a preamplifier. The OCTAVE Phono Module utilizes an external power supply.

  Basic Model Phono Module
  Tube Complement 1 x ECC83, 1 x ECC81
  Design Aluminium silver or Aluminium black
ราคา Main unit + input
In 1 MM RCA 17,100.00
In 2 MC RCA 23,400.00
In 3 MC XLR 23,400.00
In 4 Line Level RCA + XLR 23,400.00
Out 1 2 * RCA Standard ( 1 fix & 1 variable) 16,425.00
Out 2 2 * RCA Direct drive ( 1 fix & 1 variable) 30,150.00
Out 3 XLR Direct drive ( 1* RCA fix & 1 XLR Variable/fix) 32,400.00
Technical Specifications
Regulated Standard Outputs
Signal-to-Noise Ratio - 100 dB
Output Impedance 240 Ohm (Cinch)
Max. Output Level 7 V RMS
Distortion less than 0.01%
Gain 0dB
Regulated Active Outputs
Signal-to-Noise Ratio - 100 dB
Output Impedance 240 Ohm (Cinch/ XLR)
Max. Output Level 7 V RMS
Distortion less than 0.01%
Gain Low / High 0dB / 15dB
Gain MM - Fixed Output  38 dB
Gain MC - Fixed Output Low / High  58 dB / 65 dB15 Hz / - 3 dB
Phono MC
Input Sensitivity 50 - 1k Ohm
Signal-to-Noise Ratio RCA -69 dB / - 75 dB
Signal-to-Noise Ratio XLR -72 dB / - 78 dB
Corner Frequency Subsonic-Filter 20 Hz / - 3 dB- 75 dB
Input Impedance 1k + 47kOhm
Signal-to-Noise Ratio RCA - 77 dB
Corner Frequency Subsonic-Filter 20 Hz / - 3 dB
General Facts
Power Consumption 25 - 35 W
Weight Preamp 9 - 12,5 kg
Weight Power Supply 4 kg
Dimensions 437 x 80 x 390 mm (W x H x D)
Dimensions Power Supply 100 x 77 x 230 mm (W x H x D)
Standard Accessories Power cord
