Product Pre Amp OCTAVE Jubilee Preamp (silver)
OCTAVE
OCTAVE :
JUBILEE PREAMP (SILVER)
Category : Pre Amp
Add to wishlist     สถานะสินค้า In Stock

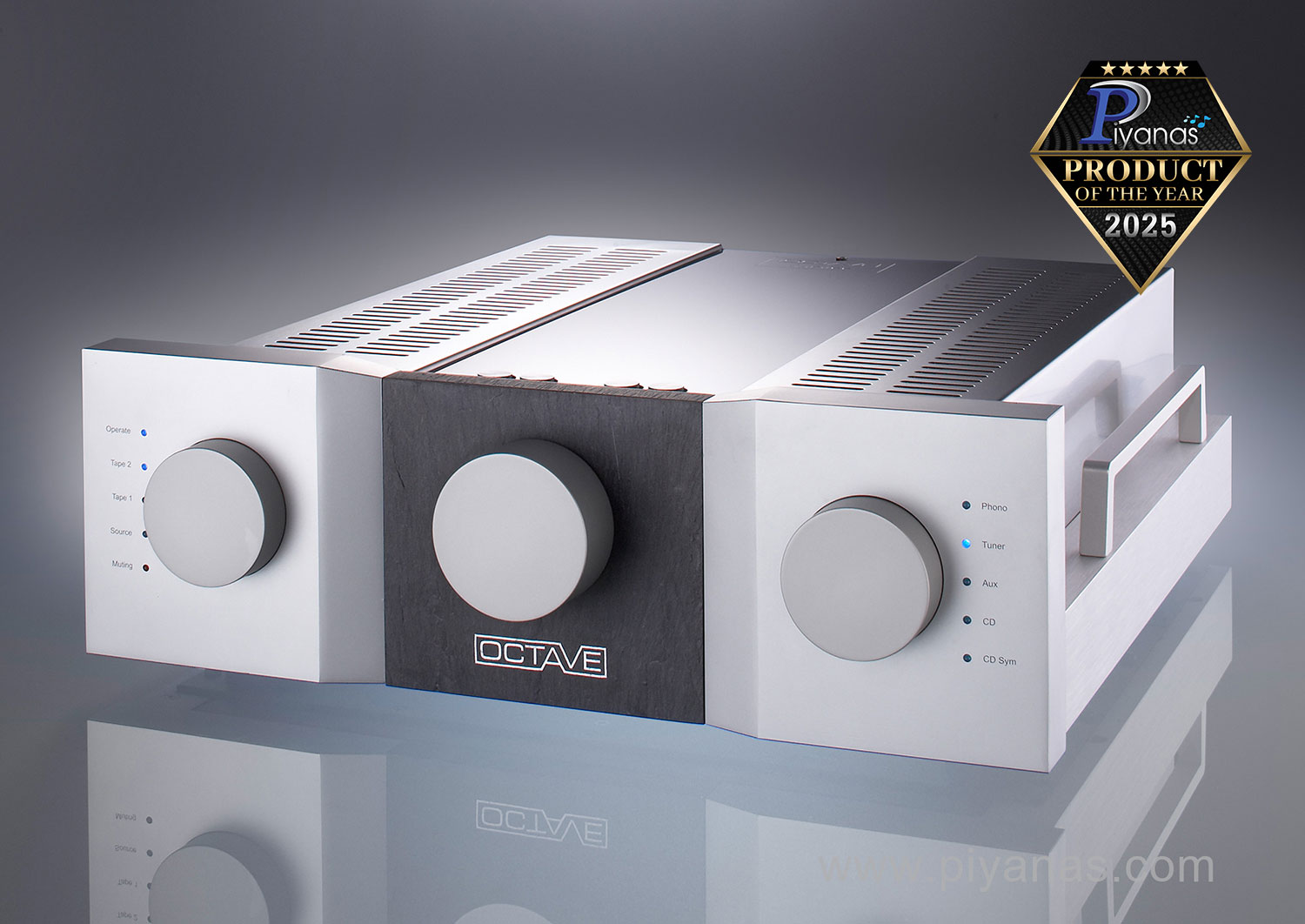

Jubilee Preamp (silver)
Jubilee Preamp (silver)
Jubilee Preamp (silver)

PRICE :
1,375,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview
  • Features
  • Specifications

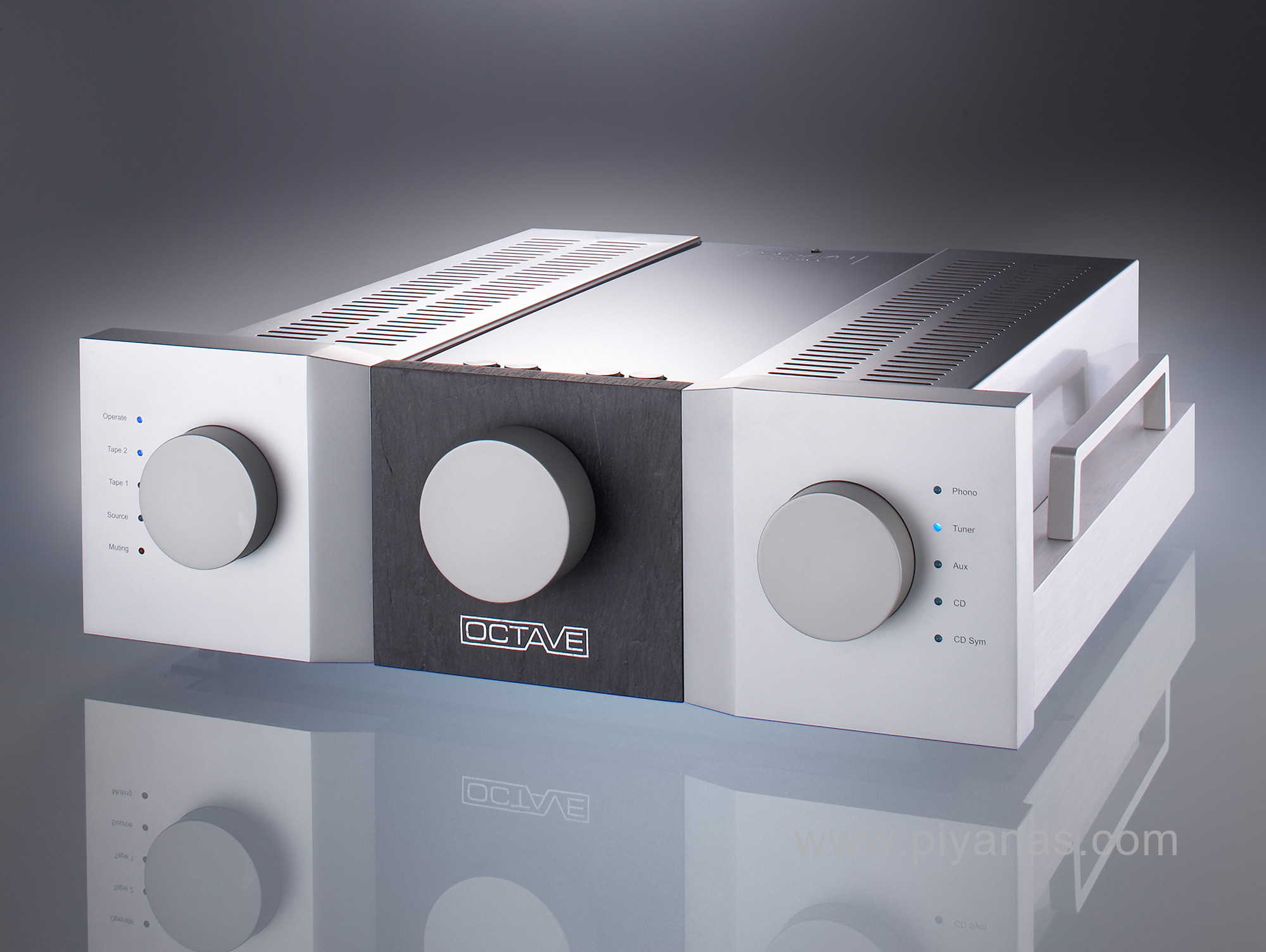

OCTAVE : Jubilee Preamp (silver)

"...The Jubilee is a true work of art, providing a mastery of the music that is at the limit of what is possible in audio today..." This was the view expressed by Audio magazine when they reviewed the Jubilee preamplifier in June '98 and proclaimed it as their absolute reference. These highly-complimentary remarks attest to the commitment of the OCTAVE design team throughout the development of the Jubilee product. They also validate the conscientious selection of the finest components and the meticulous fine-tuning of the Jubilee’s sound quality. But you deserve to hear the Jubilee for yourself.


























Basic Model Jubilee Preamplifier
Design Aluminium silver oder Aluminium black
Center Front: 20 mm black Granit or grey Slate

... spoils music-lovers.
Powerful dynamics, three-dimensional sound-staging and natural timbre – the Jubilee preamplifier sets the standard in all three disciplines.

... combines the best of two worlds.
Amplifier and precision balancing stages work with tubes. The reverse feedback free power buffer of the output stage puts its trust in semiconductors. The alliance of this hybrid technology answers all sound dreams.

... gets on with all „playmates“.
In- and outputs in single-ended (RCA) as well as balanced (XLR) configuration simplify the integration into existing hi-fi systems. At the extremely low impedance output, which is capable of high current delivery, any power amplifier can be operated – regardless of the interconnect cable’s length.

... trusts in exquisite components.
Due to a quintuple-shielded special transformer, magnetic stray fields do not exist within the external power supply. 100,000 µF load-store electrolytic capacitors provide an unshakeable stability against mains influences within the output stage. Series regulators ensure low noise heating and operating voltages and consequently ideal operating conditions for the tubes.

Extreme balanced Frequency Response; No Level Drop on low frequencies

Distortion Spectrum
Distortion Spectrum 1 kHz: Only the second harmonic k2 visible; No
ripple remains on 50/100 Hz.
Jubilee Preamp
Technical Specifications

Fuse (Typ: 5 x 20 mm; europäische Norm) 230 V 0,63 A; 115 V 1 A; 100 V 1,6 A
Frequency Response 3 Hz – 500 kHz 1,5 dB
Total Harmonic Distortion 0,001% an 3 Volt / 7,5 kOhm
Signal-to-Noise Ratio 90 dB (Gain High) / 98 dB (Gain Low)
Maximum Output Level 8 V
Channel Crosstalk 65 dB 1 kHz
Crosstalk Input to Input 86 dB 10 kHz
Crosstalk Tape Play – Record 98 dB 10 kHz
Input Impedance 100 kOhm
Output Impedance 30 Ohm (Cinch); 2 x 30 Ohm XLR
Channel Parity Volumeadjuster 0,5 dB (–70 dB)

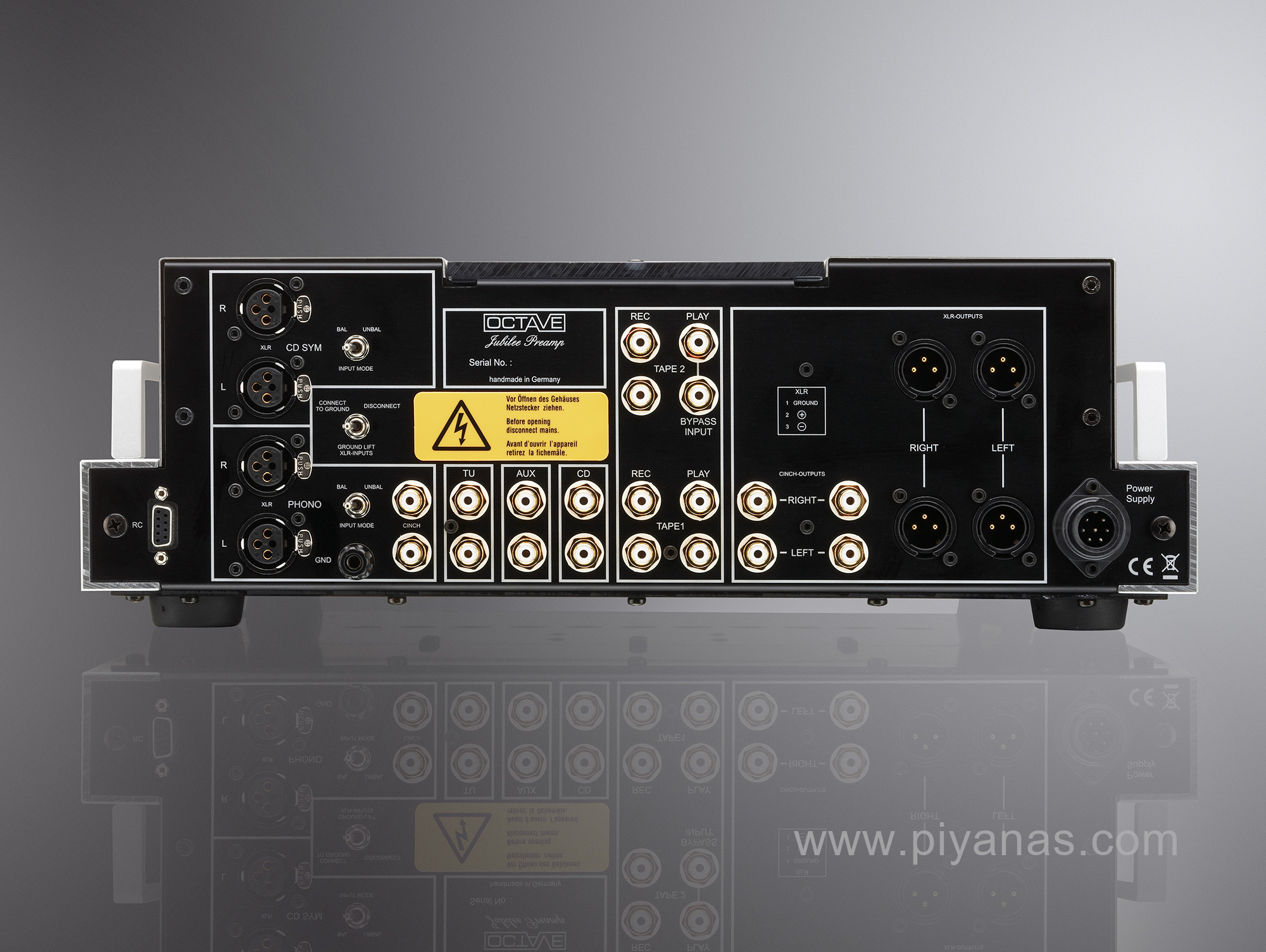

Connections Inputs : 6 x Cinch, 2 x XLR
Outputs : 2 x Cinch, 2 x XLR, 2 x Rec
Features HT Bypass Option, Sym. Input Transformer
General Facts
Weight  Amplifier 17,2 kg; Power Supply 11,5 kg
Dimensions  Power Supply: 220 mm x 170 mm x 480 mm
Amplifier: 435 x 170 x 480 mm
