B&W : PANORAMA-2 (BLACK)
Panorama 2 adds a new dimension to home entertainment, bringing truly immersive high-quality sound to your TV from a single, discreet speaker. You won’t believe what a big difference a single box can make.
Panorama 2's drive units are designed to disperse sound to as wide a listening area as possible. This large audio “sweet spot” means the whole family can immerse themselves in pristine sound. Movies and music on Panorama 2 now sound better than you ever thought that they could. All from a single, discreet loudspeaker system.
Plug and Play
We believe speakers should not only sound fantastic, they should also be easy to install and use. That's why using Panorama 2 is as simple as plugging it in. Panorama 2 features the latest HDMI connectivity (three inputs and one output) to allow the quickest, easiest, and highest-quality to the widest range of televisions, Blu-ray players, set-top boxes and games consoles.
Panorama 2 features completely new, specially designed tweeters, midrange and low frequency drive units. This leads to a dramatically improved acoustic performance, with better bass and enhanced integration.
Panorama 2's HDMI connectivity allows: on-screen information display; audio-return, taking sound from TV to amplifier; and Consumer Electronics Control, so you can control it with your TV remote.

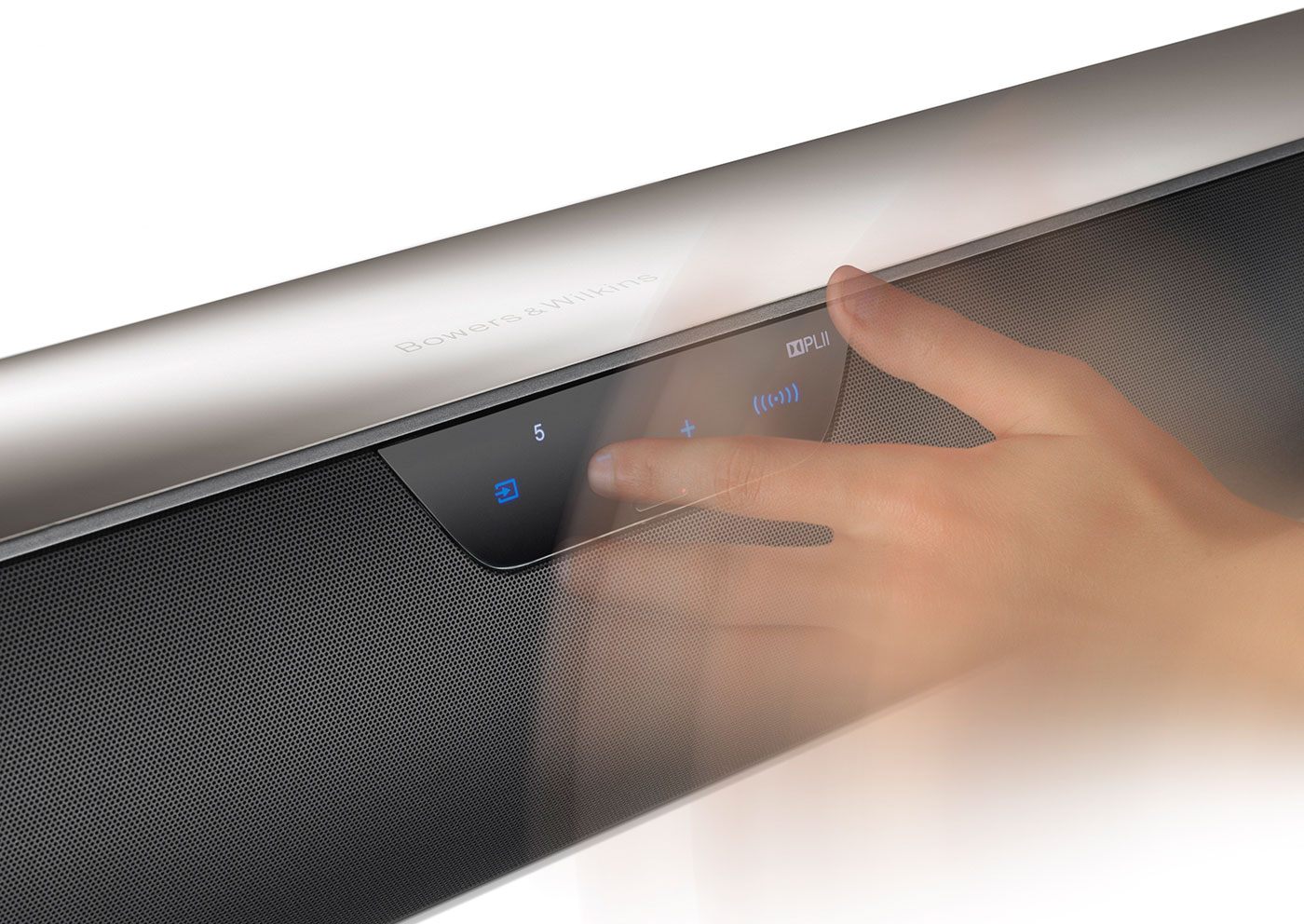

Panorama 2 features a proximity-sensitive display. Leave it alone and it fades to black. But wave your hand over the display and you can instantly control Panorama 2’s menus directly.
|Description||Integrated A/V Sound System|
|Technical features||Nautilus™ tube loaded aluminium dome tweeter
Digital Signal Processing
Switch mode power supply
|Drive units||2x ø90mm (3.5 in) subwoofers
2x ø75mm (3.0 in) midrange
4x ø75mm (3.0 in) surround channels
1x ø25mm (1 in) metal dome tweeter
|Frequency range||-6dB at 35Hz and 50kHz|
|Amplifier power output||1x 50W (subwoofers)
5x 25W (center/ surround)
|Power input voltage||Universal AC 100V-240V, 50-60Hz|
|Rated power consumption||36W|
|Standby power consumption||<0.5W|

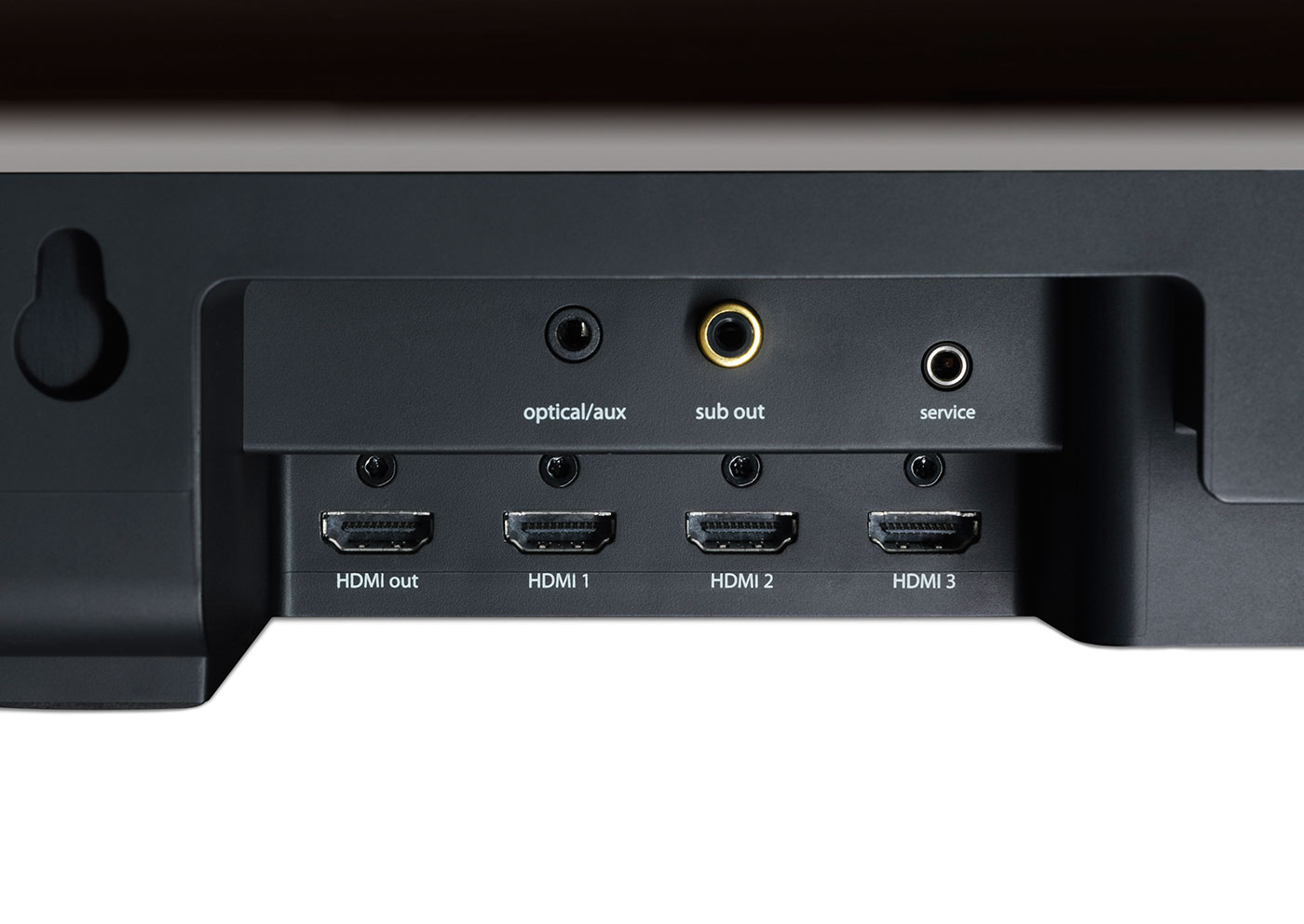

|Inputs||3 x HDMI inputs
1 x HDMI output (supporting ARC)
1 x 3.5mm Analogue/digital combi
3.5mm mini jack: RS-232 service connector
|Outputs||Subwoofer pre out (RCA Phono)
Output: 1 Vrms
Frequency: 12 ~ 150Hz
|Dimensions||Height 125mm (5 in)
Width 1100mm (44 in)
Depth 181mm (7.24 in)
|Gross weight||14.1 kg|
|Finish||Enclosure: Mirror black stainless steel skin
Grille: Black steel mesh
