Product Screen Motorized Screen OS Screen SEP-100HM-W1 (WF-203)
OS Screen
OS SCREEN :
SEP-100HM-W1 (WF-203)
Category : Motorized Screen
Add to wishlist     สถานะสินค้า In Stock
SEP-100HM-W1 (WF-203)
SEP-100HM-W1 (WF-203)

PRICE :
110,000 THB.
SPECIAL :
99,000 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน

  • Overview
  • Specifications

OS SCREEN

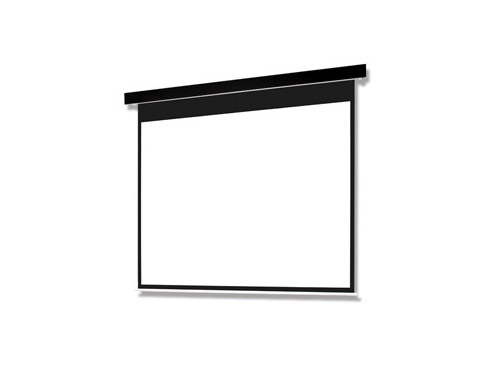

SEP-100HM-W1 (WF-203) MOTORIZED SCREEN

The existence of a screen diminishes by the super flat design.
What's new!!

Wide size line-ups!
Available from 80" to 200" by 10" steps.

Industry-first!
The front panel is detachable, and the replacement of fabrics is easy.

Easy installation!
The sliding brackets make the installation quick and easy.

Improved linearity!
The tension adjustment mechanism equipped to ensure fabric linearity.

Industry-first!
The limit (stop position) setting can be set by the remote controller and wall switch for all sizes.

Detachable PCB box!
SMaintenance is made easy, without taking off the screen.

New Design!
Symmetric casing design.

Features

  • You don't feel the depth of the screen due to the simple design that eliminates all unnecessary decorations.
  • The symmetry construction makes it easy to locate the center point. The center mark sheet is easily taken off after installation.
  • The front panel color is selectable: White or Black. Replacement to the different color panel is also possible.

  • The front panel is detachable even after the installation.
  • With the use of bigger roller, the linearity of the screen is much improved compared with the older models.
  • The newly designed rotary dumper reduces the operation noise (29% lower than the old models?
  • The tension adjustment mechanism is equipped as standard. The wrinkle can be easily adjusted by the aged deterioration of the fabric.
  • The under-pipe goes into the case and fit perfectly. Remarkable straight-forward outlook.
  • The screen sizes are available by 10? steps. Same design and wide variations.
  • A light weight aluminum hook bar is equipped according to the sizes.
  • Complied with RoHS.
  • The sliding brackets are the standard for the models up to 150?. For the models from 160? to 200?, the side brackets are the standard.The side brackets are also available as option for the models up to 150? (?S-M2?).

The sliding bracket
Up to 150

The side bracket
160 ~ 200


The side bracket S-M2
Option up to 150

Module Box type (M)

  • Modular jacks are employed for tighter connections on the module box. (Trigger cable also included.)
Selection of operating methods
Either of the followings or both are selectable.

Infra-red remote controller version (R)

  • The modular jack is newly used for the receiver.
  • For the option, the model name is S-R1

Wall switch version (W)

  • The modular jack is newly used with the relay box.
  • For the option, the model name is S-R2

The combination of using Infra-red remote and wall switch version (S)
How to read the model naming

SEP-W Series WXGA Format (16:10 / 1.6:1 Aspect Ratio)

Operation:Infra-Red
Model Panel
Color
Image Size
W×H
(mm)
Case
Dimension
W×DxH
(mm)
Weight
Bar
(mm)
Screen
Height
(mm)
Upper
Black
Border
(mm)
Screen
Weight
(kg)
Method
of
Mounting
SEP-080WM
-MRW1
White 1771x
1107
2111×
122×142
1937 1820 493 11.4 Sliding
bracket
SEP-080WM
-MRK1
Black
SEP-090WM
-MRW1
White 1992x
1245
2332x
122×142
2158 1820 355 12.4 Sliding
bracket
SEP-090WM
-MRK1
Black
SEP-100WM
-MRW1
White 2214×
1384
2554x
122×142
2380 2270 666 13.7 Sliding
bracket
SEP-100WM
-MRK1
Black
SEP-110WM
-MRW1
White 2435x
1522
2775x
122×142
2601 2270 528 14.7 Sliding
bracket
SEP-110WM
-MRK1
Black
SEP-120WM
-MRW1
White 2657x
1661
2997x
122×142
2823 2270 389 15.6 Sliding
bracket
SEP-120WM
-MRK1
Black
SEP-130WM
-MRW1
White 2878x
1799
3225x
134x152
3044 3260
(2429)
1231
(400)
20.6 Sliding
bracket
SEP-130WM
-MRK1
Black
SEP-140WM
-MRW1
White 3099x
1937
3446x
134x152
3265 3260 1093 21.7 Sliding
bracket
SEP-140WM
-MRK1
Black
SEP-150WM
-MRW1
White 3321x
2076
3668x
134x152
3487 3260 954 22.9 Sliding
bracket
SEP-150WM
-MRK1
Black
SEP-160WM
-MRW1
White 3542x
2214
3889x
155x170
3708 3278 816 37.8 Side
bracket
SEP-160WM
-MRK1
Black
SEP-170WM
-MRW1
White 3764x
2353
4111x
155x170
3930 3278 678 39.8 Side
bracket
SEP-170WM
-MRK1
Black
SEP-180WM
-MRW1
White 3985x
2491
4392x
155x170
4211 3768 999 43.1 Side
bracket
SEP-180WM
-MRK1
Black
SEP-190WM
-MRW1
White 4206x
2629
4613x
155x170
4432 3768 861 45.1 Side
bracket
SEP-190WM
-MRK1
Black
SEP-200WM
-MRW1
White 4428x
2768
4835x
155x170
4654 3768 723 47.1 Side
bracket
SEP-200WM
-MRK1
Black
The height and UBB for WF203 are those in ( ).
型式 White Mat
(WG103)
White Mat
(WG207)
Pure Mat II
EX
(WF203)
Ultra Beads
Premium White
(BU201)
Premium Gray
(BU202)
Sound Mat
(WS102)
SEP-080WM-MRW(K)1 - -
SEP-090WM-MRW(K)1 - -
SEP-100WM-MRW(K)1 - -
SEP-110WM-MRW(K)1 - -
SEP-120WM-MRW(K)1 - -
SEP-130WM-MRW(K)1 - -
SEP-140WM-MRW(K)1 - - -
SEP-150WM-MRW(K)1 - - -
SEP-160WM-MRW(K)1 - -
SEP-170WM-MRW(K)1 - -
SEP-180WM-MRW(K)1 - - -
SEP-190WM-MRW(K)1 - - -
SEP-200WM-MRW(K)1 - - -
● : joint on the image area
※ If require for tailor-made size or tailor-made UBB, please contact our sales staffs
