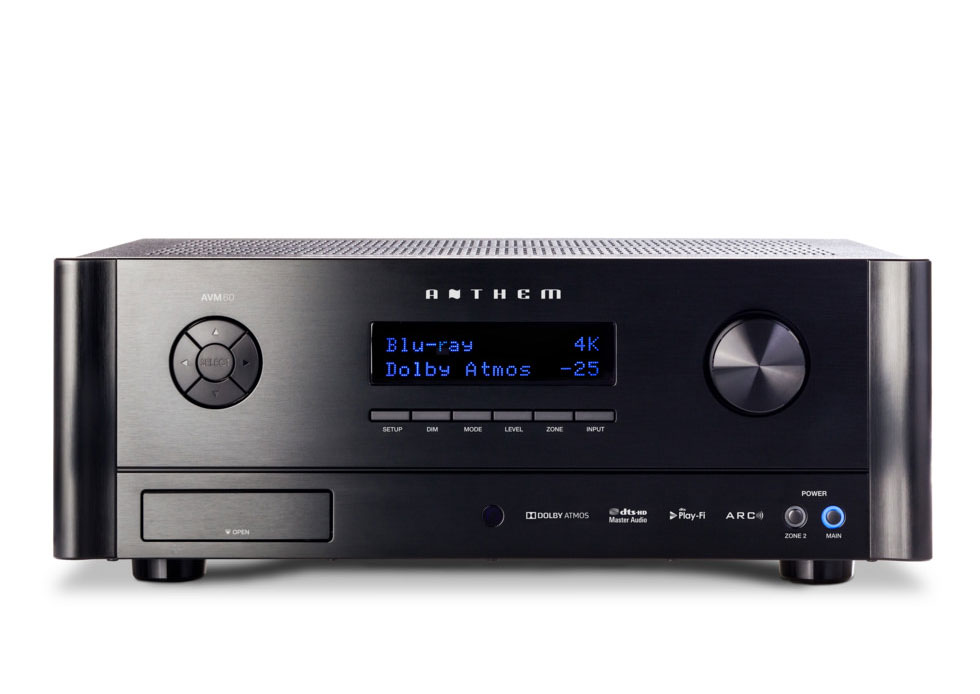

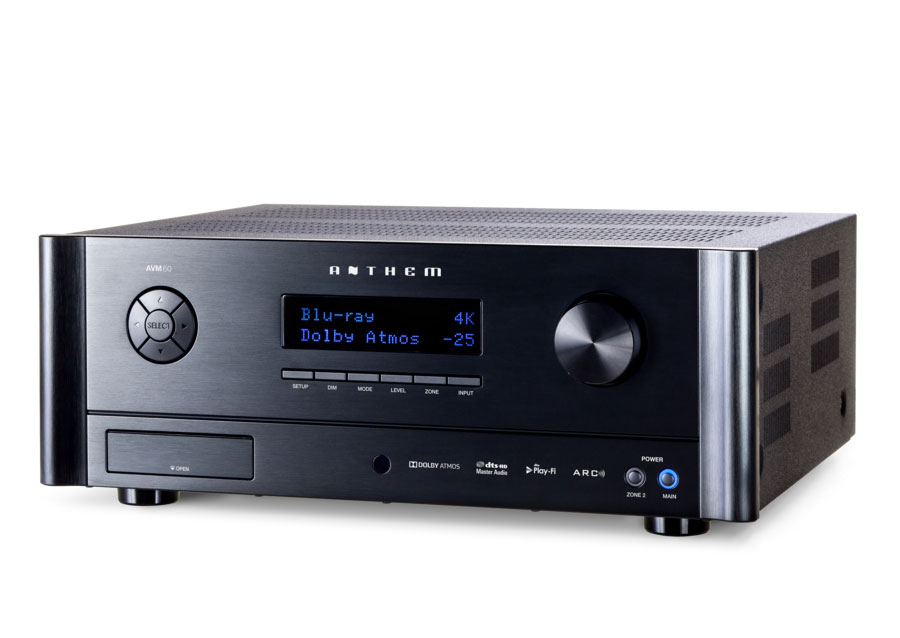

Anthem : AVM60
Audiophile-Friendly 11.2 Pre-Amplifier/Processor
Few A/V Preamplifier-Processors offer the innovation and performance found in the all new AVM 60. Features include Dolby Atmos & DTS:X immersive audio decoding, support for UHD Blu-ray and 4K60 through HDMI 2.0a with HDR. HDCP 2.2 and 18.2 Gbps are also included allowing switching for compatibility with the latest video formats.
Audiophile-friendly features include a toroidal power supply, premium differential-output D/A converters with 32-bit conversion and sampling rate optimized filters for hi-res sound. Premium A/D converters with 106 dB signal to noise ratio ensure the highest- quality sound when using analog sources.
DTS Play-Fi offers easy-to-use music playback from popular streaming services and locally networked sources, controlled through iOS, Android or PC apps.
AVM 60 Features & Functions
11.2 Pre-Amplifier Channels
- Dolby Atmos®
- ARC™ Anthem Room Correction
- 4 Speaker Profile Memories
- Quad Core Digital Signal Processing
- Two Sub Out Jacks (parallel)
- Premium 32-bit / 768 kHz Differential-Output D/A Converters
- Wireless Network Connection
- DTS Play-Fi® – Local and Streaming
HDMI & Video
- HDMI 2.0a
- HDCP 2.2
- 4:4:4 Subsampling at 4K60 (18.2 Gbps)
- High Dynamic Range (HDR)
- BT.2020 Color Gamut
- On-Screen Display with 4K 50/60
- 4K 50/60 Switching
Additional Features & Functions
- FM Tuner
- Low Standby Mode power consumption
- Remote control app for iOS (Apple) and Android (coming soon!)
- Dolby TrueHD
- DTS-HD Master Audio
- AnthemLogic – (11.2 channels)
- Dolby Surround
- DTS Neo:6 – Cinema, Music
- All-Channels – All-Speaker Stereo
- 8 HDMI inputs (7 rear and 1 front-panel input)
- Digital Audio Inputs: 2 Coaxial + 3 Optical
- 5 Stereo Analog RCA Inputs
- HDMI On-Screen Display – setup, video adjustments, status, song/artist info from radio stations
- MHL Supported Inputs
- xvYCC, Adobe RGB, Adobe YCC601, sYCC601, Deep color
- 2 Parallel Outputs
- Consumer Electronic Control (CEC)
- Audio Return Channel
- Standby Pass-through
- IR Control
- RS-232 Control
- IR Input (Configurable)
- 12V Trigger Output
- Control System Drivers

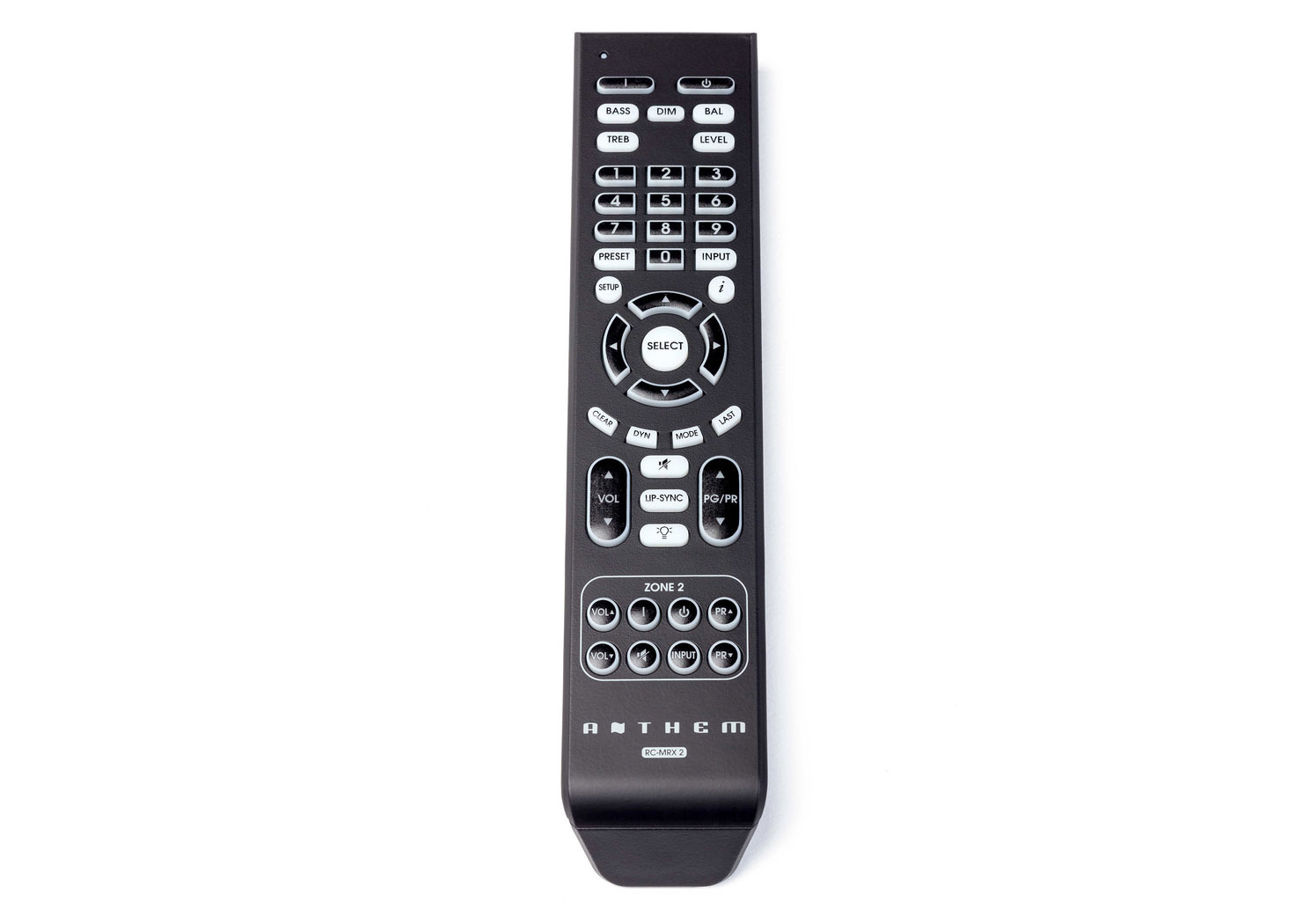

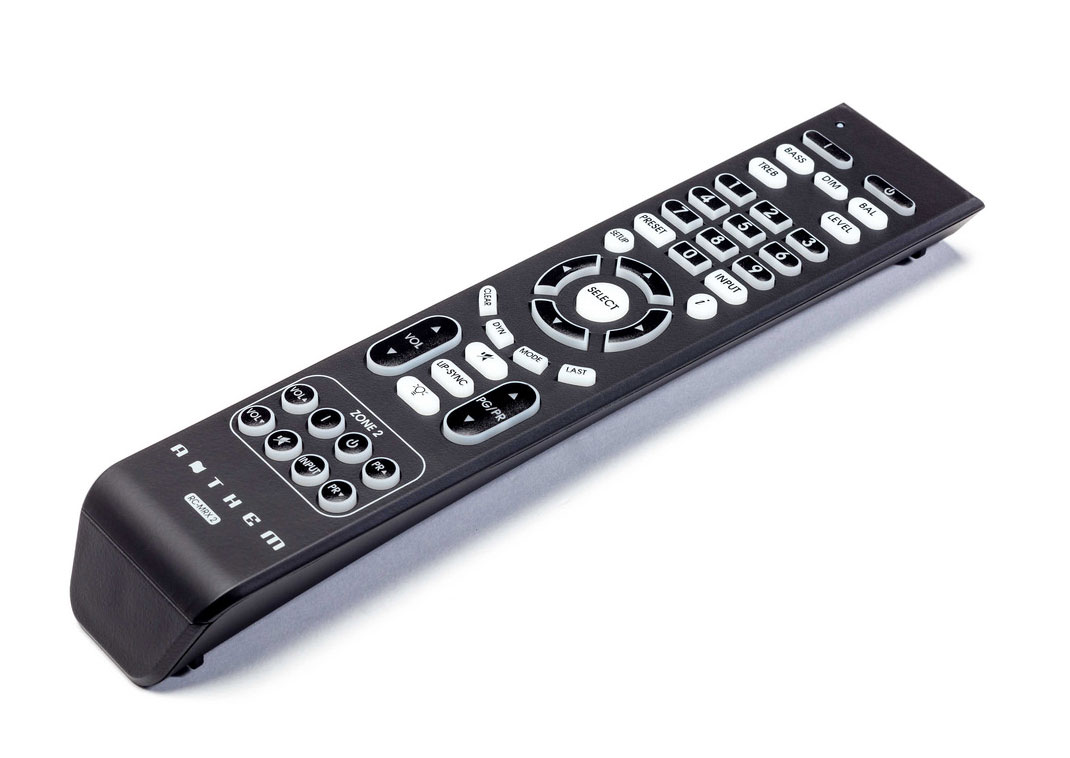

- Backlit Remote Control
- Sidemount Rack Kit (sold separately)

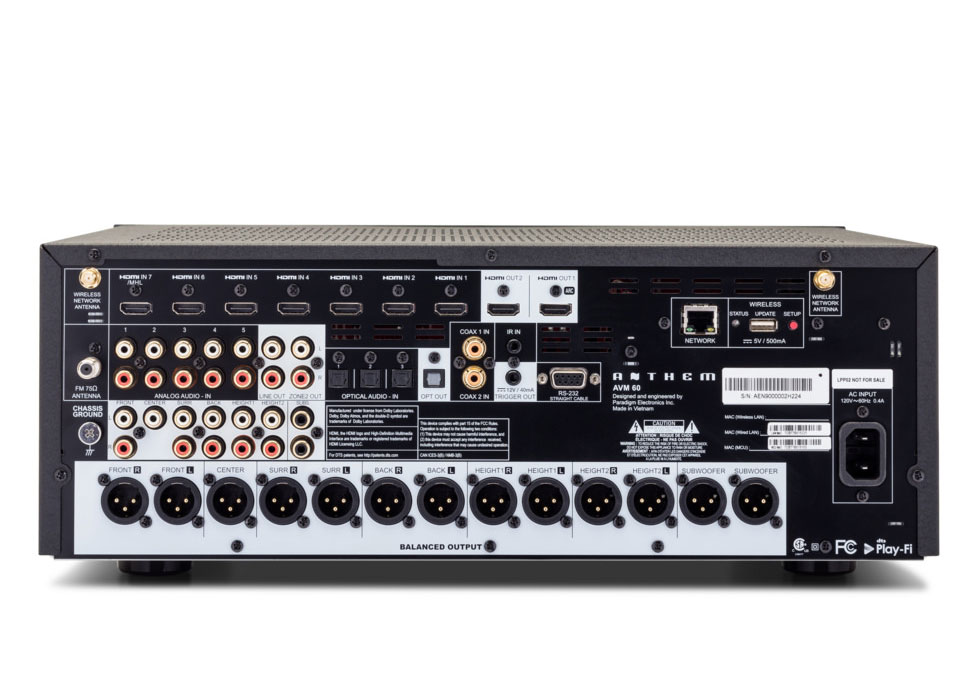

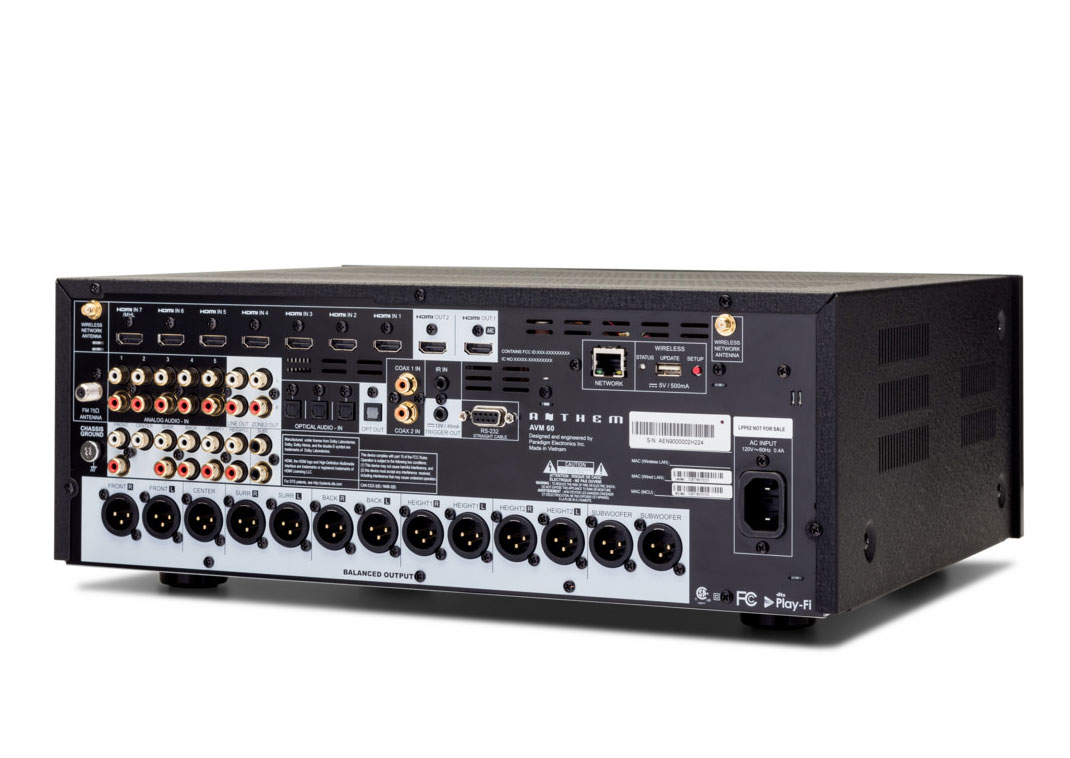

True-Balanced XLR Pre-Out
Electrical noise in audio is often generated due to the connection with other AV components and due to the connection between the preamplifier-processor and amplifier, as well as from other sources of external noise. To ensure the AVM 60 is not affected by this distortion, it uses True-Balanced XLR Pre-Out connections to achieve a balanced transmission that is highly noise resistant.
Anthem Room Correction (ARC™)
The Easy-To-Use Anthem Room Correction Kit Delivers Professional Results In Any Room
What is ARC?
Simply put, Anthem Room Correction quickly “corrects” the effects that reflective surfaces such as walls, floors and ceilings have on the sound radiating from a loudspeaker. Removing the effects of these obstacles allows your audio equipment to achieve a more natural sound in any room, as close to the lab standard as possible.
On a more complex level, ARC is a proprietary digital signal processing software that works with a specially-engineered calibration microphone and your PC to quickly and easily optimize audio for your unique listening space. Anthem engineers developed the ARC system while researching how to replicate the audio-lab standard of performance in non-lab environments. This groundbreaking research was conducted in conjunction with the National Research Council of Canada, the Canadian government’s research and technology organization.
Anthem engineers realized that real world listening experiences had little in common with the controlled environment of the audio lab. That’s because even the best loudspeakers are affected by room anomalies like furniture. These obstacles cause standing waves, resonances, and reflections that can color the sound you hear. Imagine the sound waves coming from your speakers as ripples on a water surface. That makes it easy for you to understand how the ripples of sound bounce off any obstruction they encounter. You can immediately see the benefit of removing the obstacles.
Wi-Fi Music Streaming with DTS Play-Fi®
Limitless music. App-controlled convenience. Wireless connectivity.
Everyone wants instant access to their digital audio library, anywhere in the home. And Anthem’s MRX Series with DTS Play-Fi® technology is the perfect, high performance means of delivery. Anthem MRX Series can take full dynamic advantage of the better-than-CD-quality sound quality delivered by the DTS Play-Fi® streaming technology.
Partnered With the Leader in Wi-Fi Streaming
Partnered with the leader in Wi-Fi streaming, DTS Play-Fi wi-fi streaming technology supports a host of high quality file formats. Controlled directly from your smart device or computer in any operating system, the “Open Ecosystem” of DTS Play-Fi technology makes it easy to stream music throughout your home, and to add more wireless streaming devices on the fly.
All your music, at your fingertips.
The whole family can now access personal digital audio libraries from anywhere in your home with the touch of a screen. Take advantage of endless choices from online music streaming services*. Stream from any device, Android or iOS mobile or PC, with a wide range of connectivity options for today and tomorrow.
* Some of the music services listed below may not be available in your region. All logos are property of their respective owner(s).
