Product Pre Amp Rotel RC-1572 (SILVER)
Rotel
ROTEL :
RC-1572 (SILVER)
Category : Pre Amp
Add to wishlist     สถานะสินค้า In Stock
RC-1572 (SILVER)
RC-1572 (SILVER)
RC-1572 (SILVER)


** เฉพาะบัตรเครดิตที่เข้าร่วมรายการ **

PRICE :
50,800 THB.
SPECIAL :
41,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง
สินค้าราคาพิเศษ ไม่สามารถใช้คูปองส่วนลดได้
Special price products. The discount coupons cannot be applied

  • Overview

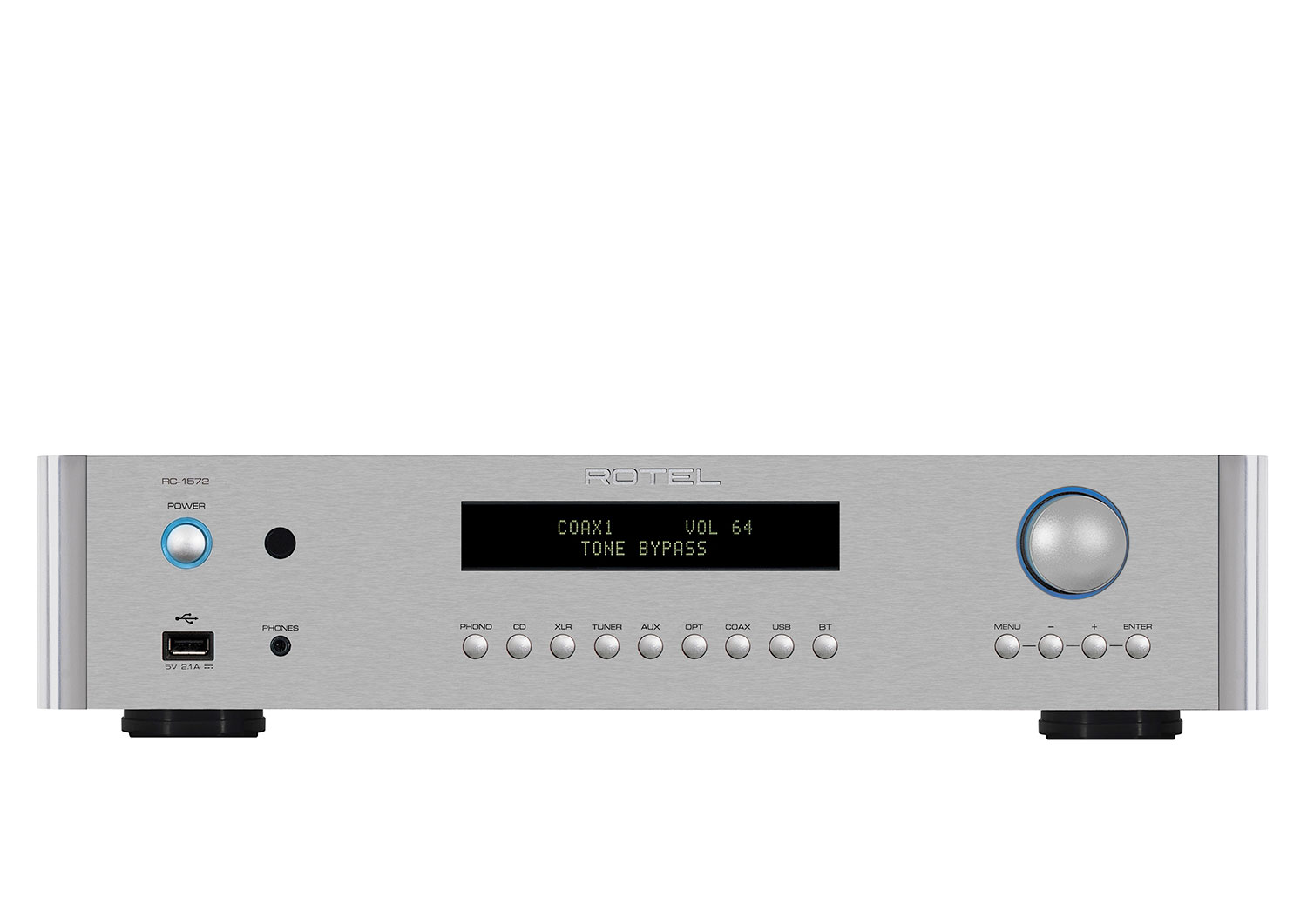

Rotel : RC-1572 (SILVER) Stereo Preamplifier​

http://staff-p2.piyanas.com/images/20170807/Bu8yTv3J_x.png

The RC-1572 provides an entryway into higher performing separate components with all of the analog and digital inputs required by today's sources.

The heart of an uncompromising audiophile stereo “separates” system is the preamplifier. Separate components hold the promise of the best possible fidelity, since each device is optimized for its role in the sound reproduction chain. The new RC-1572 stereo preamplifier leverages the design of our flagship RC-1590 preamplifier including its 32 bit/768kHz AKM stereo digital-to-analog converter to handle critical signal conversion. Among many refinements, the RC-1572 utilizes relay switching for analog sources instead of an IC based switch to maintain the integrity of the signal path for RCA, phono and XLR inputs.

Beneath the clean lines and user friendly fascia of the RC-1572 lies highly sophisticated engineering. Both analog and digital sources have been given equal consideration as today’s listener often has several digital sources, but may also enjoy legacy formats like vinyl LPs. A large toroidal transformer and regulated power supply ensures stable current and voltage requirements to all stages under dynamic conditions. Premium circuit components have been selected only after extensive listening evaluations. Careful routing of all low level signals has been practiced to ensure impressive signal to noise levels. The result is effortless musical dynamics, impressive detail and scale.

http://staff-p2.piyanas.com/images/20170807/gJU01NAF_x.jpg

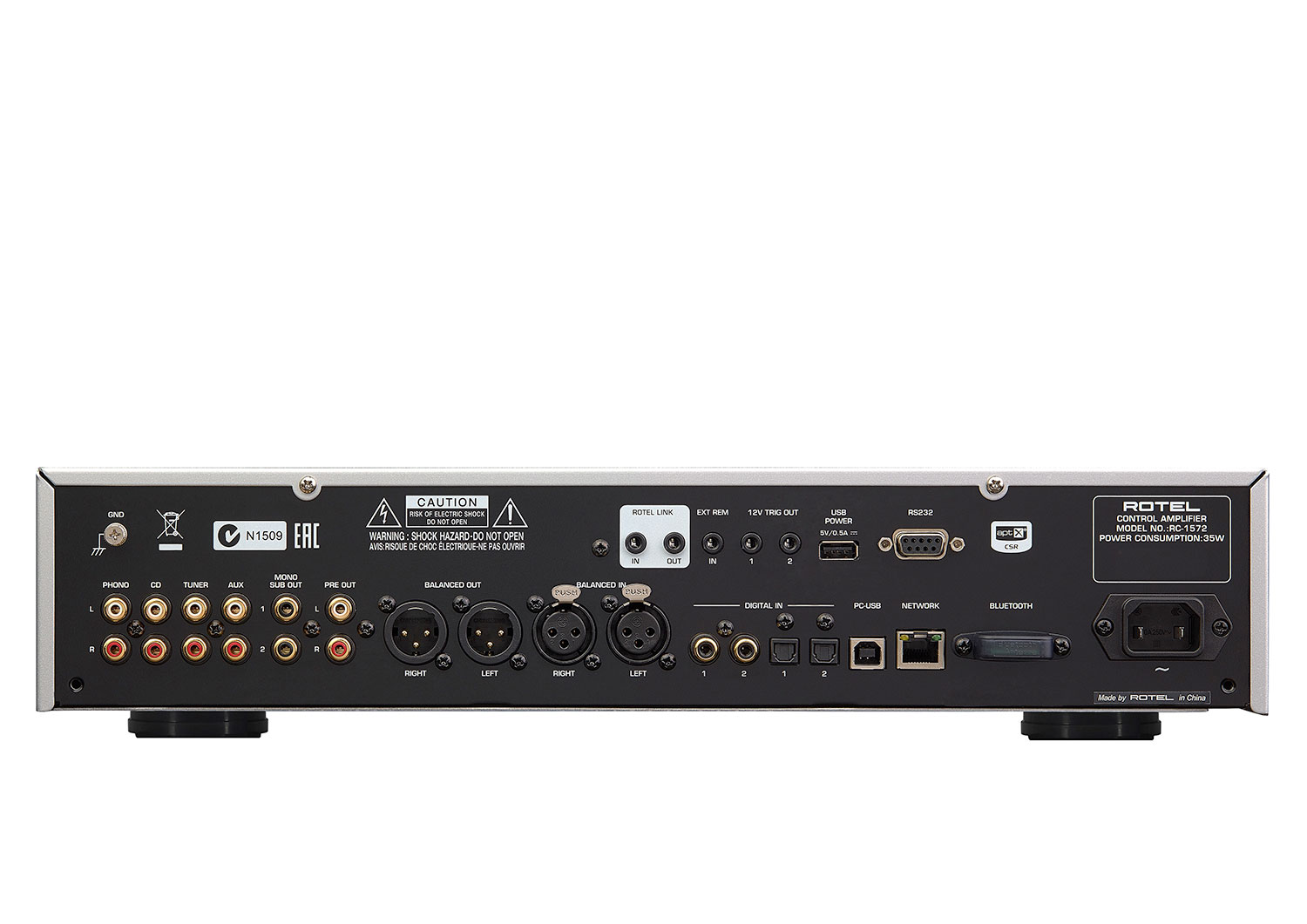

The RC-1572 stereo preamplifier is also extremely flexible. Four digital inputs (2 coax and 2 optical), plus the rear PC-USB handle digital sources up to 32/384 resolution. The 4 inputs are designed for sources such as TV set-top boxes, flat panel TVs or Blu-ray players for stunning playback. Importantly, it is possible to fix the level and set an auto-on option with digital inputs for use with devices that provide their own volume control for convenient “hands-off” use.The PC-USB input supports DSD signals. Integrated Bluetooth aptX is provided. Analog inputs include balanced XLR connectors, perfect for connecting the RCD-1572 via its XLR outputs, in addition to four pair of conventional RCA inputs. A moving magnet phono stage rounds out the source capability. XLR and single ended outputs are provided along with a mono subwoofer output, as are two 12-volt triggers to control on/off operation of an amplifier and/or other components. For custom integration, control options include RS232 on a standard DB9 connector, as well as an Ethernet port for IP control and software updates. In short, the RC-1572 is a tremendous value and the perfect upgrade for owners of older analog-only preamplifiers.

http://staff-p2.piyanas.com/images/20170807/rvShxXMq_x.jpg

Specification

Model  RC 1572
Total Harmonic Distortion (20Hz-20kHz)(20Hz–20kHz) <0.004% < 0.004%
Frequency Response Line Level Inputs: 10Hz - 100kHz ±0.3dB
Digital Inputs: 20Hz - 20kHz ±0.5dB
Phono Input: 20Hz - 20kHz ±0.3dB
S/N Ratio (IHF "A" Weighted) Line Level Inputs: 110dB
Digital Inputs: 100dB
Phono Input: 80dB
Intermodulation Distortion (60Hz:7kHz, 4:1) <0.004%
Input Sensitivity Line Level Inputs (RCA): 200mV
Line Level Inputs (XLR): 300mV
Phono Input (MM): 3mV
Input Impedance Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ
Input Overload Line Level Inputs: 4V
Phono Input: 62mV
Output Level Unbalanced (RCA): 1V
Balanced (XLR): 2V
Tone Controls ±10dB at 100Hz / 10kHz
Coax/Optical Digital Input Signals LPCM (Up to 24-bit/192kHz)
PC-USB USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 32/384)*
*Driver Installation Required
DSD/DoP 1x, 2x
Dimensions (W × H × D) 431 × 99 × 338mm
17" × 3.9" × 13.5"
Front Panel Height 2U / 88.1mm (3.5")
Power Requirements 120V, 60Hz
Power Consumption 35W
Standby Power Consumption <0.5W
Net Weight 7.4kg (16lbs.)
BTU Rating 65 BTU/h
