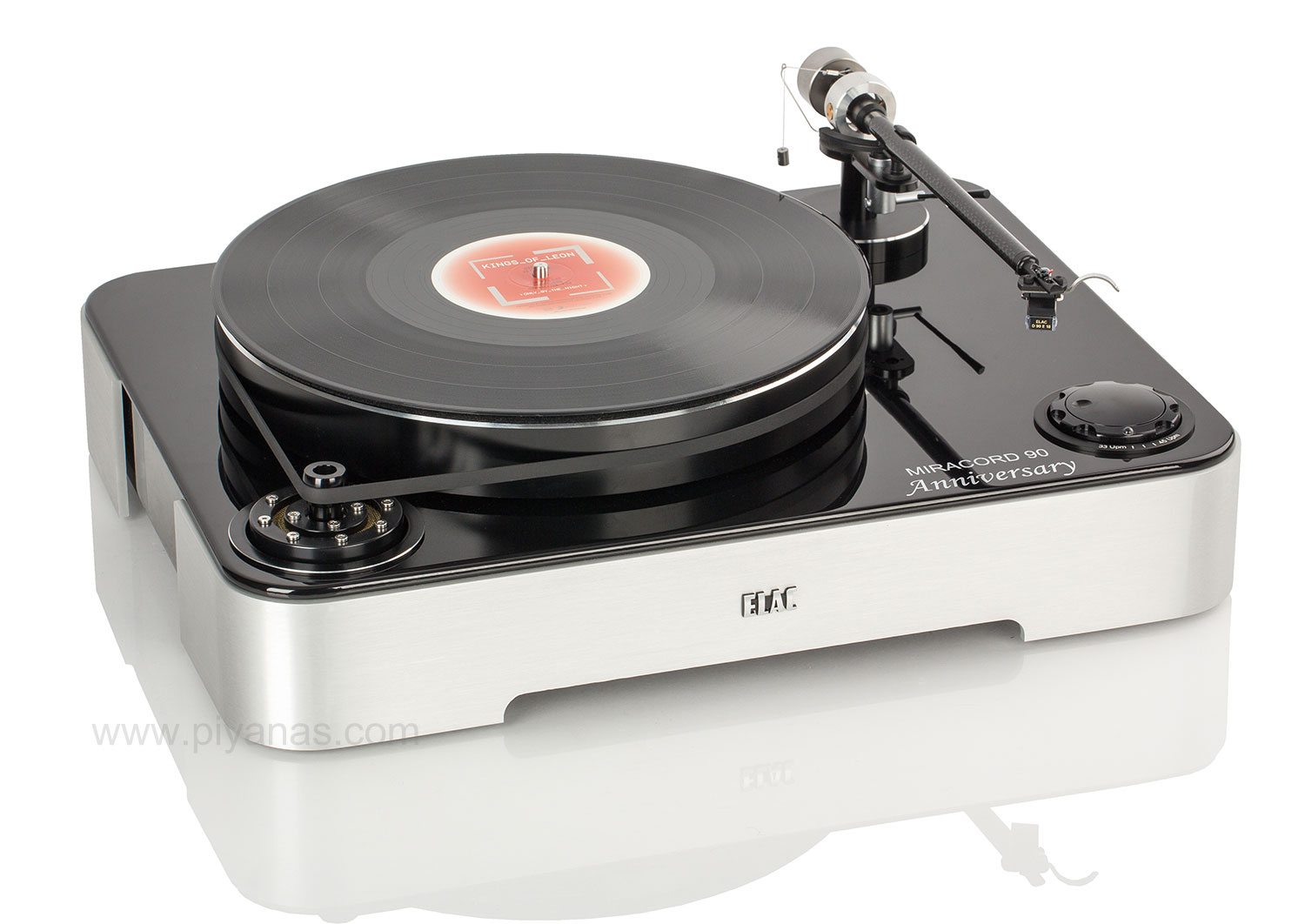

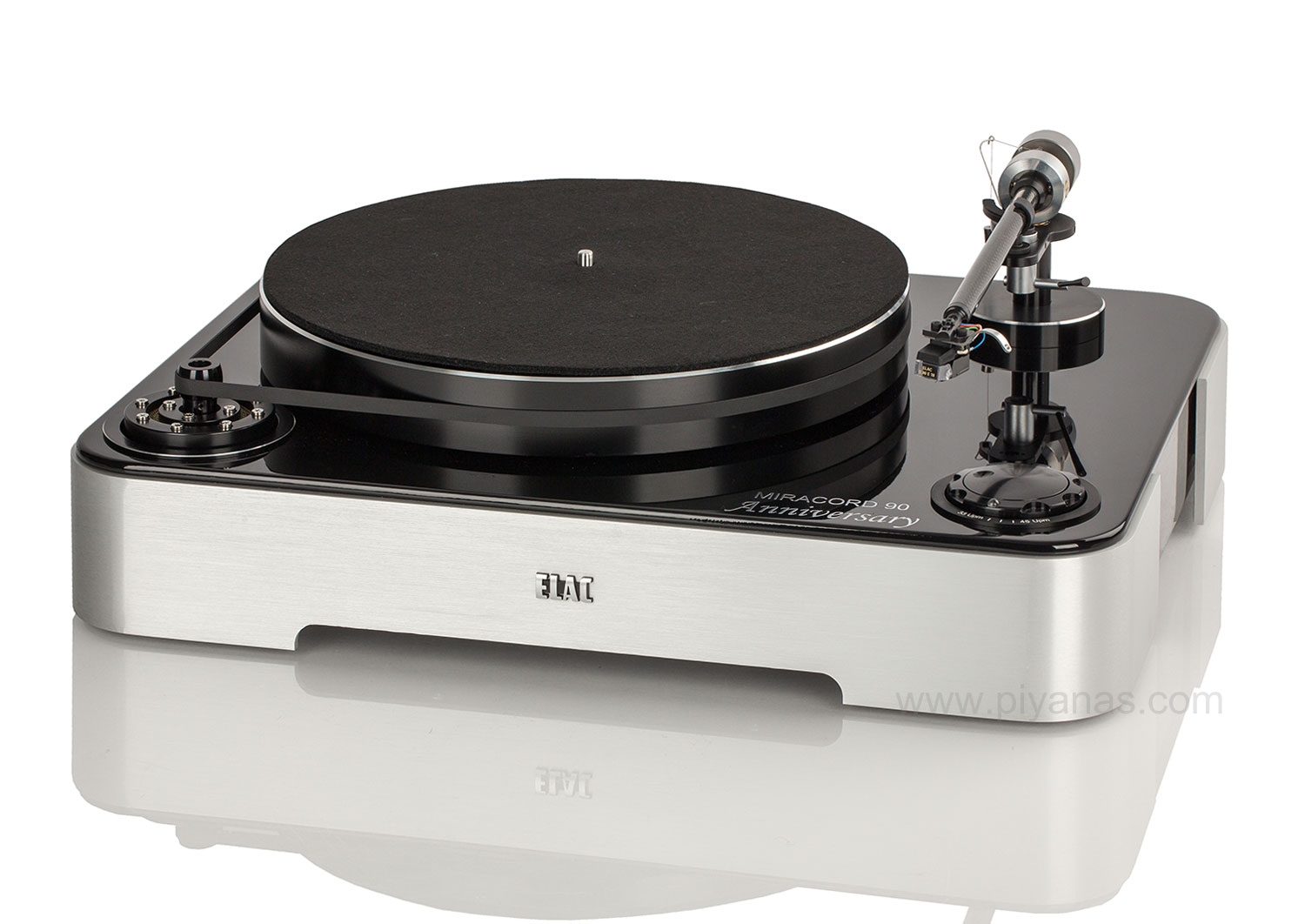

Elac : Miracord 90 Anniversary Turntable (BLACK)​

Smooth vinyl precision.

ELAC celebrates its 90th anniversary by saluting the Golden Age of stereo when turntables reigned supreme. The legend of ELAC’s Miracord turntable lives on today, with dealers and customers constantly asking when the ELAC loudspeaker family will finally include a turntable. The resurgence of vinyl has created a groundswell of enthusiasm among audiophiles and even casual listeners, and for those with roots in hi-fi, the ELAC Miracord remains an iconic name from the era of the long-playing disc.

Inert MDF chassis

The 12 lb (5.5 kg) MDF chassis rests on specially developed silicone feet that decouple the deck completely from the surface on which it is placed.

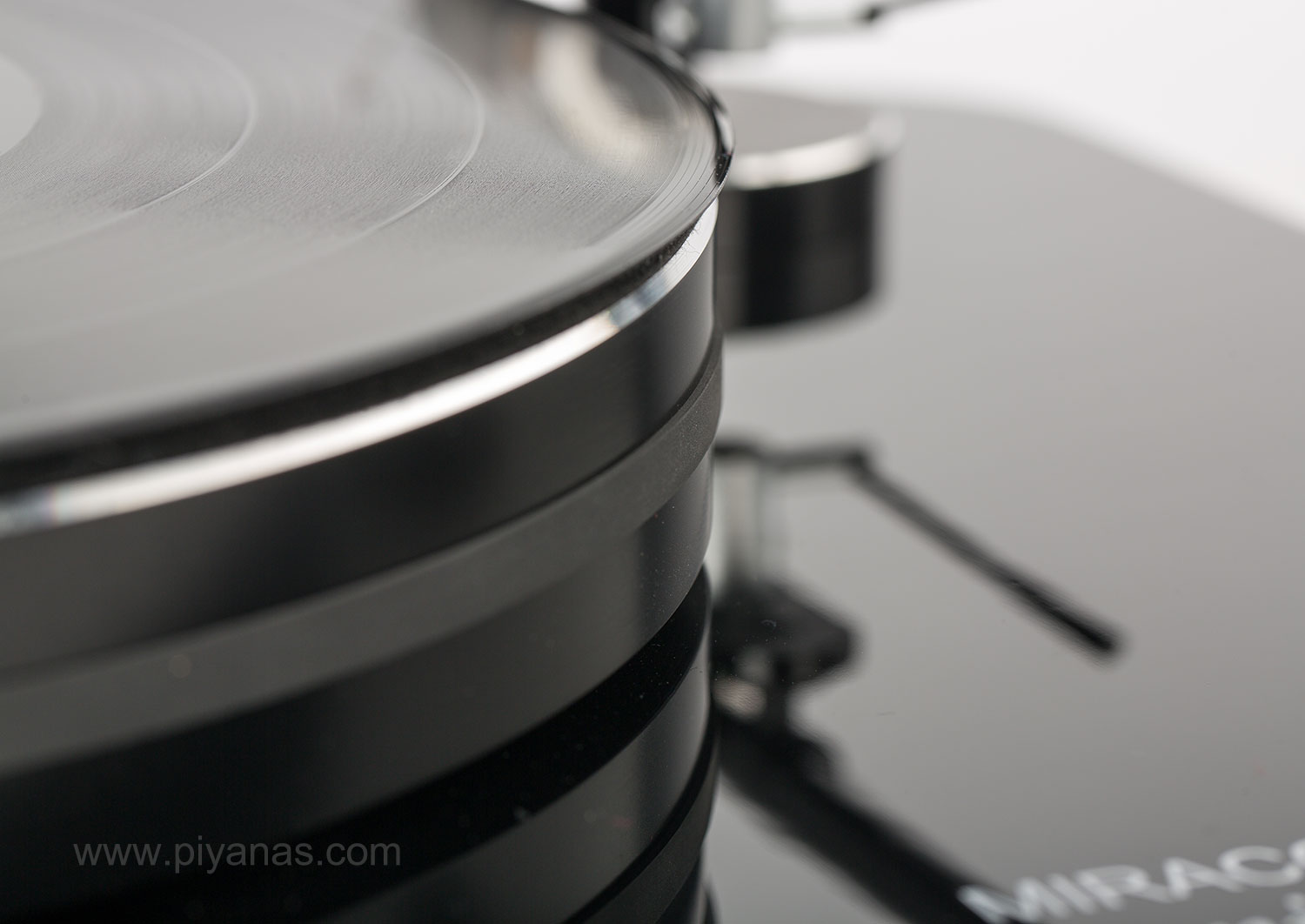

Precision platter with minimal friction

The aluminum platter weighs almost 14 lbs (6.2 kg) and sits on a sub-platter whose hardened steel axis rotates on an 8 mm ruby ball for minimal friction. The axis is mounted using high-quality sintered bronze bearing bushings.

Isolated motor and sophisticated suspension

The motor is double-decoupled from the chassis and, therefore, from the tonearm. Along with the rubber damping, the suspensions employed use materials that have proven themselves in the development and manufacture of ELAC loudspeakers.

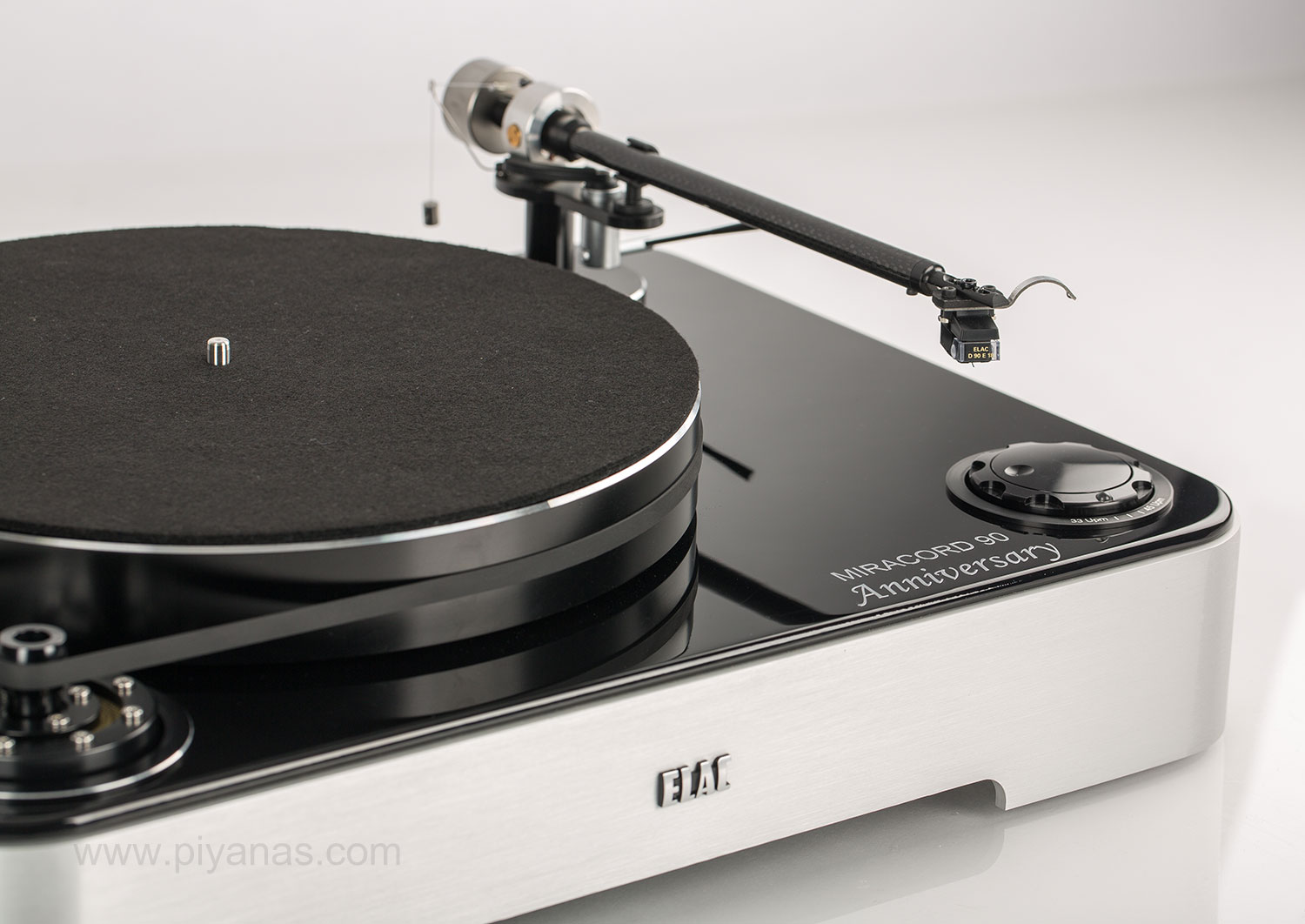

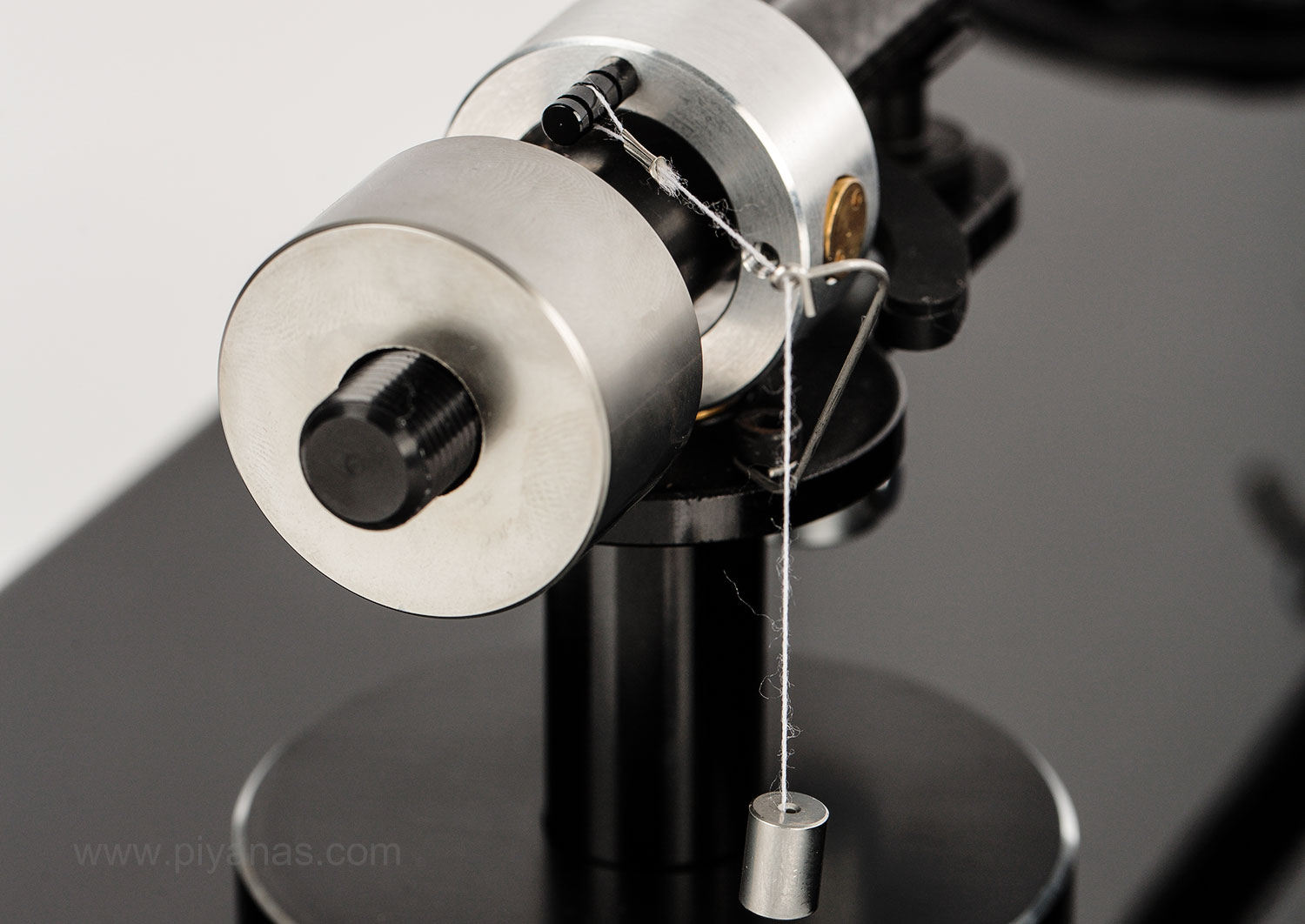

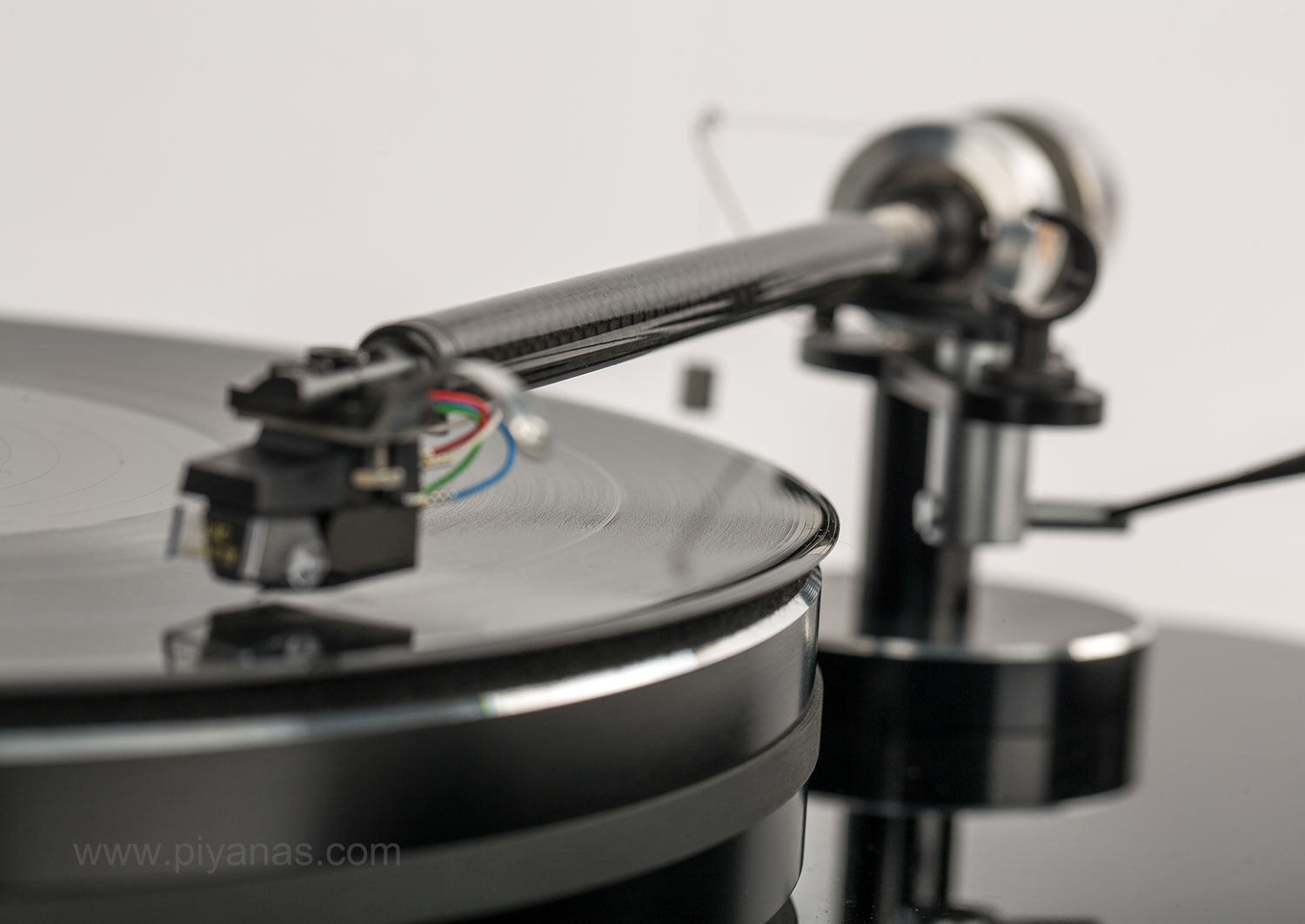

Advanced carbon-fiber tonearm

The newly developed tonearm made of carbon fiber forms a perfect symbiotic relationship with the drive mechanism.

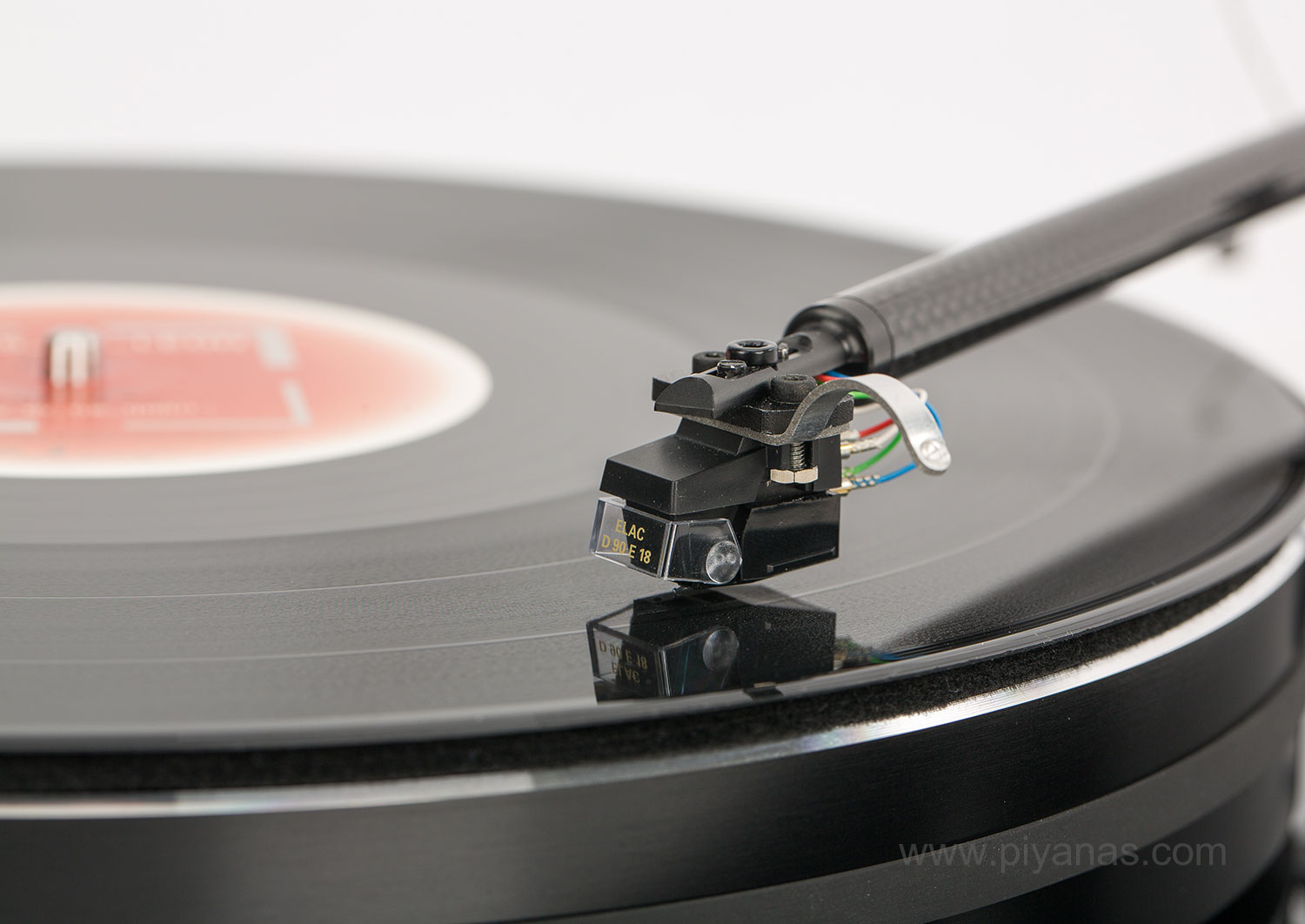

High-resolution moving magnet cartridge

The pickup with its MicroLine stylus was developed specially for ELAC in cooperation with Audio Technica and comes precision-mounted with each turntable.

Exquisite materials and finishes

The Miracord 90 Anniversary is an aesthetic masterpiece that complements contemporary interiors and pays homage to the classic turntable design of ELAC’s original Miracord. It is available in three combinations: black base with gloss white plinth, silver base with gloss black plinth, and black base with oiled walnut plinth.



Cartridge Custom Moving Magnet system
Frequency range 20 Hz – 25 kHz
Tracking force 14 ± 4 mN ≙ 1.4 ± 0.4 g
DC resistance 800 Ω ± 20%
Coil impendence 3.2 kΩ ± 20% at 1 kHz
Recommended load 47 kΩ
Output voltage 2.2 – 4.9 mV
Channel separation  > 25 dB

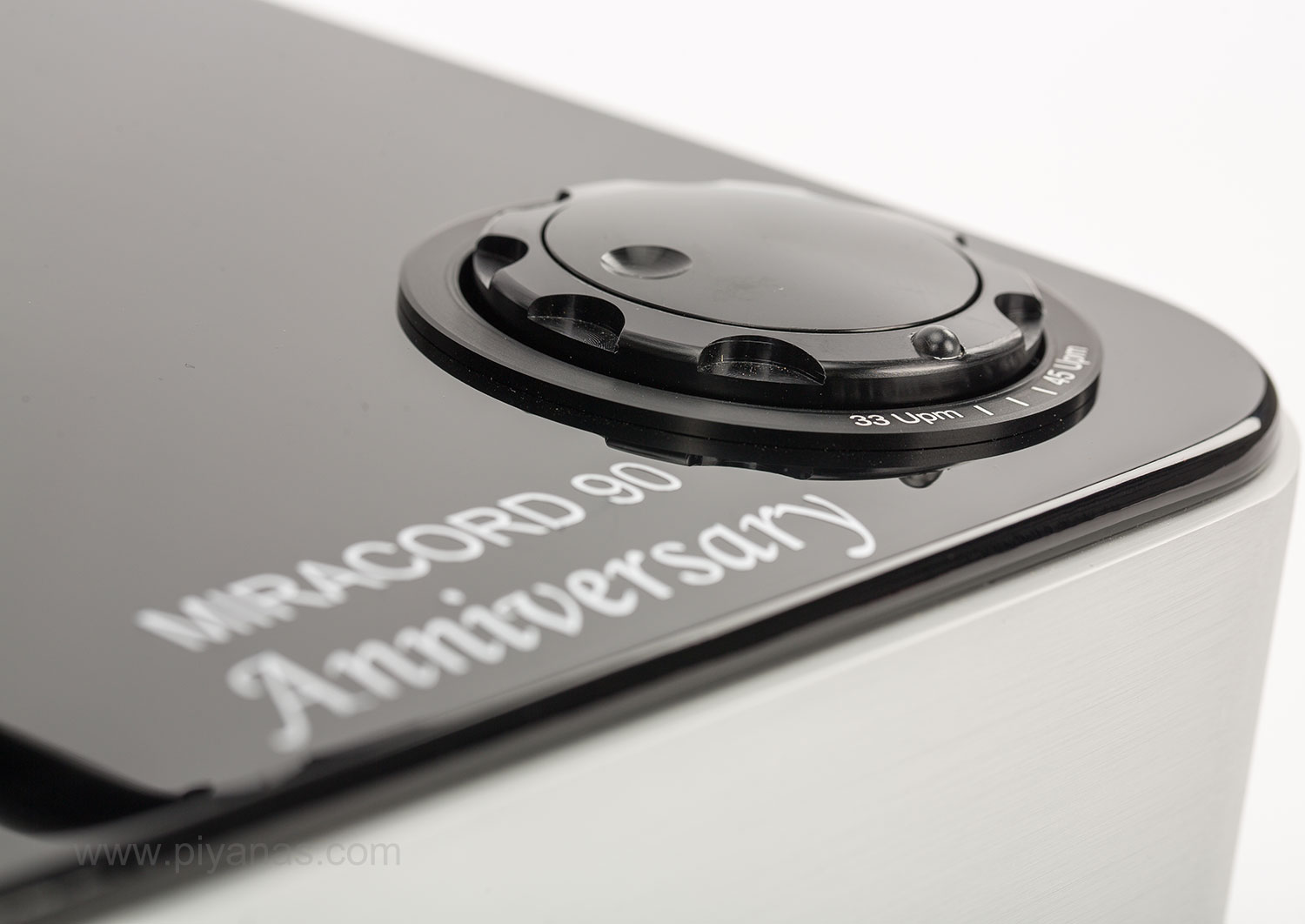

Selectable speeds 33 and 45 rpm
Pitch ± 5%

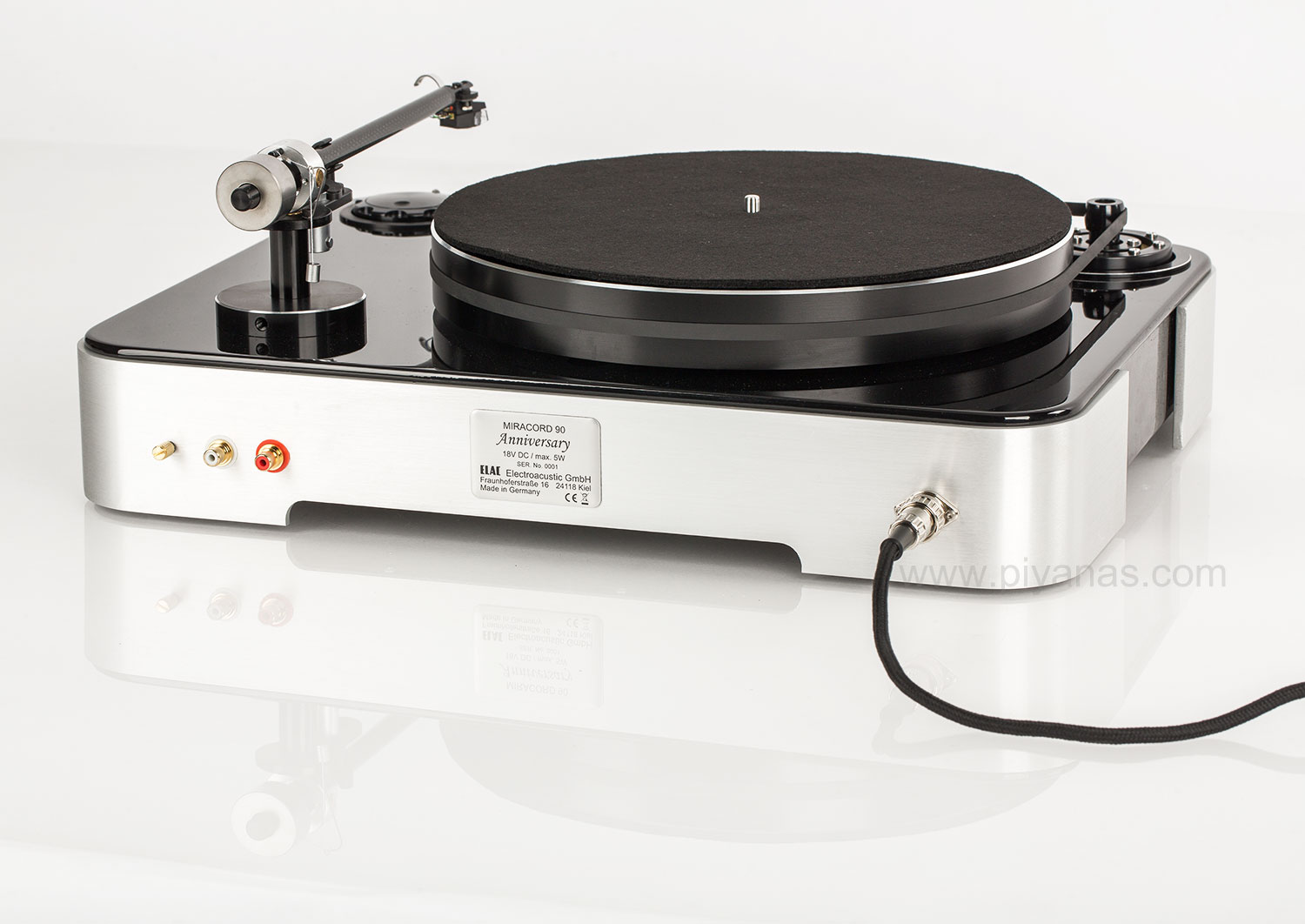

Outputs 2 gold-plated Neutrik RCA connectors, gold-plated ground connector
Power supply 18 V, 18 W Lumberg connector
Finishes Black high gloss, white high gloss, oiled walnut
Height 6.7 in / 170 mm
Width 8.5 in / 470 mm
Depth 14.2 in / 360 mm
Weight 37.7 lb / 17.1 kg
