Product Speaker Center Speaker Klipsch RP-504C (BLACK)
Klipsch
KLIPSCH :
RP-504C (BLACK)
Category : Center Speaker
Add to wishlist     สถานะสินค้า In Stock
RP-504C (BLACK)
RP-504C (BLACK)
RP-504C (BLACK)
RP-504C (BLACK)
RP-504C (BLACK)
RP-504C (BLACK)

PRICE :
37,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน ตู้ (Each)

  • Overview
  • Specifications

KLIPSCH RP-504C (BLACK)
REFERENCE PREMIERE 2018

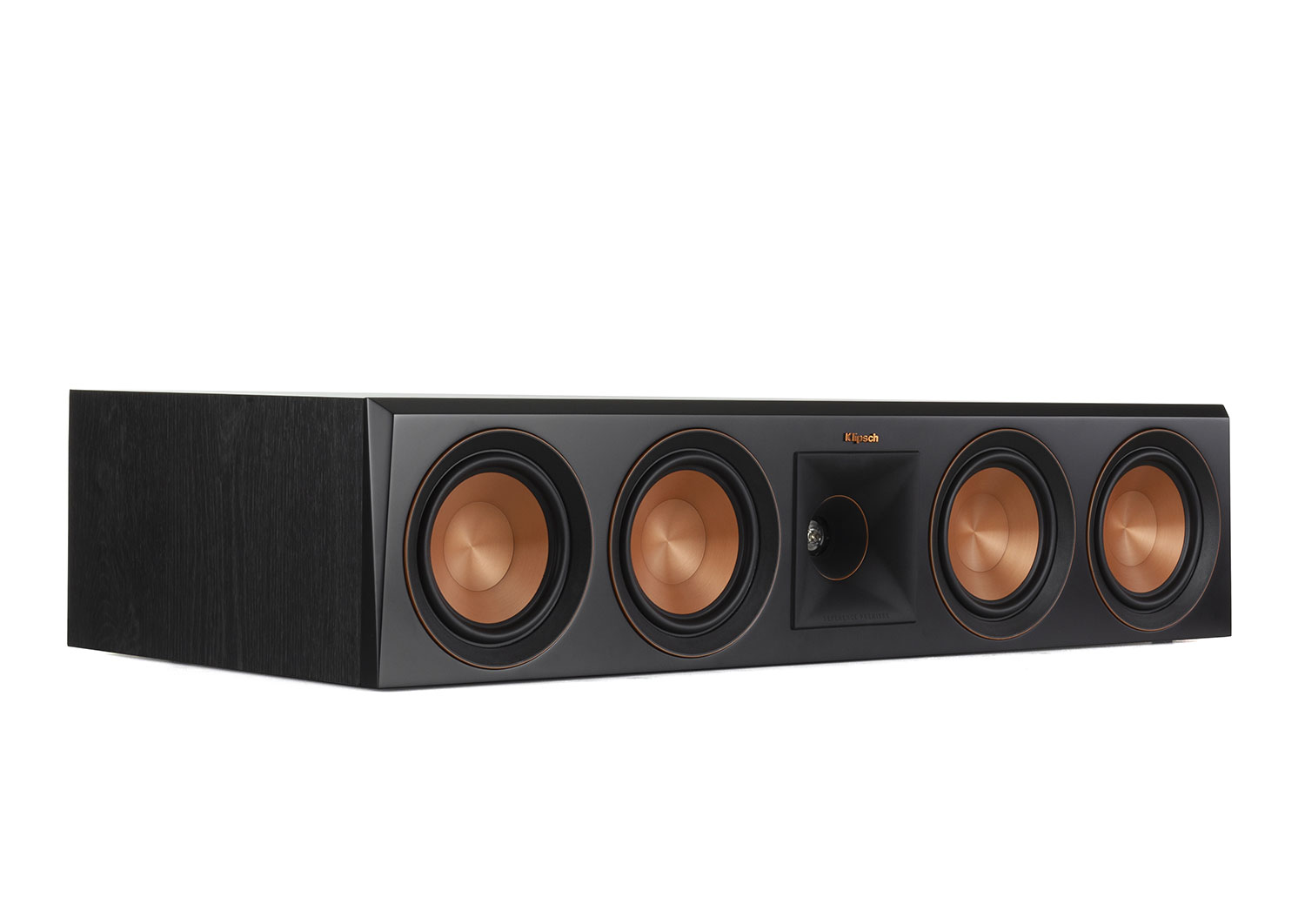

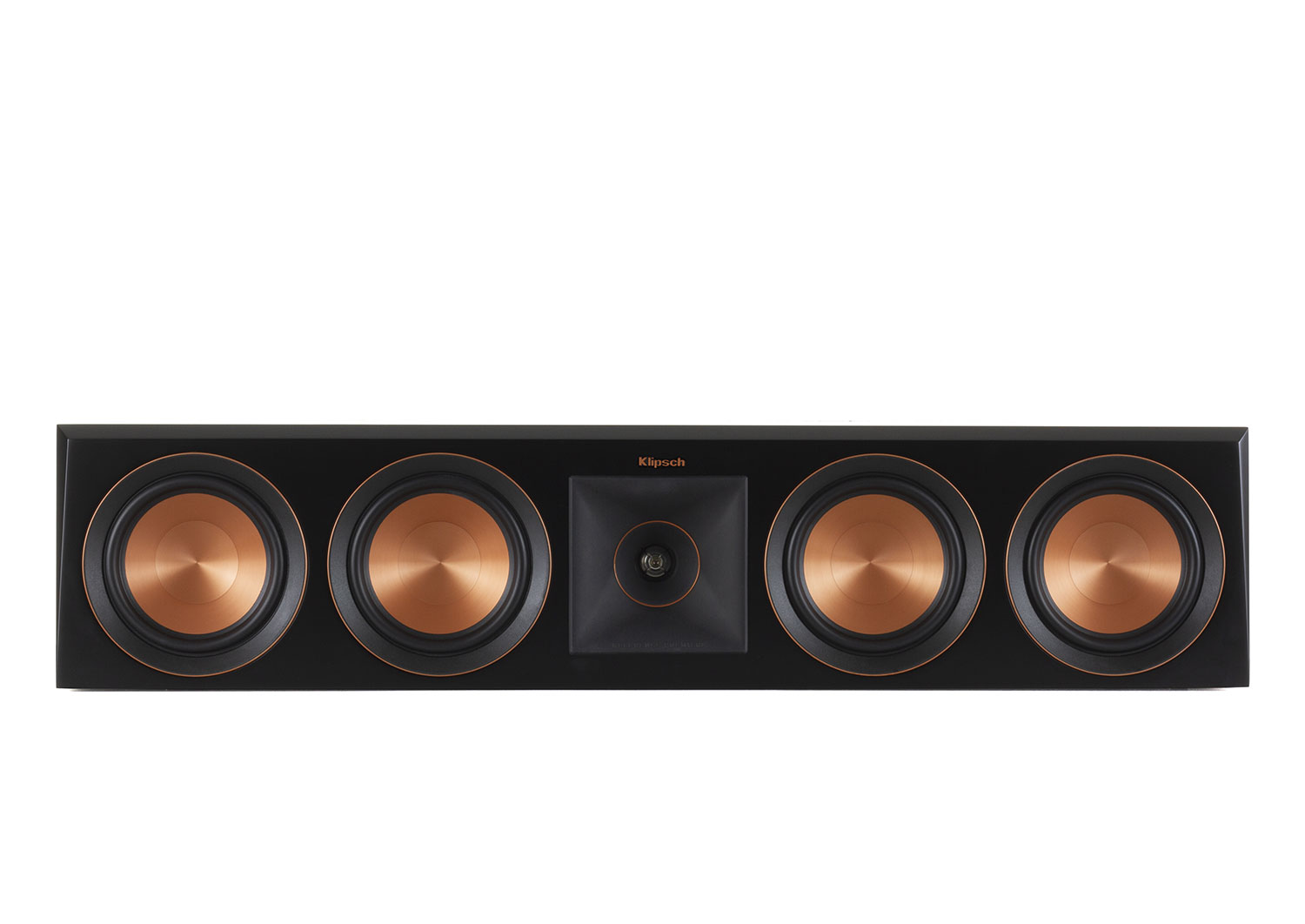

The Klipsch Reference Premiere RP-504C center channel speaker brings movie dialogue and music lyrics to life. Four 5.25" Cerametallic™ woofers and a hybrid Tractrix® horn emit lifelike, front row sound.

Features:

  • 1” Titanium LTS Vented Tweeter with Hybrid Tractrix® Horn
  • Quad 5.25" Spun Copper Cerametallic™ Woofers
  • Bass-Reflex via Rear-Firing Tractrix® port
  • Premium Scratch Resistant Ebony and Walnut Finishes
  • Strong, Flexible Removable Magnetic Grille
  • Dimensions: 6.81” x 31.13” x 14.46”



http://staff-p2.piyanas.com/images/20181006/zaSvfkdJ_x.jpg

HYBRID TRACTRIX® HORN TECHNOLOGY

Klipsch proprietary Tractrix® horn-loaded technology ensures high-frequency energy of the RP-504C center channel speaker is aimed directly at the listener and reduces unwanted, artificial reverb caused by indirect sound bouncing off walls - meaning you experience the most clear, detailed, lifelike sound possible.


http://staff-p2.piyanas.com/images/20181006/wFAFZ19X_x.jpg

HORN ANATOMY

Klipsch Reference Premiere series speakers feature a compressed molded silicon face thats matted to the 90x90 Tractrix horn to reduces horn resonance for a smoother frequency response. Klipsch computer modeled phase plugs acts as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.


http://staff-p2.piyanas.com/images/20181006/zuuRUK2T_x.jpg

ALL-NEW Vented Tweeter

A vented tweeter design reduces standing waves behind the tweeter diaphragm for a smoother high frequency reproduction.

The titanium tweeter diaphragm's light weight yet rigid composition exceeds the performance of aluminum, polymer or silk tweeters.

Klipsch award-winning Linear Travel Suspension technology leverages a piston motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound.

A ceramic magnet housing provides premium performance, Klipsch Reference Premiere tweeters set the standard in acoustic reproduction.


http://staff-p2.piyanas.com/images/20181006/VDmtHZlS_x.jpg

CERAMETALLIC™ WOOFERS

Klipsch Proprietary Cerametallic™ woofers are the RP-504C center channel speaker's signature statement for both sound and aesthetics. This extremely light, rigid materials holds its shape while being able to deliver lower frequencies with maximum efficiency.


http://staff-p2.piyanas.com/images/20181006/zHac5K1a_x.jpg

WOOFER ANATOMY

Klipsch Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.

Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.


http://staff-p2.piyanas.com/images/20181006/WF7h63N3_x.jpg

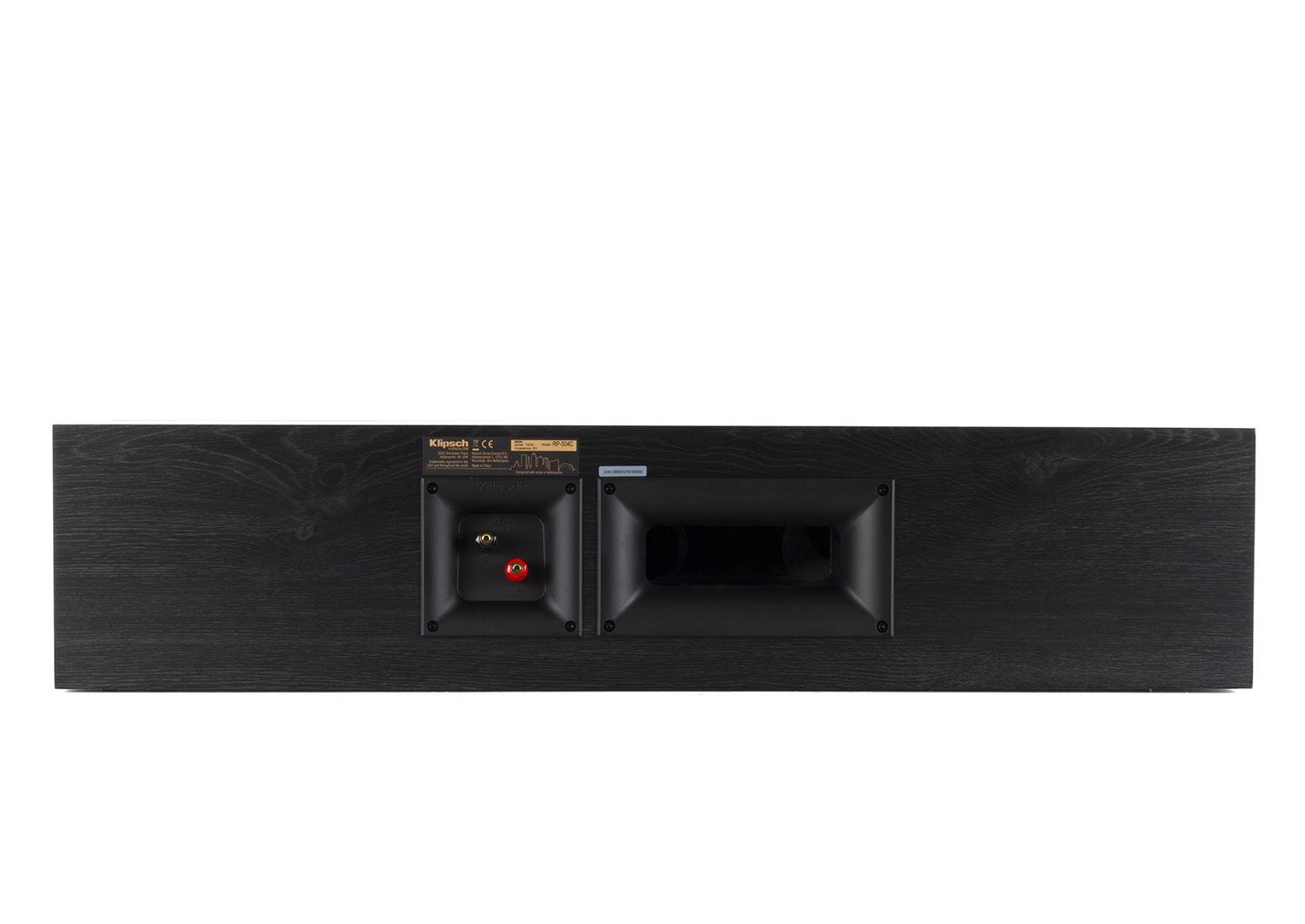

REAR TRACTRIX® PORT

The rear Tractrix port of the Reference Premiere center channel speakers is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.


FINISHED TO PERFECTION

The RP-504C ebony and walnut finishes boast satin painted baffles with a scratch resistant design for an elegant audio solution to your home theater system.

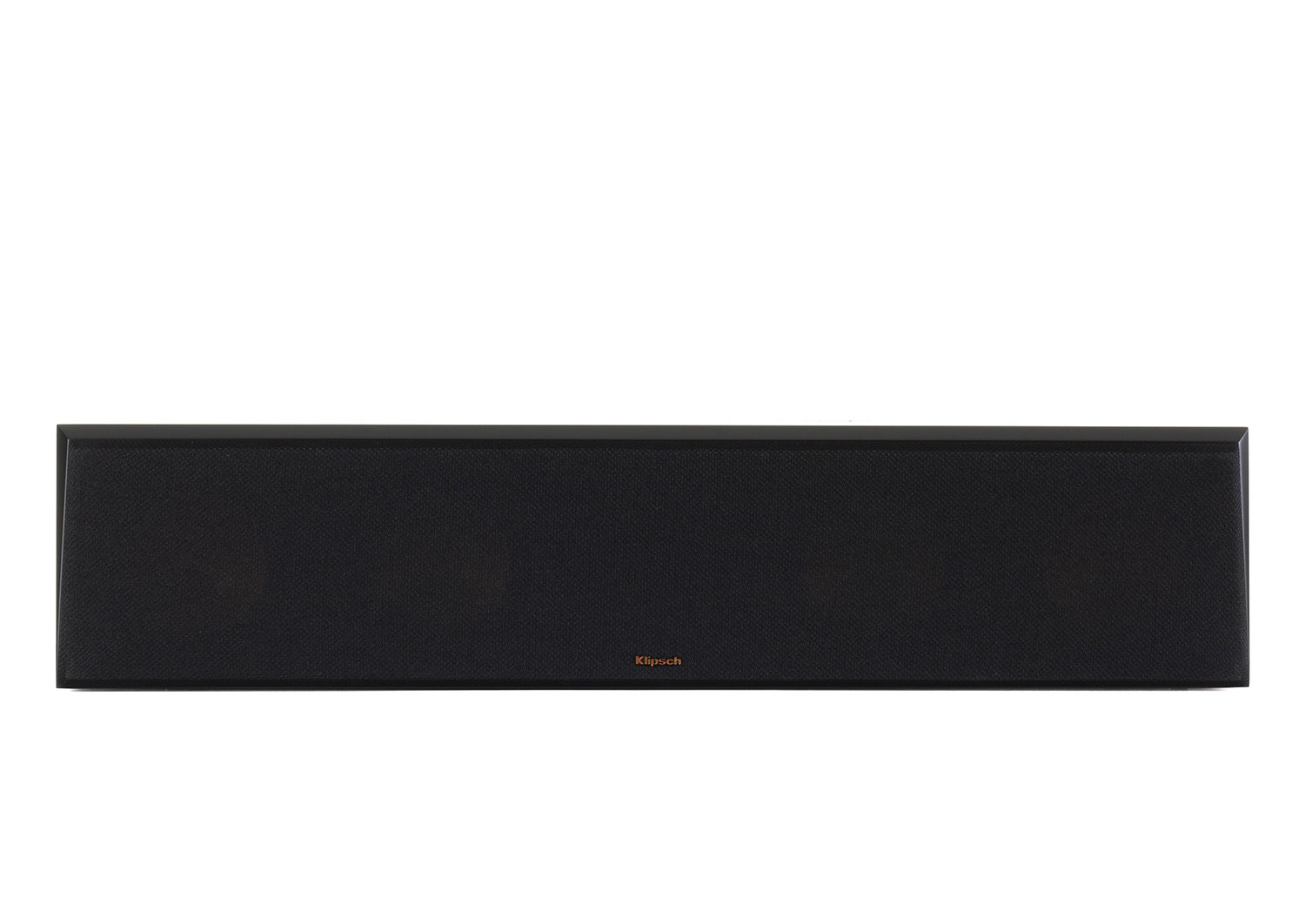

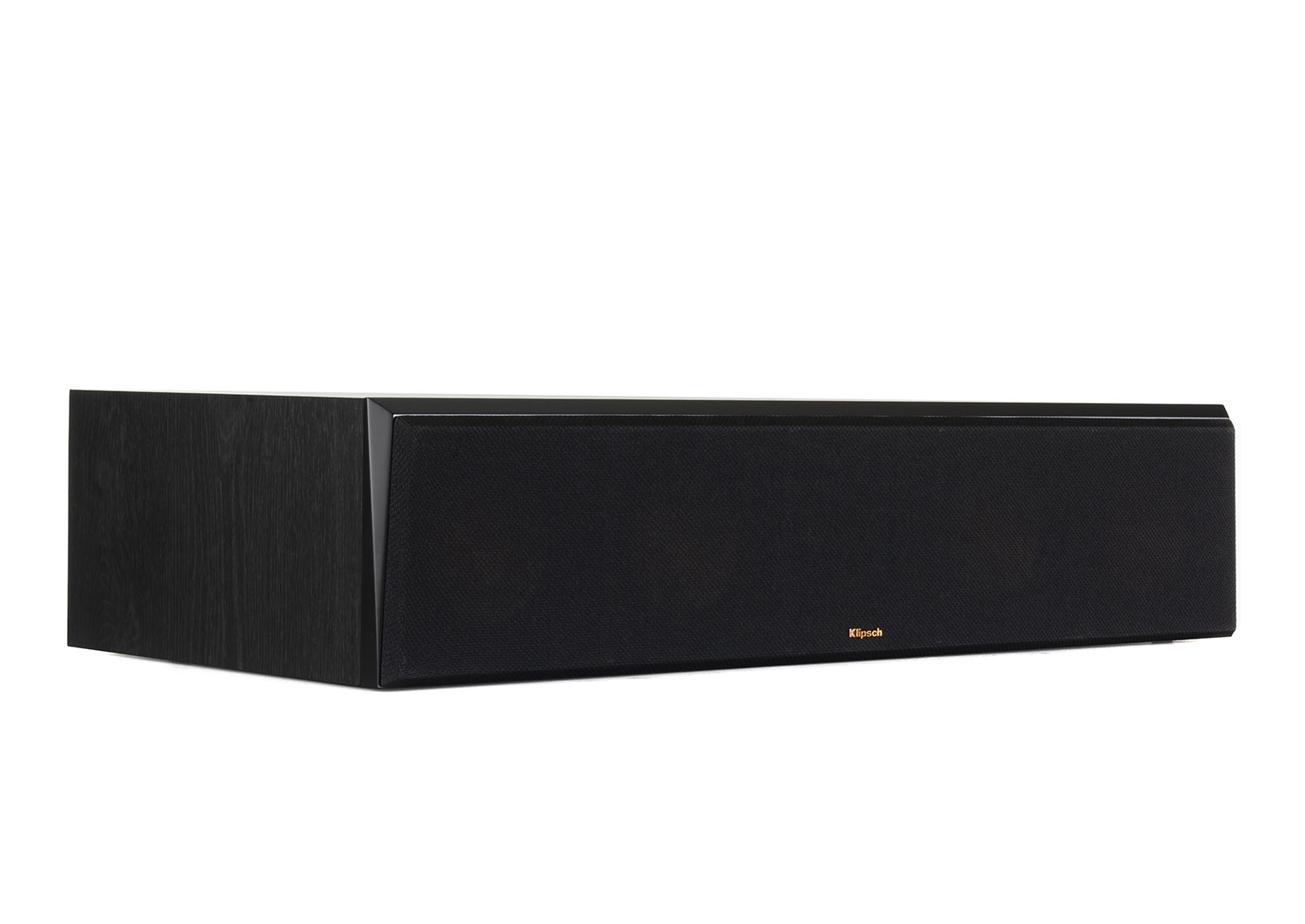

Strong, flexible, magnetic grilles provide protection and a sleek aesthetic to compliment your home's decor.



FREQUENCY RESPONSE
58-25kHz +/- 3dB
SENSITIVITY
97dB @ 2.83V / 1m
POWER HANDLING (CONT/PEAK)
150W/600W
NOMINAL IMPEDANCE
8 Ohms Compatible
CROSSOVER FREQUENCY
500Hz/1500Hz
HIGH FREQUENCY DRIVER
1” Titanium LTS Vented Tweeter with Hybrid Cross-Section Tractrix®  Horn
LOW FREQUENCY DRIVER
Quad 5.25” Cerametallic Cone Woofers
ENCLOSURE MATERIAL
MDF
ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port
INPUTS
Single Binding Posts
HEIGHT
6.81” (17.3 cm)
WIDTH
31.13” (79.1 cm)
DEPTH
14.46 (36.7 cm)
WEIGHT
34 lb (15.4 kg)
FINISH
Ebony, Walnut, Piano Black
INCLUDED ACCESSORIES Rubber Feet (4)
