Product A/V Receiver Rotel RAP-1580 (SILVER)
Rotel
ROTEL :
RAP-1580 (SILVER)
Category : A/V Receiver
Add to wishlist     สถานะสินค้า In Stock
RAP-1580 (SILVER)
RAP-1580 (SILVER)
RAP-1580 (SILVER)


** เฉพาะบัตรเครดิตที่เข้าร่วมรายการ **

PRICE :
168,700 THB.
SPECIAL :
139,000 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

ROTEL RAP-1580 (SILVER)
Surround Amplified Processors

RAP-1580 is the ideal home theater solution for those who don’t have space for separate components, yet still desire uncompromising performance. It is an ultra-high-performance multichannel-integrated amplifier with surround processing that brings music and movies to life in a startlingly vivid way. Sporting the latest HDMI 2.0a hardware, DTS:X and Dolby Atmos 7.1.4 processing, its amplifier section is built upon a powerful class AB design with 7 x 100 watts per channel, all channels driven into 8 ohms, and anchored by a massive Rotel-made toroidal transformer.

The RAP-1580 utilizes high performance Wolfson 24-bit/192kHz Digital-to-Analog Converters for all channels. These low noise, audiophile quality DACs are supported with premium-grade audio parts in circuits tuned by Rotel’s acoustic engineering team in the U.K.

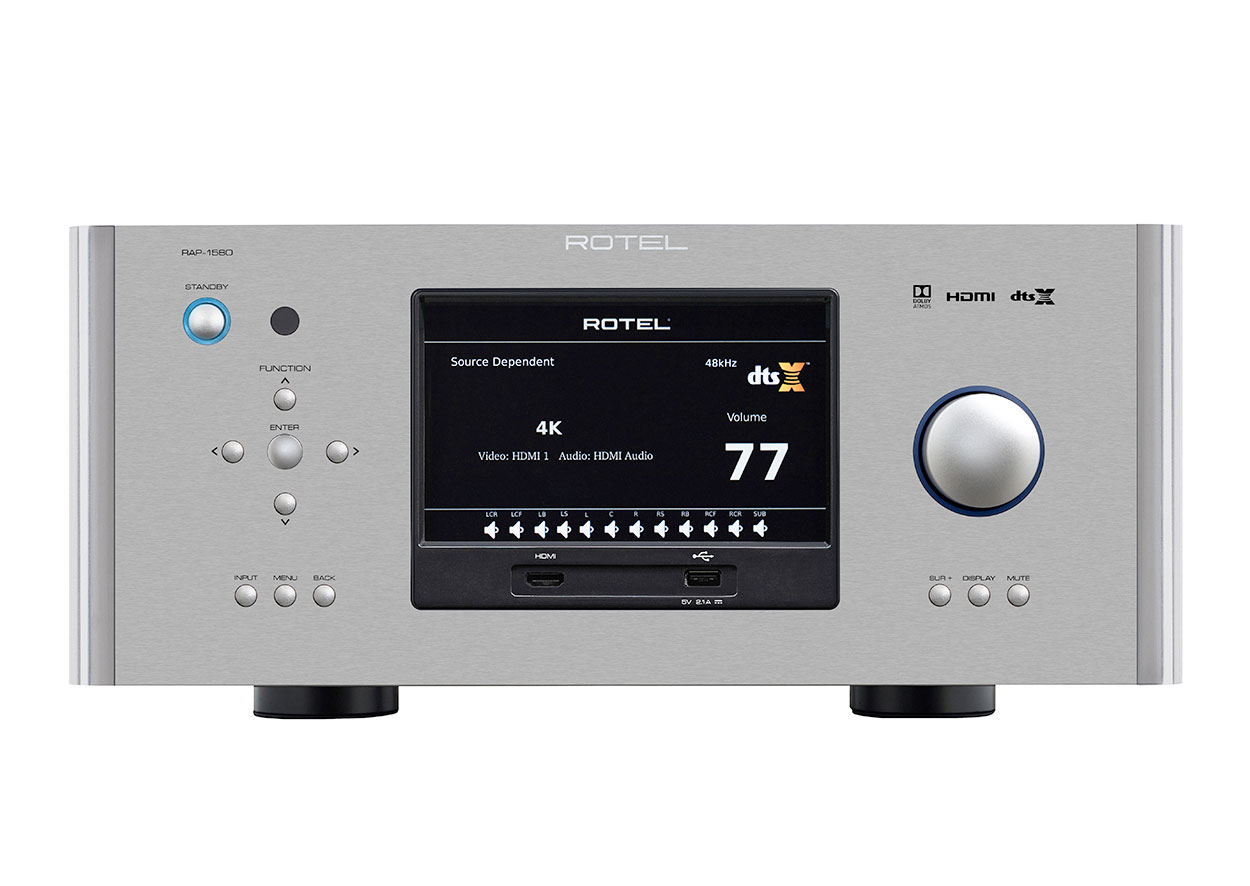

Inputs include 8 x HDMI video inputs with 2 x HDMI video outputs all supporting 4K video with 3 of these inputs and both outputs enabled with HDCP 2.2. There is a seven-inch TFT display on the front panel to provide easy adjustments to all audio and video parameters without the need to turn on the television or video projection system. This makes it ideal for set-ups when the equipment rack is located separately from the video display. A full suite of custom integration features is on-board.

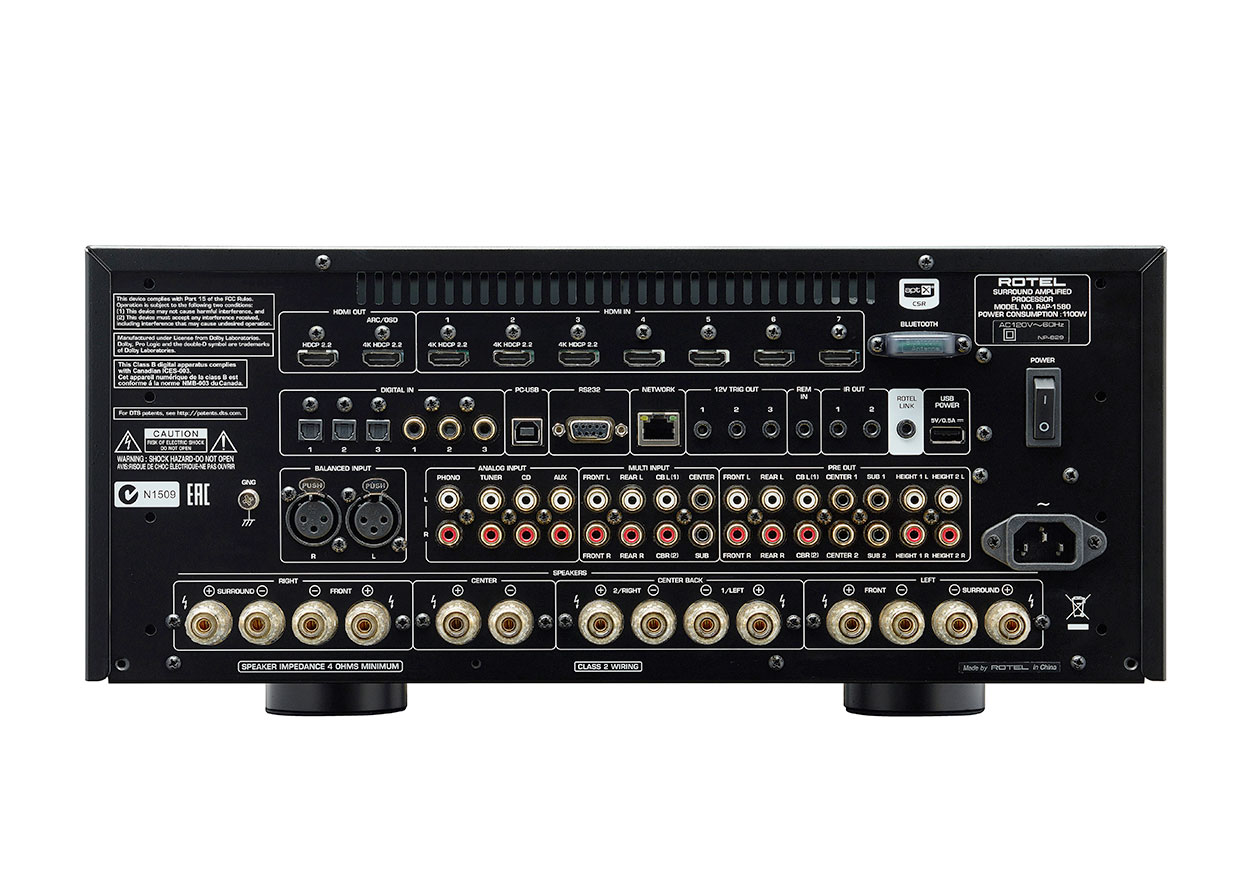

Other features include a front panel HDMI input with 4K video pass-through, front panel iPod USB input with 2.1A charging and integrated aptX enabled Bluetooth technology for higher fidelity. The RAP-1580 also includes a PC-USB input supporting 24-bit/192kHz audio, a quality MM phono stage input, CD input, XLR balanced input, Tuner input, AUX analog input and multichannel input.

Rotel's RAP-1580 is simple to operate, powerful, flexible and refined. It is a state-of-the-art single chassis audio/video component that outperforms most separates. In stereo or surround sound, this is a serious audio component.

Specifications

intermodulation Distortion (60Hz:7kHz, 4:1) <0.03%
Damping Factor (1kHz, 8 ohms) 230
Input Sensitivity
Line Level Inputs (RCA): 300mV
Line Level Inputs (XLR): 600mV
Phono Input (MM): 3.85mV
Input Impedance
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Phono Input (MM): 47kΩ
Preamp Output Level 1.2V
Digital Audio LPCM (up to 192kHz, 24-bit)
Dolby® Surround, Dolby®
TrueHD, Dolby® Atmos,
DTS-HD Master Audio, DTS:X
HDMI Inputs/Outputs
8 inputs with 3 supporting HDCP 2.2
2 outputs supporting HDCP 2.2
Audio Return Channel
Video Input Resolutions
480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p 24Hz,
3D, 4K, UHD
Video Output Resolution
480i/576i, 480p/576p, 720p
1080i, 1080p, 1080p 24Hz,
3D, 4K, UHD
Color Space Support
sRGB, YCbCr 4:2:2, YCbCr 4:4:4
Deep Color Support
24-bit, 30-bit, 36-bit
Continuous Power Output
100W/Ch (All channels driven, 8Ω)
150W/Ch (2 channels driven, 8Ω)
Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.03%
Frequency Response
Phono Input: 20Hz - 20kHz ±1dB
Analog Bypass: 10Hz - 100kHz ±1dB
Digital Inputs: 20Hz - 20kHz ±0.5dB
S/N Ratio (IHF "A" Weighted)
Analog Bypass: 100dB
Digital Inputs: 96dB
