Product Power Amp Anthem MCA 225
Anthem
ANTHEM :
MCA 225
Category : Power Amp
Add to wishlist     สถานะสินค้า In Stock
MCA 225
MCA 225
MCA 225
MCA 225
MCA 225
MCA 225

PRICE :
78,000 THB.
SPECIAL :
69,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview
  • Specifications

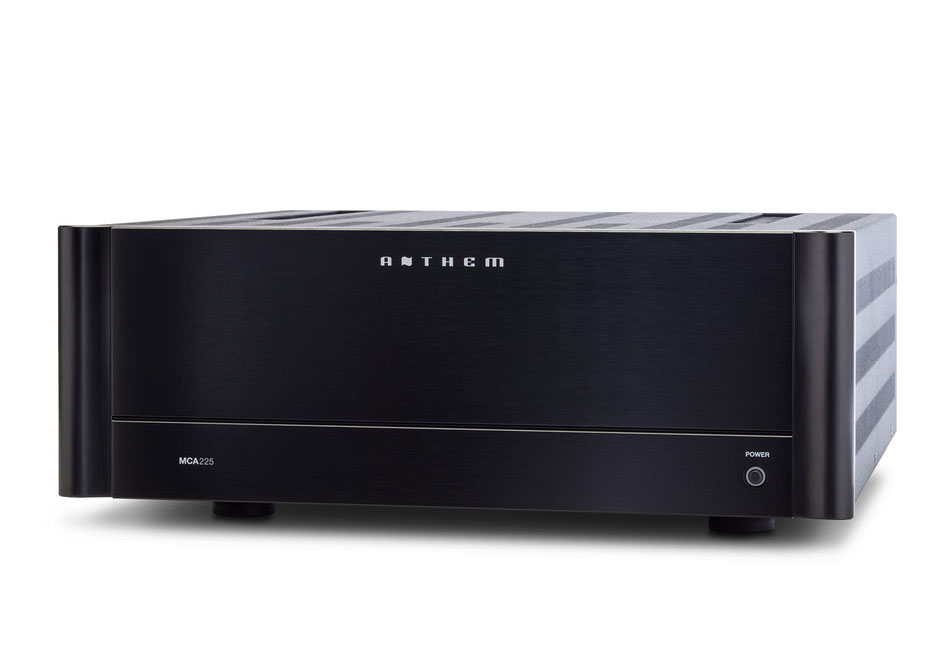

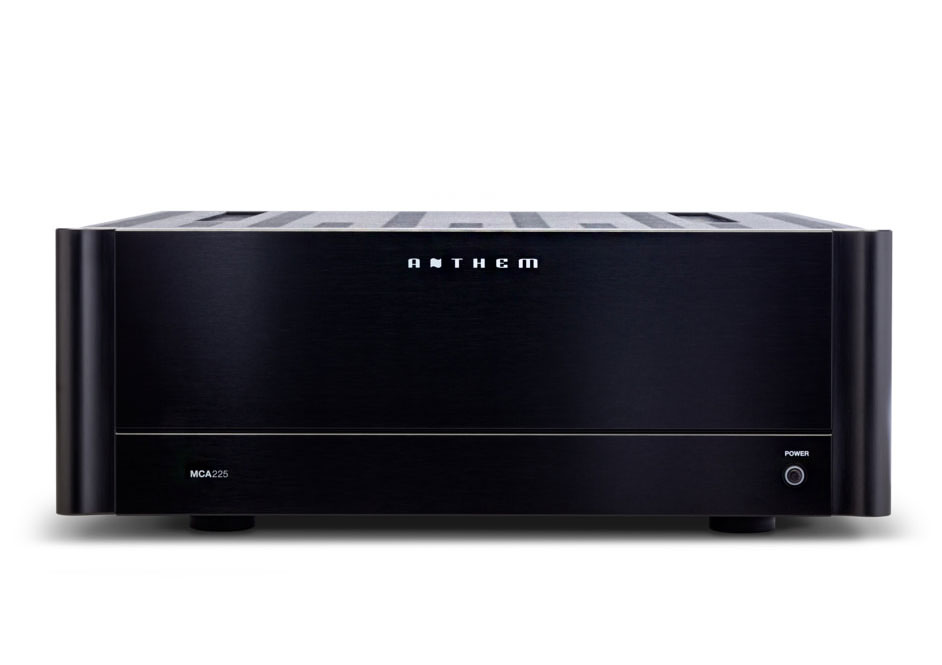

Anthem : MCA 225
2-channel power amplifier; 225 watts per channel continuous power into 8 ohms.

Designed to match, engineered for power.
New MCA multi-channel amplifiers are Crafted in Canada and perfectly match the new AVM 60 processor & MRX receivers.

To complement the NEW AVM 60 A/V Processor, Anthem introduces the new MCA 525, 325 and 225 power amplifiers. Available in 5, 3 and 2-channel configurations, these new MCA amplifiers feature more robust and efficient power and heavy-duty reliability. The new MCA Series delivers lower THD (total harmonic distortion) for more clean, pure sound and lower noise for a supremely quiet background.

Like all Anthem products the MCA 525, MCA 325 and MCA 225, designed and Crafted in Canada, are like no other amplifiers in the world: custom low noise high-power toroidal transformers; high-current bipolar output transistors; high-quality filter capacitors; advanced power supply regulators; oversized aluminum heatsinks; custom-designed dual binding posts; and patented auto-on/off circuitry. Superior craftsmanship that is reflected in clean, clear, audiophile-quality sound from top to bottom of the frequency spectrum.

MCA 225 Features & Functions

225W in 2-Channels

  • Delivers lower THD (Total Harmonic Distortion) for cleaner, pure sound and lower noise
  • Completely redesigned for improved audio performance and reliability
  • Higher current output for lower distortion
  • Cosmetic match for AVM 60 A/V Preamplifier-Processor
  • Improved Advanced Load Monitoring system
  • 8 bipolar output devices per channel for less stress on each device
  • Less than 2 watts standby power consumption
  • Crafted in Canada

http://staff-p2.piyanas.com/images/20190309/nphAWvav_x.jpg

http://staff-p2.piyanas.com/images/20190309/R7hqPWnO_x.jpg


POWER OUTPUT (PER CHANNEL)
(Continuous RMS, 20 Hz - 20 kHz, <1% THD)

Impedance
  225 W 400 W 600 W

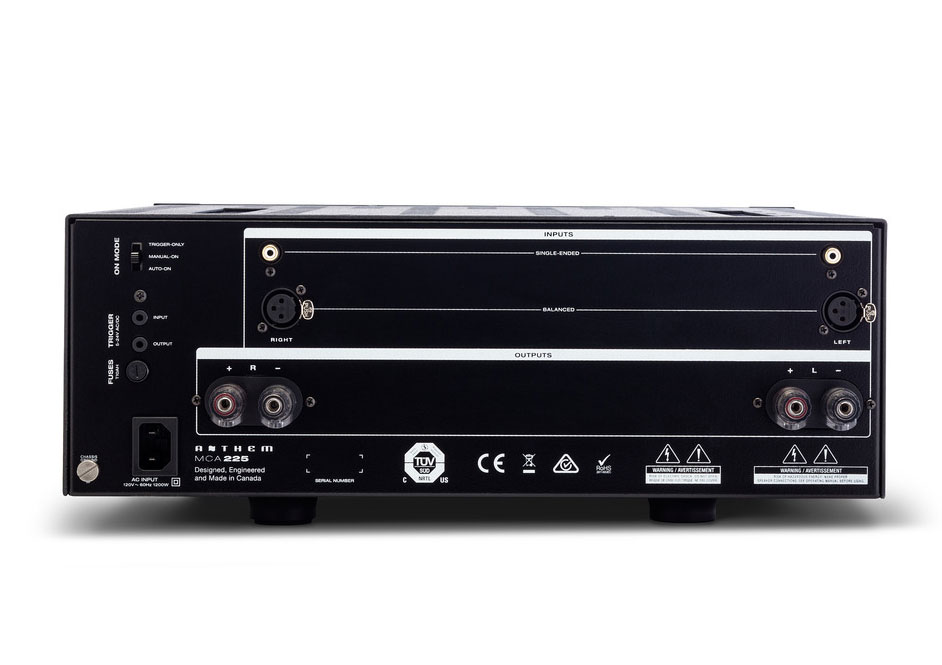

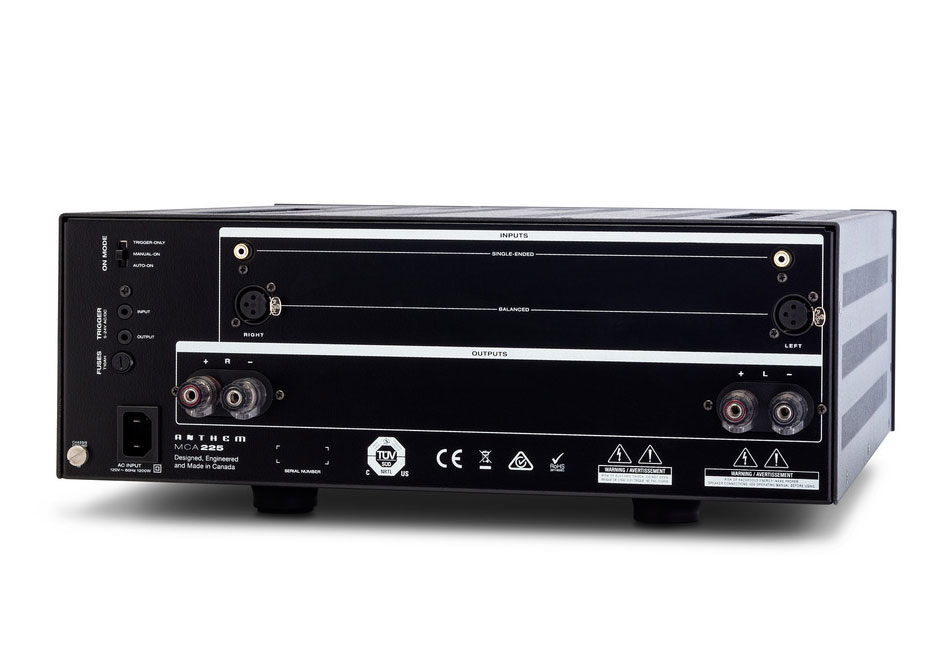

INPUTS / OUTPUTS
Inputs Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack)
Outputs Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack)

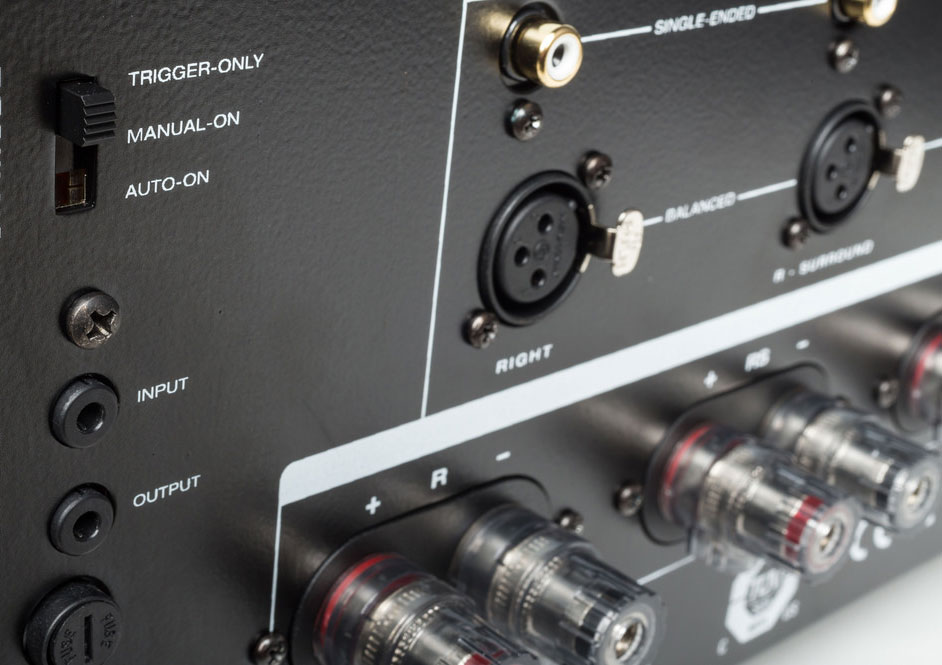

SWITCHES
Front Panel Power (On/Off)
Rear Panel 3 On/Off Modes (Trigger, Manual, Auto)
THD at 100W
at 1 kHz 0.0010%
at 20 kHz 0.015%
IMD at 100 W
ITU-R (19 kHz + 20 kHz) 0.0005%
SMPTE (60 Hz + 7 kHz) 0.002%
Frequency Response, 20 Hz to 20 kHz
open circuit ± 0.1 dB
± 0.1 dB
± 0.1 dB
± 0.2 dB
OTHER SPECIFICATIONS
SNR, IEC-A, ref. 225 W 120 dB
Power Bandwidth, -3 dB at 200 W into 8 ohms 90 kHz
Slew Rate 30 V/μs
Damping Factor, 20 Hz to 1 kHz 300
Channel Separation, 100 Hz to 10 kHz >65 dB
Input Impedance (RCA / XLR) 10 kΩ / 15 kΩ
Input Sensitivity, 225 W into 8 Ω 1.5 Vrms
Voltage Gain 29 dB
POWER CONSUMPTION
  standby idle typical high output
MCA 525 2.0 W 80 W 550 W 1200 W
MCA 325 1.4 W 47 W 350 W 750 W
MCA 225 1.0 W 35 W 240 W 500 W
DIMENSIONS
Height 6-5/8" (16.9 cm)
Height with Rackmount Kit 4U
Width 17-1/4" (43.9 cm)
Depth 18-1/8" (46 cm)
WEIGHT
MCA 525 61 lb (27.5 kg)
MCA 325 43 lb (19.5 kg)
MCA 225 40 lb (18 kg)
