Product Pre Processor Anthem D2v With 3D
Anthem
ANTHEM :
D2V WITH 3D
Category : Pre Processor
Add to wishlist     สถานะสินค้า In Stock

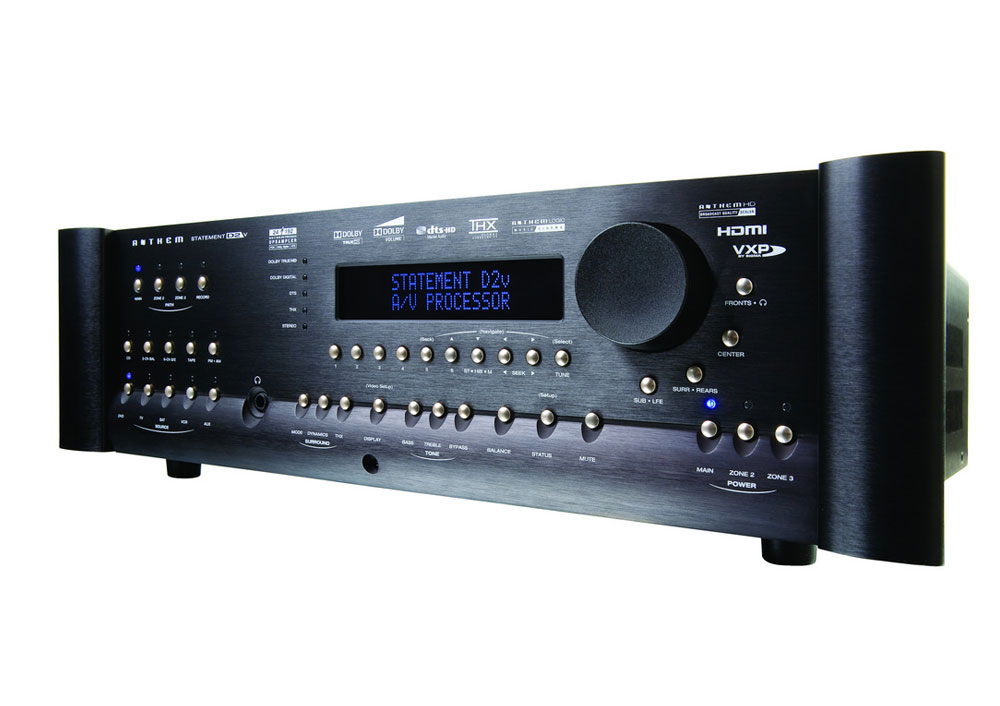

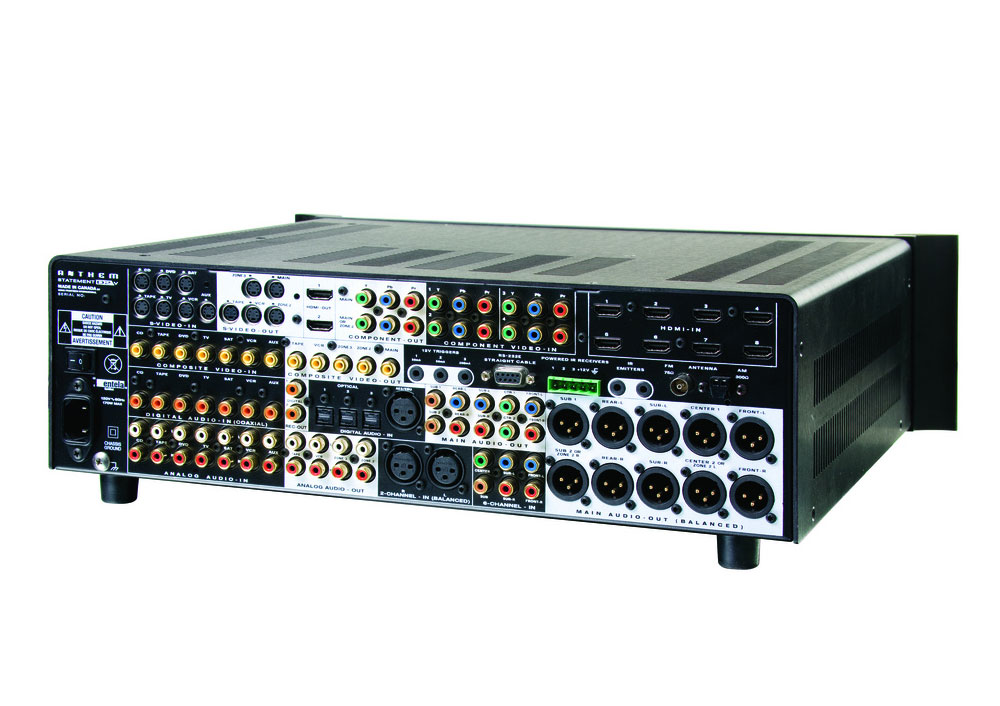

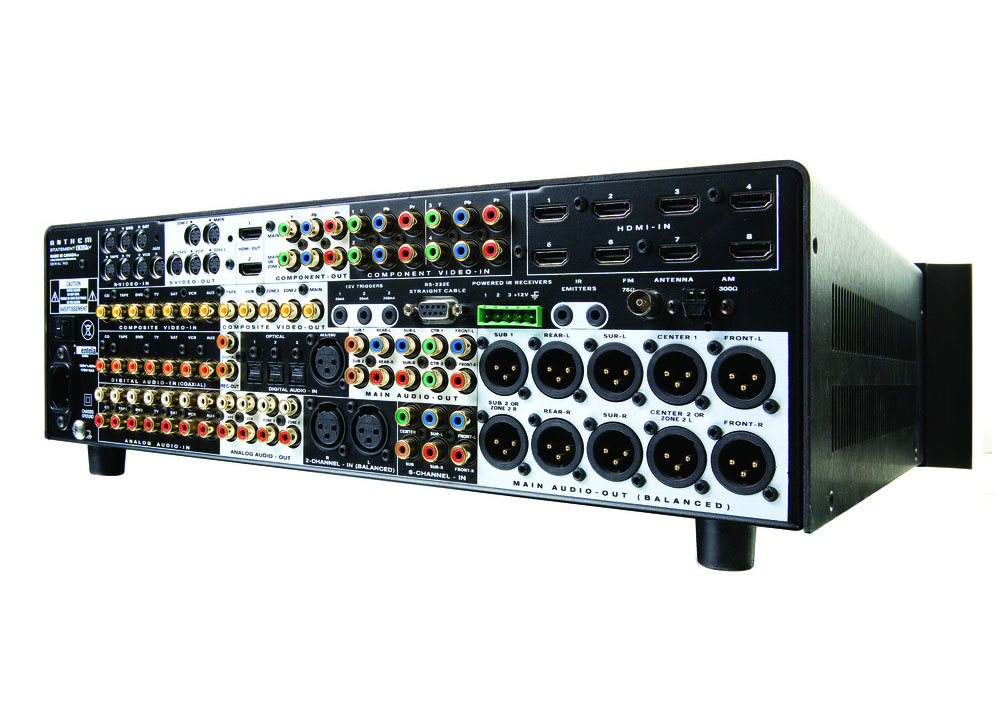

D2v With 3D
D2v With 3D
D2v With 3D
D2v With 3D

PRICE :
315,000 THB.
SPECIAL :
283,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview
  • Specifications

Anthem D2v With 3D
Pushing the Boundaries

The D2v 3D pushes the boundaries on what you expect from music and home theater performance. With the unparalleled flexibility you have to come to expect from Anthem processors, it provides both the versatility and adjustability you need to ale all of your digital video components work together seamlessly. The results are spectacular.

Ready for 3D

From riding the third dimension on light cycles in the movie Tron, to racing through the 3D jungles of Pandora in Avatar, the movie experience is always better in triple dimensions. 3D video has a different structure than traditional video so it must pass through the A/V processor without being affected. The new Anthem D2v circuit board automatically detects the presence of 3D video and go into passthrough mode as per a source menu option for video output configuration, passing the 3D HDMI signal from a 3D Blu-ray player to a 3D TV at resolutions up to 1080p. For additional convenience, in passthrough mode the output refresh rate is now automatically matched to the source’s frame refresh rate which is useful for sources that output a mix between 24, 50 and 60 Hz.

It’s now 3D equipped. Fully featured 7.1-channel audio and video processor, 8 HDMI Inputs and 2 Parallel HDMI outputs with the top four ports (HDMI 1 through 4) and top output (HDMI 1) supporting true bypass sensing 3D inputs automatically, Dolby TrueHD, DTS-HD Master Audio, PCM 24/192, highest quality 1080p upscaling with 1080p24 compatibility, Anthem Room Correction, premium quality A/D and D/A converters, 24-bit/192 kHz upsampling on all channels in main zone, two stereo zones.

As Good as It Gets

Sound from HDMI sources plays perfectly, at least it does if you’re using a D2v. Why? In the D2v, all eight HDMI inputs are connected through high-performance TMDS (Transition Minimized Differential Signaling) timing regenerators and multiplexers. The receiver contains a programmable equalizer and a Clock Data Recovery (CDR) function for each of the three TMDS pairs in an HDMI or DVI signal. The TMDS data outputs are regenerated and perfectly aligned to the regenerated TMDS clock signal, creating an extremely clean low-jitter DVI/HDMI signal that is easily decoded by the HDMI receiver. This is particularly useful for cleaning up a noisy/jittery source, or when a long or low-quality cable is being used.



Broadcast-Quality Digital Video Processing

  • Video Format Conversion—the latest-generation Sigma Designs VXP broadcast-quality digital image processor (supporting deep color and better-than-ever video algorithms!) converts any SD or HD video standard to other video standards.
  • Quadruple video output configuration makes it easy to switch from one configuration to another.
  • Superior image quality using per-pixel processing and motion-adaptive de-interlacing ensures optimal image sharpness and picture resolution.
  • Dynamic directional interpolation eliminates jaggy artifacts found in traditional de-interlacing algorithms.
  • Full film-mode detection for all SD and HD inputs.
  • Video transcoding allows S-Video and Component Video inputs to be digitally processed and enhanced, and then routed through the Component or HDMI outputs.
  • Each source can be adjusted independently for best picture.

Enhanced Video Performance

  • Adjustable cropping
  • Aspect ratio control
  • Chroma bug filter
  • Frame lock
  • Gamma correction
  • Adjustable noise reduction
  • Adjustable detail enhancement
  • Custom output resolution and timing via PC utility
  • All on-screen displays are shown through HDMI and Component Video
  • On-screen display shows adjustments being made (can be disabled)
  • All functions are available for HD input

State-Of-The-Art Digital Audio Procesing

  • The 24-Bit/192-kHz precision upsampler operates on all digital audio signals. The D2’s DACs also incorporate 128X oversampling to increase the sample rate to 24.576 MHz, ensuring the best phase and frequency response possible. Measurable results reflect exceptionally flat frequency response and THD+N in the upper frequencies. This is up to twenty times lower than some of the best high-end outboard DACs, resulting in a much higher level of transparency for multichannel music and movies. Sonic performance is astounding. Smoother high-frequency response, superior detail, and better image focus—a far more transparent window on the original performance.
  • Anthem’s Own Design! Two dual-core digital signal processing (DSP) engines, our own DSP design, offer a total of 800 MIPS to allow decoding of the new HD audio standards: Dolby Digital Plus, Dolby TrueHD, DTS-HD High-Resolution Audio and DTS-HD Master Audio. More than enough processing power to handle even the most complex program material with matchless precision.
  • Triple 4 Mbit 8ns external memory is large enough to ensure that the DSP engines never run out of resources.
  • 4-layer hand-designed motherboard includes separate power and groundplanes.
  • Independent 6- and 8-layer DSP, A/D and D/A converter boards—A/D and D/A use separate analog and digital planes as well as separate power and groundplanes for remarkably low noise.
  • All critical signal paths are surrounded by groundplanes.
  • Fully buffered audio/video inputs for minimum crosstalk.
  • State-of-the-art video switching circuitry is laid out on isolated, independent 2-layer glass-epoxy circuit boards.
  • Highest-precision thru-hole passive components.

An impressive resumé of superior-quality component parts

  • Audio-grade film capacitors and operational amplifiers
  • Low-ESR electrolytic capacitors
  • Audio-grade signal-coupling capacitors
  • High-value (1,000 μF) ADC reference voltage decoupling capacitors for lowest possible THD+N below 1 kHz

Super-efficient switching power supply

  • Low-noise, low-emissions design
  • Multiple-synchronized dithered-frequency isolation stages ensure exceptionally quiet audio and video operation and excellent electromagnetic compatibility
  • Fourteen independently regulated output stages ensure optimal operating environment

Unparalleled analog-to-digital and digital-to-analog conversions
Eliminates noise in the 20 to 80-kHz frequency band thanks to the high quality of our ADC and DAC designs.

Analog-to-Digital Conversion (ADC)

  • Capable of up to 24-bit x 192-kHz resolution
  • Six stereo analog attenuators—one for each channel of the 6-channel input, promote greater dynamic range and an impressive reduction in distortion

Digital-to-Analog Conversion (DAC)

  • Converters operate at their full 24-bit x 192-kHz resolution
  • Switched-capacitor output filters significantly reduce the DAC’s sensitivity to rapid fluctuations in bit rate
  • The built-in state-of-the-art upsampler allows the DACs to run at the highest speed (192 kHz) regardless of the incoming digital bitstream, and with extremely low back ground noise up to almost 100 kHz
  • High-accuracy clock generator (49.152 MHz, ±0.001%) eliminates the potential for errors in timing, thereby contributing to a significant reduction in the distortion common in D/A conversion

And For The Audio Purist

  • Analog-Direct available on all inputs
  • Tone Bypass disables Bass/Treble adjustment
  • Balanced 2-channel XLR digital input for best digital signal
  • True-Balanced 2-channel analog input for best analog signal
  • True-Balanced analog outputs provide best noise rejection and purest signal transmission

And Then There's Anthem Room Correction (ARC)

Even when the finest speakers are perfectly positioned, the room itself still has a dramatic impact on a system’s sound, an impact more profound than that of any individual component. Various solutions have fallen in and out of favor over the years, but none has solved the problem of “the room.” Until ARC. Using proprietary processes and the power of your PC the ARC system, years in development and included with your Anthem Statement D2v, analyzes each speaker’s in-room sound and then computes the required correction to yield optimal performance from every speaker. It’s a process that takes less than five minutes! Anthem’s approach is a true audiophile solution to the problems of the room. ARC is garnering rave reviews across the industry. For more information, see the ARC data sheet in the downloads & support section.




VIDEO SWITCHING
Bandwidth from input to output jack (bypass mode for component video)
Composite and S-Video 70 MHz
Component Y 110 MHz
  Pr 90 MHz
  Pb 80 MHz
All analog video inputs and outputs are 75 Ω, 1.5 Vp-p.
ANALOG AUDIO
Input Impedance 20 kΩ
Output Impedance Main-RCA 300 Ω
  XLR 600 Ω
  Zones 2/3 and Record 51 Ω
Rated Input 2.0 Vrms
Maximum Input 5.3 Vrms
Minimum Load 5 kΩ
Rated Output (100 kΩ load) 2.0 Vrms
Maximum Output RCA 6.3 Vrms
  XLR 12.6 Vrms
Headphone Output 100 mW into 32 Ω at 0.2% THD+N
Volume Control Range Main - 95.5 dB to +31.5 dB (in 0.5 dB increments)
  Zone 2/3 and Headphone - 62.5 dB to +10.0 dB (in 1.25 dB increments)
Crosstalk (at 1 kHz) 82 dB between channels; 86 dB between inputs
XLR Pin Configuration Pin 1: Ground, Pin 2: Positive, Pin 3: Negative
DIGITAL AUDIO
Crossover High-Pass Slope (small speaker setting) 12 dB/octave (2nd order)
  Low-Pass Slope (subwoofer) 24 dB/octave (4th order)
  Frequency (adjustable) 25 Hz to 160 Hz (in 5 Hz increments)
Tone Control Fliter Type Shelf
  Range +/- 12 dB
  Bass Turnover Frequency 200 Hz
  Treble Turnover Frequency 2 kHz
Analog-to-Digital Conversion S/N Ratio (at digital Rec output) (IEC-A Filter) 100 dB
All digital audio inputs and outputs comply with HDMI, S/PDIF or AES/EBU standards. Sample rate converter output is 24 bit/192 kHz regardless of input.
MAIN PATH (RCA and XLR Outputs)
Frequency Response and Bandwidth Analog Direct Inputs 10 Hz to 20 kHz (+0 -0.2 dB), 1 Hz to 130 kHz (+0 -3 dB)
  Analog-DSP Inputs at 24/96 10 Hz to 20 kHz (+0 -0.3 dB), 2 Hz to 44.1 kHz (+0 -3 dB)
  Digital Inputs at 24/96 10 Hz to 20 kHz (+0 -0.2 dB), 1 Hz to 45 kHz (+0 -3 dB)
THD+N (at Rated Input and Output) Analog Direct Inputs 0.006% (80 kHz BW)
  Analog-DSP Inputs at 24/48 or 24/96 0.004% (AES17 Filter)
  Digital Inputs at 24/48 or 24/96 0.004% (AES17 Filter)
IMD (CCIF at 15 kHz and 16 kHz) Analog Direct Inputs <0.001%
  Analog-DSP Inputs at 24/48 0.001%
  Digital Inputs at 24/48 or 24/96 0.001%
S/N Ratio (ref. 2.0 Vrms, IEC-A Filter) Analog Direct Inputs 107 dB
  Analog-DSP Inputs at 24/48 or 24/96 101 dB
  Digital Inputs at 24/48 or 24/96 104 dB
ZONE 2 and ZONE 3 PATHS
Frequency Response and Bandwidth 20 Hz to 20 kHz (+0 -0.1 dB), 3 Hz to 140 kHz (+0 -3 dB)
THD+N (at Rated Input and Output) 0.06% (80 kHz BW)
IMD (CCIF at 15 kHz and 16 kHz) 0.06%
S/N Ratio (ref. 2.0 Vrms, IEC-A Filter) 97 dB
FM TUNER
Sensitivity 50 dB S/N 13 dBµ typical, 25 dBµ max.
  IHF 10 dBµ typical, 20 dBµ max.
S/N Ratio Mono 75 dB typical, 65 dB min.
  Stereo 69 dB typical, 60 dB min.
Distortion Mono 0.2% typical, 1.0% max.
  Stereo 0.3% typical, 1.5% max.
Stereo Separation 40 dB typical, 25 dB min.
Alternate Channel Selectivity (+/- 400 kHz) 70 dB typical, 60 dB min.
Frequency Response 25 Hz to 15 kHz (+0 -2 dB)
AM TUNER
Sensitivity (20 dB S/N) 49 dBµ typical, 56 dBµ max.
S/N Ratio 50 dB typical, 43 dB min.
Distortion 0.7% typical, 2.0% max.
One-Signal Selectivity (+/- 10 kHz) 24 dB typical, 18 dB min.
CONTROL
Infra Red Carrier Frequency 38 kHz
  Maximum 12 V Supply Current 150 mA
  Maximum Emitter Current 60 mA per output
RS-232 Interface Connection DB-9F, straight-wired
  Pinout (D2v side) Pin 2: Tx, Pin 3: Rx, Pin 5: Ground
  Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200


Configuration

8 data bits, 1 stop bit, no parity bits, flow control (RTS/CTS, none)
Trigger Outputs Polarity tip positive, sleeve ground
  Maximum Current at 12 VDC 300 mA between all three triggers
  Sequential Delay 250 ms
POWER REQUIREMENT
Consumption Maximum 170 W
DIMENSIONS
Height 5-7/8 inches (14.9 cm) including feet;
rack-mounting: 3 rack units without feet
Width Standard version 19-1/4 inches (49 cm)
  Rack-Mount version 19 inches (48.3 cm)
  No-Handle version 17-1/4 inches (43.8 cm)
Depth 15-1/4 inches (38.7 cm)
Weight (unpacked) 27 lb (12.3 kg)
AVAILABLE FINISH
Black
