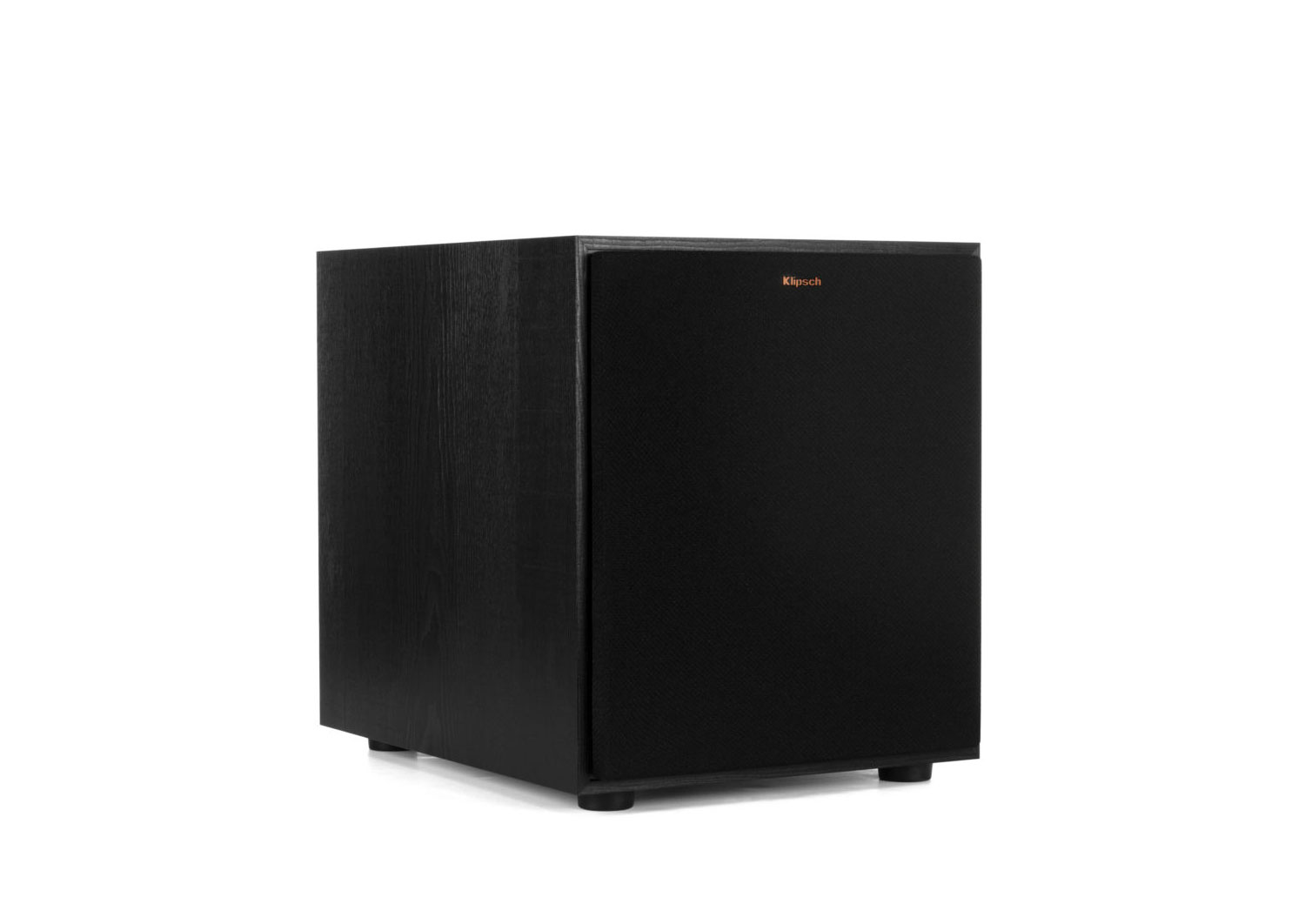

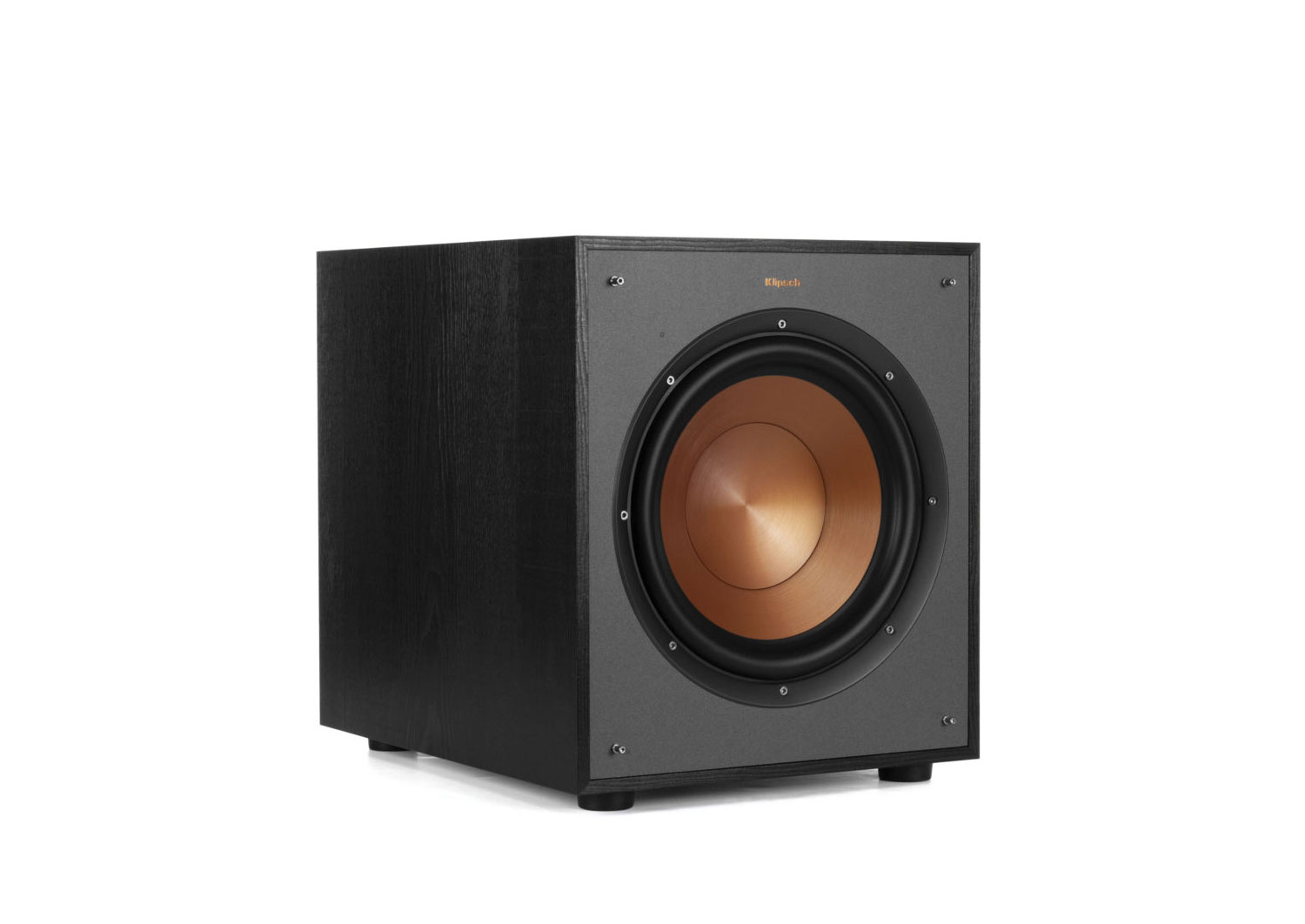

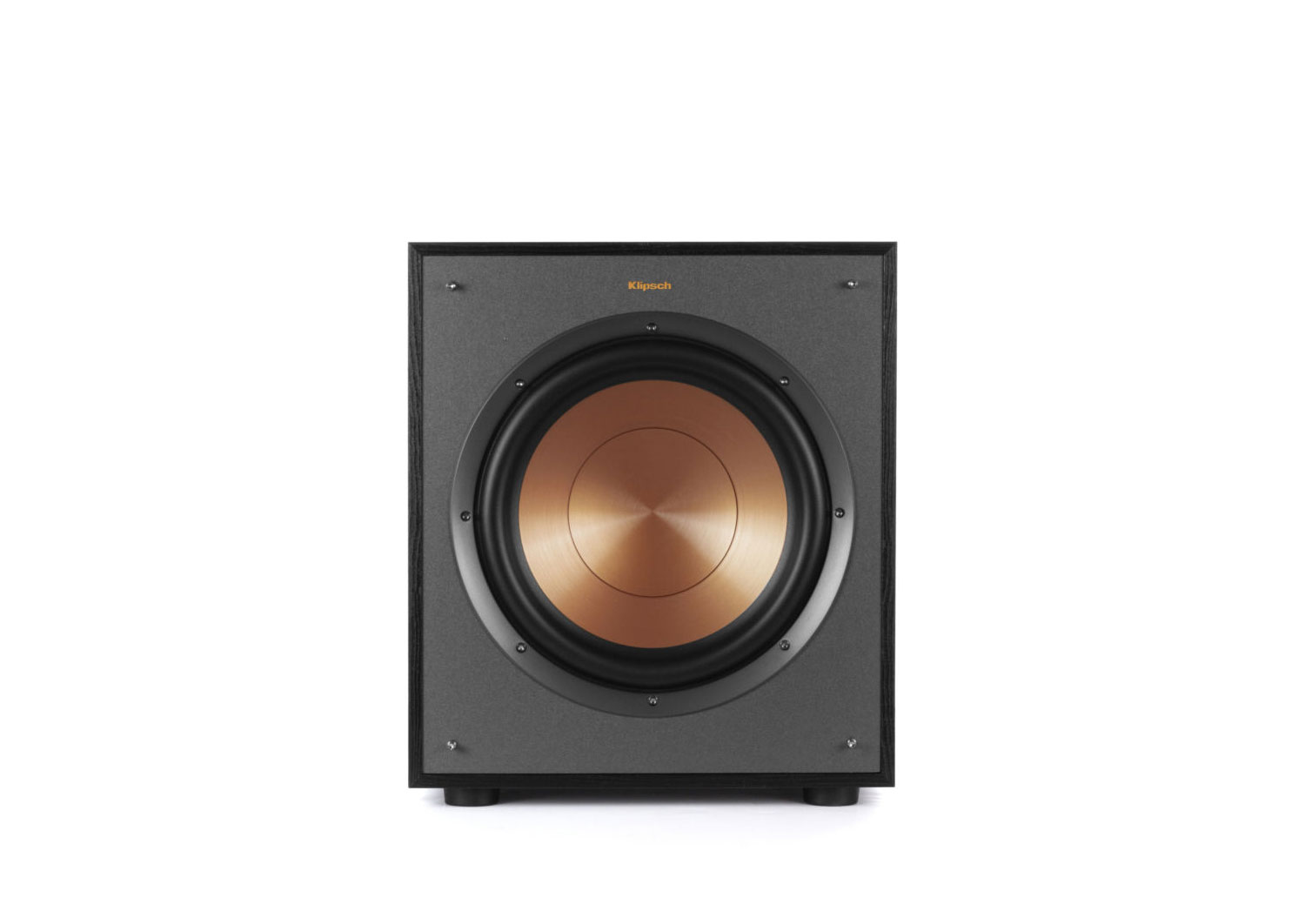

KLIPSCH R-100SW (BLACK)
The Klipsch R-100SW subwoofer delivers incredibly deep bass via a 10" front-firing driver featuring a spun-copper IMG woofer and all digital amplifier.
Features:
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-Loaded LTS Tweeter, it provides speaker efficiency highest in its class.
All-Digital Amplifier
The built-in, all-digital amplifier of the R-100SW subwoofer delivers ample power with high efficiency and true-to-source accuracy reproduction - thus providing maximum output, detail, and power that fills your home.
CUSTOMIZED BASS
The R-100SW subwoofer gain, low pass crossover and phase controls ensure the low-frequency tones blend with other speakers and establish the ideal level of bass for your room.
Line level/LFE RCA inputs provide maximum compatibility with standard home theater receivers.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
Sleek Design

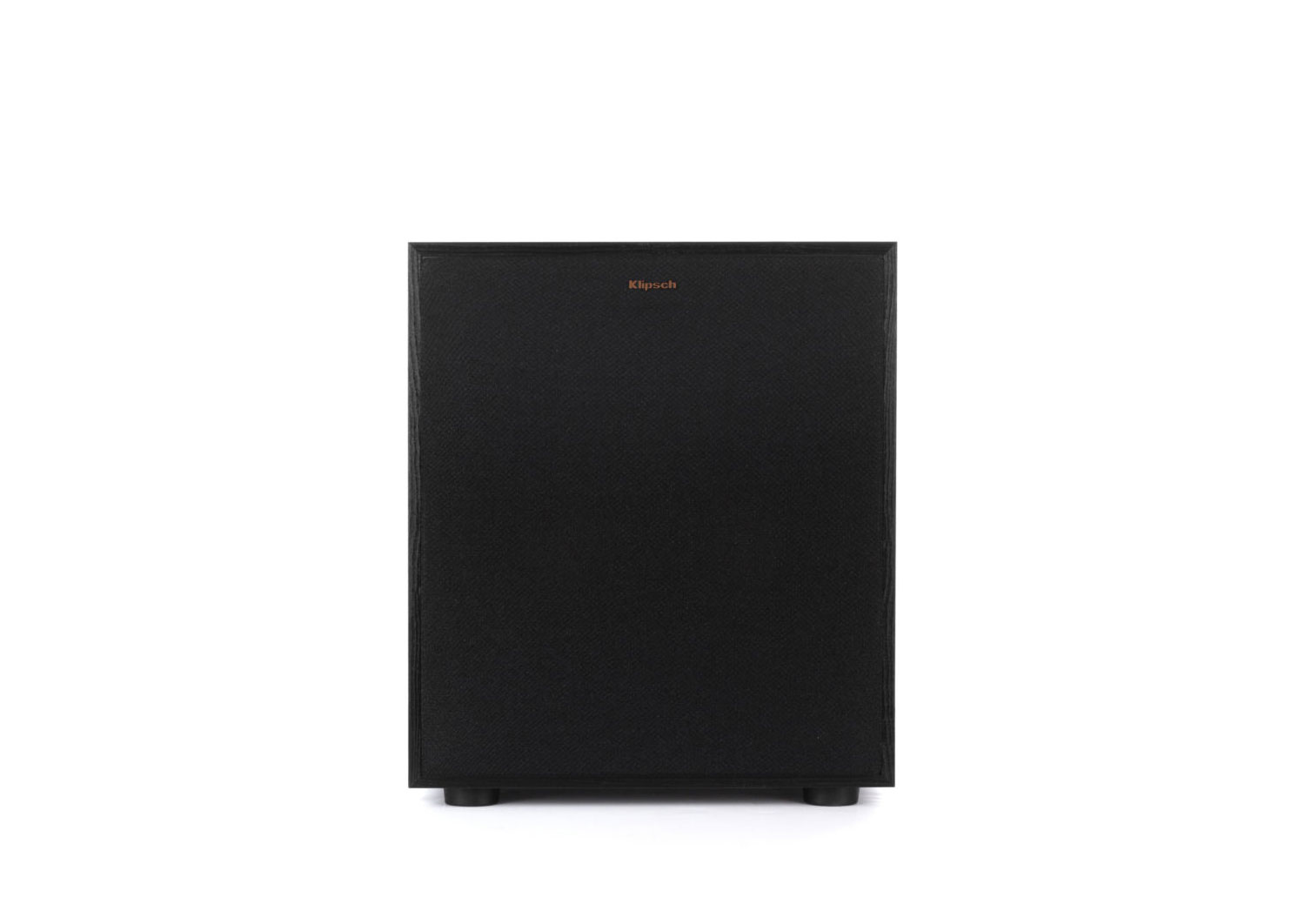

Exposed fasteners, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give the R-100SW subwoofer a polished, modern appearance that perfectly accents our entire Reference series speakers.
FREQUENCY RESPONSE
|
32Hz - 120Hz +/- 3dB
|
MAXIMUM ACOUSTIC OUTPUT
|
112 dB
|
AMPLIFIER
|
All Digital
|
AMPLIFIER POWER (CONT/PEAK) | 150W/300W |
AMPLIFIER FEATURES
|
Volume, Low-pass, 0/180 phase, Auto Power On
|
DRIVER COMPONENTS
|
10” high excursion spun-copper IMG woofer
|
ENCLOSURE MATERIAL
|
MDF
|

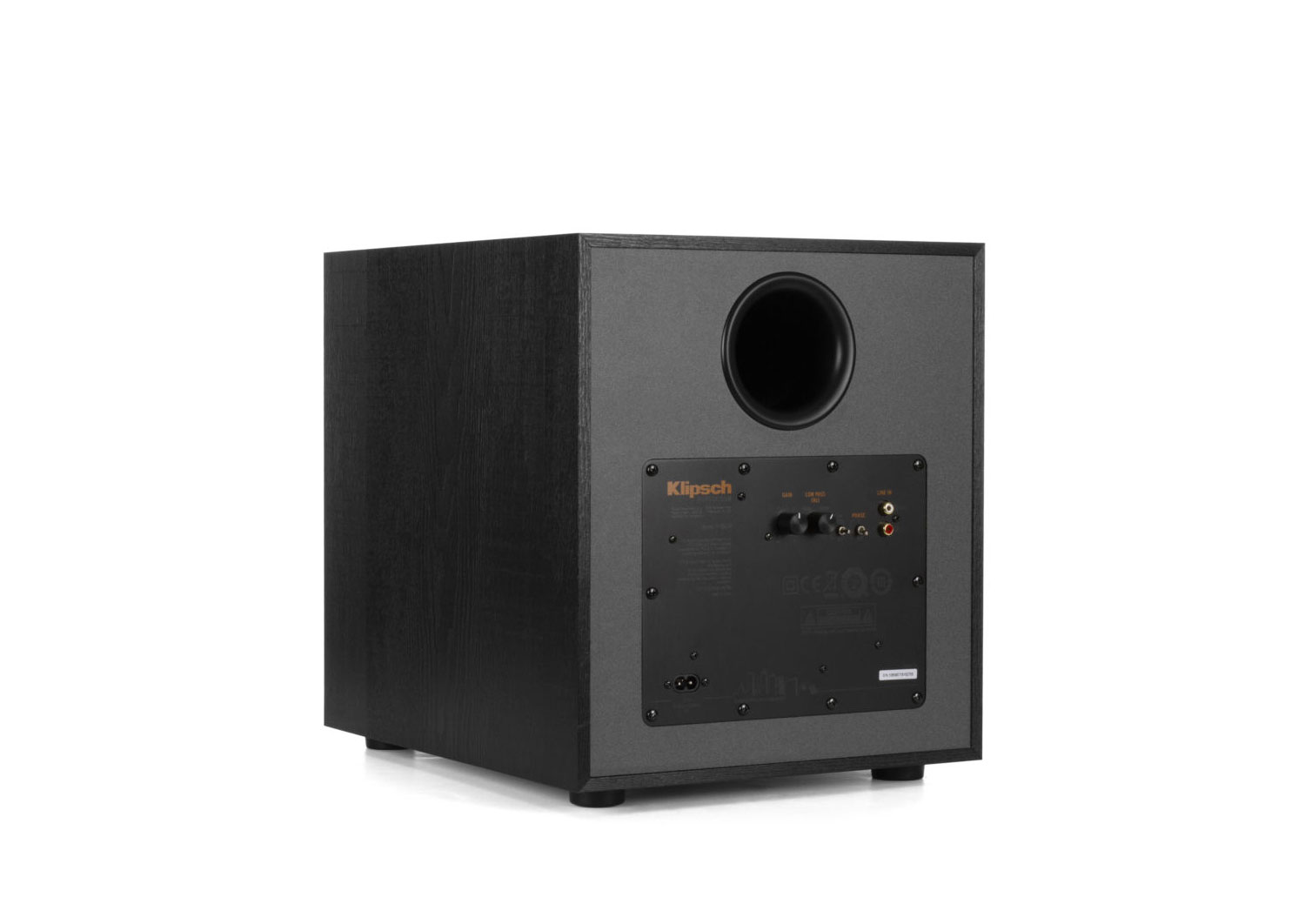

ENCLOSURE TYPE | Bass-Reflex via rear-firing port |
INPUTS
|
Line level/LFE RCA jacks
|
HEIGHT
|
14.5” (368 mm)
|
WIDTH
|
12.5” (318 mm)
|
DEPTH
|
16.4” (417 mm)
|
WEIGHT
|
24 lbs (10.9 kg)
|
