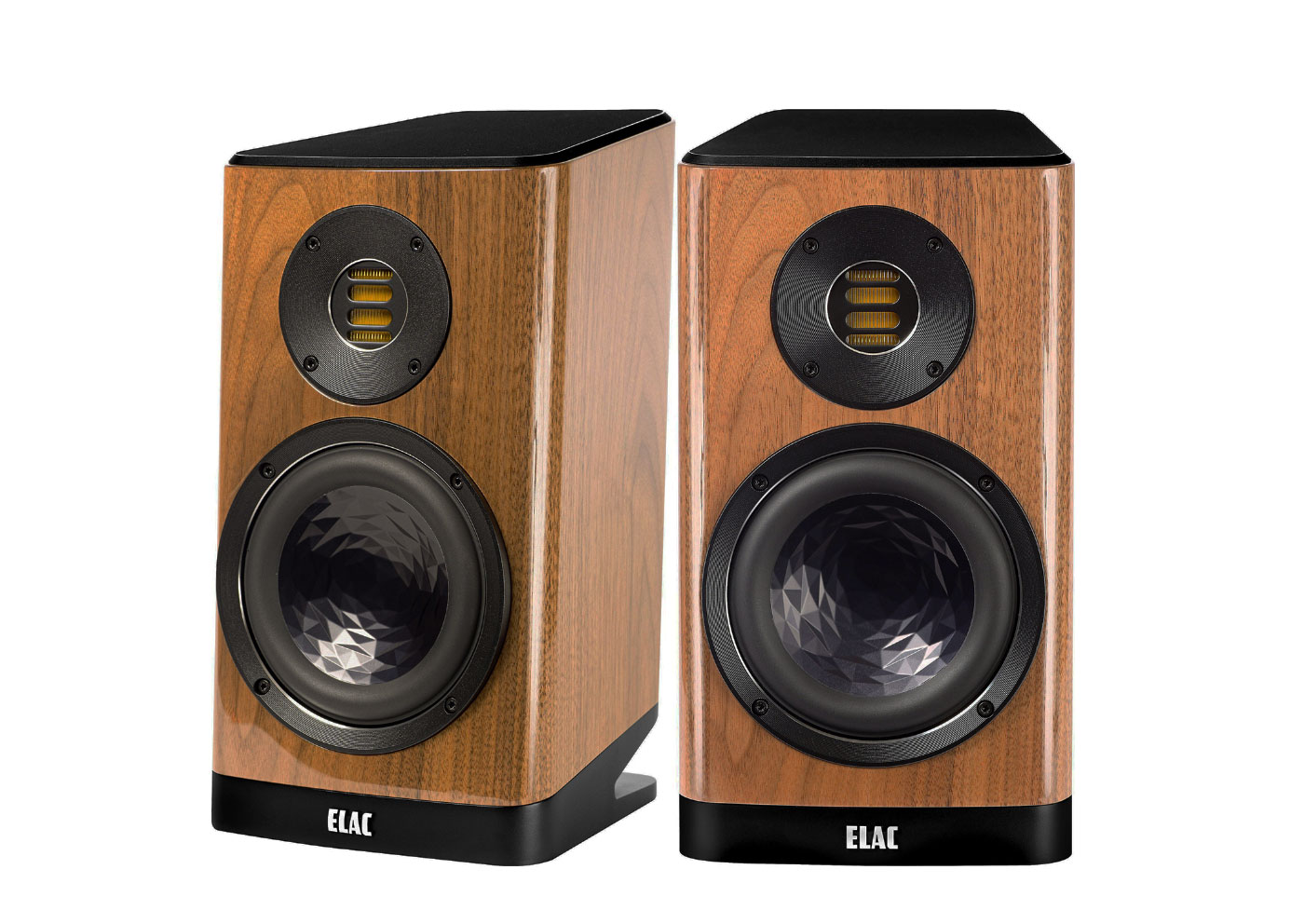

Exciting, progressive and elegant – the new VELA series.

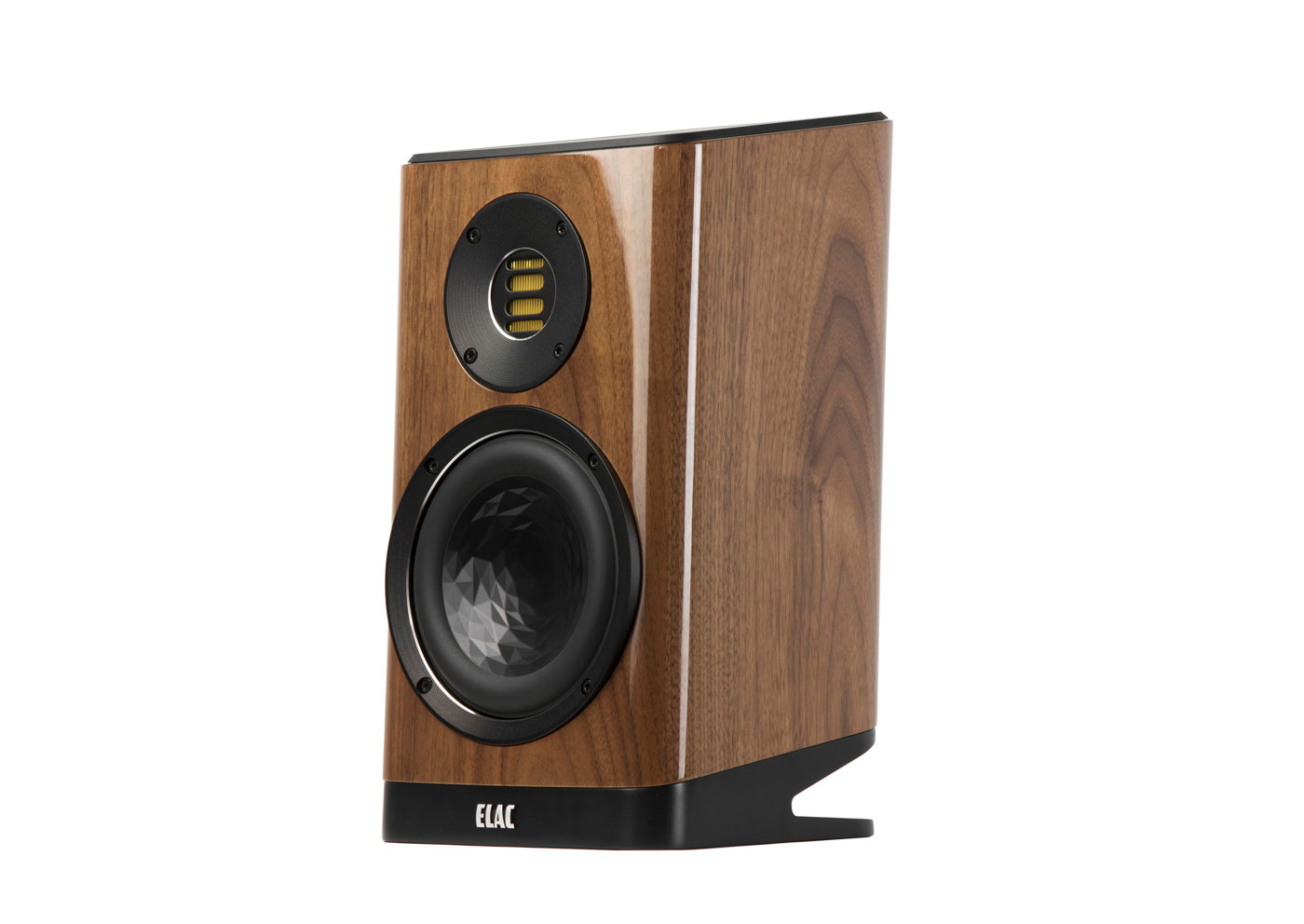

A complex design: high-class lacquered and wooden veneered cabinets, which have a trapezoid shape and are angled rearward.
The design catches eyes but conduces acoustics, too. The sound of VELA shows it´s family background to successful series 400.
But the advantages are distinct. The angling of the cabinet in combination with the new wave-guide of the JET tweeter improves the definition of stereo and multi-channel audio in modern furnishing. But there are more than the obvious changes. For example the optimized drivers are able to reproduce high-energy transients more precisely.
Form Supports Function

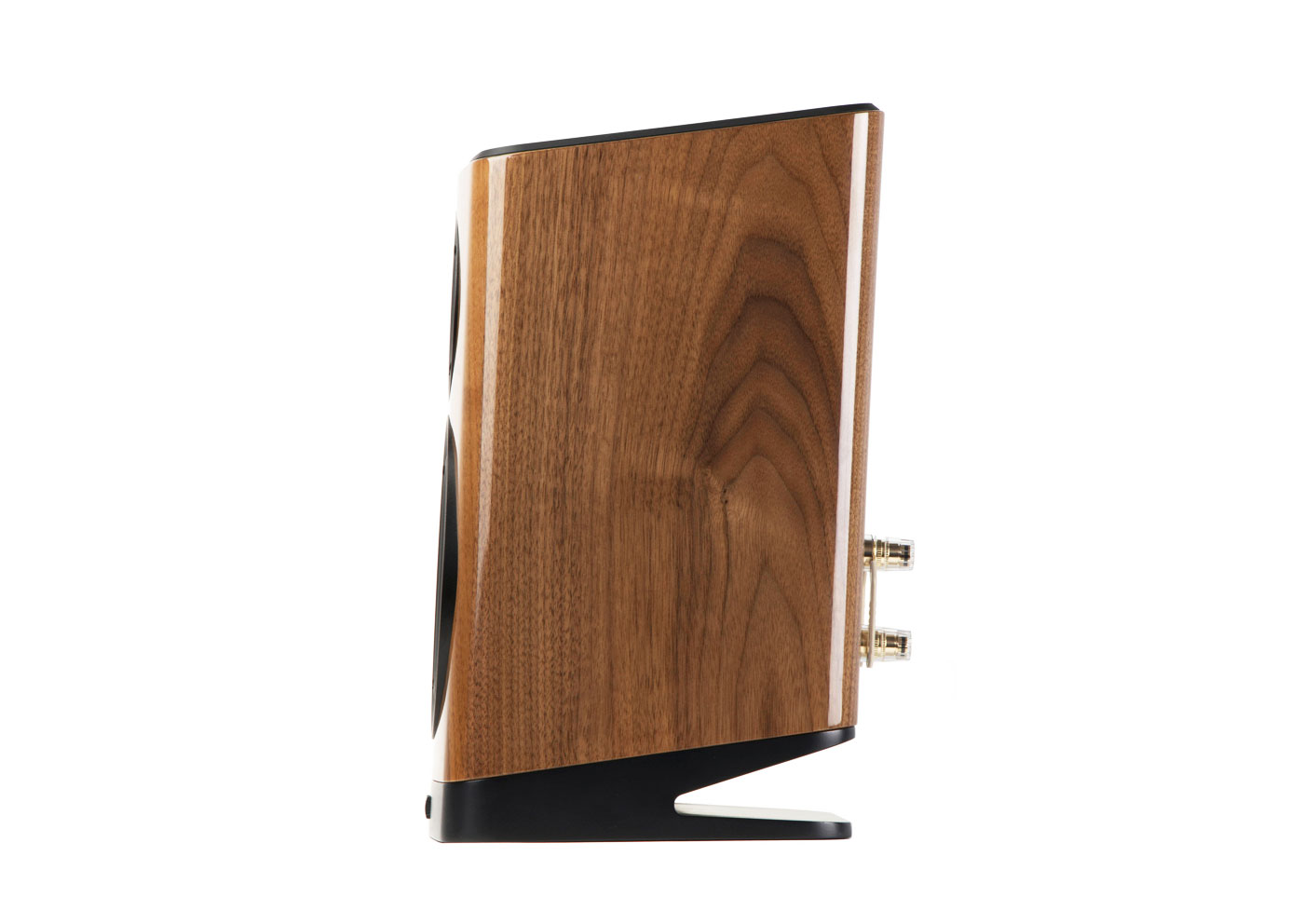

The convex shaped baffle and the big radius’s of the cabinet promote the acoustics because influences of cabinet to frequency response are reduced.
The bottom plate is made of aluminum and is featured with a down-firing bass reflex port which gives advantages in positioning the speaker.

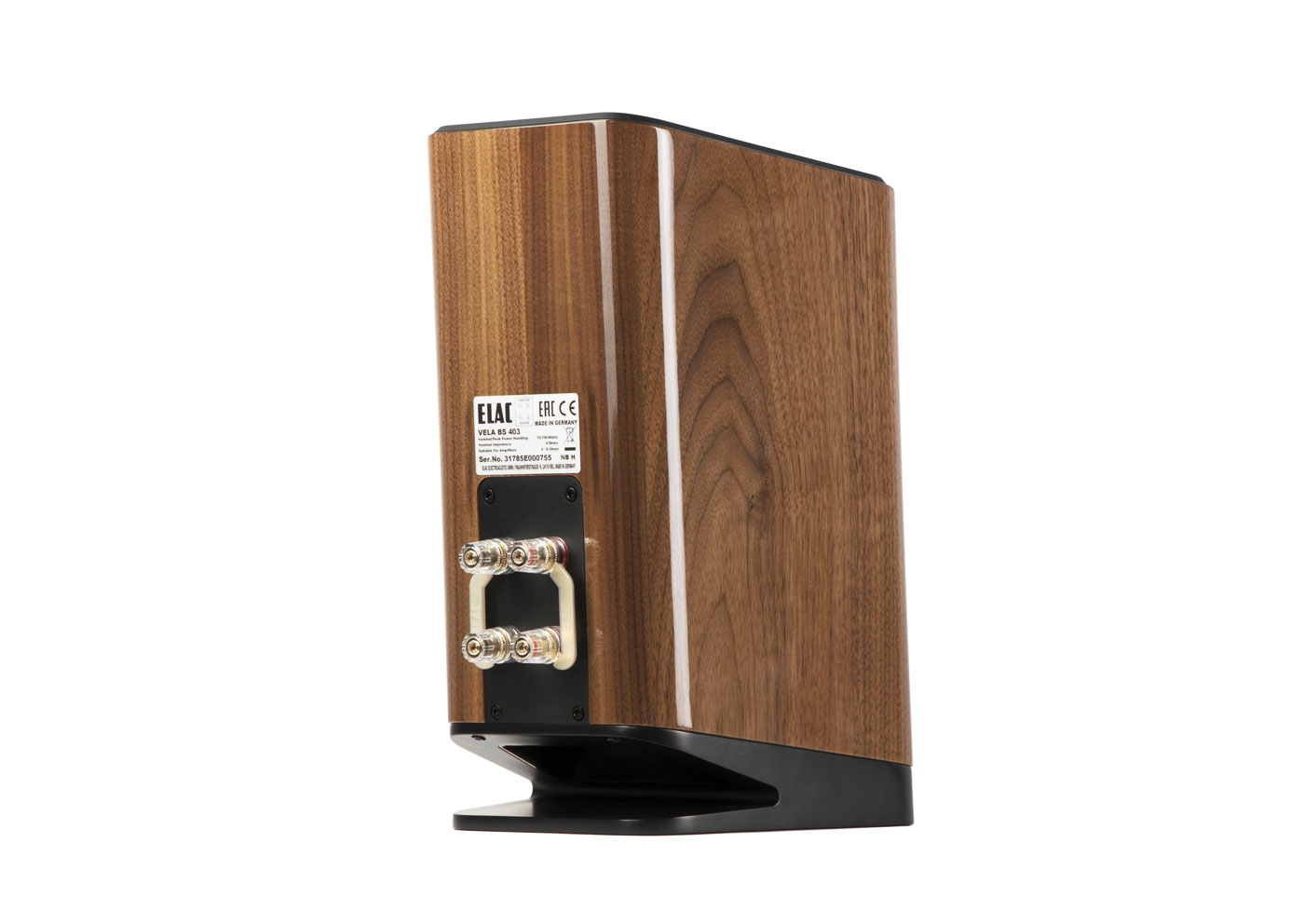

Thanks to it’s flexible connections the Vela series offers the ability of using bi-wiring and bi-amping.
|Height x Width x Depth||362 x 191 x240 mm|
|Type||2-Way, bass reflex|
|Woofer||1 x 150 mm Ø, AS XR cone|
|Crossover frequency||2400 Hz|
|Frequency range (IEC 268-5)||41 – 50000 Hz|
|Sensitivity||86 dB at 2,83 V/m|
|Suitable for amplifiers from … to||4 – 8 Ω|
|Recommended amplifier power||40 – 200 W/channel|
|Nominal | Peak power handling||70 W | 100 W|
|Nominal | Minimum impedance||4 Ω | 3,2 Ω at 260 Hz|
