MICHI - S5
STEREO POWER AMPLIFIER



Features

• 2 x 500 Watts of robust power
• Class AB amplifier design
• Patented British bulk storage capacitors
• Massive power supply using dual toroidal transformers
• Balanced XLR inputs
• Includes remote control

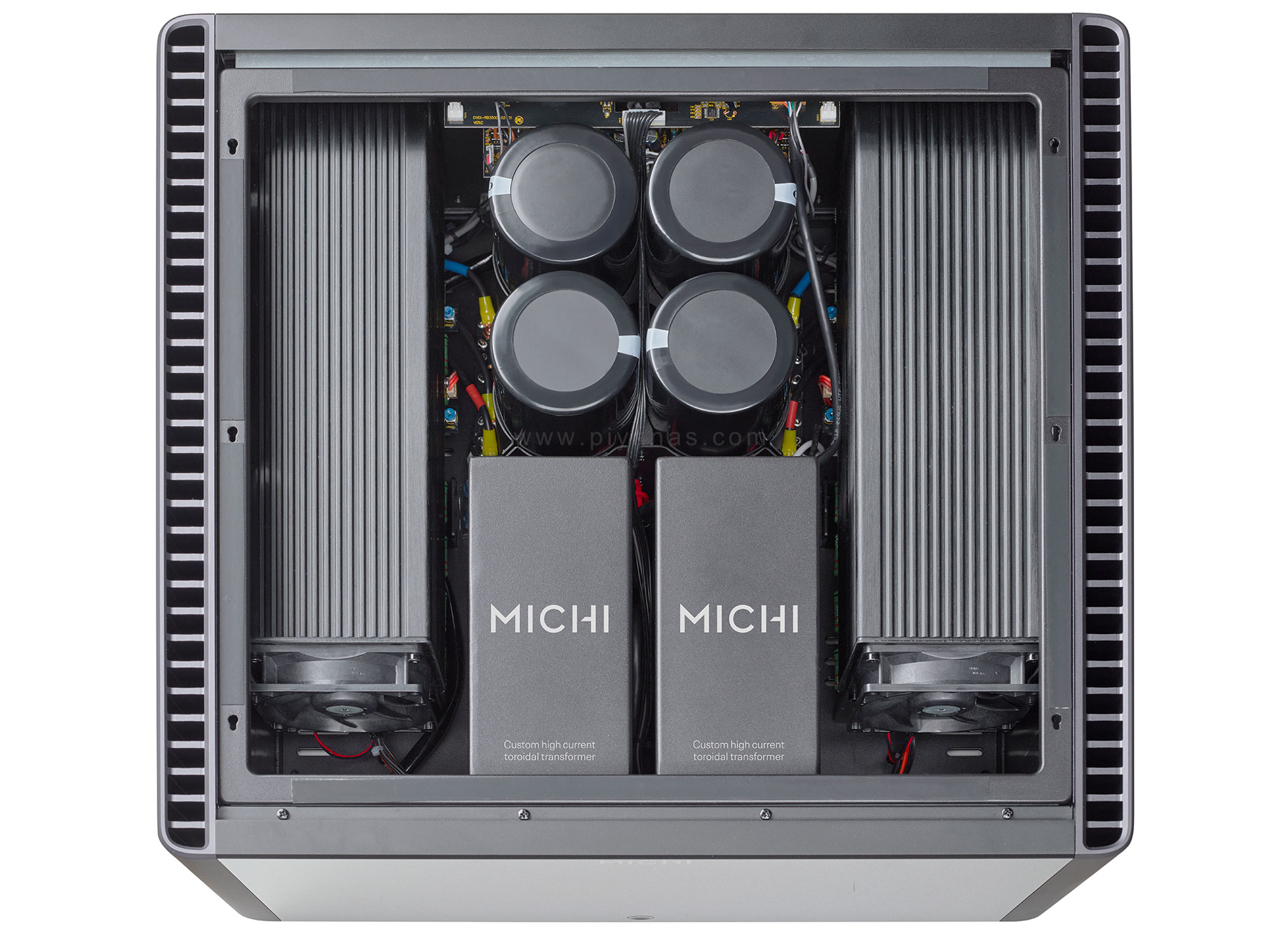

The Michi S5 Stereo Power Amplifier is a best in class linear amplifier delivering 500 watts of Class AB power in 8 ohm and over 800 watts to 4 ohm loads. The dual monoblock architecture is equipped with twin, custom engineered oversized, in-house manufactured 2,200 Volt Amp toroidal transformers in individual epoxy filled enclosures eliminating noise and vibration. A bank of 4 British patented bulk storage capacitors totaling 188,000uF delivers exceptional bass energy while maintaining precise detail and control to 32 high current output transistors ensuring effortless accuracy of the timing and rhythm under even the most difficult of load conditions.

Audio performance must be engineered from product concept through production. This is evidenced in the S5 as the result of countless hours of engineering design reviews, critical component evaluation and sonic tuning. Accuracy at its best while delivering on a promise to ensure the audio provides entertainment deserving of the Michi logo.

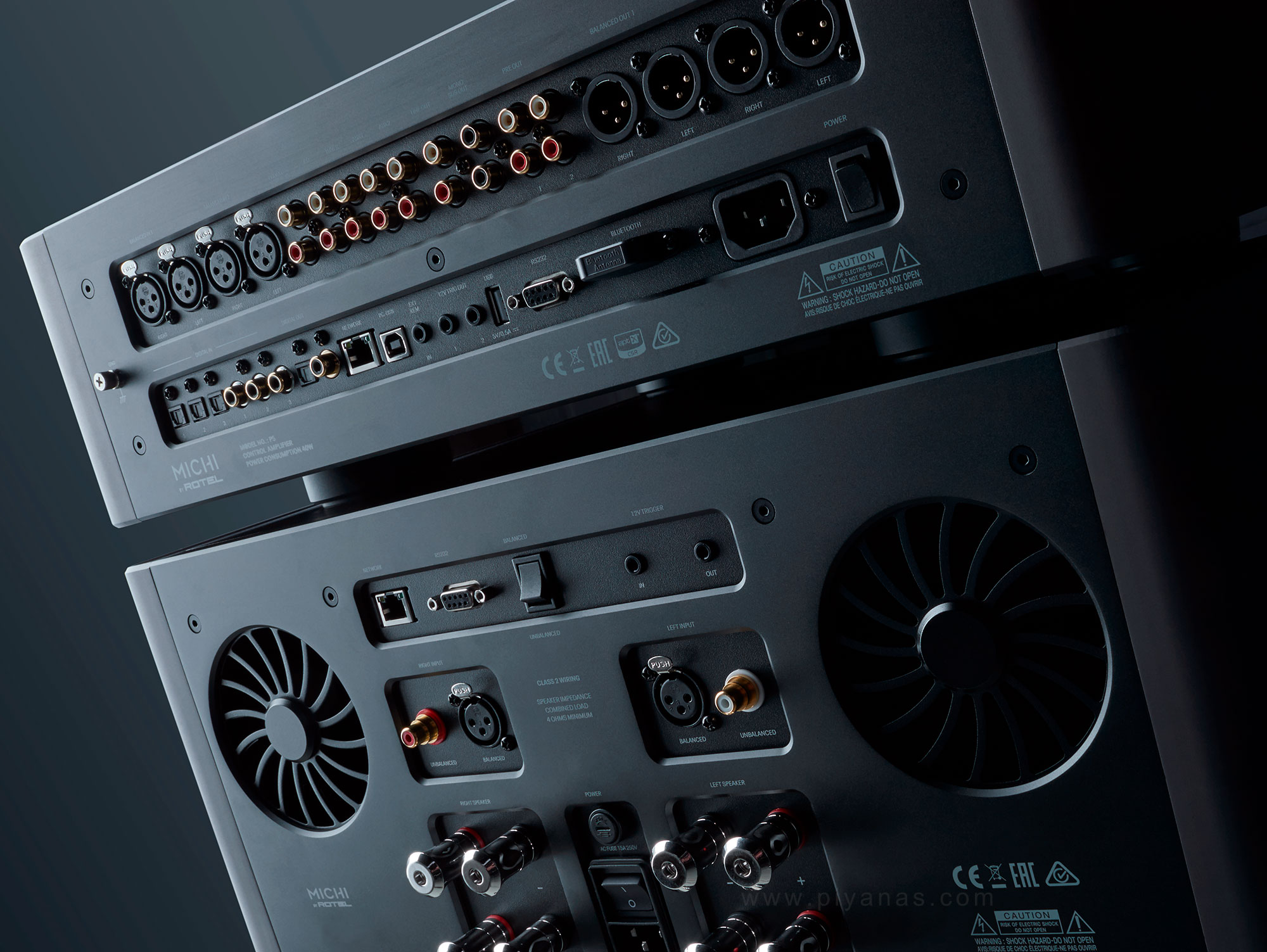

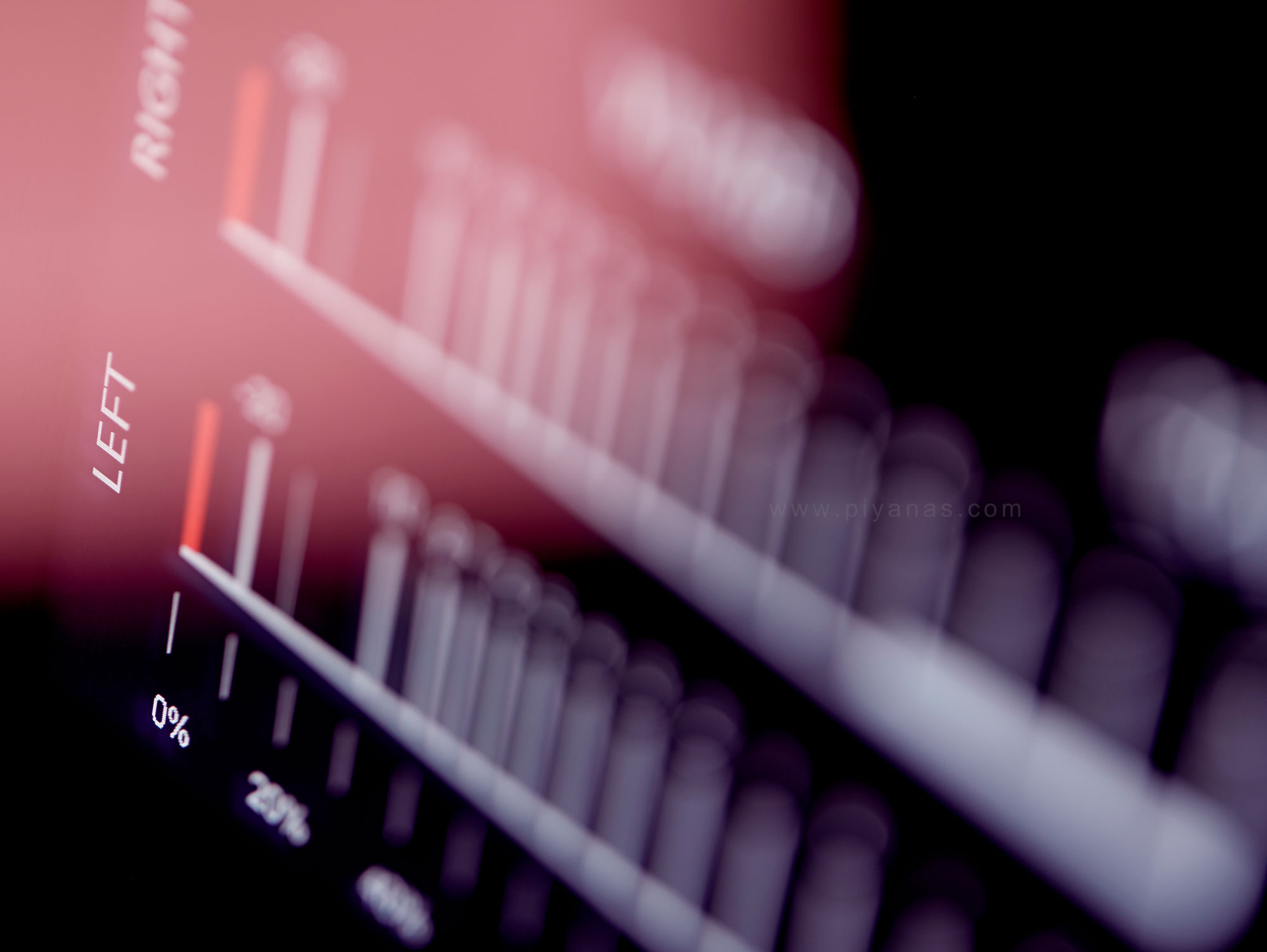

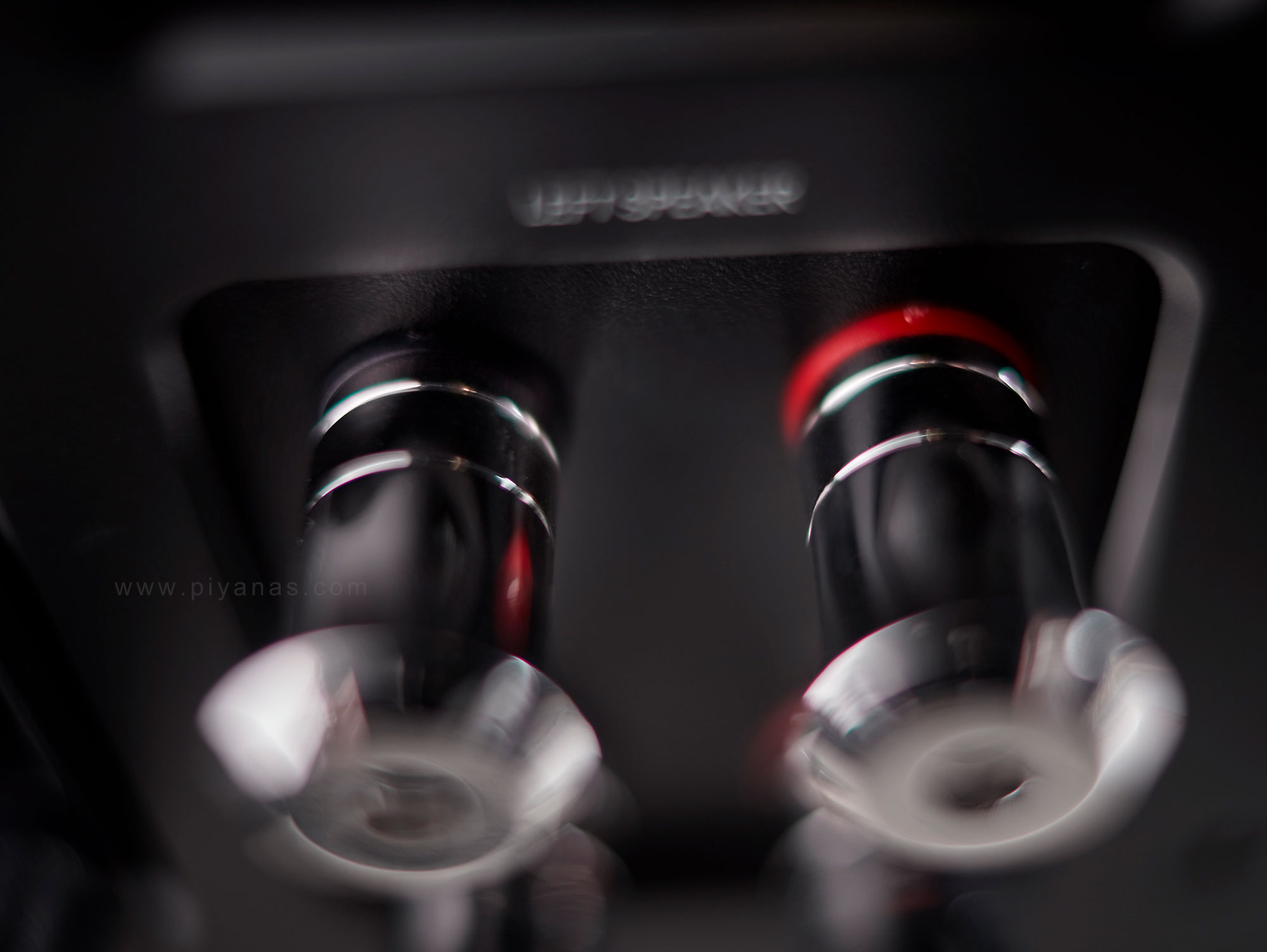

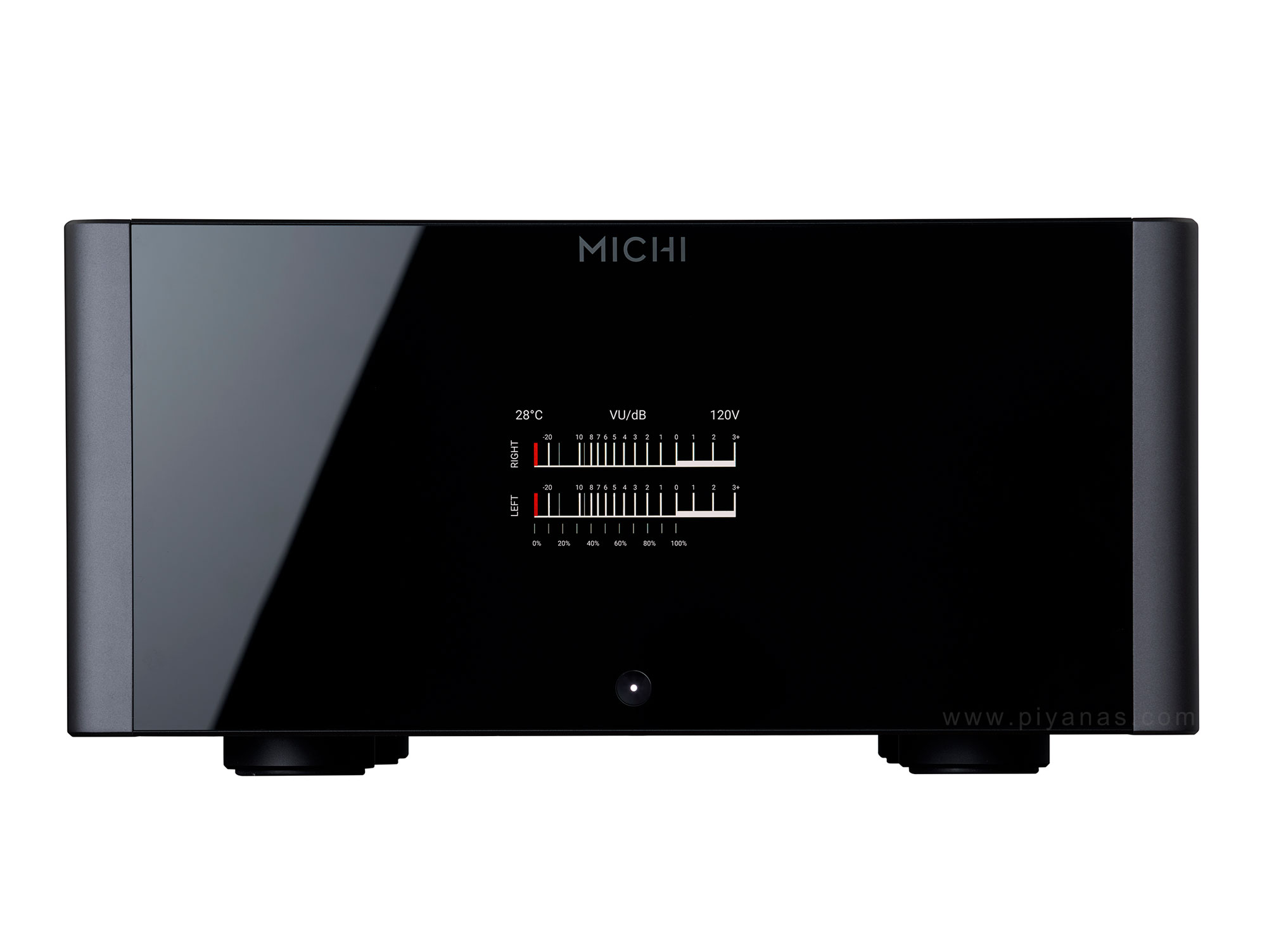

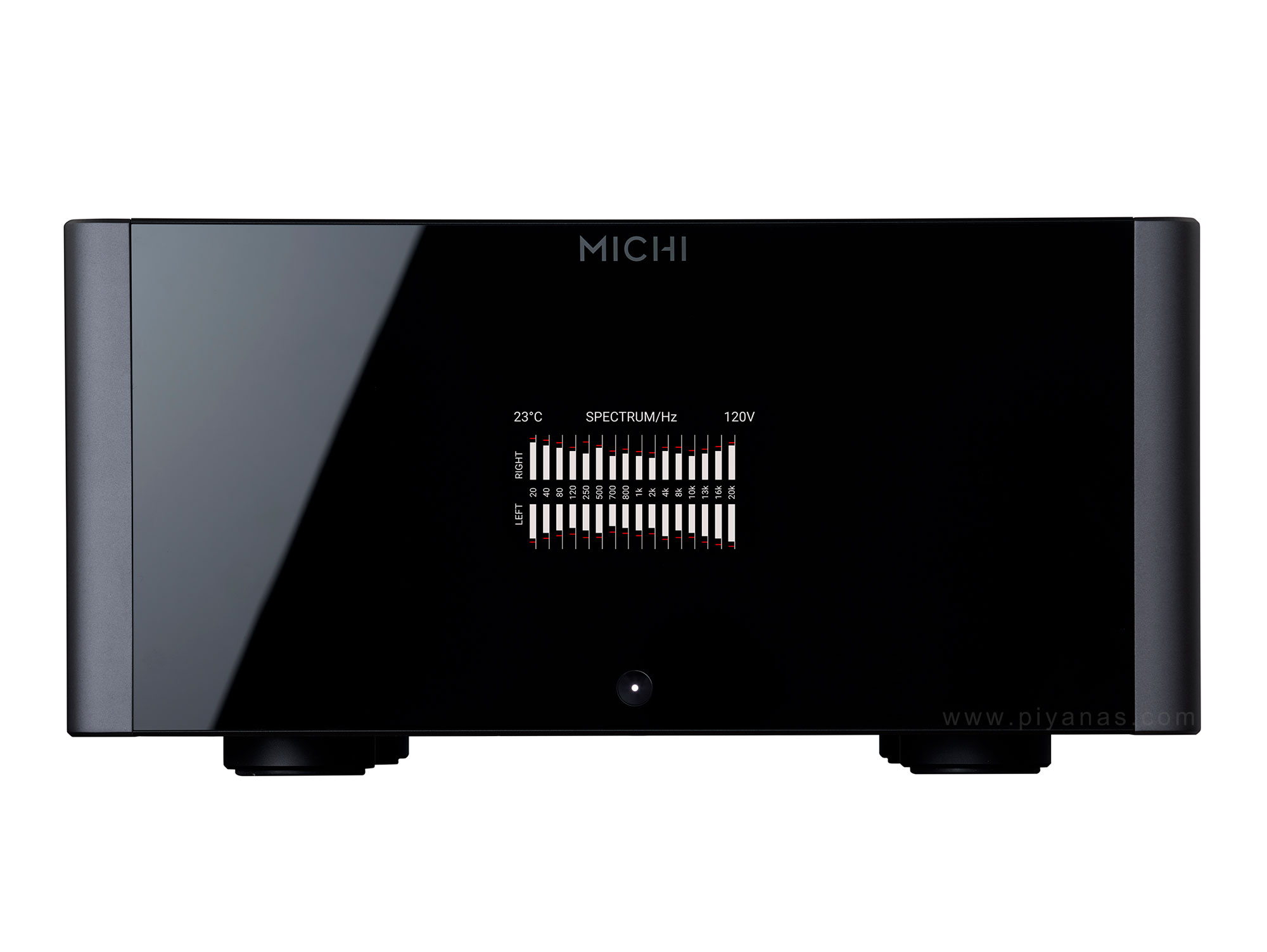

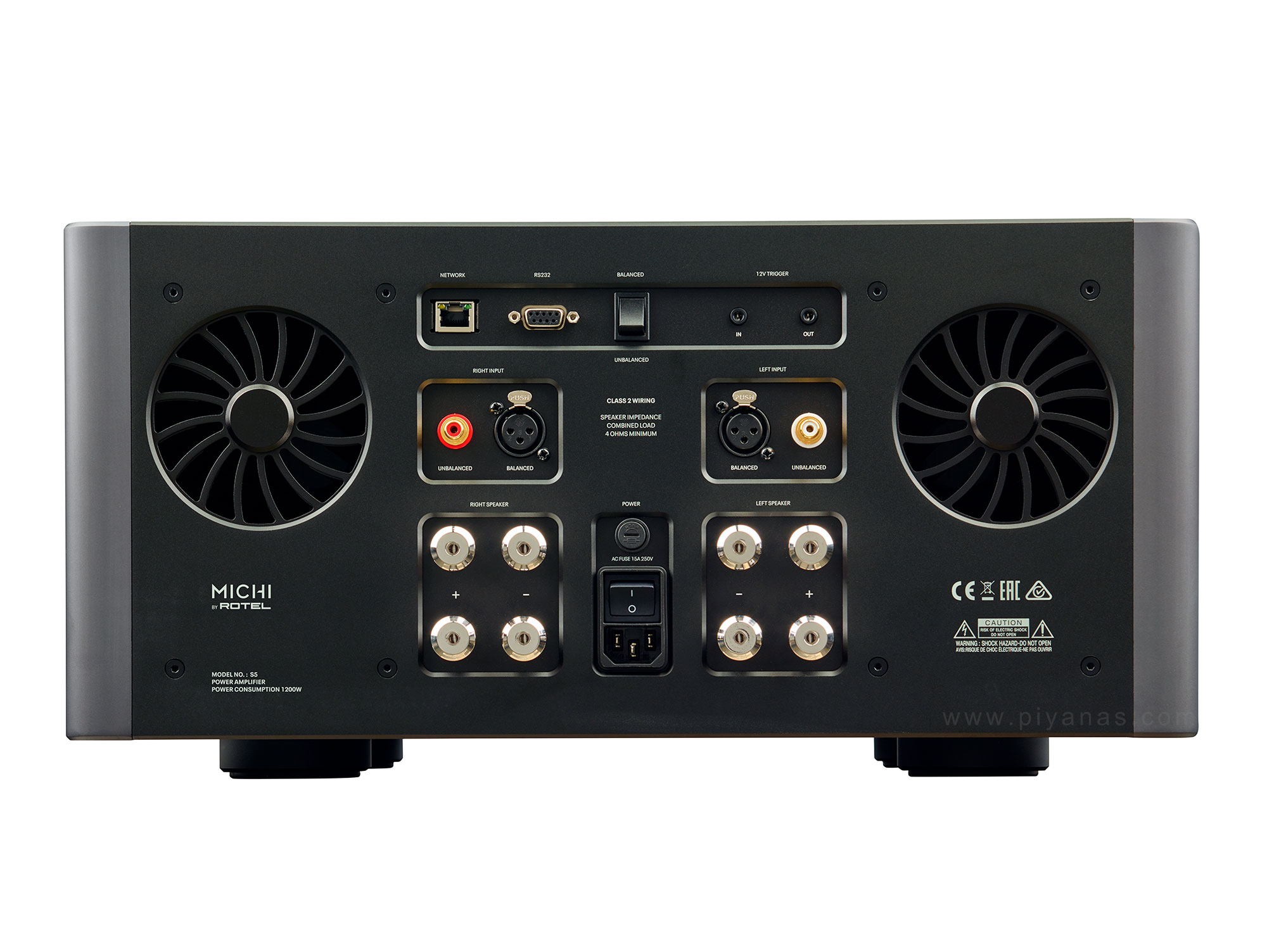

An elegant industrial design puts the finishing touch on this amplifier with a font panel color display and Michi exclusive custom high current 5-way rhodium plated binding posts. The included remote control provides easy setup and operation with RS232 and Ethernet connections supporting all popular control systems.

Specifications

Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%

Damping Factor
350

Speaker Impedance
4Ω minimum

Input Sensitivity
Unbalance: 2.6V
Balance: 4.2V

Input Impedance
Unbalance: 12.5kΩ
Balance: 100kΩ

Crosstalk / Separation
>65dB

Continuous Power Output
500 W/CH (8Ω)
800 W/CH (4Ω)

Total Harmonic Distortion
<0.008%

Frequency Response
20Hz - 20kHz (+0dB, -0.15dB)
10Hz - 100kHz (+0dB, -0.4dB)

Signal to Noise Ratio (IHF “A” weighted)
120dB

Gain
Unbalance: 28dB
Balance: 24dB

Dimensions (W x H x D)
485 × 238 × 465mm
19" × 9.375" × 18.25"

Front Panel Height
220mm (8.625")

Power Requirements
230V, 50Hz

Power Consumption
1200W

Standby Power Consumption
Normal: <0.5W
Network Wakeup: <2W

Net Weight
59.9kg (132.1lbs.)

BTU (4 Ω, 1/8th Power)
3450 BTU/h
