MC Merlo Reference (หัวเข็ม)
MC Merlo Reference (หัวเข็ม)
MC Merlo Reference (หัวเข็ม)

PRICE :
40,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน ตัว (Pcs)

  • Overview

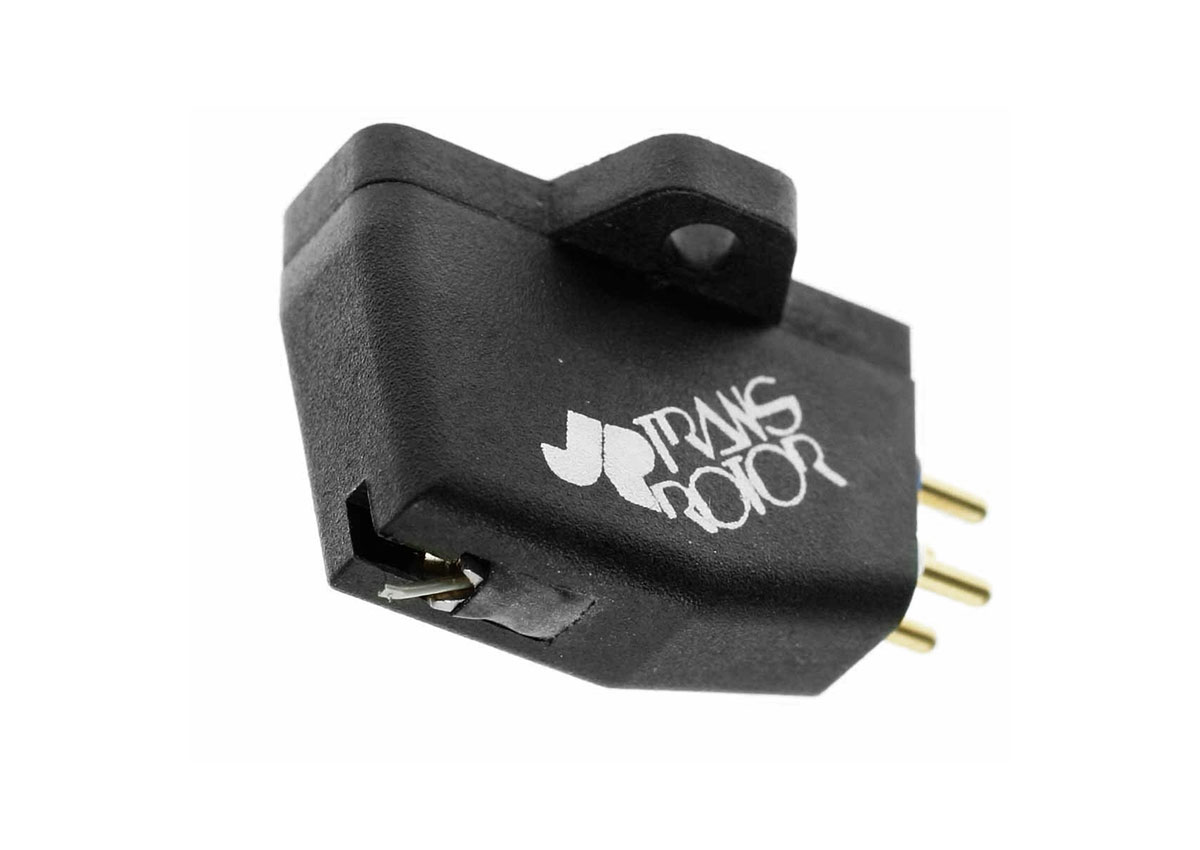

Transrotor MC Merlo Reference

The Transrotor MC Merlo Reference is an MC reading cell based on Goldring Elite.

Thanks to the diamond cut with the special harmonic, the MC Merlo Reference offers magical space and extended detail resolution.

Compared to its Cantare 'little sister', this cell significantly improves sound reproduction.

It is compatible with the Transrotor ZET 1, ZET 3, LEONARDO and TOURBILLON turntables.

Technical specifications

  • Frequency response: 20 Hz - 30 kHz ± 2 dB
  • Channel balance: 1 dB max. at 1 kHz
  • Channel separation: 27 dB min. at 1 kHz
  • Output voltage: 0.5 mV ± 1 dB at 1 kHz
  • Diamond flexibility: 18 mm / N
  • Diamond weight: 0.20 mg
  • Reading angle: 20º
  • Diamond sanding: Harmonic
  • Diamond type: Not replaceable

Electrical Specifications :

  • Termination resistance: 100 kΩ
  • Load capacity: 100 - 500 pF
  • Auto-inductance: 12 μH
  • Intrinsic resistance: 8 Ω

Mechanical characteristics :

  • Support force: 1.5 - 2 g (Nominal: 1.7 g)
  • Mounting holes: 12.7 mm (0.5 in)
  • Cell weight: 5.7 g
