Product Speaker in-Ceiling Speaker B&W CCM-7.3 S2 (ราคาต่อข้าง)
B&W :
CCM-7.3 S2 (ราคาต่อข้าง)
Category : in-Ceiling Speaker
Add to wishlist     สถานะสินค้า In Stock
CCM-7.3 S2 (ราคาต่อข้าง)
CCM-7.3 S2 (ราคาต่อข้าง)
76,000 THB.
72,000 THB.
สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน ตัว (Each)
สินค้าราคาพิเศษ ไม่สามารถใช้คูปองส่วนลดได้

  • Overview

B&W CCM7.3 S2 (ราคาต่อข้าง)
A no-holds-barred 3-way premium loudspeaker

Drive Units

  • 1 x 1” Carbon Dome tweeter
  • 1 x 4” Continuum™ cone FST midrange
  • 2 x 5” Aerofoil profile bass

See nothing, hear everything

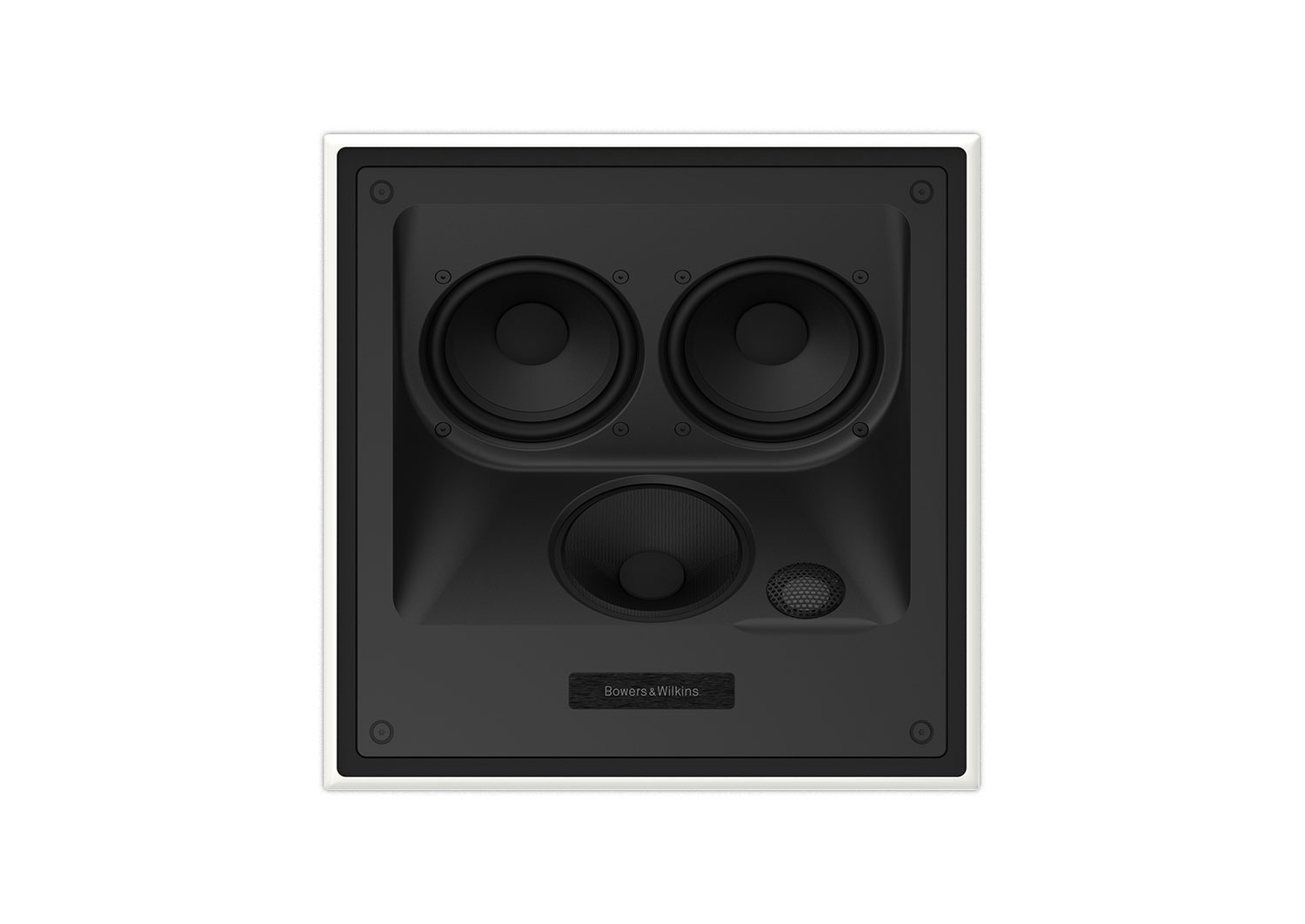

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and  2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.


Description 3-way in-ceiling system
Technical features Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Drive units 1x ø25mm (1in) Carbon Dome high-frequency
1x ø100mm (4in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil profile bass
Frequency range (-6dB) -6dB at 52Hz and 33kHz
Frequency Response -3dB 90dB spl (2.83Vrms, 1m)
Sensitivity 90dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 90Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal Impedance 8Ω (minimum 3.1Ω)
Recommended amplifier power 25W - 200W into 8Ω on unclipped programme
Frame height 355mm (14in)
Frame width 355mm (14in)
Depth 194.5mm (7.66in)
Cut-out height 332mm (13.1in)
Cut-out width 332mm (13.1in)
Cut-out height w/PMK 335mm (13.2in)
Cut-out width w/PMK 335mm (13.2in)
Protrusion 8mm (0.3in)
Net weight  9kg (19.84lb) Inc accessories
Finishes Back box: White
Grille: Whit
