Product Speaker in-Wall Speaker B&W CWM-7.3 S2 (ราคาต่อข้าง)
B&W
B&W :
CWM-7.3 S2 (ราคาต่อข้าง)
Category : in-Wall Speaker
Add to wishlist     สถานะสินค้า In Stock
CWM-7.3 S2 (ราคาต่อข้าง)
CWM-7.3 S2 (ราคาต่อข้าง)

PRICE :
69,900 THB.
SPECIAL :
62,910 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน ตัว (Each)

  • Overview

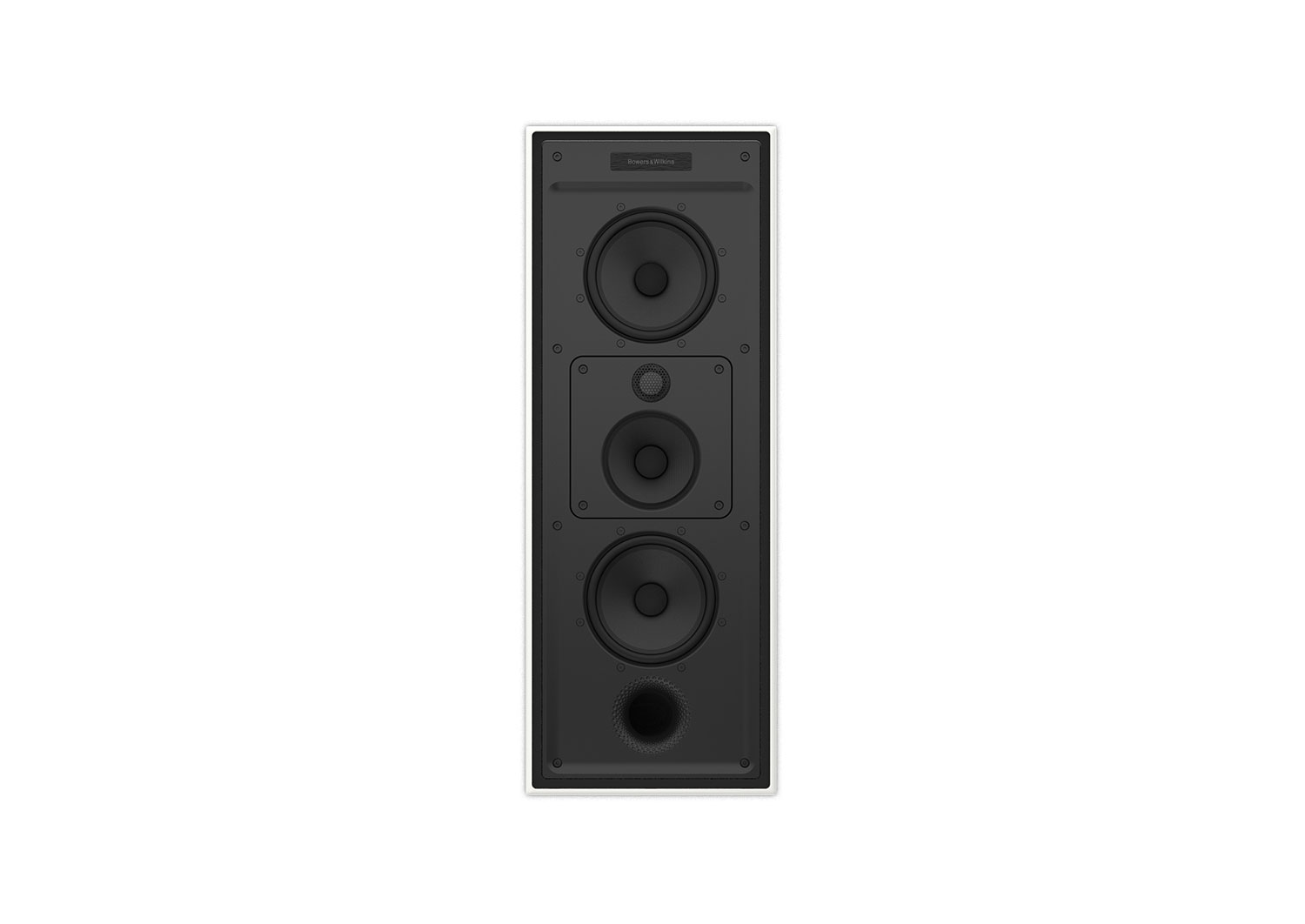

B&W CWM-7.3 S2 (ราคาต่อข้าง)
In-wall system with 703 S2 performance levels

Drive Units

  • 1 x 1” Carbon Dome tweeter
  • 1 x 4 in Continuum™ cone FST midrange
  • 2 x 6” Aerofoil profile bass
  • Flowport
  • Optional Air Reservoir included

See nothing, hear everything

The CWM7.3 S2 features an integrated backbox that optimises its performance, cuts down on sound transference through walls and also makes it easy to retrofit. Its design incorporates twin 150mm (6in) Aerofoil profile bass drivers, a 100mm (4in) Continuum cone FSTTM mid-range driver and a Carbon Dome 25mm (1in) tweeter, all proven technologies shared with the acclaimed 700 Series range of loudspeakers. These outstanding tranducers, when combined with high-quality, optimised, components on the crossover and a critically formed baffle constructed from glass reinforced ABS, produce a truly remarkable in-wall speaker.


Specifications

Description 3-way in-wall system
Technical features Carbon Dome tweeter
Continuum cone FST midrange
Aerofoil profile bass cones
Flowport™
Drive units 1x ø25mm (1in) Carbon Dome high-frequency
1x ø100mm (4in) Continuum cone FST midrange
2x ø130mm (5in) Aerofoil profile bass
Frequency range (-6dB) -6dB at 43Hz and 33kHz
Frequency Response -3dB 45Hz - 28kHz ±3dB
Sensitivity 90dB spl (2.83Vrms, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 80Hz - 33kHz
<0.5% 120Hz - 33kHz
Nominal Impedance 8Ω (minimum 3.1Ω)
Recommended amplifier power 25W - 200W into 8Ω on unclipped programme
Frame height 736mm (29in)
Frame width 276mm (11in)
Depth (behind surface) 102mm (4.02in)
Cut-out height 711mm (28in)
Cut-out width 251mm (9.9in)
Cut-out height w/PMK 715mm (28.1in)
Cut-out width w/PMK 256mm (10.1in)
Reservoir box height 460mm (18.1in)
Reservoir box width 220mm (8.7in)
Protrusion 7mm (0.28in)
PMK 7.3W
Net weight  12.4kg (27.32lb)
Finishes Back box: White
Grille: Whit
