Rotel : A-11 Tribute (Silver)
STEREO INTEGRATED AMPLIFIER
A11 Tribute
The A11 Tribute is a Class AB 50W (8 ohms) Integrated Amplifier developed in cooperation with the audio engineering legend Ken Ishiwata as a Tribute to his legacy spanning over 40 years in the industry.

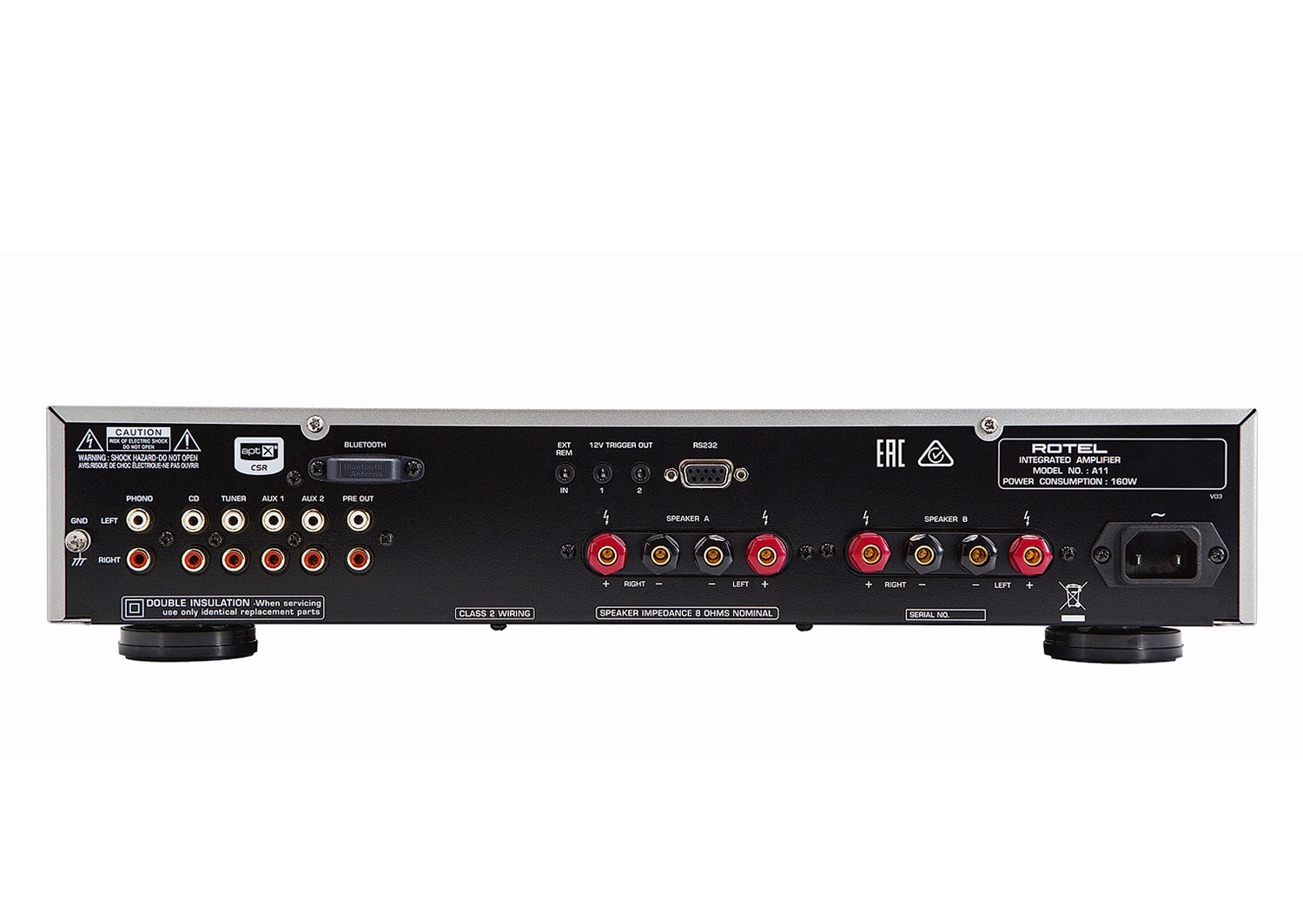

The collaboration between Ken and Rotel’s own engineering design teams delivered on the promise of an even higher level of performance of the extremely successful and popular awardwinning A11. Upgraded components and meticulous tuning of all critical circuits deliver a richer, more expressive, and true-tolife experience from all of the support source inputs including apt-X and AAC wireless Bluetooth, array of 4 RCA analog inputs and a Moving Magnet Phono stage for vinyl fans.

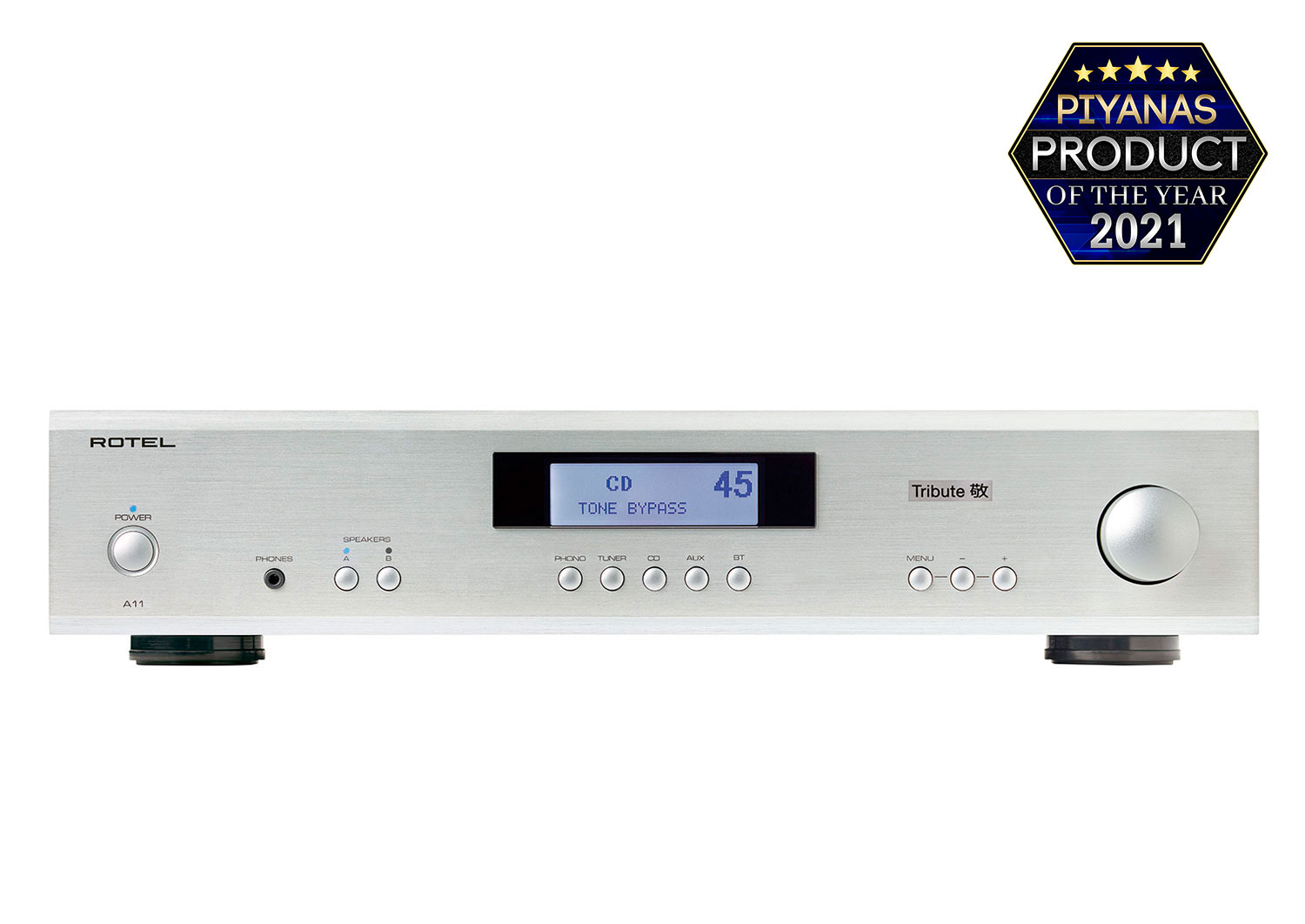

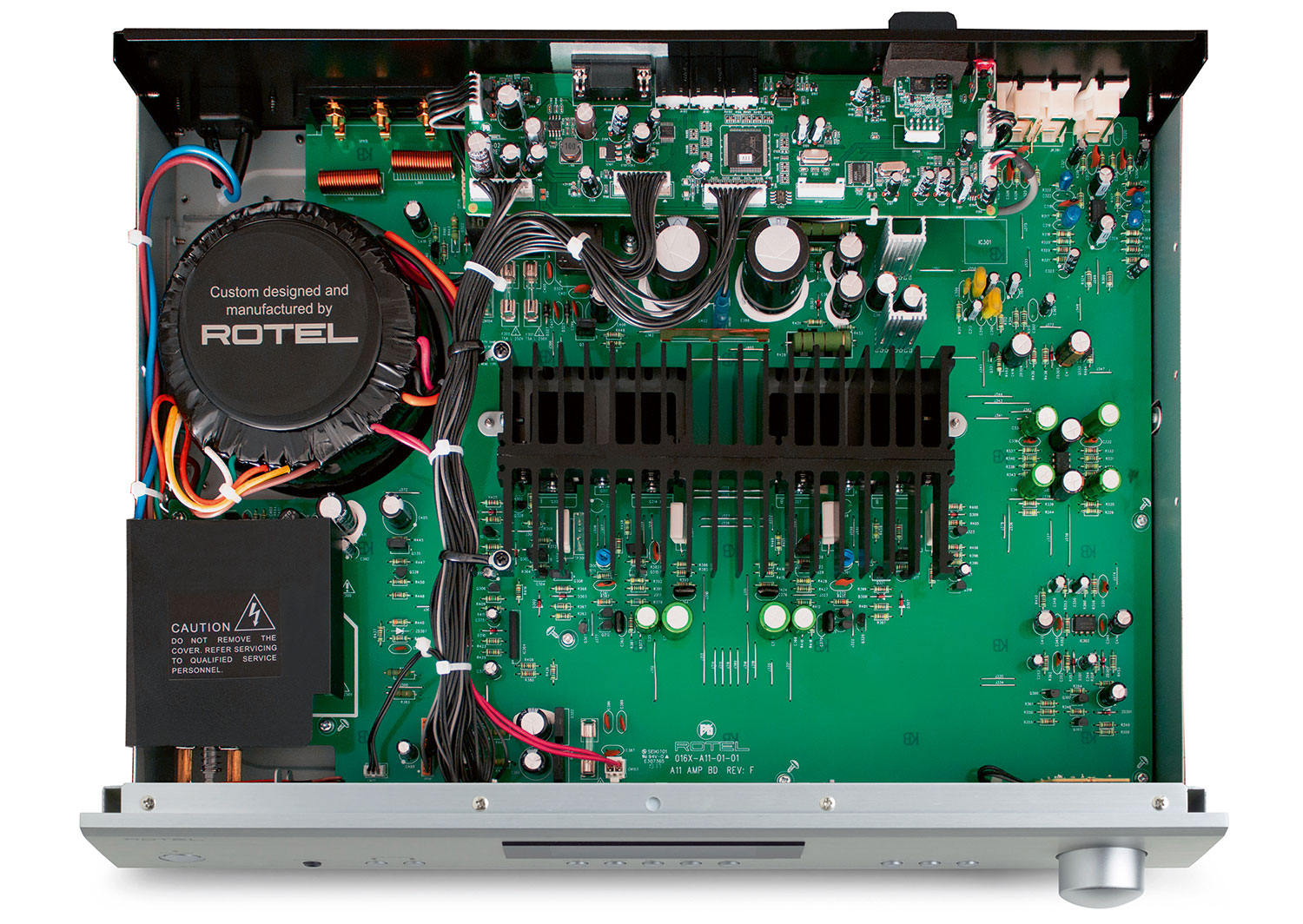

The front panel graphic display and IR remote ensure effortless control of the audio driven by a Rotel in-house manufactured oversized toroidal transformer. The resulting acoustic performance speaks for itself under all loading conditions with even the most difficult speaker loads.
Specification
| Continuous Power Output (20 - 20kHz, < 0.03%, 8 ohms) |
50W/Ch |
| Total Harmonic Distortion (20 Hz - 20 kHz at rated power) |
< 0.03% |
| Intermodulation Distortion (60 Hz : 7kHz, 4:1) |
< 0.03% |
| Frequency Response Phono Input Line Level Inputs |
20 Hz - 20k Hz, ± 0.5 dB 10 Hz - 100k Hz, ± 0.5 dB |
| Damping Factor (20 - 20,000 Hz, 8 ohms) |
140 |
| Input Sensitivity / Impedance Phono Input Line Level Inputs |
2.3 mV / 47k Ohms 180 mV / 47k Ohms |
| Input Overload Phono Input Line Level Inputs |
50 mV 4 V |
| Preamp Output / Impedance | 1 V / 470 Ohms |
|
Tone Controls - Bass / Treble
|
± 10 dB at 100 Hz / 10k Hz |
|
Signal to Noise Ratio (“A” weighting)
Phono Input Line Level Inputs |
85 dB 100 dB |
|
Power Requirements
Europe USA |
230 V, 50 Hz 120 V, 60 Hz |
|
Power Consumption
|
160 watts |
|
Standby Power Consumption
|
< 0.5 watts |
|
BTU (4 ohms, 1/8 power)
|
479 BTU/h |
|
Dimensions (W x H x D)
|
430 x 93 x 345 mm 17" x 3 5/8" x 13 1/2" |
|
Front Panel Height
|
80 mm, 3 1/8" |
|
Weight (net)
|
6.85 kg, 15.1 lb |
|
