Product Pre Amp Rotel RC-1572 MKII (BLACK)
Category : Pre Amp
Add to wishlist     สถานะสินค้า In Stock
49,900 THB.
สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

Rotel : RC-1572 MKII (BLACK)
Stereo Preamplifier​

  • Certified Roon Tested
  • Supports MQA and MQA Studio
  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
  • Moving Magnet Phono input for turntable connection
  • Wireless aptX™ and AAC Bluetooth

Affordable high-end begins with Rotel’s RC-1572MKII Preamplifier including multiple acoustic upgrades and refinements processing your favorite analog and digital sources to an even higher level of performance in stunning clarity with a natural, enveloping sound stage.

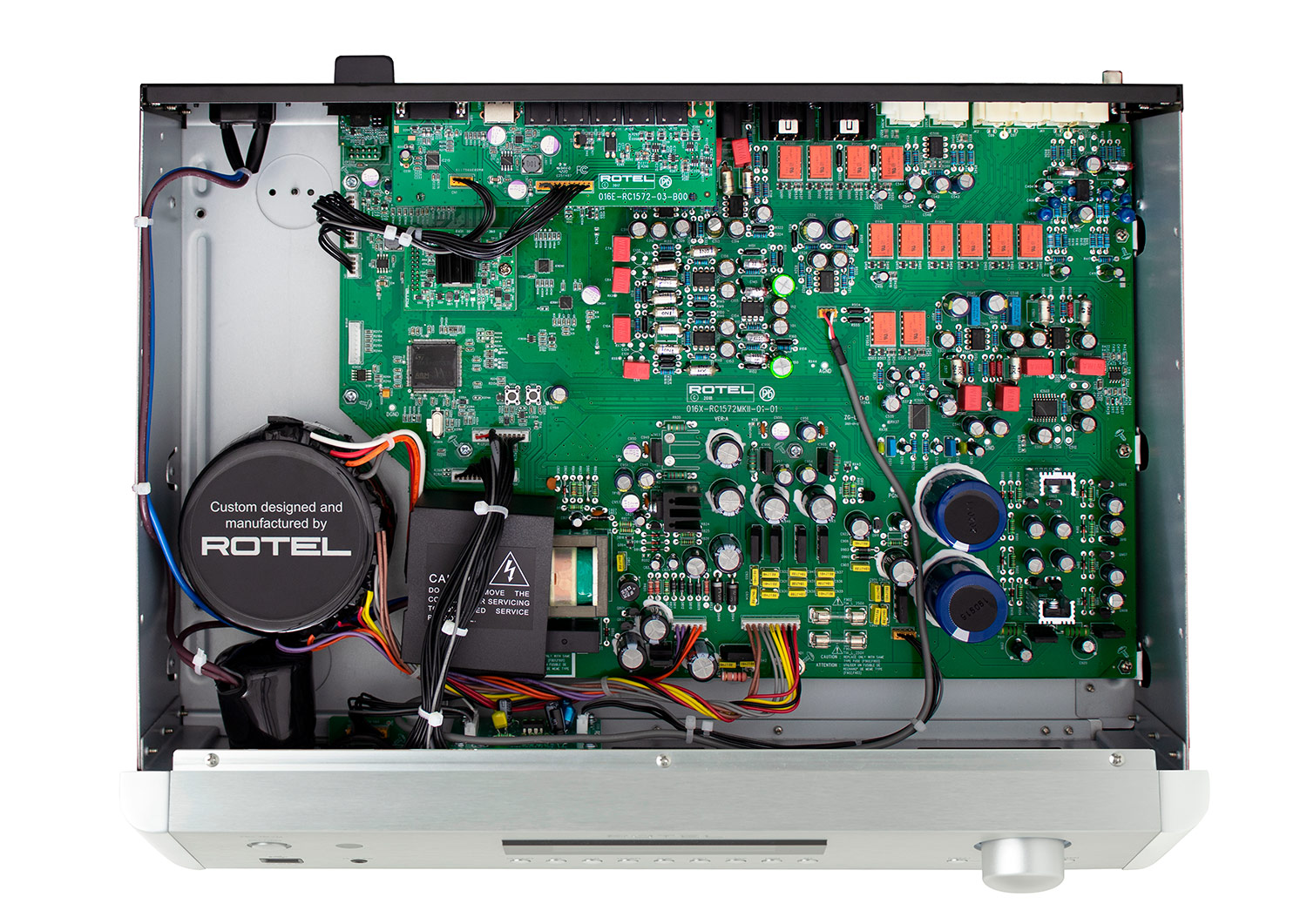

As an essential component in a Hi-Fi audio stack the RC-1572MKII’s precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor.

A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.

Analog, Digital, XLR, aptXTM and AAC Wireless Bluetooth and Moving Magnet Phono Stage inputs ensure connection to your favorite music sources. Digital media files are supported via a 32-bit/384kHz PC-USB connection supporting MQA and is fully certified Roon Tested for graceful access to the near limitless catalog of online music.

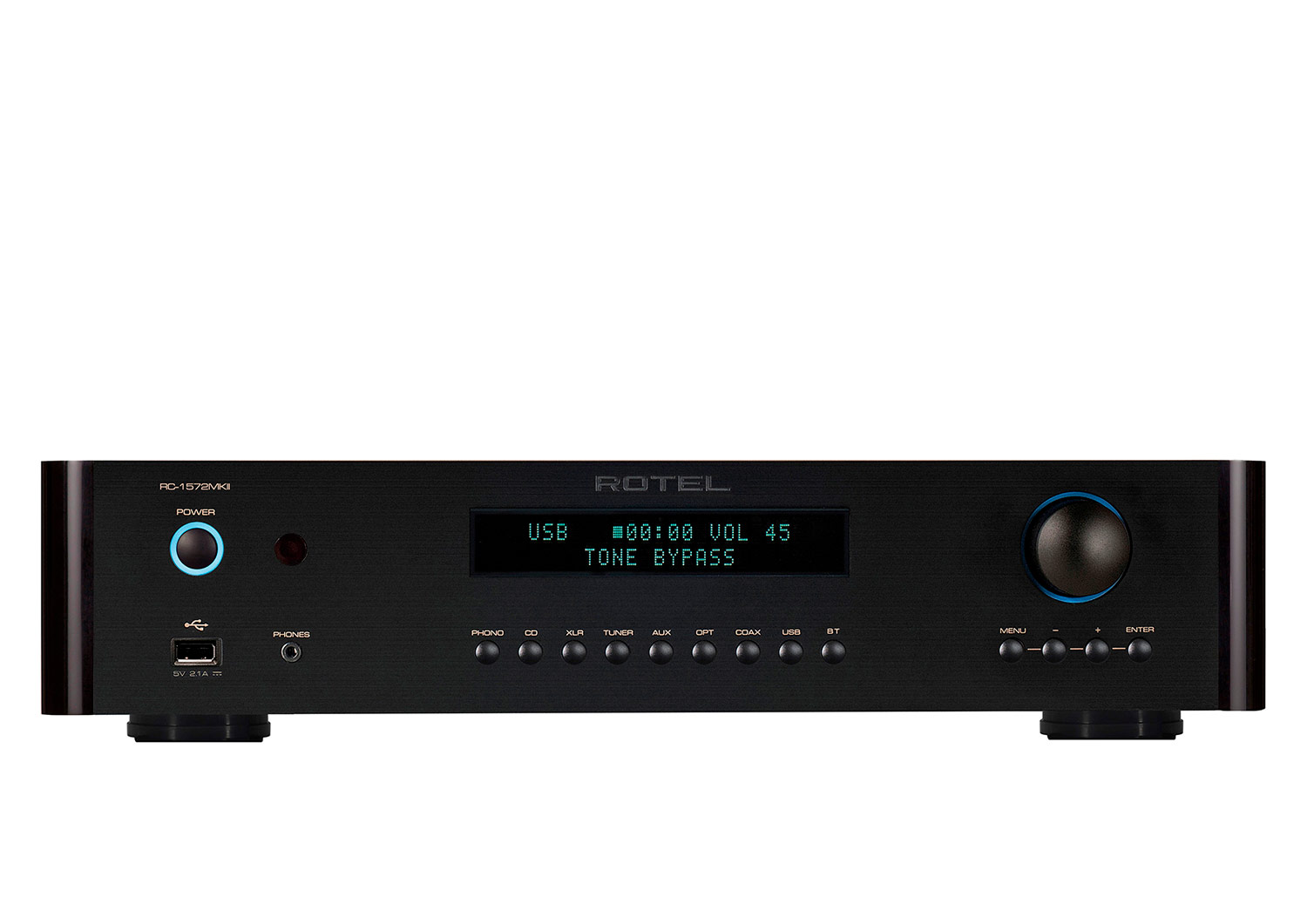

The RC-1572MKII is easy to operate using the included remote control and front panel display. Automatic power controls, signal sensing, fixed volume settings and tone adjustments optimize customization settings.

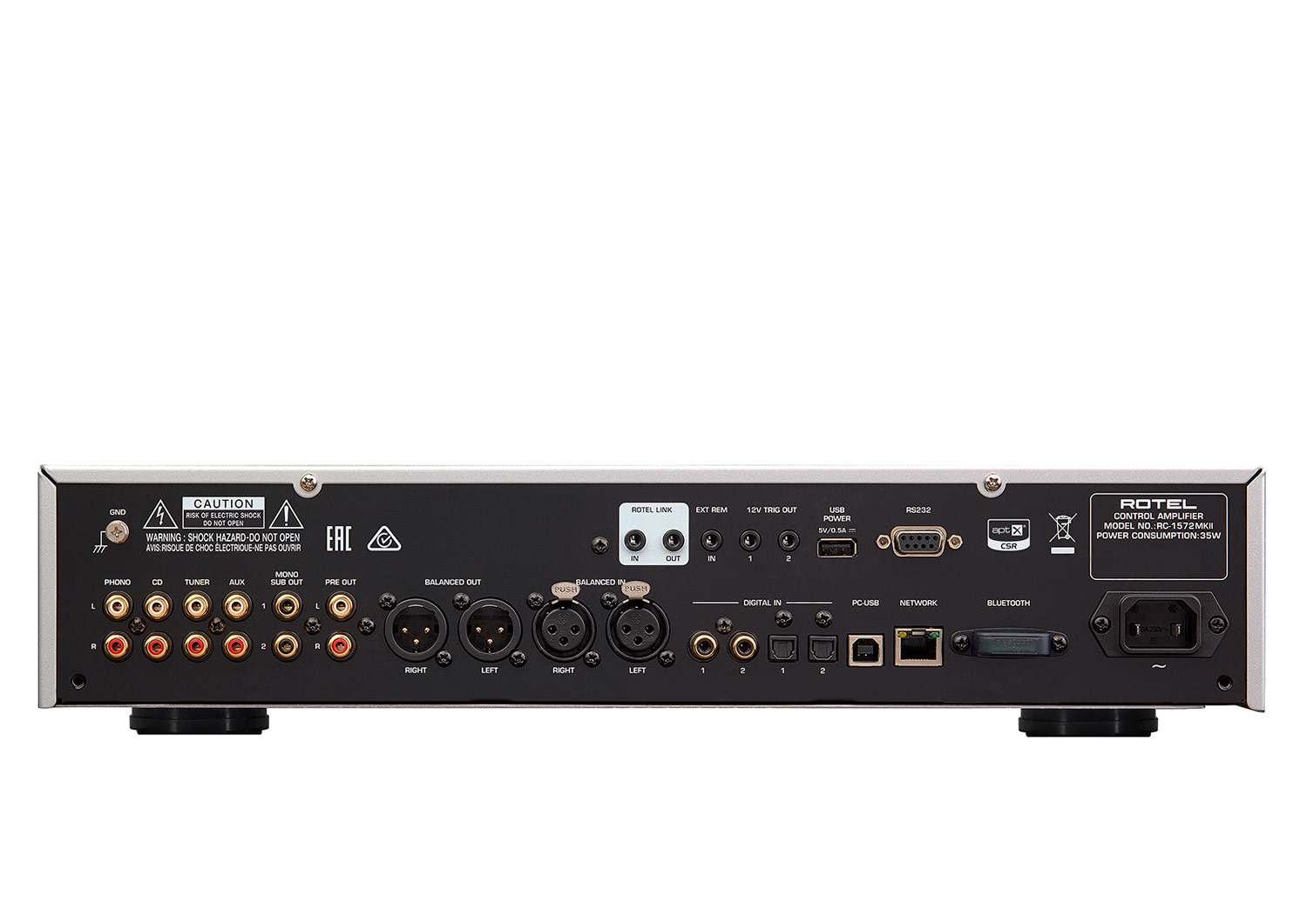

RCA, XLR and subwoofer outputs are provided for installation flexibility. Ethernet and RS232 ensure simple integration with control systems and software updates.

Bring your CD’s, Digital Files and Vinyl allowing the RC-1572MKII to bridge generations of music and music lovers.


Model  RC 1572 MKII
Total Harmonic Distortion < 0.004%
Intermodulation Distortion (60 Hz : 7k Hz, 4:1) < 0.004%
Input Sensitivity / Impedance
Phono Input (MM)
Line Level Inputs (RCA)
Line Level Inputs (XLR)

3 mV / 47k ohms
200 mV / 100k ohms
300 mV / 100k ohms

Input Overload
Phono Input
Line Level Inputs (RCA)
Line Level Inputs (XLR)

63 mV
4 V
5 V
Output Level
Line Level (RCA)
Balance (XLR)

1 V
2 V
Frequency Response
Phono Input
Line Level Inputs (RCA)
Line Level Inputs (XLR)

20 Hz-20k Hz (+0.3 dB, -0.2 dB)
10 Hz-100k Hz (+0 dB, -0.2 dB)
10 Hz-100k Hz (+0 dB, -0.2 dB)
Tone Controls

±10 dB at 100 Hz
±10 dB at 10k Hz
Signal to Noise Ratio (IHF “A” weighted)
Phono Input
Line Level Inputs (RCA)
Line Level Inputs (XLR)

80 dB
118 dB
118 dB
Channel Separation
Phono Input
Line Level Inputs (RCA)
Line Level Inputs (XLR)

> 85 dB
> 85 dB
> 75 dB
Digital Section Frequency Response 20 Hz - 20k Hz (0 ± 0.5 dB, Max)
Signal to Noise Ratio (IHF “A” weighted) 100 dB
Input Sensitivity/Impedance 0 dBFs / 75 ohms
Preamplifier Output Level 1.44 V (at - 20 dB)
Coaxial/Optical Digital Signals SPDIF LPCM
(up to 24-bit / 192k Hz )
PC-USB USB Audio Class 1.0 (up to 24-bit / 96k Hz )
USB Audio Class 2.0 (up to 32-bit / 384k Hz )*
*Driver installation required
MQA and MQA Studio (up to 24-bit / 384k Hz )
Roon Tested
Power Requirements

230 V, 50 Hz
120 V, 60 Hz
Standby Power Consumption
Network Wakeup

< 0.5 watts
< 2 watts
BTU (4 ohms, 1/8 power) 65 BTU/h
Dimensions (W x H x D) 431 x 99 x 338 mm
17 x 3 7/8 x 13 1/4 in
Front Panel Height 2U / 88.1mm / 3 1/2 in
Weight (net) 8.4 kg, 18.5 lbs.
