Product Pre Amp Rotel RC-1590 MKII (BLACK)
Category : Pre Amp
Add to wishlist     สถานะสินค้า In Stock
75,900 THB.
สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

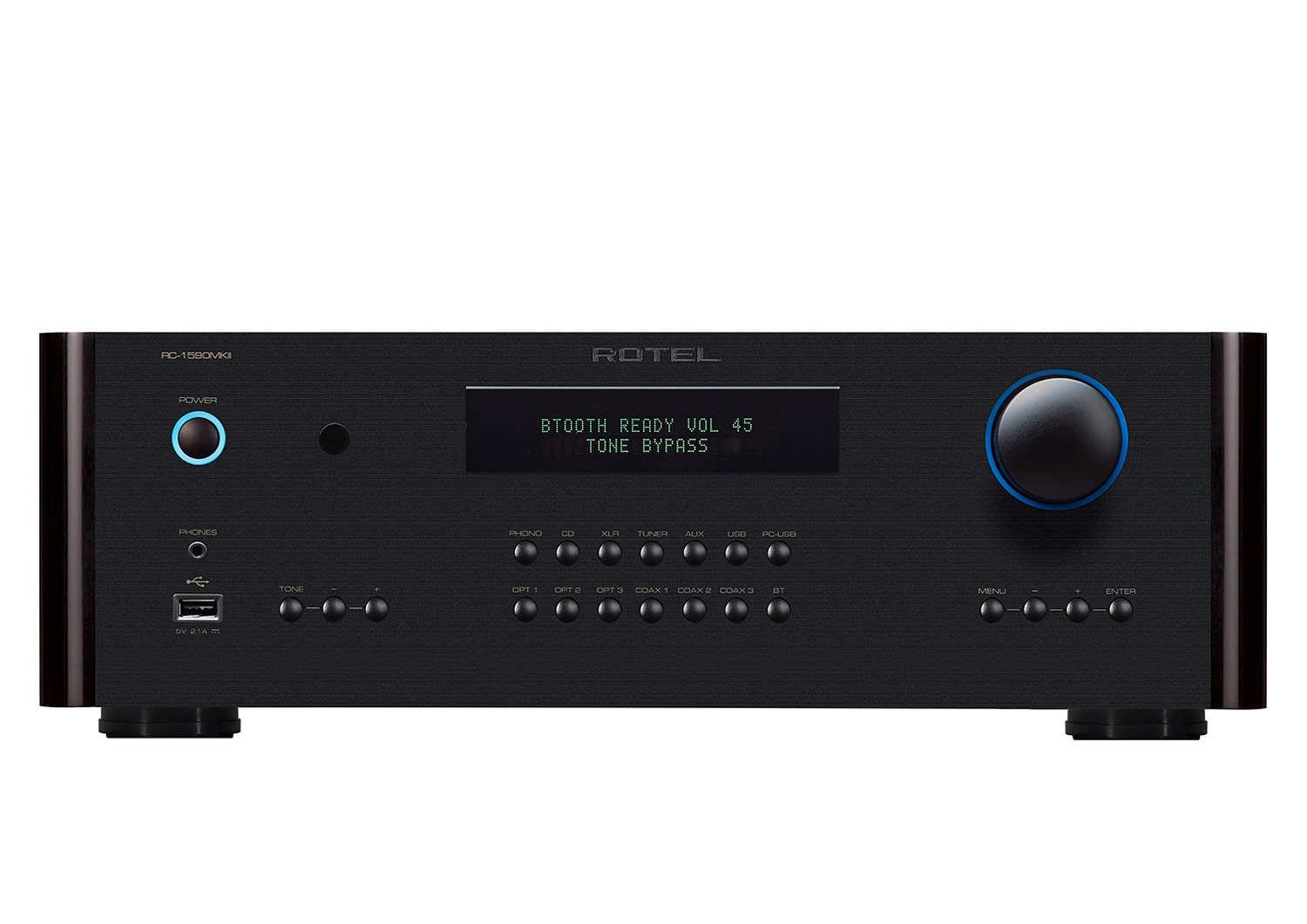

Rotel : RC-1590 MKII (BLACK)
Stereo Preamplifier​

  • Certified Roon Tested
  • Supports MQA and MQA Studio
  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
  • Moving Magnet Phono input for turntable connection
  • Wireless aptX™ and AAC Bluetooth
  • Balanced XLR inputs and outputs

Reference audio systems deserve reference audio equipment. The Rotel RC-1590MKII is exactly that -- a reference preamplifier rendering analog and digital sources with natural expression in a wide and open sound stage in stunning clarity.

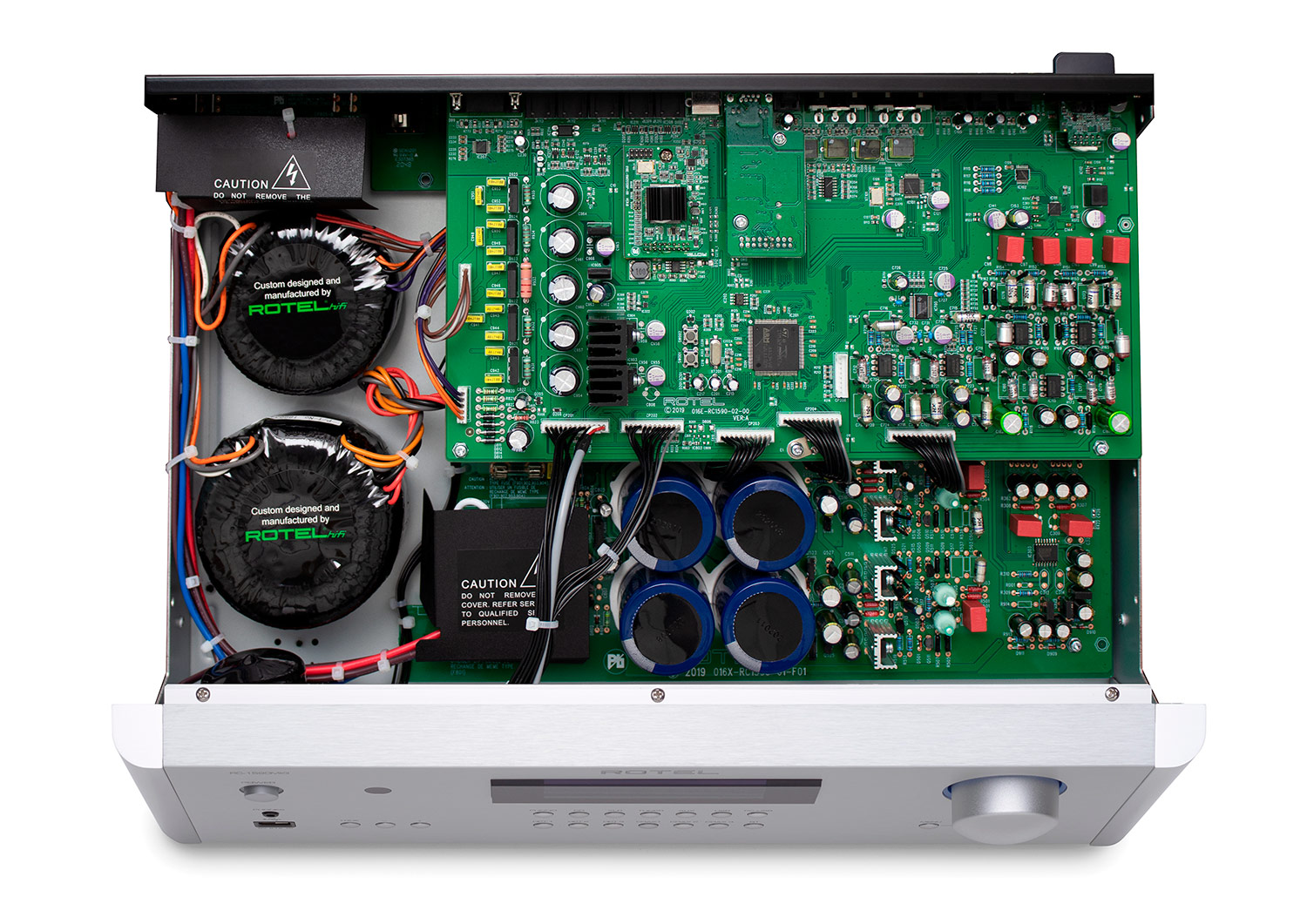

The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufacture toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.

Digital source inputs are processed utilizing an audiophile grade Texas Instruments 32-bit/384kHz Digital to Audio Converter (DAC) with custom engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positing.

Analog signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.

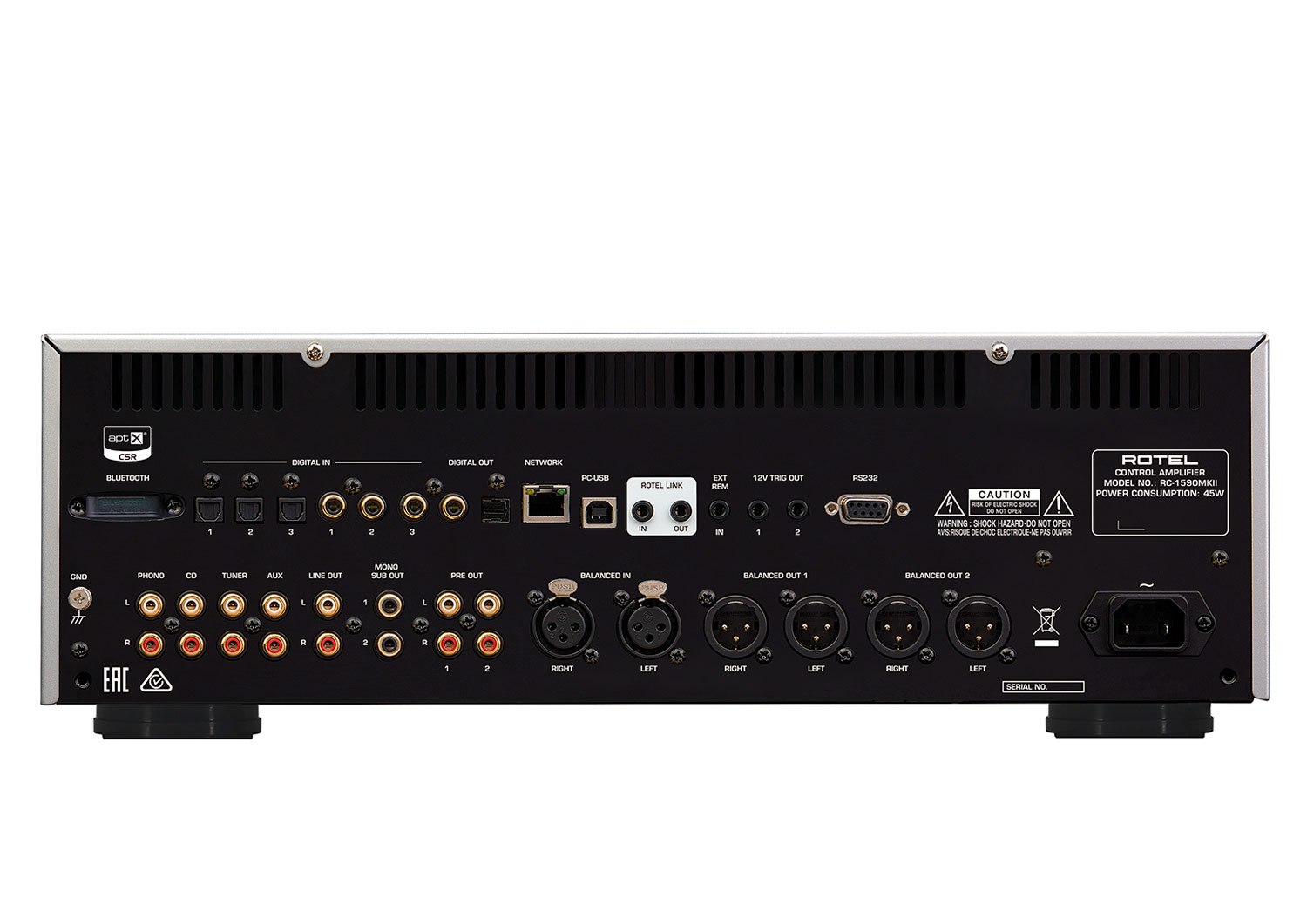

The RC-1590MKII supports a full array of inputs ensuring connection to your favorite sources including a Moving Magnet Phono input for vinyl lovers, Analog, Digital, XLR Balanced, high quality aptXTM and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested

Dual RCA and XLR output connection provide the ultimate flexibility including bi-amplification installations. A subwoofer output is also included.

The RC-1590MKII proudly continues Rotel’s 60-year legacy and heritage with our ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590MKII proudly represents this iconic brand.


Model  RC 1590 MKII
Total Harmonic Distortion < 0.002%
Intermodulation Distortion (60 Hz : 7k Hz, 4:1) < 0.002%
Input Sensitivity / Impedance
Phono Input (MM)
Line Level Inputs (RCA)
Line Level Inputs (XLR)

2.5 mV / 47k ohms
150 mV / 100k ohms
250 mV / 100k ohms

Input Overload
Phono Input
Line Level Inputs (RCA)
Line Level Inputs (XLR)

64 mV
4 V
5.5 V
Output Level
Line Level (RCA)
Balance (XLR)

1 V
2 V
Frequency Response
Phono Input
Line Level Inputs (RCA)
Line Level Inputs (XLR)

20 Hz-20k Hz (+0.3 dB, -0.2 dB)
10 Hz-100k Hz (+0 dB, -0.1 dB)
10 Hz-100k Hz (+0 dB, -0.1 dB)
Tone Controls

±10 dB at 100 Hz
±10 dB at 10k Hz
Signal to Noise Ratio (IHF “A” weighted)
Phono Input
Line Level Inputs (RCA)
Line Level Inputs (XLR)

80 dB
117 dB
115 dB
Channel Separation
Phono Input
Line Level Inputs (RCA)
Line Level Inputs (XLR)

> 85 dB
> 85 dB
> 75 dB
Digital Section Frequency Response 20 Hz - 20k Hz (0 ± 0.5 dB, Max)
Signal to Noise Ratio (IHF “A” weighted) 108 dB
Input Sensitivity/Impedance 0 dBFs / 75 ohms
Preamplifier Output Level 1.65 V (at - 20 dB)
Coaxial/Optical Digital Signals SPDIF LPCM
(up to 24-bit / 192k Hz )
PC-USB USB Audio Class 1.0 (up to 24-bit / 96k Hz )
USB Audio Class 2.0 (up to 32-bit / 384k Hz )*
*Driver installation required
MQA and MQA Studio (up to 24-bit / 384k Hz )
Roon Tested
Power Requirements

230 V, 50 Hz
120 V, 60 Hz
Standby Power Consumption < 0.5 watts
BTU (4 ohms, 1/8 power) 78 BTU/h
Dimensions (W x H x D) 431 x 144 x 348 mm
17 x 5 11/16 x 13 7/9 in
Front Panel Height 10.1 kg, 22.27 lbs.
Weight (net) 8.4 kg, 18.5 lbs.
