Product Pre Amp Accustic Arts Tube preamp III (Silver)
Accustic Arts
ACCUSTIC ARTS :
TUBE PREAMP III (SILVER)
Category : Pre Amp
Add to wishlist     สถานะสินค้า In Stock
Tube preamp III (Silver)
Tube preamp III (Silver)
Tube preamp III (Silver)
Tube preamp III (Silver)
Tube preamp III (Silver)
Tube preamp III (Silver)
Tube preamp III (Silver)

PRICE :
1,250,000 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview
  • Features

Accustic Arts : Tube preamp III (Silver)
Audiophile fully balanced reference preamplifier

http://staff-p2.piyanas.com/images/20220112/zgQmsds3_x.gif

PREAMP III highlights

  • Audiophile reference preamplifier
  • Fully balanced circuit design from input to output
  • Professional Class A output stage using technology derived from studio engineering
  • New with high resolution display
  • All used components are of outstanding quality (e.g. Burr Brown® OPA 627) and additionally selected; all relays have high quality gold-plated contacts
  • New 4-channel digital volume control for best crosstalk
  • 3 x fully balanced high level inputs (XLR) and 2 x unbalanced high level inputs (RCA)
  • 1 x unbalanced input (RCA) configured as “SURROUND-BYPASS”
  • 2 x fully balanced outputs (XLR) – 1 x AC coupled, 1 x DC coupled
  • 2 x unbalanced outputs (RCA) – 1 x AC coupled, 1 x DC coupled
  • 1 x headphone output, switchable (1/4″ stereo female jack)
  • 2 x unregulated, switchable output for the connection of an external headphone amplifier (1 x RCA/ Chinch), 1 x (XLR) Phase switch for 0° and 180°
  • 1 magnetically shielded, encapsulated 50 VA toroidal core transformer („Made in Germany“) of premium quality for high output reserves
  • Front panel, cover and remote control are made of massive and solid aluminium; turning knobs made of massive and chromed brass
  • ACCUSTIC ARTS® PREAMP III is “Handmade in Germany”

Specifications

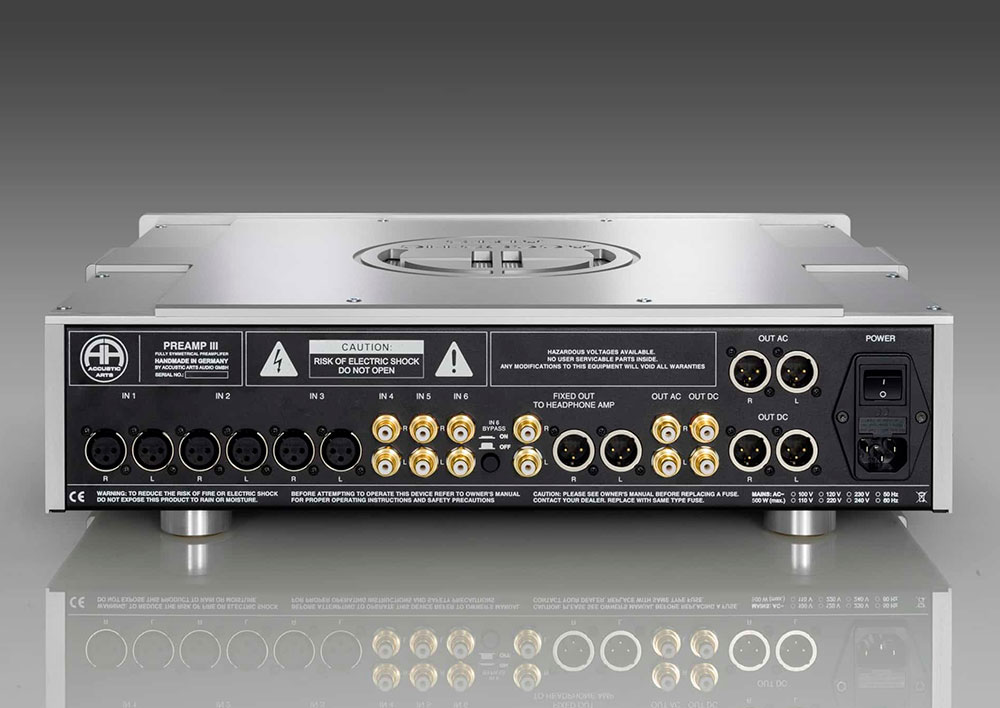

Inputs:
3 x fully balanced high level inputs (XLR)
2 x unbalanced high level input (RCA)
1 x unbalanced high level input or surround bypass (RCA/Cinch)


Outputs:
2 x fully balanced line-out (XLR)
2 x unbalanced line-out (RCA)
1 x unbalanced fixed out (RCA/Chinch)
1 x unbalanced out (XLR)
1 x headphone output (1/4″ stereo female jack)


Frequency response:
DC – 120 kHz (+0 dB / -0,5 dB)


Signal difference left/right:
< 0.2 dB (from 0 dB to -60 dB)


Crosstalk attenuation L ↔ R:
> 102 dB


Input resistance:
balanced: 2 x 50 kΩ
unbalanced: 50 kΩ


Output resistance:
balanced: 2 x 50 Ω
unbalanced: 50 Ω
AC coupled with 3.3 µF


Max. output voltage:
11 Veff


Signal-to-noise-ratio:
-96 dB (unweighted)
-100dB (A weighted)


Distortion (THD+N):
< 0.002 %


Power consumption:
approx. 12 watts


Dimensions (H x W x D):
128 x 482 x 393 mm / 5,0 x 19 x 15.5 inches


Weight:
14,5 kg / 32,0 lbs.



TUBE PREAMP II – MK2 highlights

Audiophile reference preamplifier with a so called “tube hybrid” concept and 4 military tubes (2 tubes per channel)

Fully balanced circuit design from input to output

Advantages of this “tube hybrid” technology:
- very high impedance
- very high bandwidth
- very low distortion factors and a “good-natured” distortion spectrum
- “analog” and very precise sound performance
- 4 separated amplification paths, which are not influencing each other

Easy change of tubes without any adjustments just “plug and play”

Professional Class A output stage using technology derived from studio engineering

All used components are of outstanding quality (e.g. Burr Brown® OPA 627) and additionally selected; all relays have high quality gold-plated contacts

  • 4 high precision military tubes; 4-times selected
  • 4-channel volume potentiometer for best crosstalk
  • 3 x fully balanced high level inputs (XLR) and 2 x unbalanced high level inputs (RCA)
  • 1 x unbalanced input (RCA) configured as “SURROUND-BYPASS”
  • 2 x fully balanced outputs (XLR) – 1 x AC coupled, 1 x DC coupled
  • 2 x unbalanced outputs (RCA) – 1 x AC coupled, 1 x DC coupled
  • 1 x headphone output, switchable (1/4" stereo female jack)
  • 1 x unregulated, switchable output for the connection of an external headphone amplifier (RCA)
  • Phase switch for 0° and 180°
  • 2 magnetically shielded, encapsulated 75 VA toroidal core transformer (“Made in Germany”) of premium quality for high output reserves
  • Front panel, cover and remote control are made of massive and solid aluminium; turning knobs made of massive and chromed brass

ACCUSTIC ARTS® TUBE PREAMP II – MK 2 is “Handmade in Germany”
