Product Power Amp Accustic Arts AMP V (Silver)
Accustic Arts
ACCUSTIC ARTS :
AMP V (SILVER)
Category : Power Amp
Add to wishlist     สถานะสินค้า In Stock
AMP V (Silver)
AMP V (Silver)
AMP V (Silver)
AMP V (Silver)
AMP V (Silver)
AMP V (Silver)
AMP V (Silver)
AMP V (Silver)

PRICE :
1,990,000 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

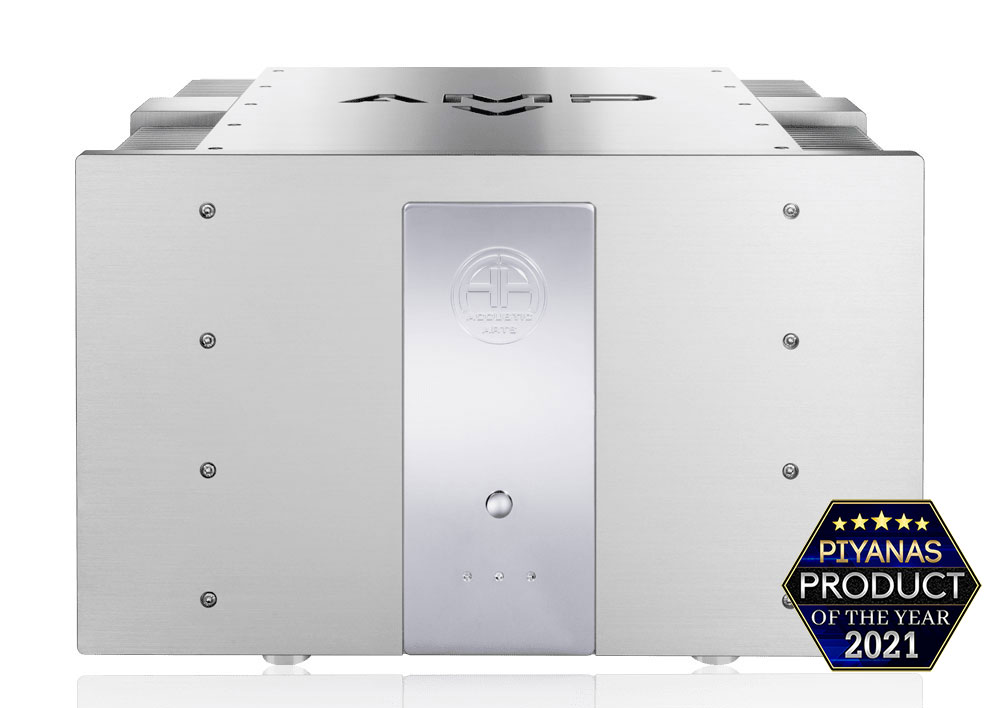

Accustic Arts AMP V (Silver)
Our statement in terms of audiophile power amplifiers


http://staff-p2.piyanas.com/images/20220112/zgQmsds3_x.gif

AMP V highlights

  • Extremely powerful dual-mono high-power amplifier with completely isolated power supply for each amplifier channel
  • 40 selected MOS-FET output transistors of highest quality
  • 2 magnetically shielded and encapsulated toroidal core transformer of premium quality for highest output reserves
  • Gold-plated contact surfaces (components) improve the contact resistance of the AMP V
  • Optimum smoothing thanks to more than 220,000 µF power supply capacity; premium quality capacitors (“Made in Germany”)
  • Very high damping factor for perfect speaker control
  • Professional protective circuit against clipping, HF oscillations and too high DC offset
  • Integrated switch-on current limitation for highest operational safety

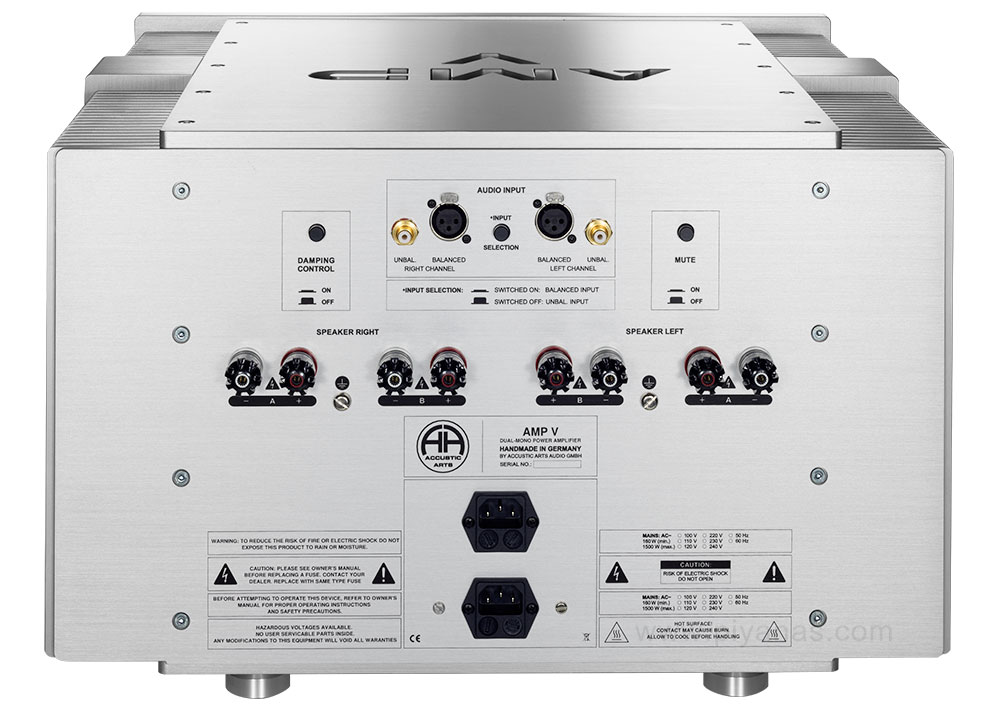

  • Balanced Input (XLR) and unbalanced input (RCA) – the inputs are switchable
  • All used components and parts are selected and of highest quality
  • Very high quality, gold-plated bi-wiring/bi-amping speaker terminal
  • Extremely stable, massive and resonance optimized housing, fully made of aluminium; inlay made of massive brass, polished and chromed
  • ACCUSTIC ARTS® AMP V is “Handmade in Germany”

Specifications

Voltage gain:
30.0 dB


Power consumption without load:
approx. 230 watts


Power supply capacity:
approx. 220,000 µF


Input impedance:
balanced (XLR): 2 x 16 kΩ
unbalanced (RCA): 15 kΩ


Rated power output (THD+N = 1%):
> 2 x 1,500 watts on 2 Ω
> 2 x 1,360 watts on 4 Ω
> 2 x 900 watts on 8 Ω


Signal-to-noise-ratio:
-96 dBA (ref. 6,325 V)


Distortion factor (THD+N):
0,002 % on 4 Ω load at 1 kHz und 10 watts


Dimensions (H x W x D):
328 x 530 x 545 mm / 12.9 x 20.9 x 21.5 inches


Weight:
approx. 80 kg / 176 lbs
+ 22 kg / 48.5 lbs flight case
