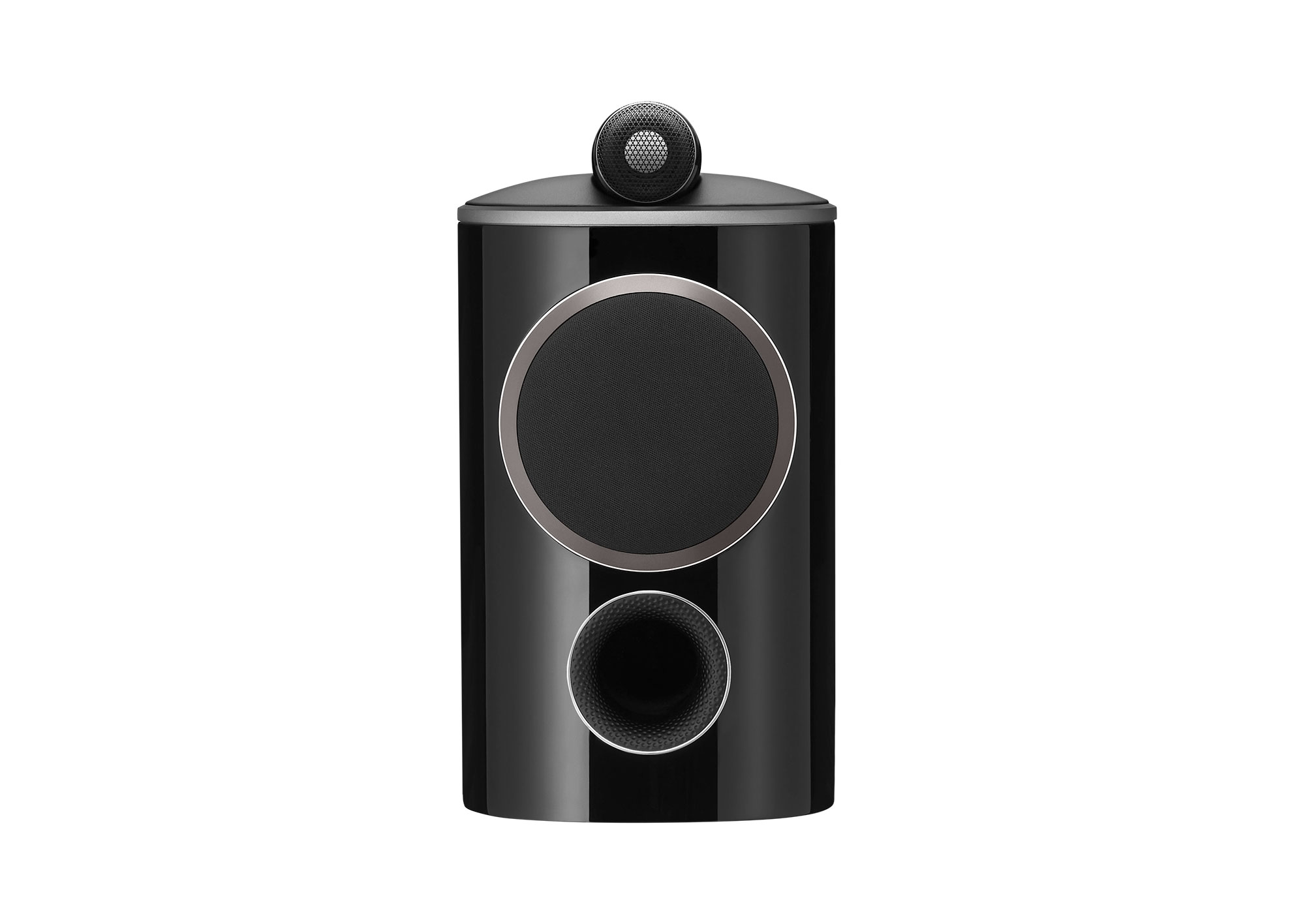

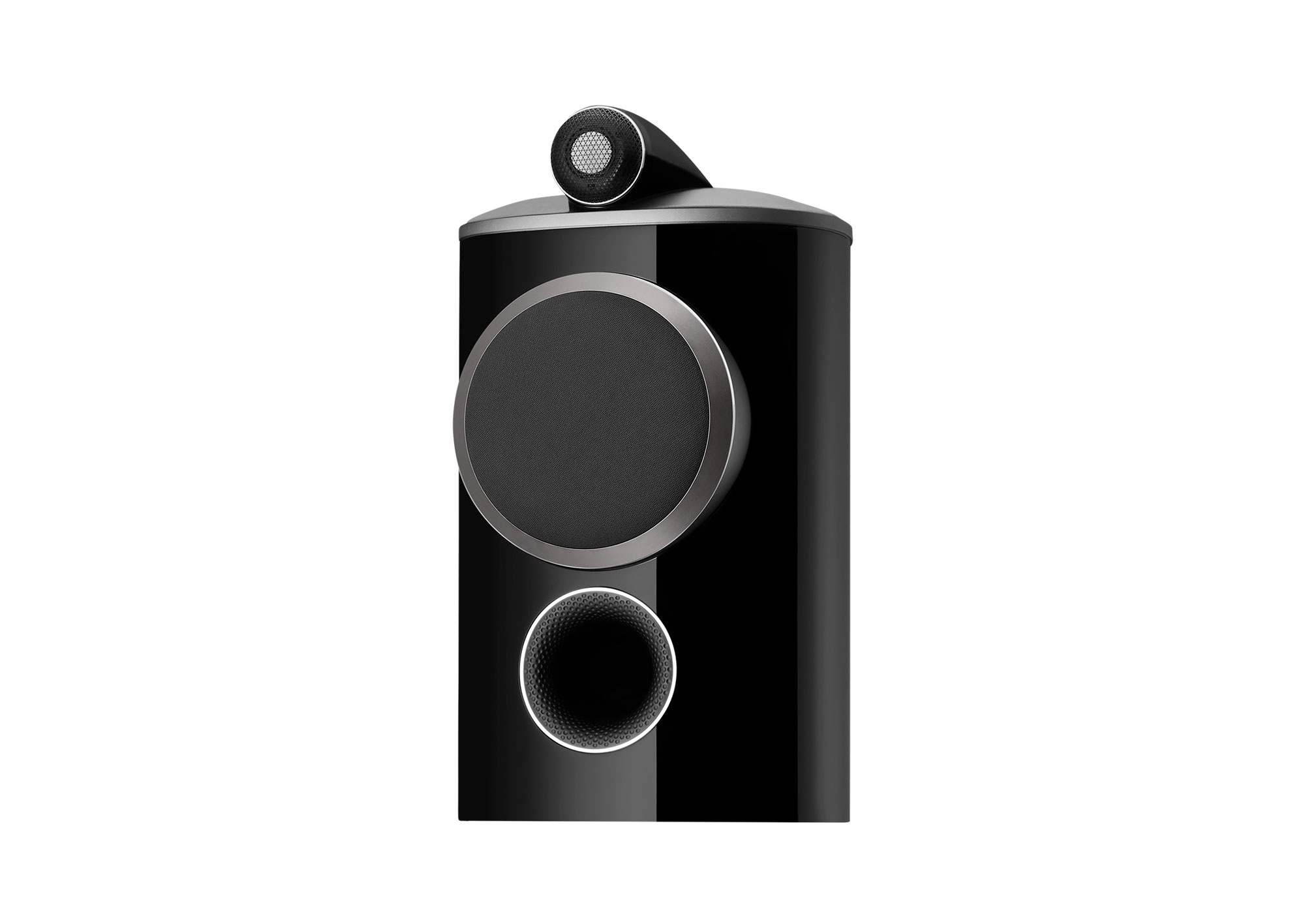

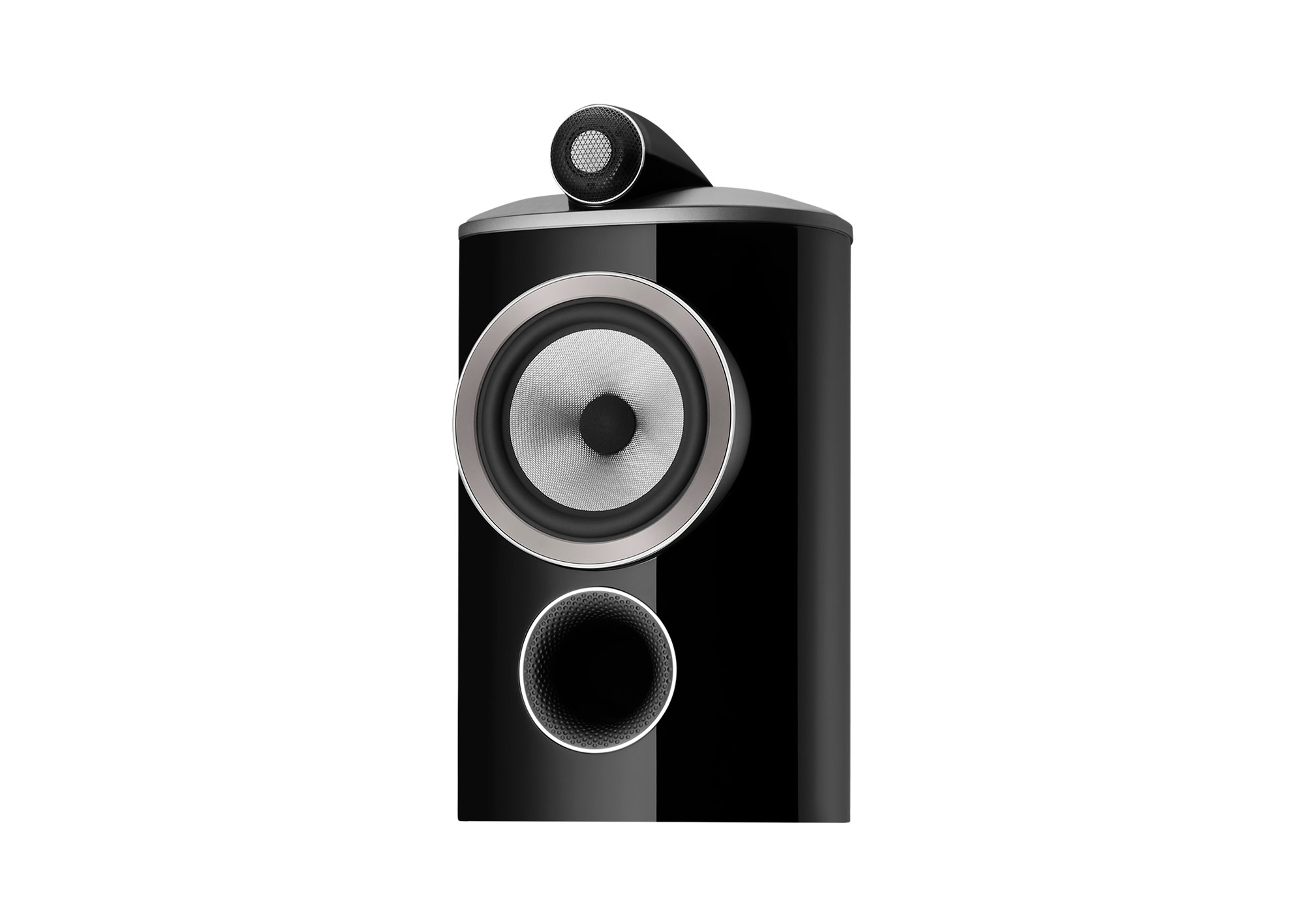

B&W 805 D4 (Gloss Black)
The 805 D4 stand-mount loudspeaker is the most compact model in the 800 Series Diamond™ range, but it’s still packed with advanced technologies, including the Diamond dome tweeter and the Solid Body Tweeter-on-Top.

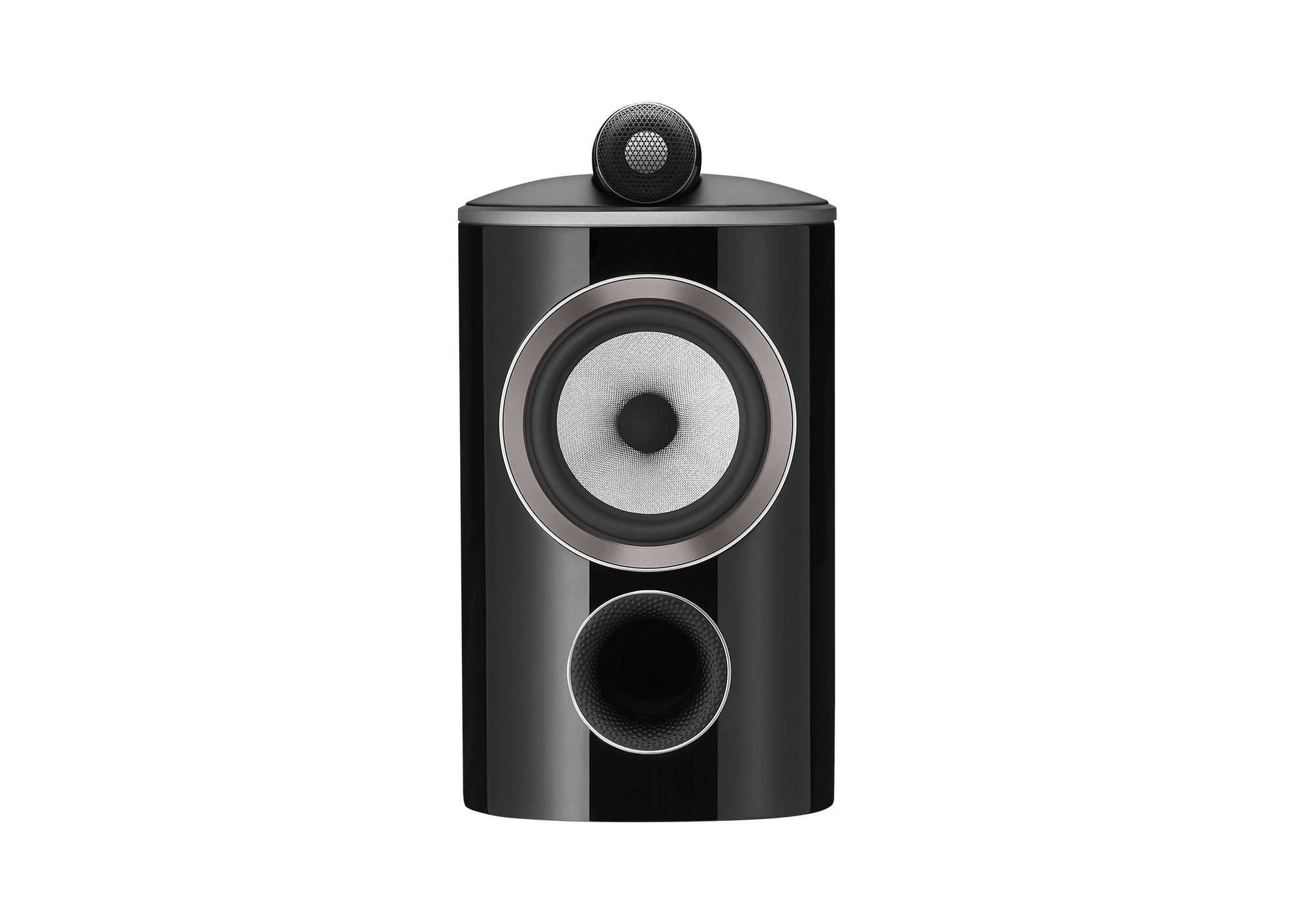

805 D4 might be smaller than its floorstanding siblings, but it’s no lightweight: its beautifully constructed Reverse-Wrap cabinet, stiff aluminium bass pods and 165mm (6.5in) Continuum™ mid-bass cone afford it exceptional bass extension and scale for a relatively compact speaker.
Diamond dome tweeter
One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond dome tweeter is the perfect combination of low mass, exceptional stiffness and outstanding accuracy. 15 years after we introduced it, we haven’t found a better tweeter dome technology.
Solid Body Tweeter assembly
Our newest Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system, producing an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

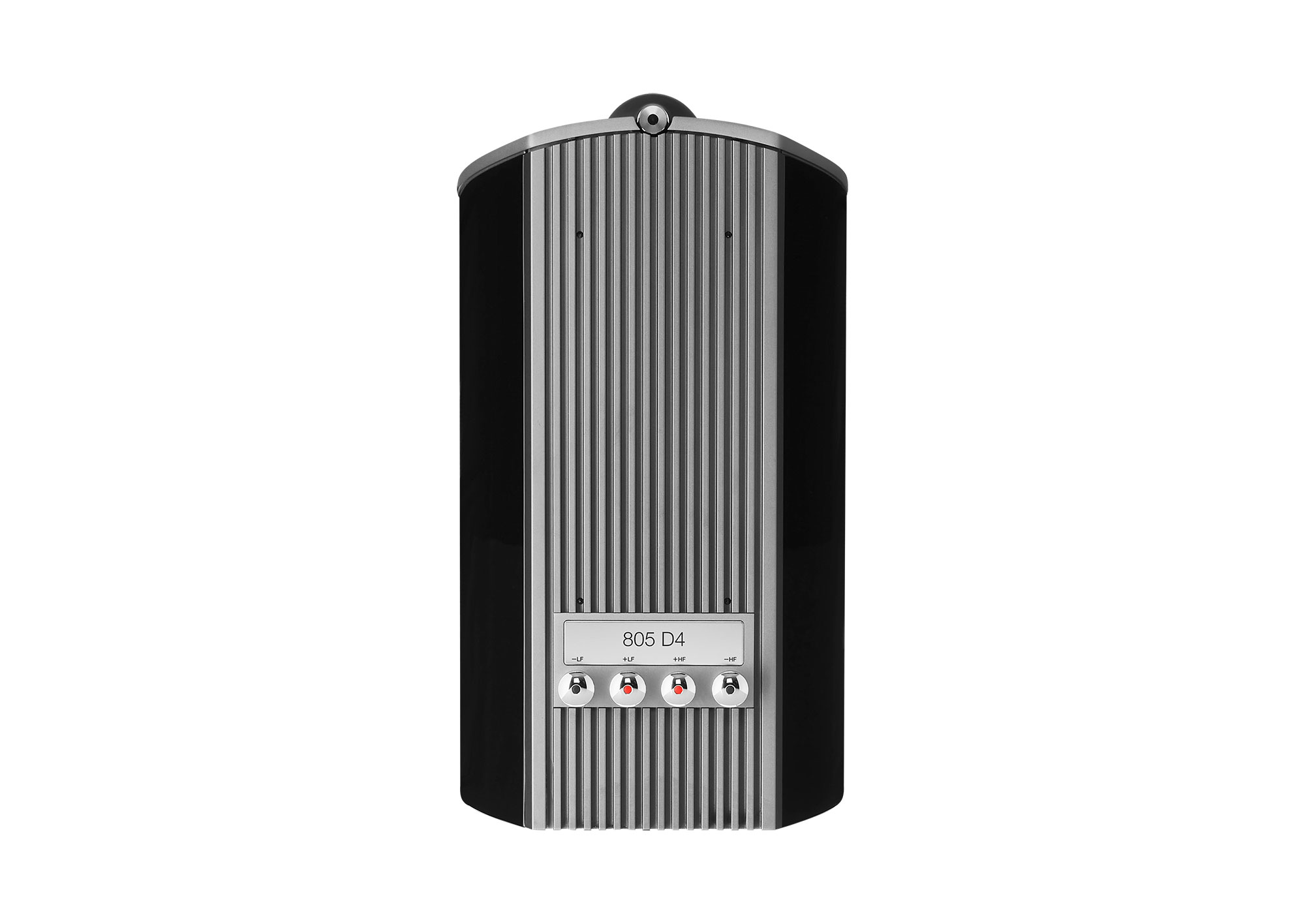

The new reverse-wrap orientation of the cabinet on 805 D4 means we can place its sensitive crossover components inside their own, dedicated space within the cabinet, which has critical benefits to both performance and serviceability. We’ve taken the opportunity to upgrade the speaker terminals, too.
The science of sound
Innovation is at the heart of everything we do. We question, we examine, we understand and then we evolve. We use computer modelling to explore and reimagine every aspect of loudspeaker design.
Solid body Tweeter-on-Top
Continuum™ cone bass/mid
2-way vented-box system
1x ø25mm (1in) diamond dome high-frequency
1x ø165mm (6.5in) Continuum cone bass midrange
34Hz to 35kHz
42Hz to 28kHz (+/-3dB from reference axis)
88dB (on axis at 2.83Vrms at 1m)
2nd and 3rd harmonics (90dB,1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 20kHz
8Ω (minimum 4.6Ω)
Recommended amplifier power
50W – 120W into 8Ω on unclipped programme
Max. recommended cable impedance
