Product A/V Receiver Onkyo TX-NR6100 (BLACK)
Onkyo
ONKYO :
TX-NR6100 (BLACK)
Category : A/V Receiver
Add to wishlist     สถานะสินค้า In Stock
TX-NR6100 (BLACK)
TX-NR6100 (BLACK)
TX-NR6100 (BLACK)
TX-NR6100 (BLACK)
TX-NR6100 (BLACK)
TX-NR6100 (BLACK)
TX-NR6100 (BLACK)

PRICE :
38,900 THB.
SPECIAL :
33,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview
  • Features
  • Specifications

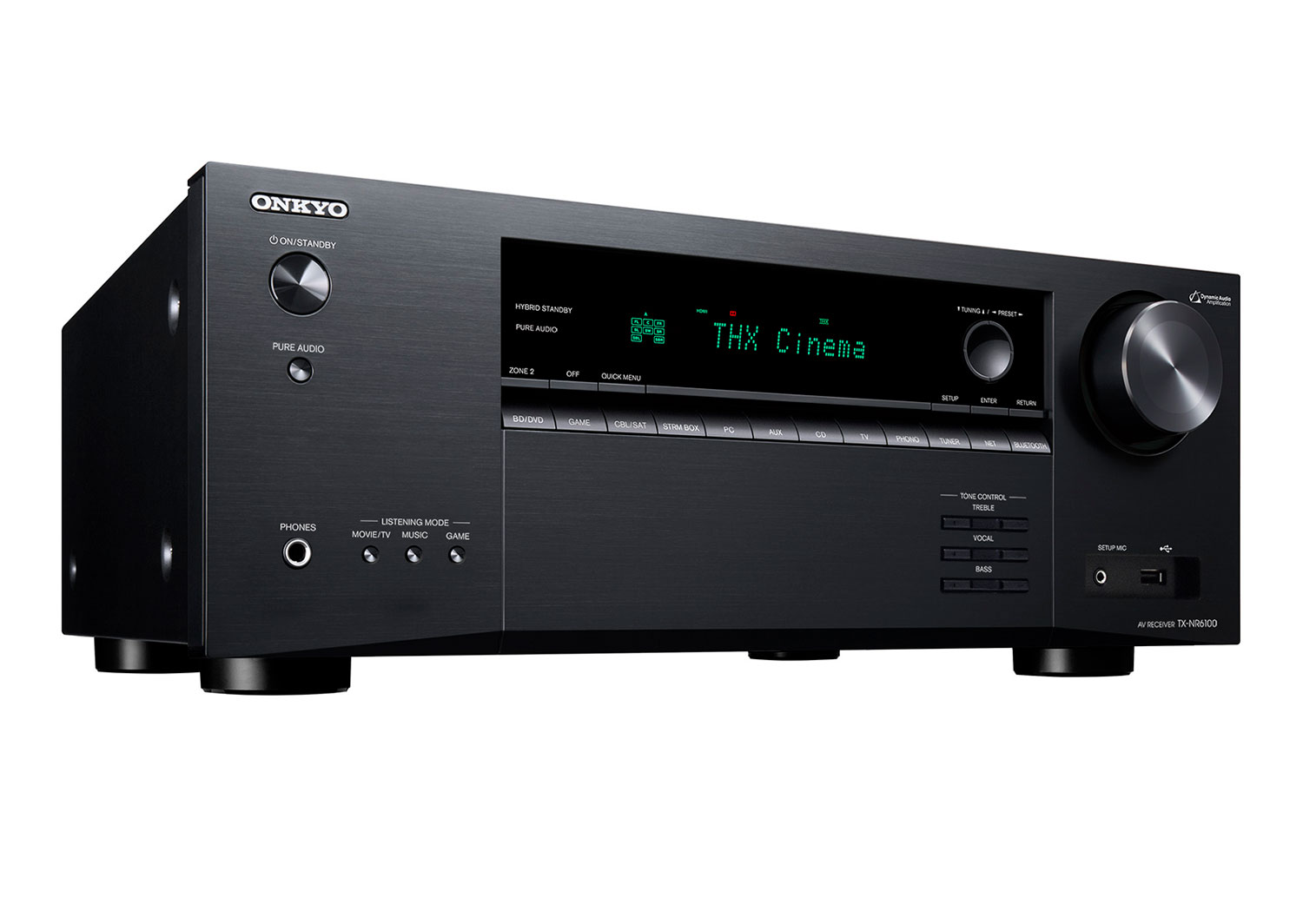

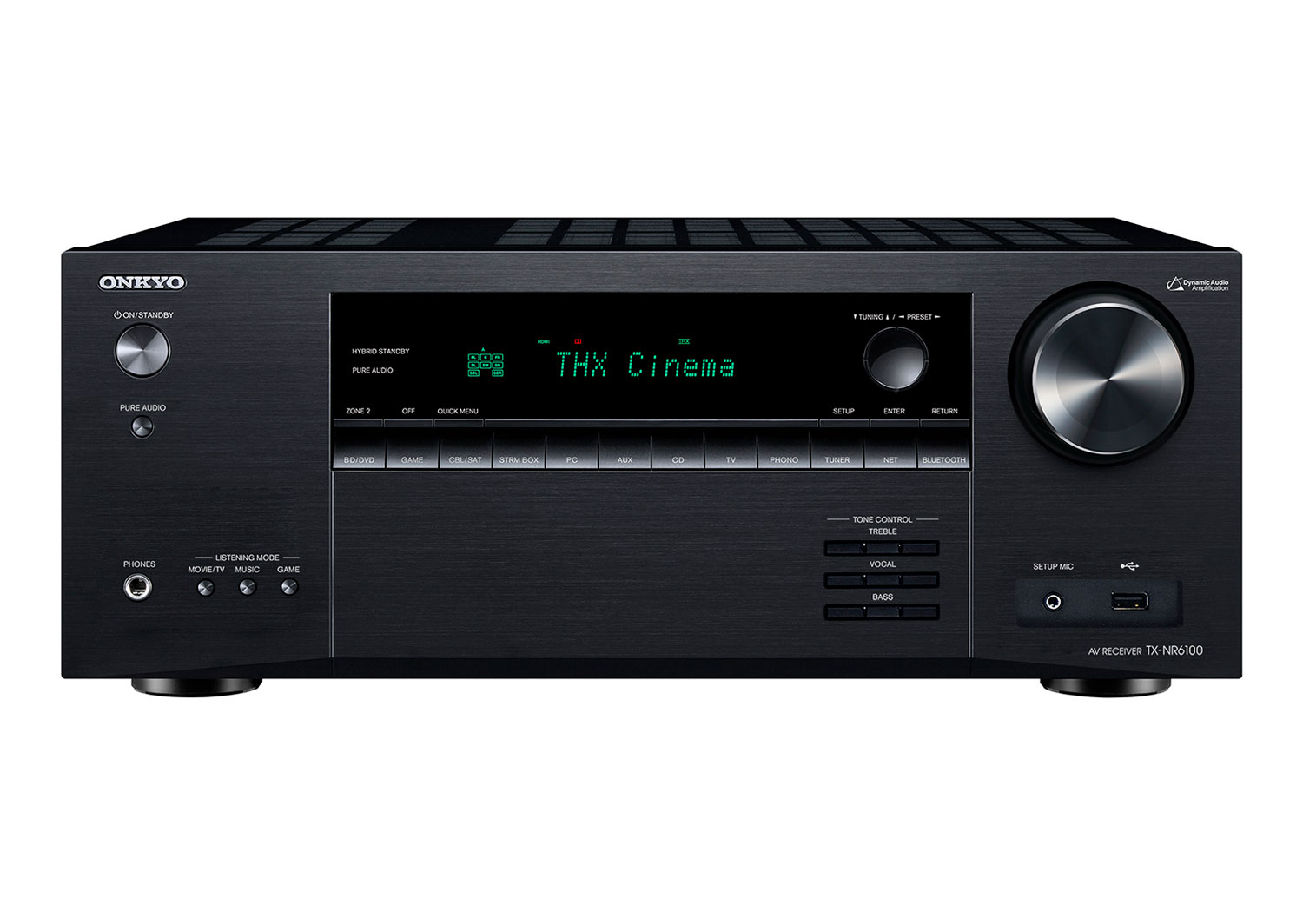

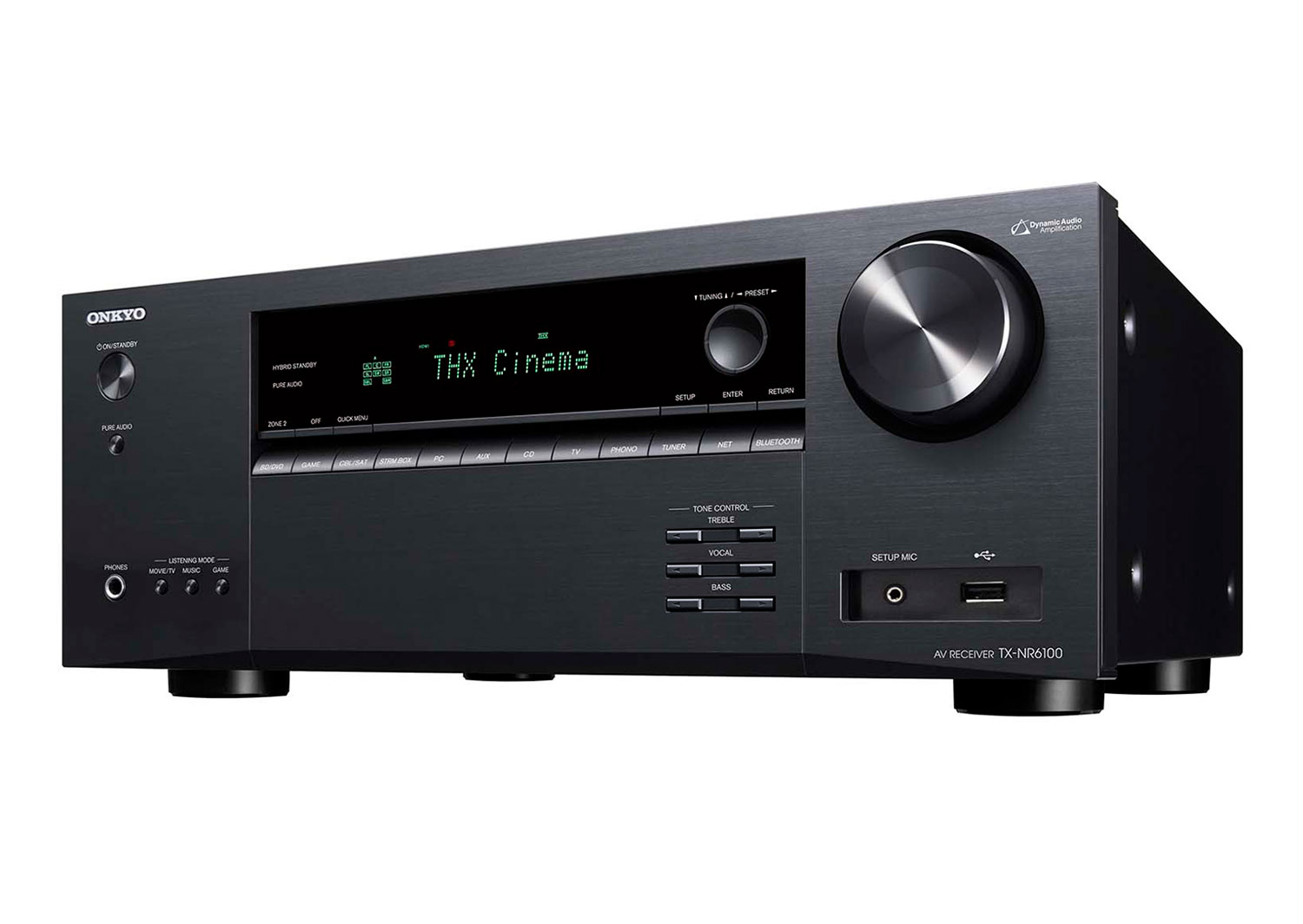

ONKYO TX-NR6100 (BLACK)
7.2-Channel THX Certified AV Receiver

http://staff-p2.piyanas.com/images/20220730/9y1T8xCh_x.gif

Product Highlights

  • 210 W/Ch THX® Certified Select DAA system
  • 5.2.2-ch Dolby Atmos® and DTS:X® playback
  • SMART AV Receiver™ Works with Sonos*1, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD*2, Pandora®, TIDAL, Deezer, and TuneIn streaming services*3
  • Works with Hey Google or Alexa*4
  • Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard*5
  • HDMI® inputs 1-3 and Main/Sub outpus support 8K/60p(4:2:0/10-bit), 8K/30p(4:4:4/10-bit), 4K/120p(4:4:4/10-bit) video pass through
  • HDMI terminals*6 support HDR10+, Dolby Vision and BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport) passthrough; eARC (Main Out), and HDCP 2.3
  • HDMI Sub/Zone 2 Out for media transmission to a projector, gaming monitor, or TV
  • Send or receive audio via Bluetooth® wireless technology (RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/aptX HD)
  • Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
  • Dedicated Zone 2 speaker posts for powered D/A audio distribution (including HDMI/SPDIF/NET*7) to passive speakers
  • Zone 2/Zone B line-out (analog RCA) with Zone 2 DAC supports independent or synced D/A playback (including HDMI/SPDIF/NET*6) on compatible audio systems
  • AccuEQ with AccuReflex™ and subwoofer EQ

Massive THX® sound and Film-Like 8K resolution

Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images.

With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.

Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI® 2.1, you can enjoy Dolby Atmos® and DTS: X® soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS® and Dolby® to create a 3D sound-field from any layout.

Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver™ delivers an unparalleled movie, music, and gaming experience to your living room.


http://staff-p2.piyanas.com/images/20220730/i4Rd901M_x.jpg

KLIPSCH OPTIMIZE MODE
Klipsch Optimize Mode allows you to easily integrate your new Klipsch Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Your Onkyo AV Receiver is all ready to work in sync with your Klipsch speakers.


http://staff-p2.piyanas.com/images/20220730/pI5ko6X4_x.jpg

HDMI® 2.1 WITH 8K
HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.


http://staff-p2.piyanas.com/images/20220730/TNdP7iDy_x.jpg

ULTIMATE 4K GAMING EXPERIENCE
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.


http://staff-p2.piyanas.com/images/20220730/HRfvO0nT_x.jpg

THX® CERTIFIED
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material.


http://staff-p2.piyanas.com/images/20220730/VzUsR9Y5_x.jpg

BUILT-IN STREAMING SERVICES
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.


http://staff-p2.piyanas.com/images/20220730/NfGwMFKi_x.jpg
Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.*

*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.


http://staff-p2.piyanas.com/images/20220730/QL4tf8B3_x.jpeg

SMART HOME COMPATIBLE WITH VOICE CONTROL
Onkyo receivers easily integrate into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.*
*Requires third-party AI compatible smart home device with microphone


http://staff-p2.piyanas.com/images/20220730/HPmkNlbs_x.jpg
WORKS WITH SONOS CERTIFIED
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port.* This works with Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app.
*Sonos Port required and sold separately


http://staff-p2.piyanas.com/images/20220730/hmGalqAY_x.jpg

BI-DIRECTIONAL BLUETOOTH® WIRELESS TECHNOLOGY
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.


http://staff-p2.piyanas.com/images/20220730/YQrwYcqs_x.jpg

READY FOR DTS PLAY-FI®
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.


Specifications

Amplifier Section
Power output (All channels)
  • 210 W/Ch
  • (6 ohms, 1 kHz, 10% THD, 1-ch driven)
  • 100 W/Ch (8 ohms, 20 Hz–20 kHz,
  • 0.08% THD, 2-ch driven, FTC)
Dynamic power
  • 240 W (3 ohms, Front)
  • 210 W (4 ohms, Front)
  • 120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
  • 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
  • 200 mV rms/47 k-ohms (Line)
  • 3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance
  • 1 V rms/470 ohms (Subwoofer pre-out)
  • 200 mV rms/2.2 k-ohms
  • (Zone 2/Zone B line-out)
Frequency response
  • 10 Hz–100 kHz/+1 dB,
  • -3 dB (Direct/Pure Audio)
Tone control
  • ±10 dB, 20 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio
  • 106 dB (Line, IHF-A)
  • 80 dB (Phono, IHF-A)
Speaker impedance
  • 4–16 ohms
Tuner Section
Tuning frequency range
  • FM 87.5 MHz–107.9 MHz
  • AM 530 kHz–1,710 kHz
  • FM/AM preset memory 40 stations
General
  • Power supply AC 120 V~, 60 Hz
  • Power consumption (operating) 635 W
  • Power consumption (idle) 65 W
  • Power consumption (standby) 0.1 W
  • Dimensions (W x H x D) 17 1/8˝ x 6 13/16˝ x 14 15/16˝
  • (435 x 173.5 x 379.5 mm)
  • Weight 21.6 lbs. (9.8 kg)
UPC CODE
  • (B) 889951003489
CARTON
  • Dimensions (W x H x D) 21˝ x 10 7/16˝ x 18 7/16˝
  • (534 x 265 x 468 mm)
  • Weight 27.6 lbs. (12.5 kg)
Supplied Accessories
• Indoor FM antenna • AM loop antenna • Speaker setup microphone
• Quick Start Guide • Remote controller • AAA (R03) batteries x 2


http://staff-p2.piyanas.com/images/20220730/MrNkOLoG_x.jpg

TX-NR6100 Product Sheet

Amplifier Section
Power output (All channels)
  • 210 W/Ch
  • (6 ohms, 1 kHz, 10% THD, 1-ch driven)
  • 100 W/Ch (8 ohms, 20 Hz–20 kHz,
  • 0.08% THD, 2-ch driven, FTC)
Dynamic power
  • 240 W (3 ohms, Front)
  • 210 W (4 ohms, Front)
  • 120 W (8 ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
  • 0.08% (20 Hz–20 kHz, half power)
Input sensitivity and impedance
  • 200 mV rms/47 k-ohms (Line)
  • 3.5 mV rms/47 k-ohms (Phono MM)
Rated RCA output level and impedance
  • 1 V rms/470 ohms (Subwoofer pre-out)
  • 200 mV rms/2.2 k-ohms
  • (Zone 2/Zone B line-out)
Frequency response
  • 10 Hz–100 kHz/+1 dB,
  • -3 dB (Direct/Pure Audio)
Tone control
  • ±10 dB, 20 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)
Signal-to-noise ratio
  • 106 dB (Line, IHF-A)
  • 80 dB (Phono, IHF-A)
Speaker impedance
  • 4–16 ohms
Tuner Section
Tuning frequency range
  • FM 87.5 MHz–107.9 MHz
  • AM 530 kHz–1,710 kHz
  • FM/AM preset memory 40 stations
General
  • Power supply AC 120 V~, 60 Hz
  • Power consumption (operating) 635 W
  • Power consumption (idle) 65 W
  • Power consumption (standby) 0.1 W
  • Dimensions (W x H x D) 17 1/8˝ x 6 13/16˝ x 14 15/16˝
  • (435 x 173.5 x 379.5 mm)
  • Weight 21.6 lbs. (9.8 kg)
UPC CODE
  • (B) 889951003489
CARTON
  • Dimensions (W x H x D) 21˝ x 10 7/16˝ x 18 7/16˝
  • (534 x 265 x 468 mm)
  • Weight 27.6 lbs. (12.5 kg)
Supplied Accessories
• Indoor FM antenna • AM loop antenna • Speaker setup microphone
• Quick Start Guide • Remote controller • AAA (R03) batteries x 2



Amplifier Section
Power Output
All Channels 120 W/Ch (8 Ohms, 20 Hz-20 kHz, 0.08% THD, 2 Channels Driven, FTC)
250 W/Ch (6 Ohms, 1 kHz, 10% THD, 1 Channel Driven)
Dynamic Power 250 W (3 Ohms, Front)
220 W (4 Ohms, Front)
130 W (8 Ohms, Front)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz-20 kHz, half power)
Input Sensitivity and Impedance 200 mV/82 k-ohms (Line)
3.5 mV/47 k-ohms (Phono MM)
Rated RCA Output Level and Impedance 1 V/470 Ohms (Sub pre-out)
1 V/2.3 k-Ohms (Zone Pre Out)
1 V/200 mV/470 ohms (Zone pre/line out)
Frequency response 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Tone Control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 106 dB (Line, IHF-A)
80 dB (Phono, IHF-A)
Speaker Impedance 4 ohms–16 ohms
Video Section
Input Sensitivity/Output Level and Impedance -
Video 1.0 Vp–p/75 Ohms (Component Y)
0.7 Vp–p/75 Ohms (Component PB/CB, PR/CR)
1.0 Vp–p/75 Ohms (Composite)
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–1070.9 MHz
AM 530 kHz–1,710 kHz
FM/AM Preset Memory 40 stations
General
Power Supply AC 120 V~, 60 Hz
Power Consumption 870 W
No-Sound Power Consumption 70 W
Standby Power Consumption 0.15 W
Dimensions (W x H x D) 17 1/8" x 7 15/16" x 15 11/16" (435 x 201.5 x 398 mm)
Weight 30.9 lbs (14.0 kg)
Carton
Dimensions (W x H x D) 22 5/8" x 13 3/16" x 19 5/16"
(574 x 335 x 490 mm)
Weight 37.5 lbs (17.0 kg)
