Product A/V Receiver Onkyo TX-RZ50 (BLACK)
Onkyo
ONKYO :
TX-RZ50 (BLACK)
Category : A/V Receiver
Add to wishlist     สถานะสินค้า In Stock
TX-RZ50 (BLACK)
TX-RZ50 (BLACK)
TX-RZ50 (BLACK)
TX-RZ50 (BLACK)
TX-RZ50 (BLACK)
TX-RZ50 (BLACK)

PRICE :
62,900 THB.
SPECIAL :
55,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

ONKYO TX-RZ50 (BLACK)
9.2-Channel THX Certified AV Receiver

http://staff-p2.piyanas.com/images/20220730/pPCOpkJC_x.gif

Product Highlights

  • 250 W/Ch THX® Certified Select RZ Series Dynamic Audio Amplification
  • Wide 5 Hz–100 kHz frequency response
  • HDMI® inputs 1–3, Main Out, and Sub/Zone 2 Out (Sub Mode output) support 8K/60p (4:2:0/10-bit), 8K/30p (4:4:4/10-bit), 4K/120p (4:4:4/10-bit) video passthrough
  • HDMI terminals*1 support HDR10+, Dolby Vision™, and BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport)
  • passthrough; eARC (Main Out), and HDCP 2.3
  • SMART AV Receiver™ Works with Sonos*2, Chromecast built-in™, AirPlay 2, DTS Play-Fi®, Spotify®, Amazon Music HD*3, Pandora®, TIDAL, Deezer, TuneIn*4
  • Dolby Atmos® and DTS:X® playback (5.2.4-ch)
  • 11.2-ch processing and pre-outs for 7.2.4 layouts
  • Dolby Atmos Height Virtualizer
  • IMAX® Enhanced certified signature sound by DTS:X
  • Supports Dirac Live® Room Correction
  • AccuReflex™ phase-matching solution for Dolby Atmos enabled speakers
  • HDMI Main Out with eARC (enhanced Audio Return Channel)
  • HDMI Sub/Zone 2 Out*5 connects a second display or projector
  • Refined HDMI grounds, isolated SoC board, reinforced power lines
  • Quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi®*6
  • Dedicated DACs for switching Zone 2 outputs (dedicated), Zone 3 outputs (shared), Zone 2/Zone B and Zone 3 pre-/line-outs
  • Stereo Assign Mode supports Height-channel playback
  • DSP-based Vocal Enhancer improves vocal/dialog audibility
  • OSD function shows A/V input/output signal data, playback settings, and network info
  • Volume memory presets for A/V inputs via front panel

With up to 11.2 channels of processing, DIRAC Live® Room Correction, and the coveted THX Certification, the Onkyo TX-RZ50 AV Receiver is a best-in-class home theater powerhouse. The TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.

Groundbreaking DIRAC Live® Room Correction technology offers improved musical staging, clarity, dialog, and deeper bass right out of the box, ensuring that your immersive surround experience is delivered with the highest fidelity.

Featuring three HDMI-out options, the TX-RZ50 AV receiver delivers uncompressed HDMI 8K/4K transfer at 40 Gbps, increasing the bandwidth over its predecessors and taking full advantage of the capabilities of Next-Gen gaming consoles. Put through thousands of tests to obtain the coveted THX Certification, this SMART AV Receiver™ delivers a mind-blowing movie, music, and gaming experience to your home.


http://staff-p2.piyanas.com/images/20220730/i4Rd901M_x.jpg

KLIPSCH OPTIMIZE MODE
Klipsch Optimize Mode allows you to easily integrate your new Klipsch Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Your Onkyo AV Receiver is all ready to work in sync with your Klipsch speakers.


http://staff-p2.piyanas.com/images/20220730/EdrVqBVa_x.jpg

DIRAC LIVE® ROOM CORRECTION
Built-in to the TX-NR7100 and ready to use, this state-of-the-art digital room correction technology will optimize your speakers’ overall audio performance for enhanced musical staging, clarity, dialog, and deeper bass. You can easily calibrate your home theater system using the free Onkyo Control App for Android and iOS devices and the included microphone for 3-9 positions or the free Dirac Live laptop app for up to 13 positions and a 3rd-party USB mic.


http://staff-p2.piyanas.com/images/20220730/TNdP7iDy_x.jpg

ULTIMATE 4K GAMING EXPERIENCE
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.


http://staff-p2.piyanas.com/images/20220730/sykB478C_x.jpg
11.2-Channel Processing
The TX-RZ50 features up to 11.2 channel processing and pre-outs for 7.2.4 system layouts, making it an ideal choice for your premium home theater setup.


http://staff-p2.piyanas.com/images/20220730/HRfvO0nT_x.jpg

THX® CERTIFIED
In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-NR7100 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.


http://staff-p2.piyanas.com/images/20220730/EHShmhFi_x.jpg

IMAX® ENHANCED MODE
IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Onkyo’s IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.


http://staff-p2.piyanas.com/images/20220730/24rh4EXL_x.jpg


Discrete Zone 2 HDMI Switching
Set up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.*

*8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used.


http://staff-p2.piyanas.com/images/20220730/okcbS5MP_x.jpg

HDMI® 2.1 WITH 8K
HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.


http://staff-p2.piyanas.com/images/20220730/QL4tf8B3_x.jpeg

BUILT-IN MULTI-ZONE STREAMING AND VOICE CONTROL
The Onkyo TX-RZ50 9.2-Channel THX® Certified AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.**
*A third-party AI device is required for voice commands - sold separately
***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used


http://staff-p2.piyanas.com/images/20220730/iozhT52F_x.png

Works with Sonos Certified
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app*. The TX-RZ50 can work with up to three Sonos Ports---one for each of three independent zones---each playing a completely different streaming service from Sonos Radio.
*Sonos Port required and sold separately.


http://staff-p2.piyanas.com/images/20220730/14uVmR7O_x.jpg

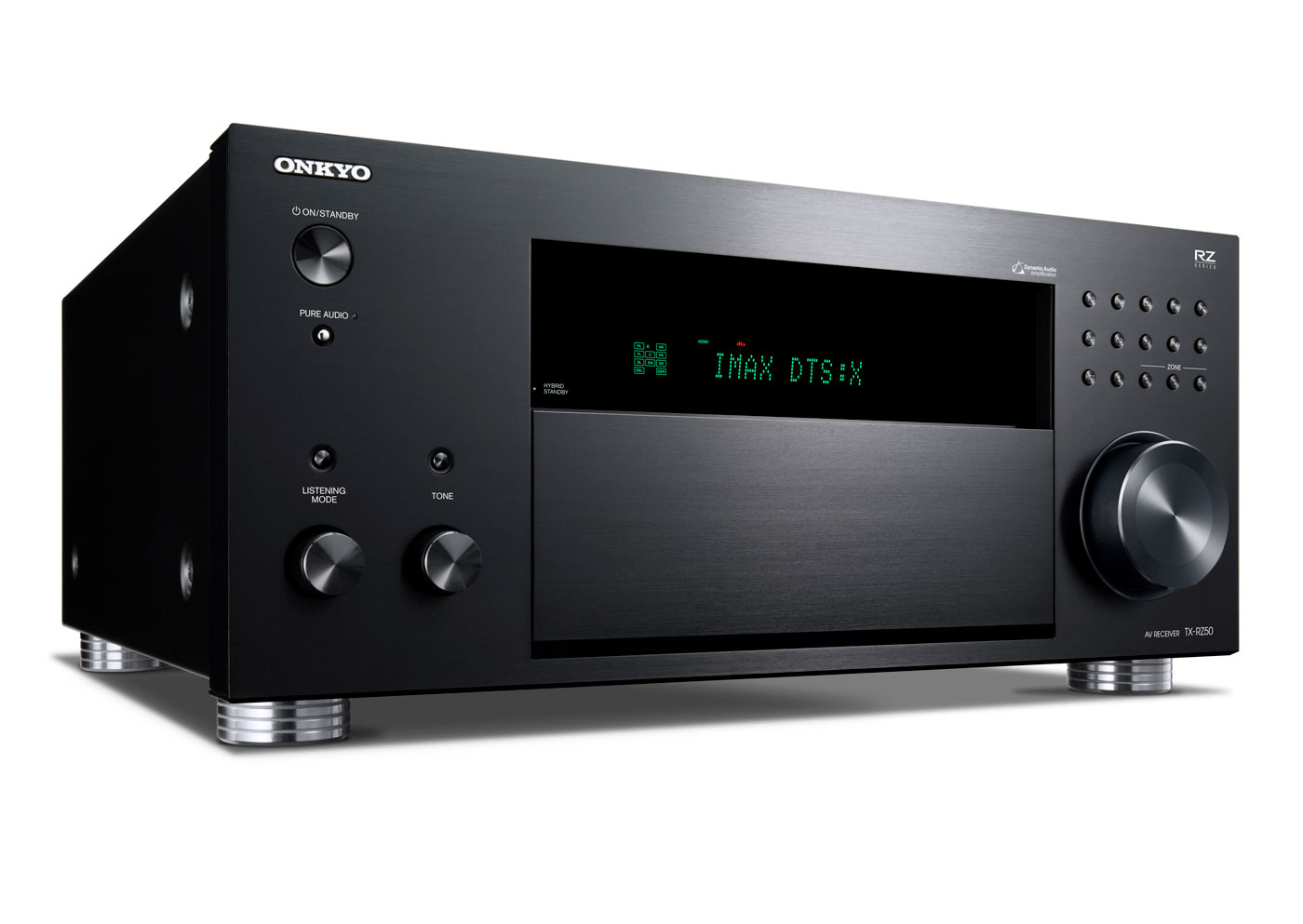

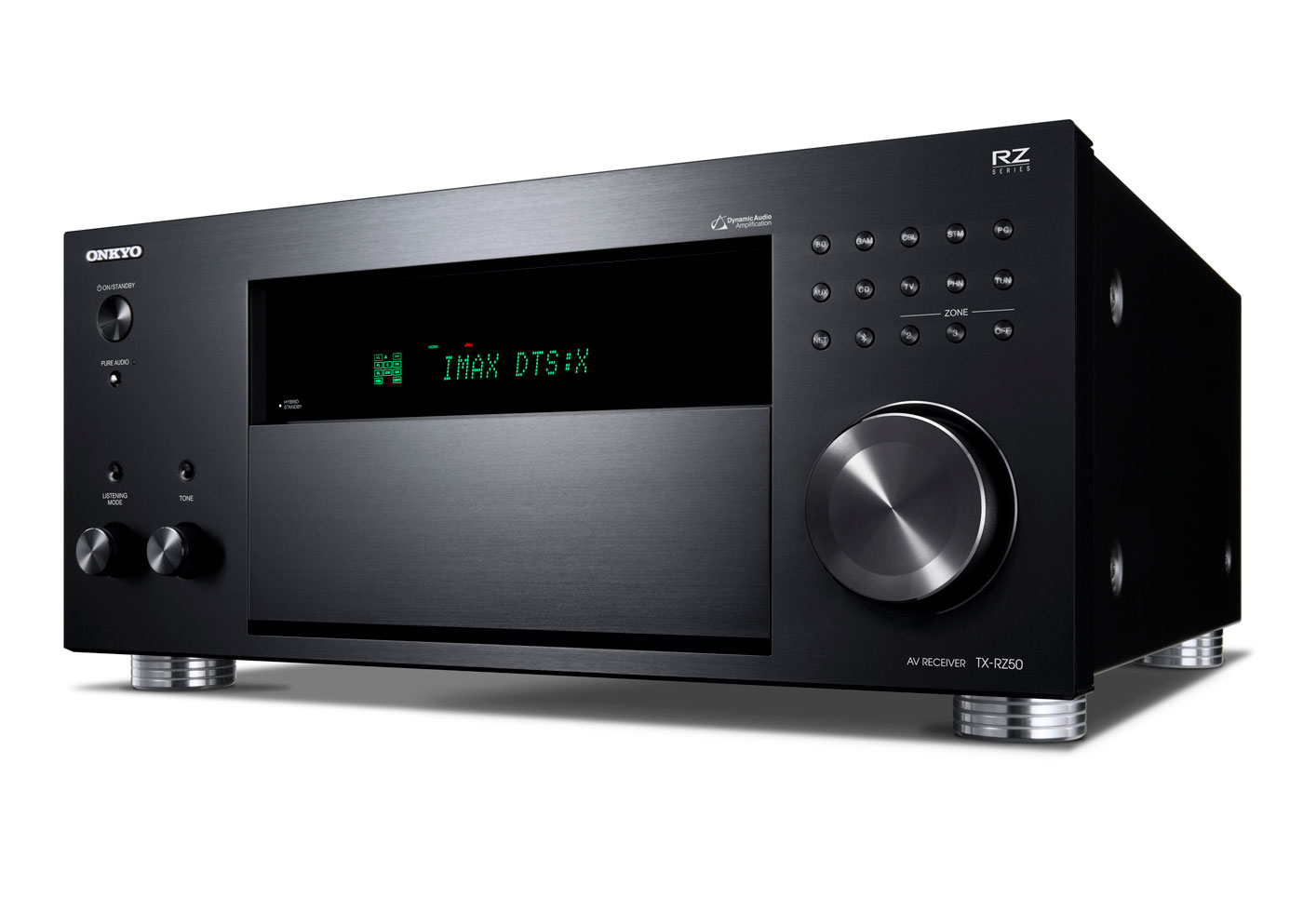

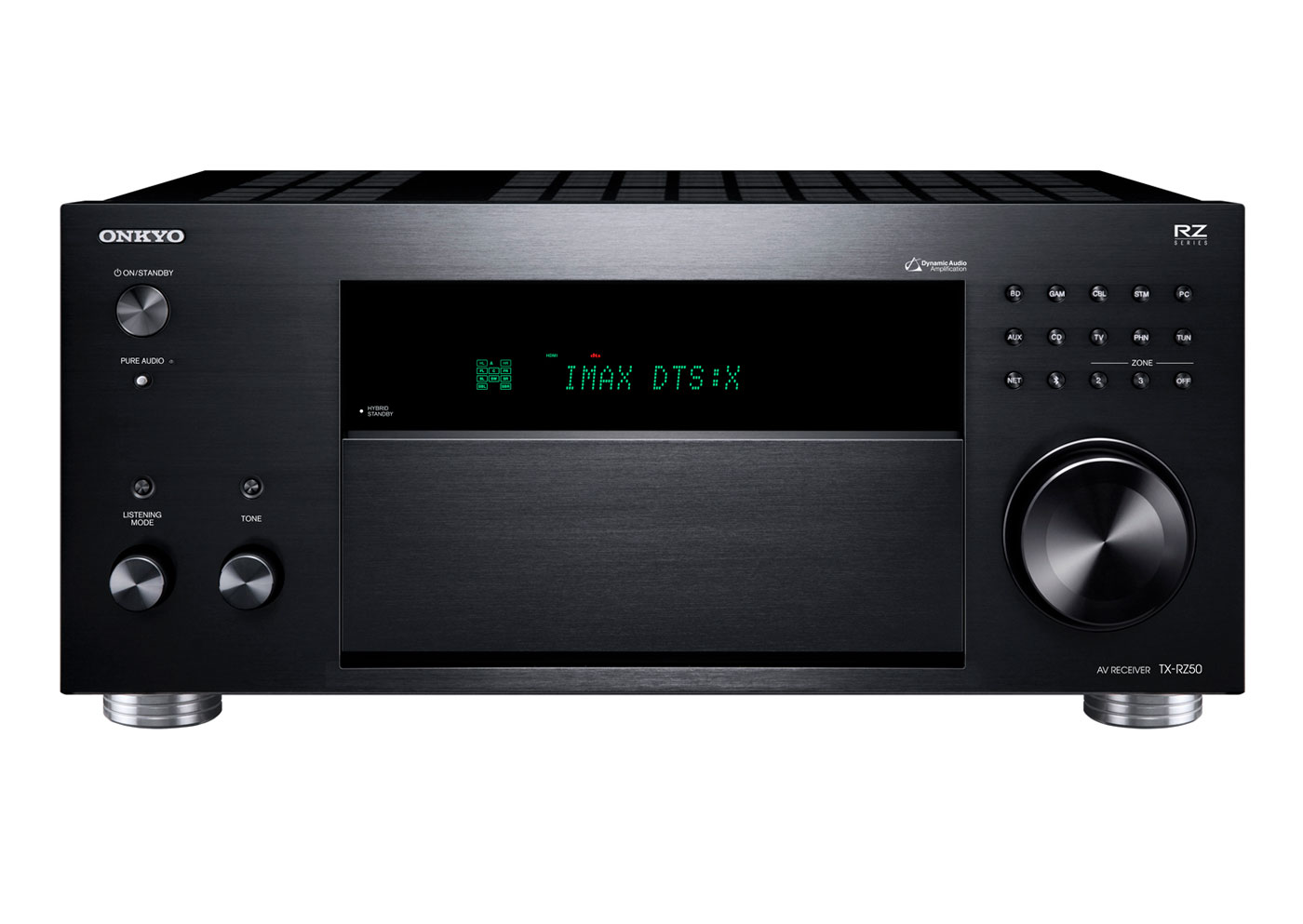

SLEEK APPEARANCE
The TX-RZ50 AV receiver features a sleek aluminum drop-down panel to conceal the buttons and controls for an upgraded, more luxuriant appearance.


http://staff-p2.piyanas.com/images/20220730/VzUsR9Y5_x.jpg

BUILT-IN STREAMING SERVICES
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.


http://staff-p2.piyanas.com/images/20220730/hmGalqAY_x.jpg

BI-DIRECTIONAL BLUETOOTH® WIRELESS TECHNOLOGY
This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.


http://staff-p2.piyanas.com/images/20220730/YQrwYcqs_x.jpg

READY FOR DTS PLAY-FI®
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.


Specifications

Amplifier Section
Power output (All channels)

  • 250 W/Ch
  • (6 ohms, 1 kHz, 10% THD, 1 channel driven)
  • 120 W/Ch (8 ohms, 20 Hz–20 kHz,
  • 0.08% THD, 2 channels driven, FTC)

Dynamic power

  • 250 W (3 ohms, Front)
  • 220 W (4 ohms, Front)
  • 130 W (8 ohms, Front)

THD+N (Total Harmonic Distortion + Noise)

  • 0.08% (20 Hz–20 kHz, half power)

Input sensitivity and impedance

  • 200 mV rms/47 k-ohms (Line)
  • 3.5 mV rms/47 k-ohms (Phono MM)

Rated RCA output level and impedance

  • 1 V rms/470 ohms (Subwoofer pre-out)
  • 200 mV rms/470 ohms
  • (Zone 2/Zone B line-out)

Frequency response

  • 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)

Tone control

  • ±10 dB, 20 Hz (Bass)
  • ±10 dB, 20 kHz (Treble)

Signal-to-noise ratio

  • 106 dB (Line, IHF-A)
  • 80 dB (Phono, IHF-A)

Speaker impedance

  • 4–16 ohms

Video Section

  • Input sensitivity/output level and impedance
  • Video 1.0 Vp–p/75 ohms (Component Y)
  • 0.7 Vp–p/75 ohms (Component Pb/Pr)
  • 1.0 Vp–p/75 ohms (Composite)

Tuner Section

  • Tuning frequency range
  • FM 87.5 MHz–107.9 MHz
  • AM 530 kHz–1,710 kHz
  • FM/AM preset memory 40 stations

General

  • Power supply AC 120 V~, 60 Hz
  • Power consumption 850 W
  • Power consumption (standby) 0.1 W
  • Dimensions (W x H x D) 17 1/8˝ x 7 15/16˝ x 15 11/16˝
  • (435 x 201.5 x 398 mm)
  • Weight 30.9 lbs. (14.0 kg)

UPC CODE

  • (B) 889951003687

CARTON

  • Dimensions (W x H x D) 22 7/16˝ x 13 3/16˝ x 19 5/16˝
  • (570 x 335 x 490 mm)
  • Weight 37.5 lbs. (17.0 kg)

Supplied Accessories
• Power cord • Indoor FM antenna • AM loop antenna
• Speaker setup microphone • Quick Start Guide • Remote controller
• AAA (R03) batteries x 2



http://staff-p2.piyanas.com/images/20220730/JCbefEnc_x.jpg

TX-RZ50 Product Sheet
