Product Speaker Center Speaker B&W HTM-71S3 (Mocha)
B&W
B&W :
HTM-71S3 (MOCHA)
Category : Center Speaker
Add to wishlist     สถานะสินค้า In Stock
HTM-71S3 (Mocha)
HTM-71S3 (Mocha)
HTM-71S3 (Mocha)
HTM-71S3 (Mocha)
HTM-71S3 (Mocha)

PRICE :
127,000 THB.
SPECIAL :
104,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน ตู้ (Each)

  • Overview

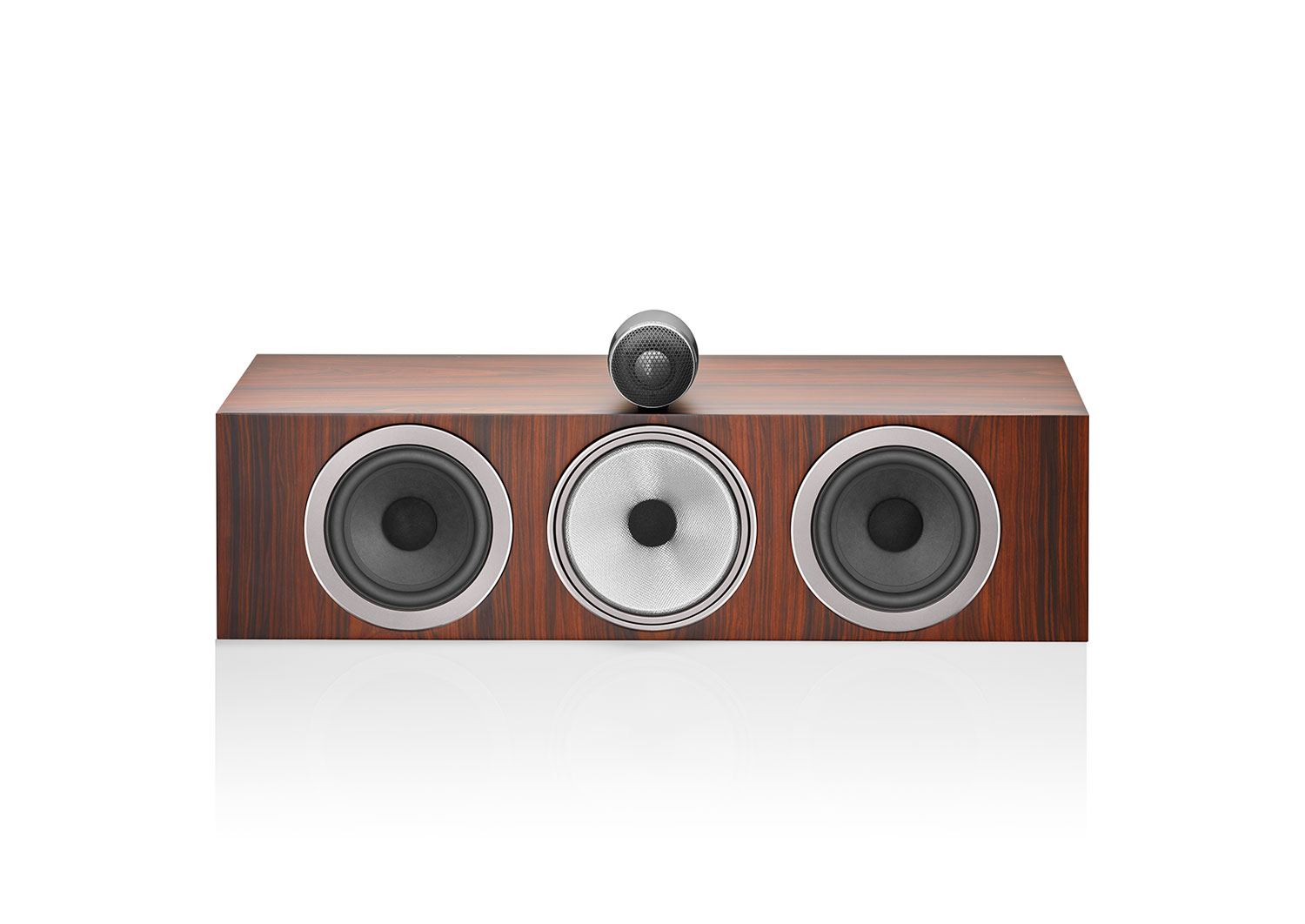

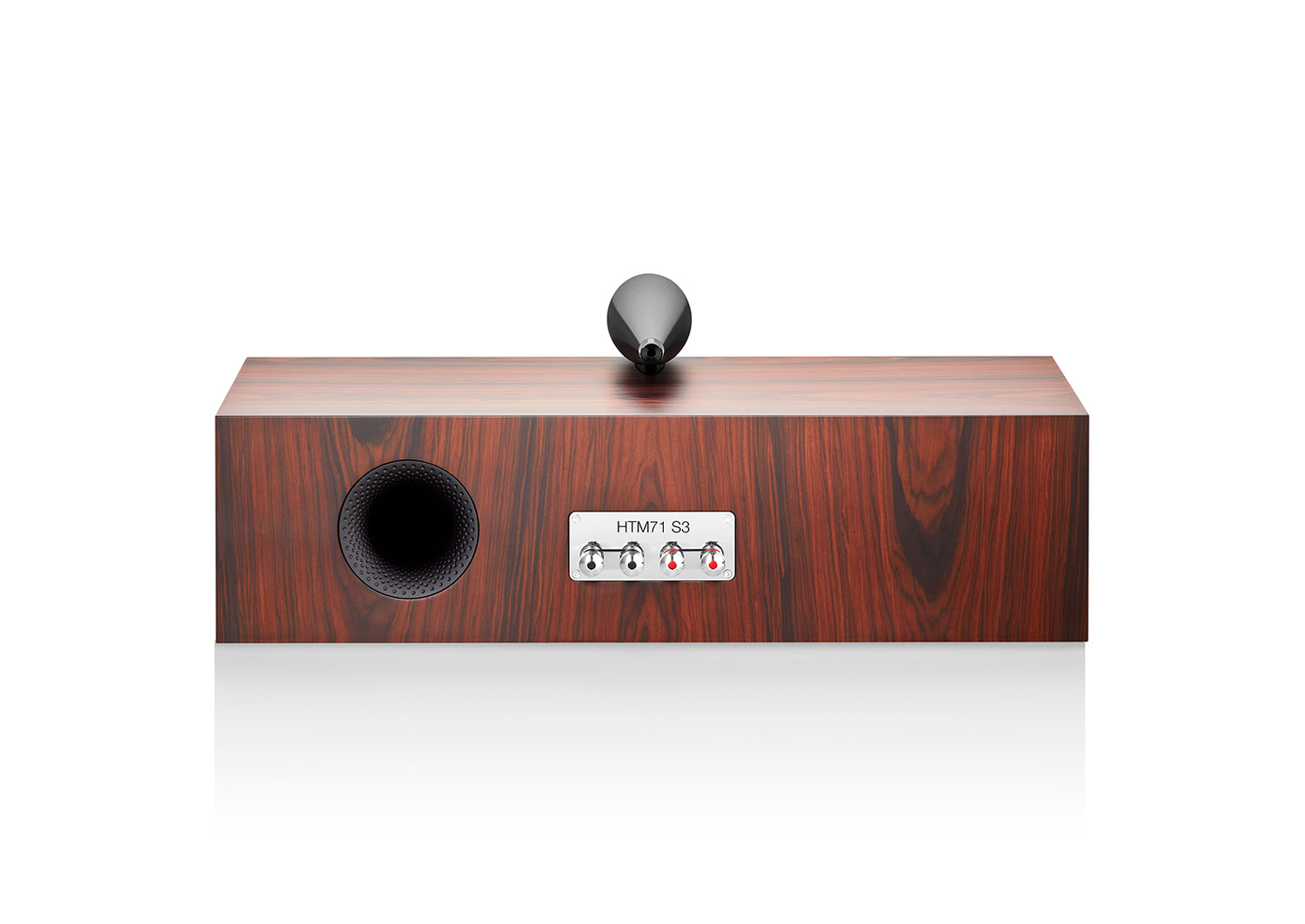

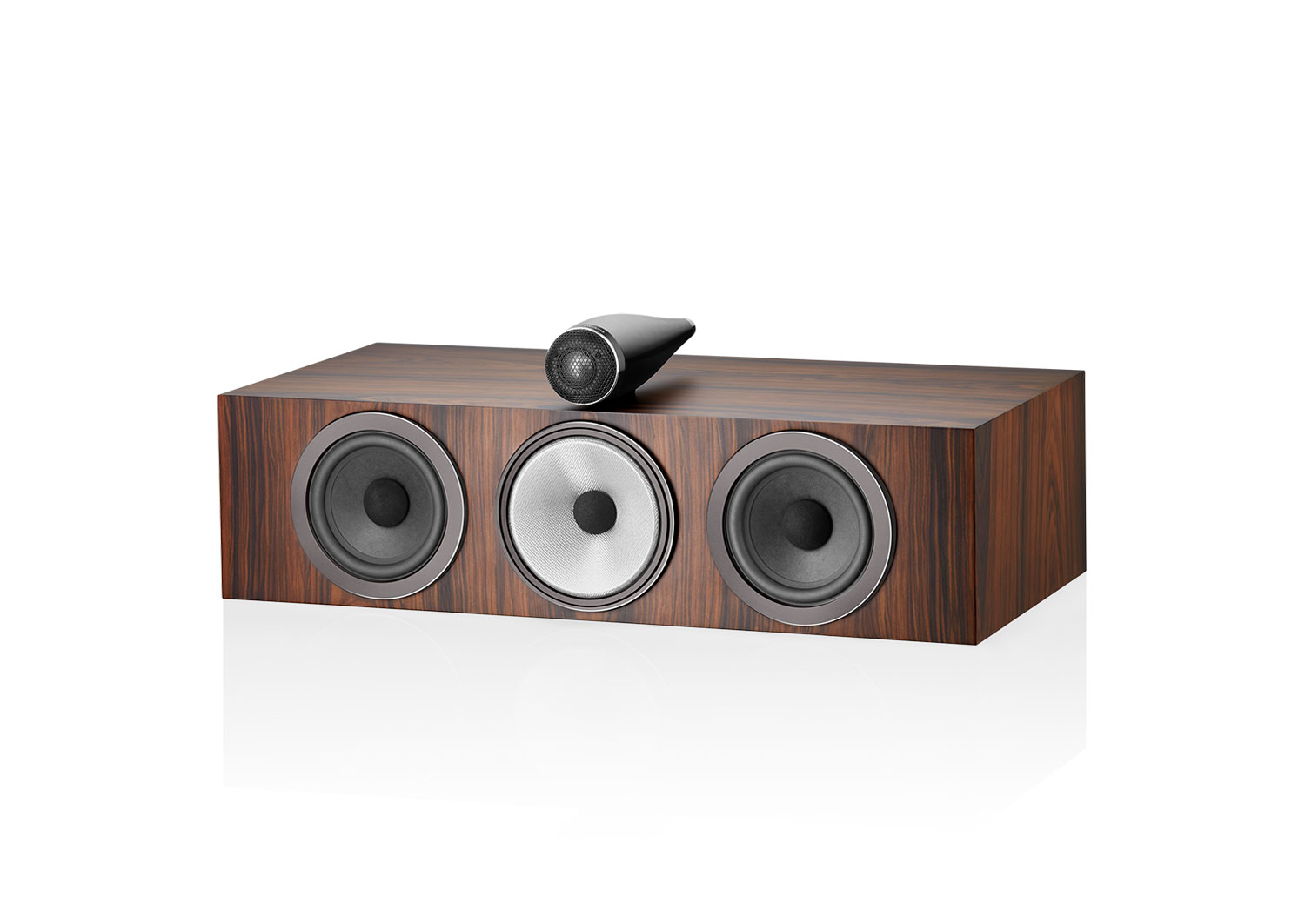

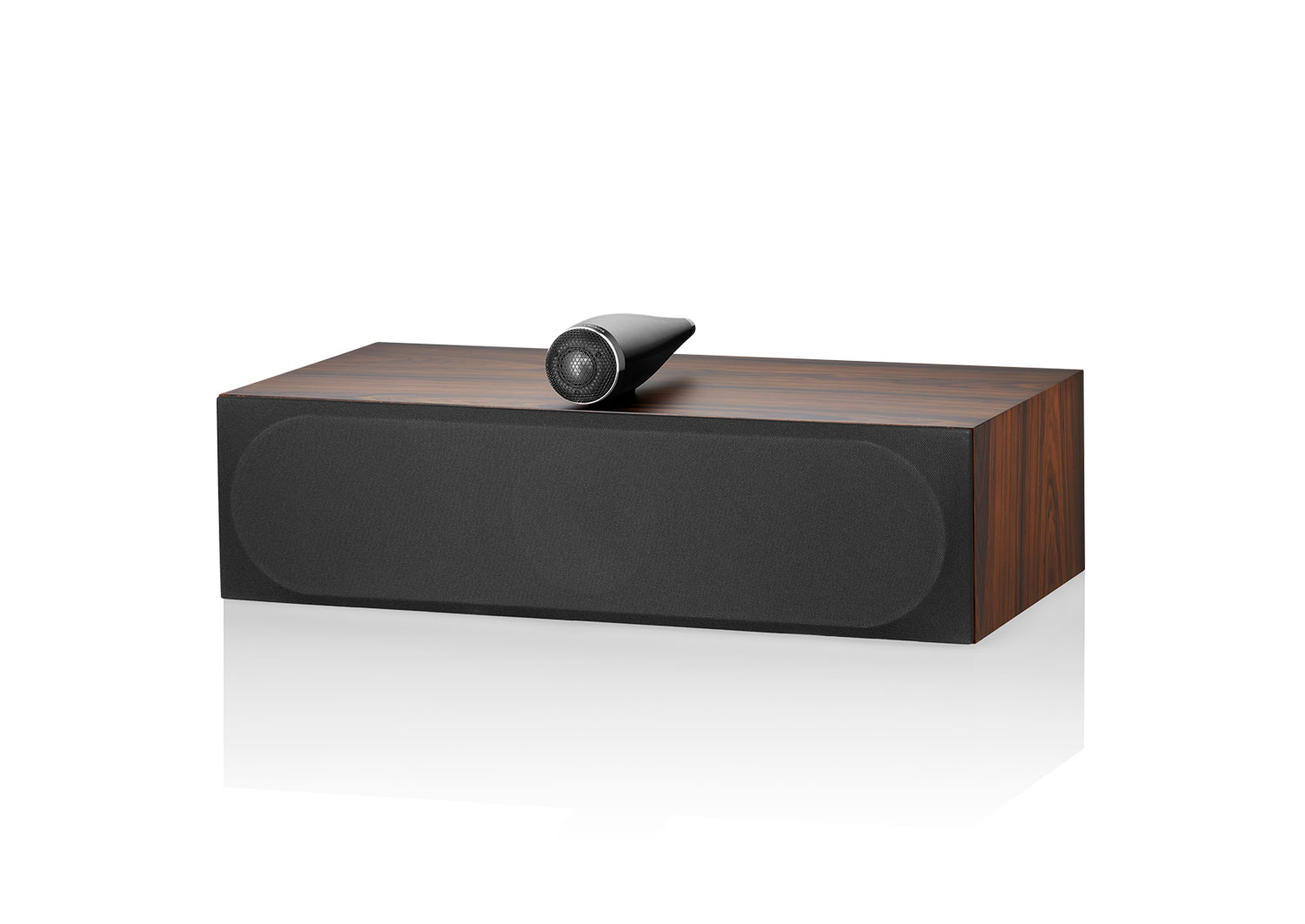

B&W HTM-71S3 (Mocha)
Centre-channel speaker

http://staff-p2.piyanas.com/images/20221018/cFW0mo8Y_x.jpg

Our flagship centre-channel speaker features a Carbon Dome drive unit housed in a Tweeter-On-Top enclosure, a 130mm (5in) Continuum Cone FST™ midrange driver – particularly important for clarity with dialogue – and twin Aerofoil™ Profile bass cones. It’s the perfect partner for the 705 S3, 703 S3 and 702 S3.


http://staff-p2.piyanas.com/images/20221018/4l4GFJDf_x.jpg

Uncompromising vocal performance

The HTM71 S3 now features Tweeter-on-Top technology, ensuring perfect integration with similarly equipped 700 Series models in a surround sound system.


http://staff-p2.piyanas.com/images/20221018/U1Kv0GZ8_x.jpg

A house for high frequencies

The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.


http://staff-p2.piyanas.com/images/20221018/f2GoadwX_x.jpg

Sharper detail

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.


http://staff-p2.piyanas.com/images/20221018/o7wXnjad_x.jpg

Truly amazing sound

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.


http://staff-p2.piyanas.com/images/20221018/RSITpXmS_x.jpg

Clean and clear

Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.


http://staff-p2.piyanas.com/images/20221018/pCy1DQxQ_x.jpg

A triumph of science

Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.


Specifications

Dimensions Height: 165 mm cabinet only
233 mm including tweeter
Width: 628 mm cabinet only
Depth: 318 mm cabinet only
356 mm including grille and terminals
Net weight 17.45kg
Technical features Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Aerofoil™ Profile bass cones
Flowport™
Description 3-way vented-box system
Frequency range 45Hz - 33kHz
Sensitivity 89dB spl (2.83Vrms, 1m)
Nominal impedance 8Ω (minimum 3.1Ω)
Max recommended cable impedance 0.1Ω
Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø130mm (5 in) Continuum cone FST midrange
2x ø130mm (5 in) Aerofoil Profile bass
Frequency response 50Hz - 28kHz ±3dB
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz - 22kHz
<0.5% 120Hz - 20kHz
Recommended amplifier power 30W - 200W into 8Ω on unclipped programme
