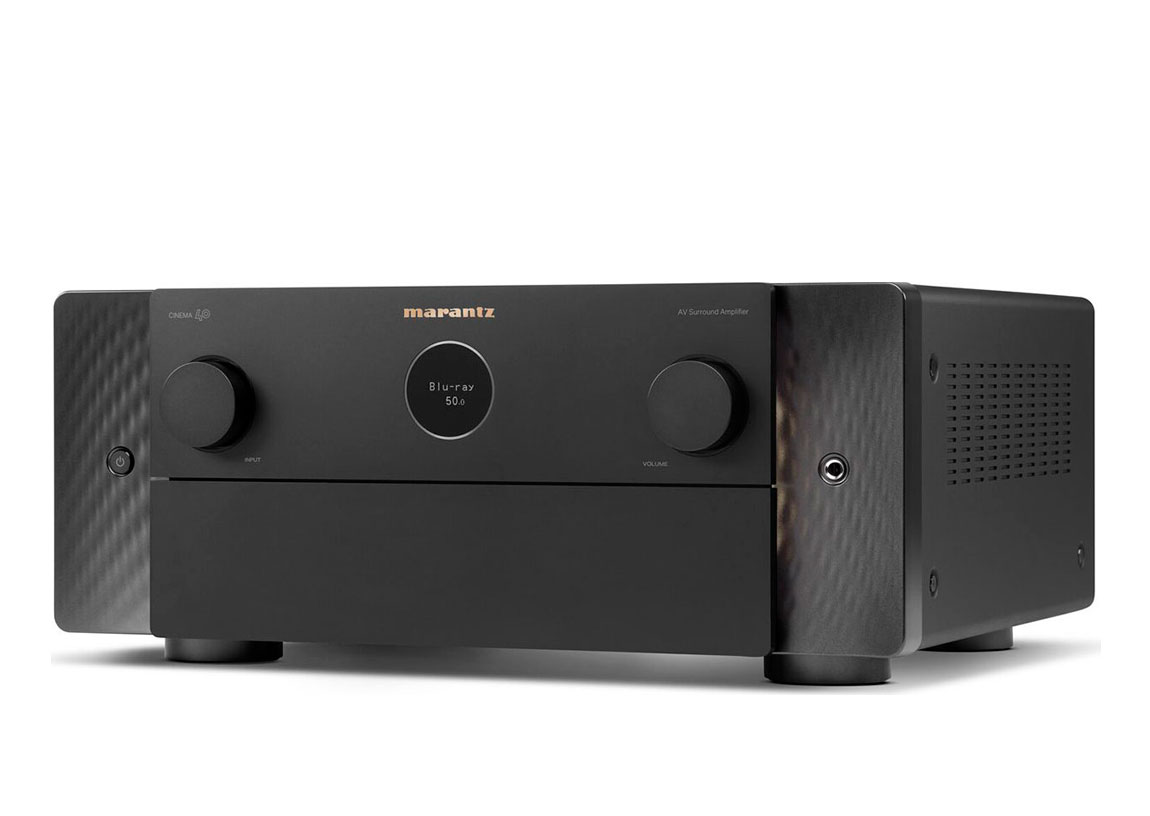

MARANTZ CINEMA 40 (BLACK)
Premium 9.4 Channel | 125-watts-per-channel AV receiver

Premium 9.4 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming. CINEMA 40 is a statement piece and reference level A/V Receiver.

Peerless Performance

Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of the Marantz sound.

Technology Leader

CINEMA 40 comes complete with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Slimline Design

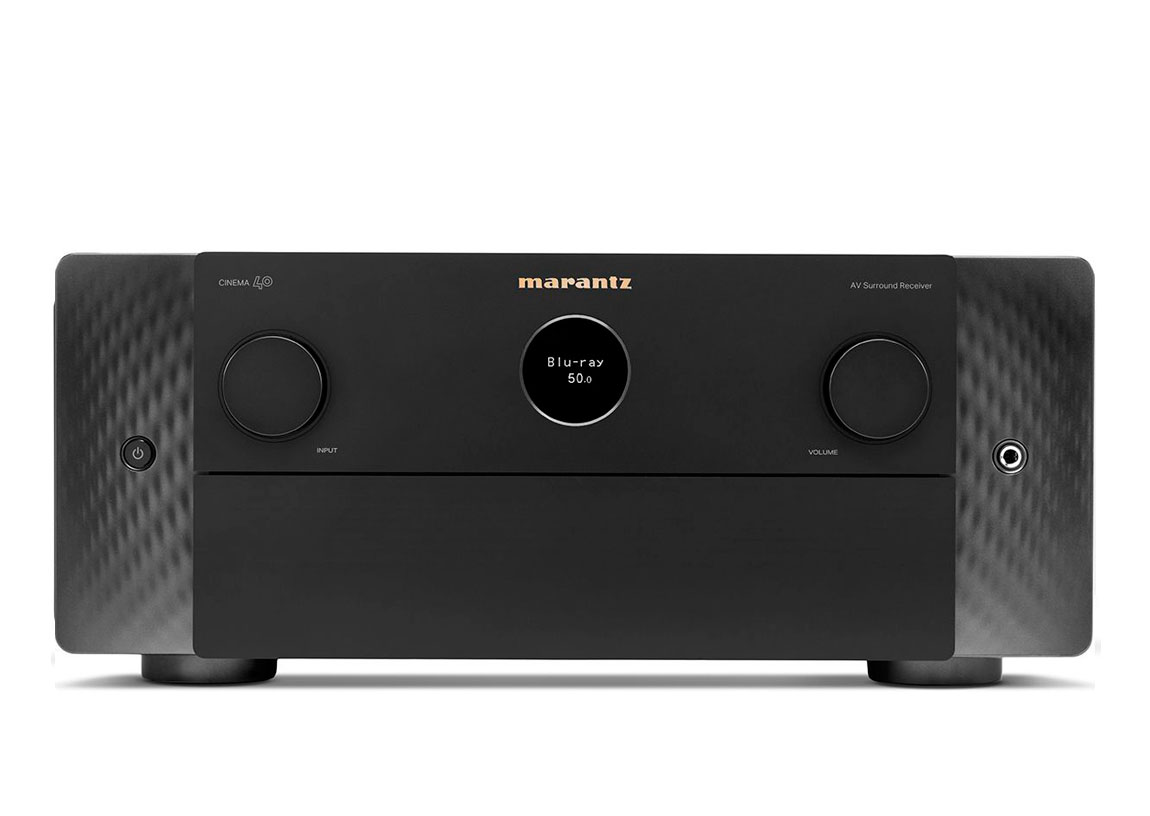

A modern expression of timeless design principles, CINEMA 40 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Performance

The Marantz Sound Master meticulously tuned CINEMA 40 for amazing performance with careful parts selection to create the Most Musical Sound in your home.

Style

Excellence is heard and seen. CINEMA 40 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance.

Customizability

Thoughtfully curated connectivity options and finetuning ability allow you to make CINEMA 40 your own.

Effortless

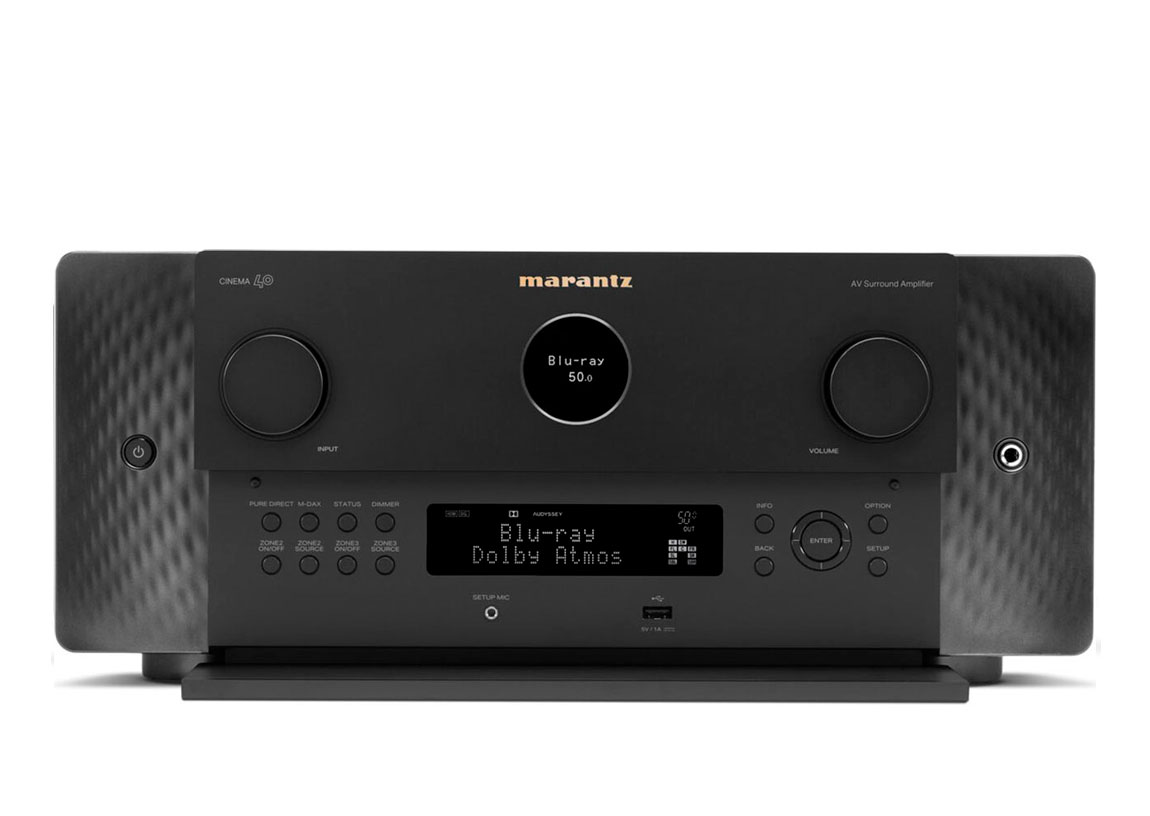

Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Specifications

Power:

• Number of powered channels 9
• Output Power (8 ohms, 20Hz - 20kHz, 0.08% 2ch Drive)
• Output Power (8 ohms, 20Hz - 20kHz, 0.05% 2ch Drive) 125W
• Output power (6 ohms, 1 kHz, 0.7% for 2 channels) 165 W
• Output Power (6 ohms, 1 kHz, 10% 1ch Drive) 235 W
• 70% Guarantee Yes
• Discrete Power Amplifier Yes
• Class A/B amplifier topology
• Current feedback topology Yes
• Assignable Bi-Amp Drive

Multi-channel surround technologies:

• DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo
• Maximum number of processing channels (preamp) 11.4

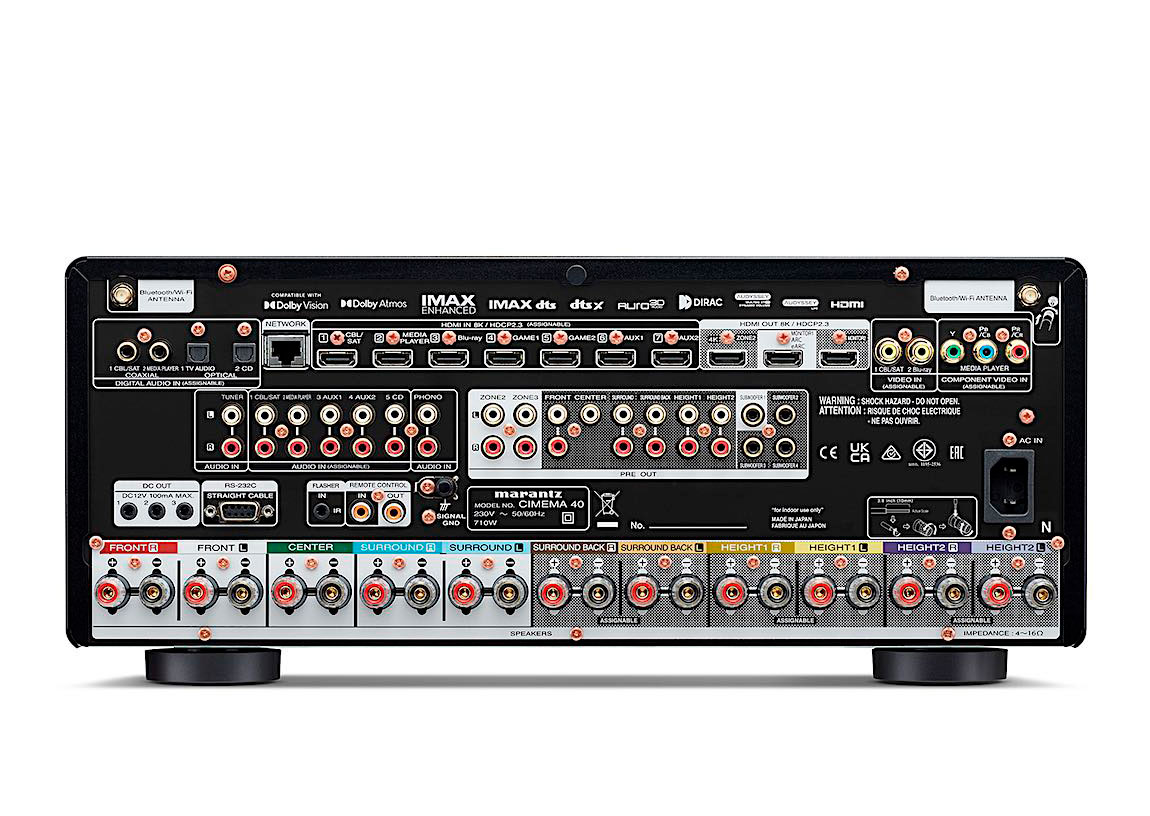

Entries exits :

• 2/0 composite in/out
• Component in/out 1 / 0
• HDMI 7/3 input/output
• Multi-room video output via HDMI Yes
• Analog input / Fixed level output 6 inputs / 0 outputs
• Phono input (MM) Yes
• Digital input: Optical / Coaxial 2 / 2
• Multi-room output: Analog / Digital 2 / 0
• 11.4 multi-channel preamp output
• Subwoofer output 4 (independent)
• 7.1 multi-channel input Yes
• Number of terminals 11
• Assignable A/B Speakers
• Assignable multi-channel speaker terminals
• USB-A front inputs
• USB Audio Yes
• FM tuner with RDS No
• DAB+ Tuner No

HDMI:

• Total HDMI inputs / No. Support 8K 7 / 7
• Support HDCP2.3 Yes
• Main/Zone 2 / 1 HDMI Outputs
• Analog Video to HDMI Conversion Yes
• HDMI Upscaling 1080P/4K to 8K
• Maximum resolution @ framerate 8K @ 60Hz, 4K @ 120Hz
• eARC audio return channel
• Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Game pass-through Yes
• Variable Refresh Rate / Quick Frame Transport Yes / Yes
• HDMI Standby Mode Yes
• CEC Yes
• DSD Audio over HDMI Yes
• LipSync automatic synchronization Yes

Performance technologies:

• Copper Plated Chassis No
• Toroidal Power Transformer No
• Hyper Dynamic Amplifier Modules (HDAM) (list version) Yes
• Pure direct mode Yes
• Gold Plated RCA Terminals Yes
• Clock Jitter Reducer Yes

Acoustic correction:

• Audyssey MultEQ XT32
• Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
• Audyssey LFC Yes / Yes
• Dirac Live Support Yes
• Variable Cross Over Yes
• Enhanced Bass Redirection Yes
• Bass Sync Yes

Music file support:

• MP3 / WMA / AAC lossy formats
• Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
• DSD Audio 2.8MHz / 5.6MHz
• Lag-free playback FLAC, WAV ,ALAC ,DSD
• Improved compressed audio: MDAX2 Yes
• Network Audio Sharing Yes

Streaming services:

• HEOS Multiroom and Streaming Yes
• AirPlay Audio Streaming Airplay 2
• TuneIn Internet Radio
• Spotify* Spotify Connect
• Yes
• SiriusXM Yes
• Other Streaming Services * Amazon Music HD/
• Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
• Tested by Roon Yes

Network connectivity:

• Ethernet ports Yes
• Wi-Fi (include version/band) Yes
• Bluetooth (include version) Yes
• Bluetooth re-transmission for Bluetooth headphones Yes

Integration and intelligent control:

• Compatibility with Alexa / Google Voice Assistant / Apple HomePod voice assistants
• App for smartphones and tablets (iOS and Android) Marantz AVR App, HEOS
• HEOS Multi-Room Built-in Yes
• HEOS Link compatibility: IR/ IP Yes / Yes
• Multi-room zones 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
• Zone audio output: Speaker / Preout Yes / Yes
• Zone HDMI output from HDMI source Yes
• Control Connectivity IP Control / RS232 Control / Web Control / App Control
• IR flasher input Yes
• Marantz Remote Bus Yes
• DC Trigger 3 Output
• HDMI Diagnosis Yes

Other Features:

• 2 line FLD front display + OLED port hole
• Main screen size (diagonal in/mm)
• Secondary screen size (diagonal in/mm)
• GUI languages ​​9
• Setup Wizard Yes
• Smart selection on the remote control Yes
• Software update via USB Yes / Yes
• ECO Mode Yes
• Automatic shutdown Yes
• Sleep Mode Yes

Main Features :

• Available colors Black/Silver/Gold
• Metal Face Plate Yes

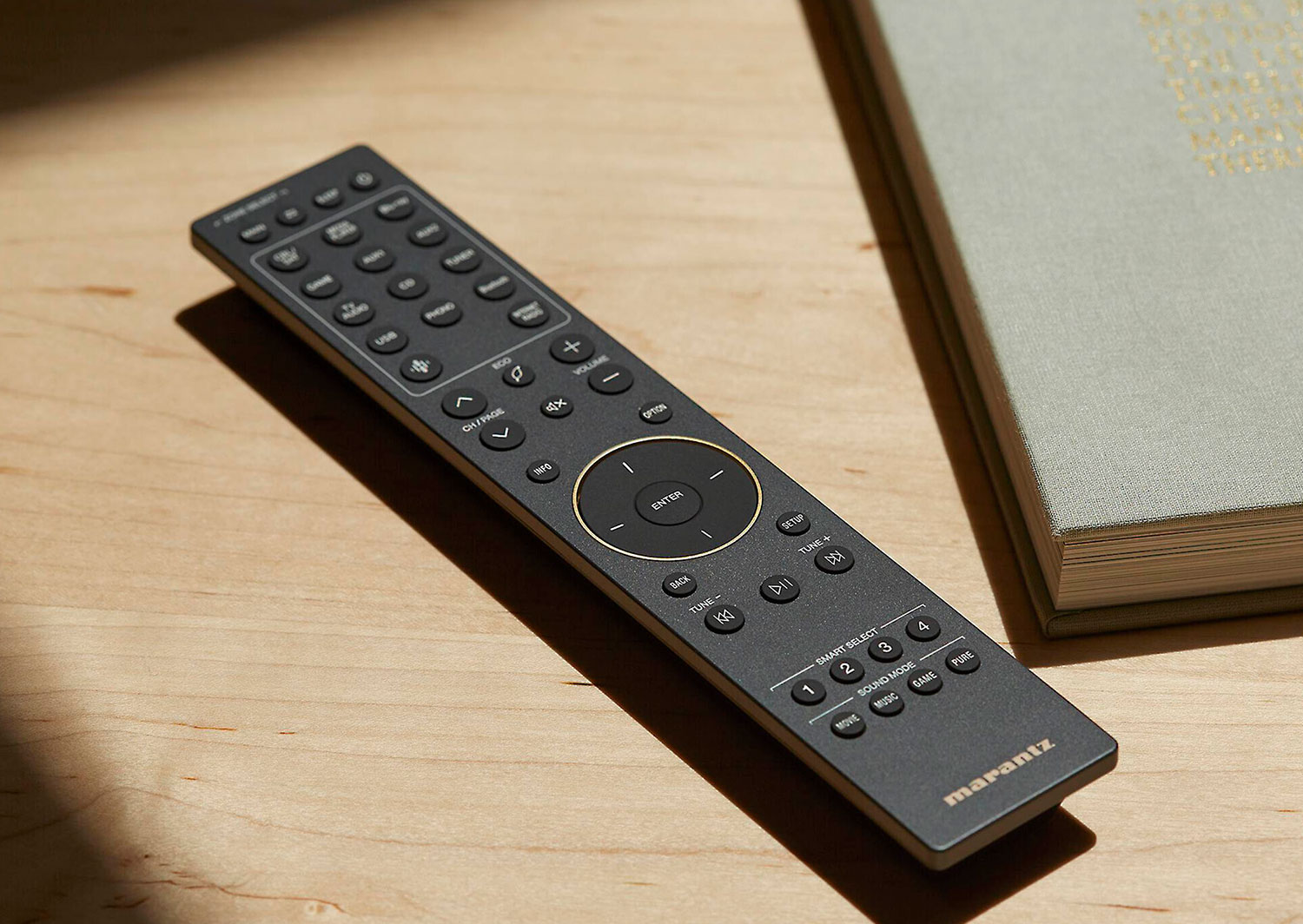

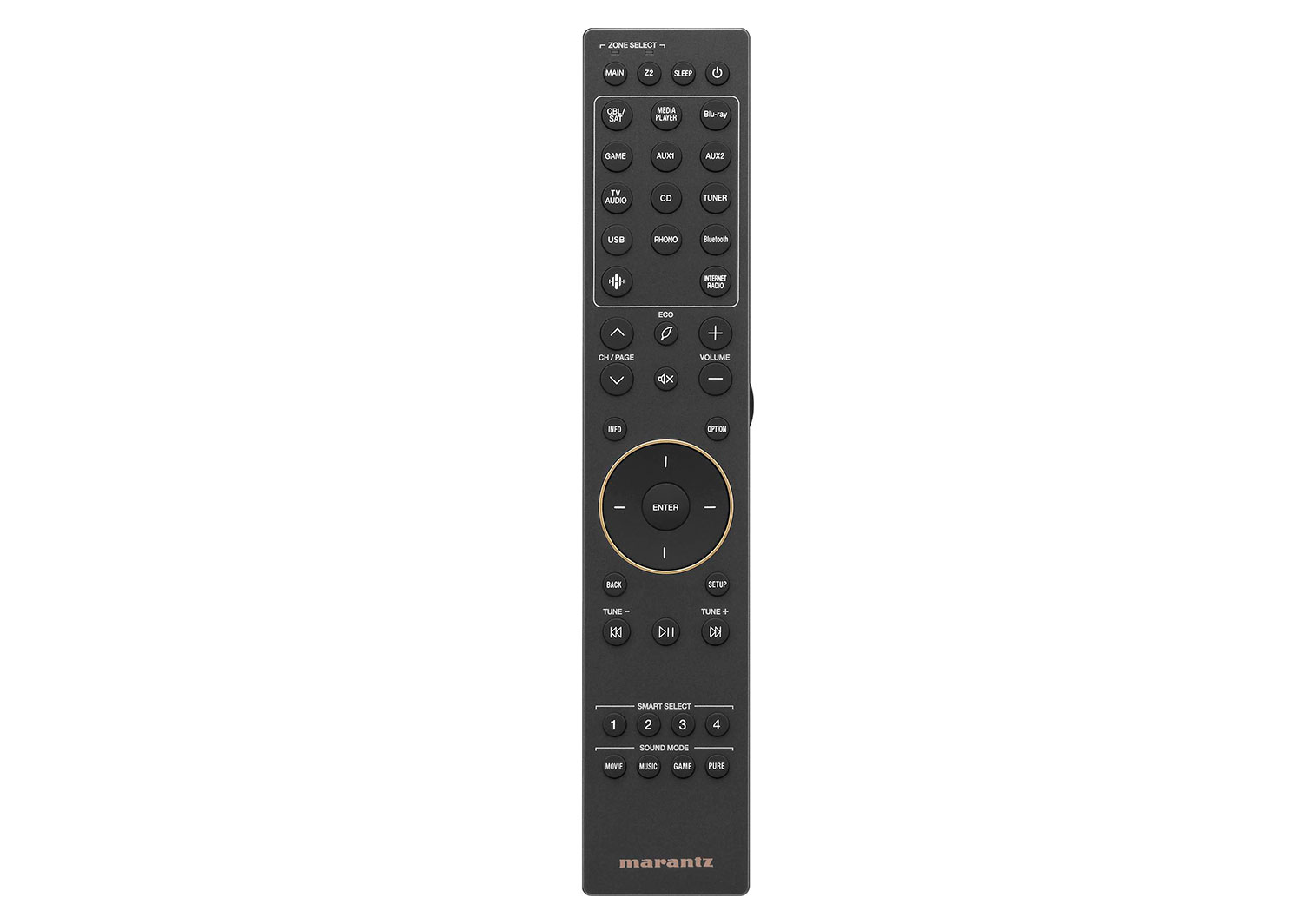

• RC-048SR system remote control
• Power consumption in W 710
• Power consumption without sound (ECO on/off) in W 65 W / 110 W
• Power consumption in standby mode in W (normal/economy mode) 0.2
• Consumption in standby mode in CEC 0.5
• Network standby power consumption in W Less than 2.0
• Maximum dimensions of the antenna horizontally: (W x D x H) in mm 440x414x185
• Maximum dimensions of the vertical antenna: (W x D x H) in mm 440x414x254
• Maximum dimensions without antenna: (W x D x H) in mm 440x401x185
• Weight in kg 15.1

Contents of the box:

• Amplifier,
• Remote Control, Batteries,
• Wire Labels,
• Quick Start Guide,
• Audyssey Microphone , Microphone Stand , 2 Detachable External Antennas , Mains Cord

* Full Specifications *
