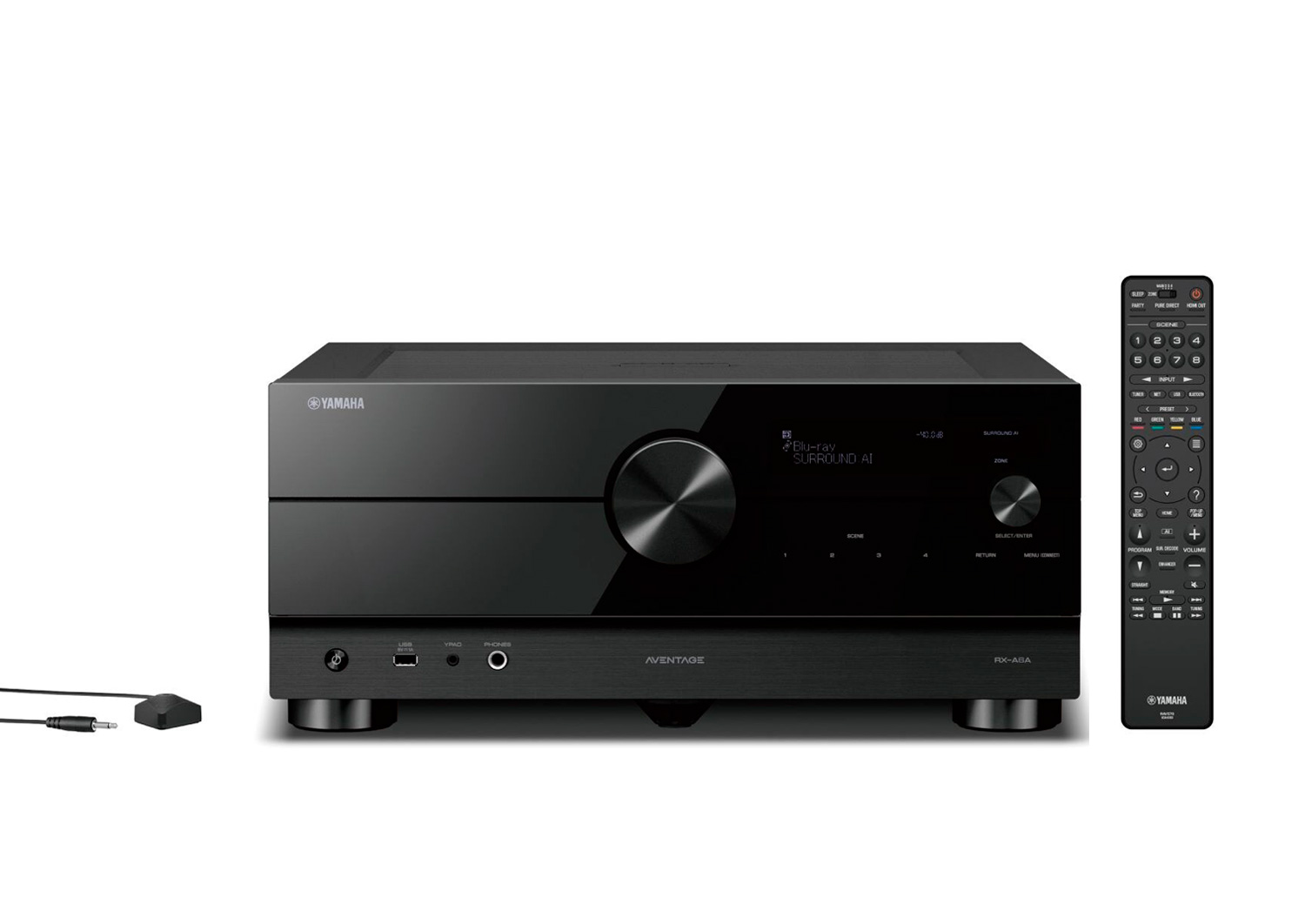

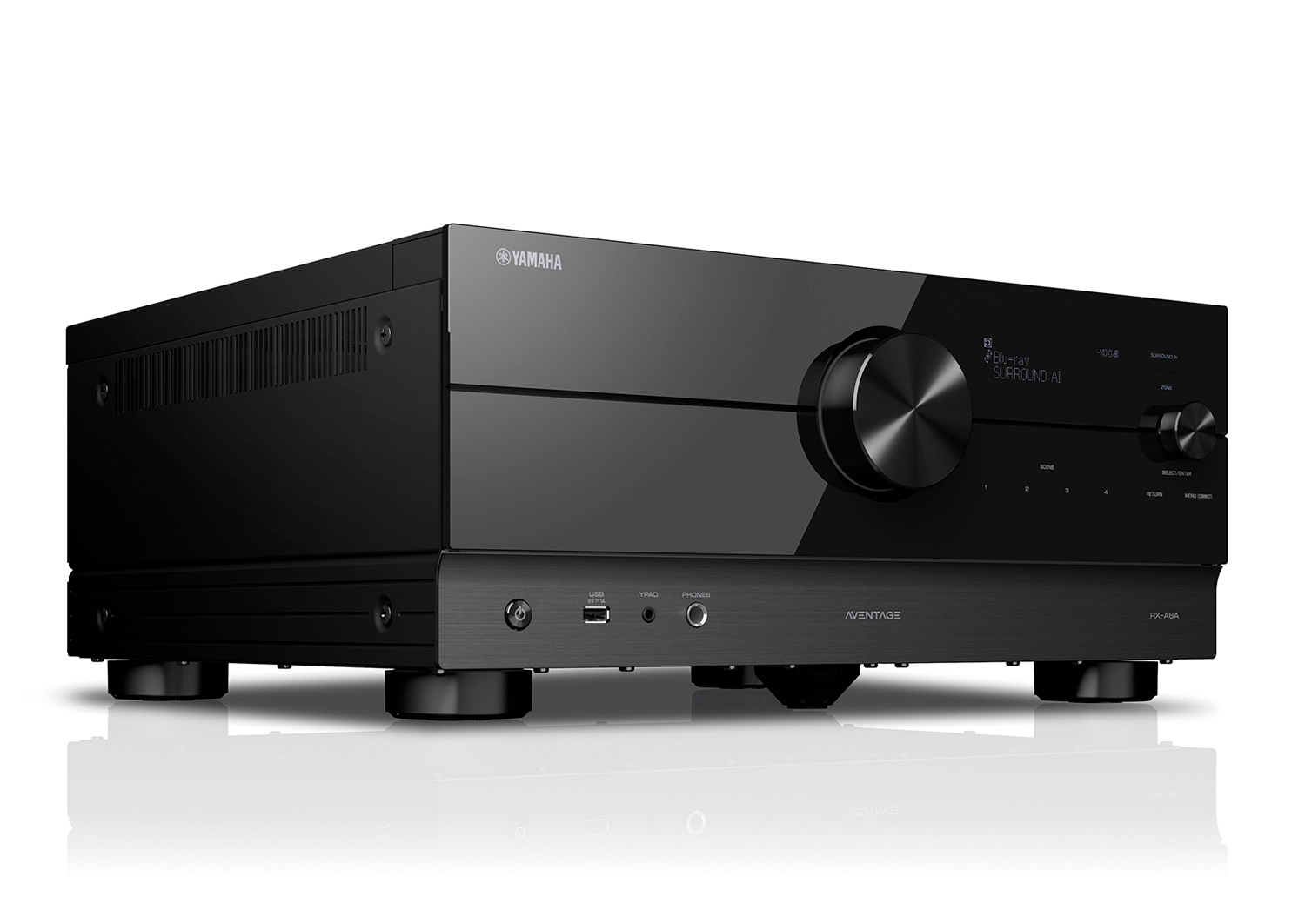

YAMAHA  RX-A6A
AVENTAGE 9.2-Channel AV Receiver with 8K HDMI and MusicCast

Hear every sound, see every detail. The A6A has been carefully designed so every element of your entertainment is the best it can be. From slight whispers of sound to swift, on-screen movements, the A6A ensures you won’t miss a thing.

• 9.2-channel (with 11.2-channel processing) 150-Watt surround sound with Zone 2/3/4
• 4K120 and 8K60 HDMI and HDR10+ (with future update) with HDCP 2.3 and eARC (7 in/3 out)
• Dolby Atmos® with Dolby Atmos Height Virtualization and DTS:X® with CINEMA DSP HD3
• ESS SABRE ES9026PRO Ultra DAC for the ultimate high-performance conversion
• YPAO™- R.S.C. with 3D, multipoint measurement, precision EQ and low frequency mode
• Surround:AI™ technology automatically optimizes the sound and effects in real-time
• ALLM, VRR, QFT, QMS (with future update) and Dolby Vision™, Hybrid-Log Gamma and BT.2020
• AURO-3D (with future update)
• Wi-Fi, Bluetooth®, MusicCast multi-room audio, AirPlay 2 and Spotify Connect
• Voice control with Amazon Alexa, Siri® (via AirPlay 2) and Google Assistant
• Pandora, Spotify, Napster, SiriusXM, TIDAL, Deezer, Qobuz, Amazon Music HD
• 3rd-party control driver-capable, easy IP set-up and remote IP control
• Phono input

The Benchmark for AV Receivers

AVENTAGE AV receivers are the reference standard to which all others are compared. Passionate engineering and meticulous attention to detail produce the Yamaha hallmark of True Sound. You can feel the quality in the design and fabrication – from every electrical path, component and piece of material. Each element was scrutinized with intense detail to produce the finest, first-class performance. The AVENTAGE AV receiver is a work of visual and acoustic art.

BREATHTAKING SOUND

SURROUND:AI™

Artificial intelligence (AI) technology built into the DSP analyzes the scene of the entertainment content and then creates the optimal surround effect to reproduce it with the ultimate impact. This AI instantaneously analyzes scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimizes the surround effect in real time. Imagine having a Yamaha sound engineer listening right next to you, tuning the best sound live and specifically for you. AI technology creates a compelling sense of realism with expressive power beyond conventional sound field effects, giving you the most profound entertainment experience possible. Qualcomm® QCS407 with 64-bit high precision processing delivers precise surround sound.

Cinema DSP HD3 for Movie, Music and Games

This Yamaha flagship 3D sound field playback technology was created by combining actual measured sound field data with cutting edge digital signal processing technology. The revamped CINEMA DSP HD3 features new signal processing algorithms and maximizes theater sound effects, accurately reproducing a new dimension of realism for a sound field with a rich sense of presence and no feeling of boundaries. By using front, center and surround speakers to create a rear virtual speaker, CINEMA DSP HD3 playback of up to 11.1 channels is possible* even with a 7.1-channel speaker configuration.

*Requires connection to a front presence speaker.

Dolby Atmos® and Dolby Atmos Height Virtualization*

Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio.

For those without in-ceiling or upward firing speakers in their system, Dolby Atmos Height Virtualization* technology can simulate the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.

* Dolby Atmos Height Virtualization is available via a future update

DTS:X®

DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.

AURO-3D*

The magic of AURO-3D® technology lies in the ability to transform any space and any content. AURO-3D will deliver a purely transformative, breath-taking immersive audio experience, every time. The unique, vertical stereo field of AURO-3D allows sound to move around you, similar to how it does in your everyday life, ensuring a powerful soundscape that transports us into the world of our chosen content. Escape into the story and get lost in the music. Experience every moment and emotion the way nature intended.

Hear more, feel more with AURO-3D.

* AURO-3D available via a future update

CINEMA DSP 3D for Movie, Music and Game

This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies, and enter a world of profound theater sound.

Compressed Music Enhancer

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

HIGH QUALITY PARTS

High Slew Rate Amplifier

The slew rate measures how quickly an amplifier can respond to a rapid change of input level, which contributes to delivering a precise signal transmission and is especially effective with high resolution audio signals. This newly designed circuit achieves both a high slew rate and stable signal transmission, allowing it to handle each audio signal with precision and accuracy.

High-Quality Digital Components

The Qualcomm® QCS407 is designed to provide truly superior audio performance, with support for Dolby Atmos and DTS:X immersive home audio, as well as a dedicated high-performance audio DSP.

Incorporating the SABRE ES9007S Premier Audio DAC from ESS Technology to achieve an exceptional signal-to-noise ratio and up to 120 dB of dynamic range, this AV receiver produces professional quality digital audio.

CRAFTSMANSHIP

Anti-Resonance Technology Wedge

The Anti-Resonance Technology (A.R.T.) Wedge is a fifth foot in the center of the chassis unit base. It dampens vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers — providing dynamic sound and focused, accurate reproduction.

Newly Designed Mechanical Structure

The highly logical and symmetrical internal layout of parts and totally renewed circuit boards are designed to keep the signal paths on each board as short as possible. The new H-cross frame improves rigidity of the receiver body and sound stability, allowing for clearer, sharper and more transparent reproduction. Also the newly redesigned mechanical structure contributes to avoiding the transition of vibration from the transformer to the amplifier circuit. Sound noises are reduced to improve clarity.

MOVIES AND GAMES LIKE NEVER BEFORE

HDR and HDR10+*

HDR (high dynamic range) video provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.

HDR10+ greatly improves dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis. Also, using frame-by-frame metadata, it improves the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator's intent.

* HDR10+ is available via a future update

4K120AB*, 8K60B* and 4K60

Supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K120 enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly. It also supports Dolby Vision™ and Hybrid Log-Gamma.

* 4K120AB and 8K60B are available via a future update

Enhanced Media and Gaming (ALLM, VRR, QMS, QFT)*

Enhanced media and gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM), which enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity; Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay; Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank frames before content is displayed; and Quick Frame Transport (QFT), which reduces latency for smoother, no-lag gaming and real-time interactive virtual reality.

* These features are available via a future update

DESIGNED FOR YOUR SPACE

YPAO™ - R.S.C. (with 3D, Multipoint Measurement and 64-bit High Precision EQ)

YPAO-R.S.C. (Reflected Sound Control) analyzes the room acoustics with the included YPAO microphone to tune your system for the best sound in your unique room. It employs R.S.C. to correct early reflections for studio-quality surround sound. YPAO 3D provides automatic sound parameter optimization that maximizes the 3D sound field effectiveness of SURROUND:AI as well as Dolby Atmos and DTS:X. 64-bit high precision EQ calculation achieves the most natural room acoustics possible.

MusicCast Surround

Combine this AV receiver with the MusicCast 50 or two MusicCast 20 wireless streaming speakers and enjoy MusicCast Surround, creating a 5.1-channel home theater with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your living room into a home theater where you can fully enjoy movies and music.

Compelling Design

Yamaha AV receivers are crafted with meticulous design and craftsmanship to produce a work of visual and acoustic art.

The immaculate chassis construction further solidifies the alignment of stability in performance. It offers a beautiful form that deepens the AVENTAGE uniqueness and continues to further enhance key acoustic authority.

Inspired by tradition and incorporating fresh new design principles, the new look of AVENTAGE exhibits engineering at its most innovative and awe-inspiring best.

Scene Buttons Easily Get You To Your Favorite Content

There are four SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (network). Once you have set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.

SIMPLE TO SET UP, SIMPLE TO USE

Simple and Easy with the MusicCast App

Use your smartphone or tablet together with the MusicCast app to operate the AV receiver and change settings quickly and easily. The app offers the same functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.

Voice Control (Alexa, Google Assistant and Siri)

Easily works with Alexa, Google Assistant and Siri (via Airplay 2), so your AV receiver is always at your command and your whole home can come alive.

*A third party device is required to initiate voice commands

AV Setup Guide App

No Worries, no confusion. Use this app to receive expert setup assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.

STREAMING, APPS AND MORE

Multi-room Audio - MusicCast

Imagine sharing all the music you love throughout the home – no matter the format. From your favorite vinyl to AirPlay 2, Bluetooth® to music streaming services and even sound from your TV, MusicCast has it covered.

Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 384 kHz are supported.

AirPlay 2

Hey Siri. Play music in the kitchen and living room.

AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri to assist.

Stream it All

Explore a world of music with music streaming services built-in. Synchronizing your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it easy to either listen to your favorites or discover new music.

eARC

Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha.

eARC delivers full-resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.

Playback in Multiple Zones/Advanced HDMI Zone Switching

You can transmit the video or audio content (not only the HDMI input, but also other audio sources, such as digital or analog audio, network content and FM radio) to a TV or home theater system in another room (Zone 2/4). This lets you enjoy viewing and listening to the same main room content (where the AV receiver is installed), or even different content. An on-screen graphical user interface makes it easy to browse and select content from the second zone no matter what is being played in the main zone.

11-Channel Pre Out

You can add an external power amplifier (pre-main amplifier) to this AV receiver to improve and enhance the sound of your speakers. For example, using a power amplifier to drive the important front channel in home theater gives you the added flexibility of building a system with an emphasis on sound quality.

XLR Input Terminal

This receiver is equipped with XLR balanced audio input terminals that have an outstanding reputation in the world of professional audio and are highly sensitive to noise. In combination with balanced output terminals on a Blu-ray player or CD player, this connectivity enables high-quality signal transmission with reduced degradation of sound quality due to external noise.
