Product Screen Motorized Screen OS Screen EP-130HM-x1x-WF801 (130")
OS Screen
OS SCREEN :
EP-130HM-X1X-WF801 (130")
Category : Motorized Screen
Add to wishlist     สถานะสินค้า Pre-Order
EP-130HM-x1x-WF801 (130
EP-130HM-x1x-WF801 (130

>> ราคาพิเศษ Pre- order ถึงวันที่ <<

PRICE :
114,750 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน

  • Overview

OS Screen

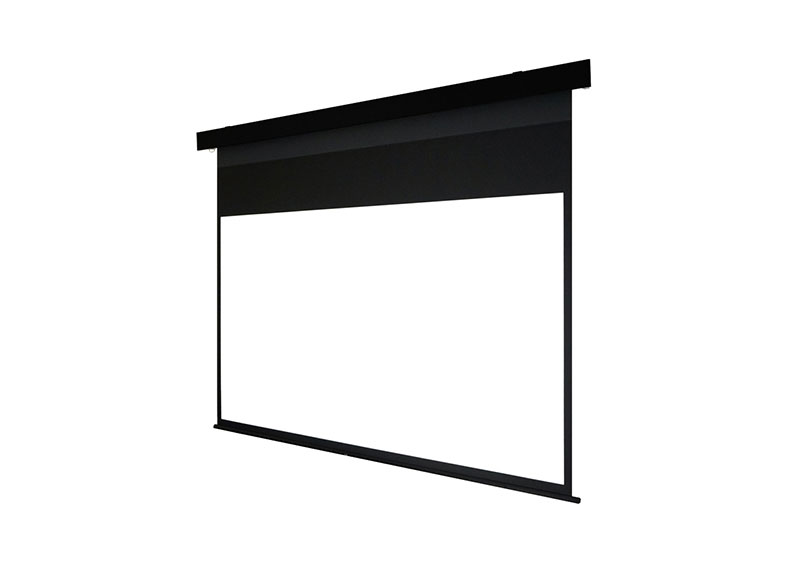

EP-130HM-x1x-WF801(130")

WF-PRO : 4K QUALITY AND PASSED JAPANESE FLAME RETARDANT STANDARD


Medical, Design, Computer Graphics and other projection fields in which emphasizing quality.

Characteristics
“WF-Pro” combines “PVC-free” and “Flame Retardant” that are environmentally friendly !

  • WF professional uses fabric base and topcoat technology to deliver truly 4K high-definition images in a uniform and beautiful manner.
  • The white topcoat definitely reproduces the original image.
  • The random woven fabric makes smooth surface and moiré-free.
  • WF801 is diffusive type screen.
  • Since diffusive type screen reflects the same quality image in any directions, it provides the same quality image to all viewers at any position.

https://www.piyanas.com/image_hosting/fabric_characteristics_wf801.jpg


Electric projection screen that combines the best fabric for home theater use.

Characteristics

  • The simple panel design matches your interiors!
  • Easy to know the center position as the case and fabric are symmetric design.
  • Sliding bracket and side bracket are standard accessories.
  • The front panel is detachable and exchangeable even after installation.
  • Two choices of panel color black or white.

About Mechanism
https://www.piyanas.com/image_hosting/2023-10-10_15-16-06.jpg

Panel color is luxurious black.
Mounting brackets are equipped with sliding and side bracket as standard.


tension

Tension adjustment mechanism is a standard equipment. For example, wrinkles stretching can be easily done due to aging of the fabric.
  • Center positioning is easy by symmetry structure. The center mark is provided and improved workability. Circuit box is externally attached to the main body. The maintenance work is easy after the installation of screen.
  • Limit adjustment (stop position) of the all screen size can be done easily by remote controller and wall switch.
  • The output of screen actuating signal is available by tally output terminal.
  • (Tally output is ON/OFF signal only but UP/DOWN is not available)

https://www.piyanas.com/image_hosting/stop_seal.jpg

Points of attention at the ordering

Pull out the screen all the way to the bottom of the STOP label. If stopped halfway collapse of flatness and wrinkles may occur. The total height of the drawing and specification is the height when it is pulled out to the STOP label.
Please decide the height of the screen to suit your room space(ceiling height) when placing an order. We provide the cutting of upper black board in free of charge. Please specify at the time of purchase.


Standard Size

https://www.piyanas.com/image_hosting/dimensional2-drawing.jpg
Diagonal
Size
(inch)
Model Image size
W x H(mm)
Length
A(mm)
Height
T(mm)
UBB
U(mm)
Side mask
(mm)
Depth
B(mm)
Height
when in
stored
C(mm)
80 EP-080HM-x1x 1771 x  996 2118 2223
2217

130+
inch of
WF302
is
2248
1004 50 134
135

130+
inch of
WF302
is
155
145
139

130+
inch of
WF302
is
170
90 EP-090HM-x1x 1992 x 1121 2339 879
100 EP-100HM-x1x 2214 x 1245 2561 755
110 EP-110HM-x1x 2435 x 1370 2782 630
120 EP-120HM-x1x 2657 x 1494 3004 506
130 EP-130HM-x1x 2878 x 1619 3225 381
140 EP-140HM-x1x 3099 x 1743 3446 257

*The numbers of(T),(B) and (C) above indicate when sliding bracket is used and the numbers below indicate when sliding bracket is
