Product Speaker Center Speaker B&W HTM-71 S3 Signature (Datuk Highgloss)
B&W
B&W :
HTM-71 S3 SIGNATURE (DATUK HIGHGLOSS)
Category : Center Speaker
Add to wishlist     สถานะสินค้า In Stock
HTM-71 S3 Signature
(Datuk Highgloss)
HTM-71 S3 Signature
(Datuk Highgloss)
HTM-71 S3 Signature
(Datuk Highgloss)
HTM-71 S3 Signature
(Datuk Highgloss)
HTM-71 S3 Signature
(Datuk Highgloss)
HTM-71 S3 Signature
(Datuk Highgloss)
HTM-71 S3 Signature
(Datuk Highgloss)

PRICE :
163,800 THB.
SPECIAL :
134,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน ตู้ (Each)

  • Overview

B&W HTM-71 S3 Signature (Datuk Highgloss)
High-performance 700 Series center channel speaker


The HTM71 S3 Signature is a first-of-its-kind 700 Series Signature center channel speaker, bringing even more clarity and detail to your favorite movies and music.




Crafted. Honed. Perfected.

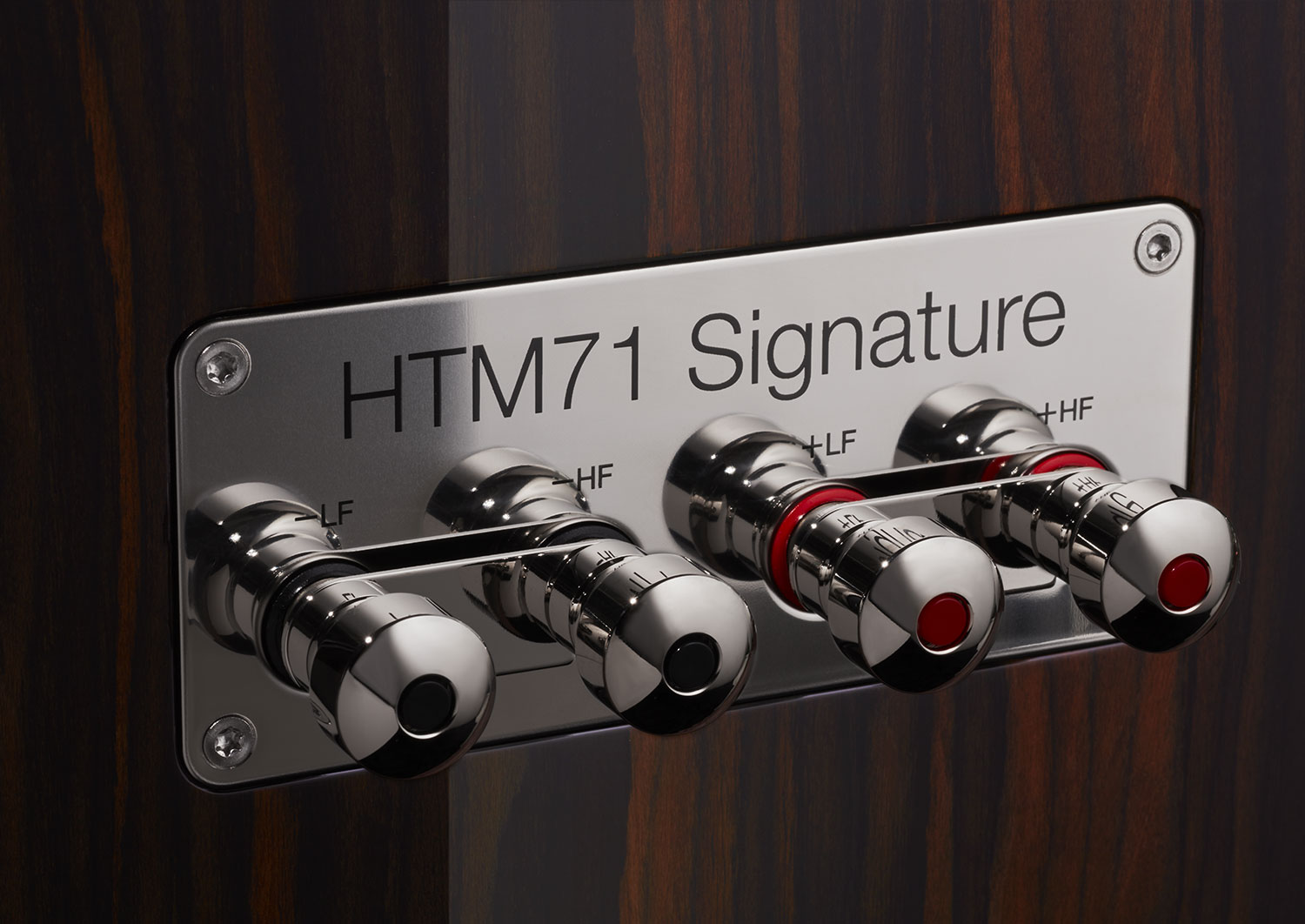

HTM71 S3 Signature features optimized technologies, such as our proprietary decoupled Continuum midrange drive unit and Tweeter-on-Top, plus upgraded bass motor systems, improved capacitors, revised speaker terminals, and a more open tweeter grille mesh, as developed for our 800 Series Signature loudspeakers.




Specifications


Size & weight
  • Net weight 18.50 kg (40.8 lbs)
  • Dimensions Height: 165mm (6.5in) cabinet only
    233mm (9.2in) including tweeter
    Width: 628mm (24.7in) cabinet only
    Depth: 318mm (12.5in) cabinet only
    356mm (14.0in) including grille and terminals
Technical Details
  • Drive units 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
    1x ø130mm (5in) Continuum cone FST midrange
    2x ø130mm (5in) Aerofoil Profile bass
  • Frequency range -6dB 45Hz - 33kHz
  • Frequency response 50Hz - 28kHz ±3dB
  • Harmonic distortion 2nd and 3rd harmonics (90dB, 1m on axis)
    <1% 90Hz - 22kHz
    <0.5% 120Hz - 20kHz
  • Nominal impedance 8Ω (minimum 3.1Ω)
  • Recommended amplifier power 30W - 200W into 8Ω on unclipped programme
  • Sensitivity 89dB spl (2.83Vrms, 1m)
  • Technical features Decoupled Carbon Dome tweeter
    Solid Body Tweeter-on-Top
    Continuum™ cone FST™ midrange
    Aerofoil™ Profile bass cones
    Flowport™
  • Description 3-way vented-box system
  • Max recommended cable impedance 0.1Ω
