Product Power Amp MultiChannel Marantz AMP-20 (Black)
Marantz
MARANTZ :
AMP-20 (BLACK)
Category : Power Amp MultiChannel
Add to wishlist     สถานะสินค้า In Stock
AMP-20 (Black)
AMP-20 (Black)
AMP-20 (Black)
AMP-20 (Black)
AMP-20 (Black)
AMP-20 (Black)
AMP-20 (Black)

PRICE :
199,000 THB.
SPECIAL :
179,100 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview

MARANTZ AMP-20 (Black)
Powerful 12-channel amplifier

AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system.

  • Crafted in Shirakawa, Japan
  • 12 Channels
  • 200 Watts per Channel
  • Exclusive HDAM
  • Custom Switching Amplifiers
  • Selectable Output Modes



Ultimate Performance

AMP 20’s custom-developed Class D amplification and refined HDAM-SA2 technology create the most incredible theatrical experience possible in your home.
dio as it should be: powerful, precise, and profoundly moving.


Sound Master Tuned

Our Marantz Sound Master meticulously tuned AMP 20 for amazing performance with careful parts selection to create outstanding sound in your home..


Effortlessly Powerful

AMP 20 gives you 12 channels of commanding power in a single enclosure, each rated at 200 watts to perform at extraordinarily high levels with no loss in fidelity.


System Matching

Make sure you get the best possible performance from your AMP 20 by combining it with other Marantz products – such as the AV 20.


Specifications

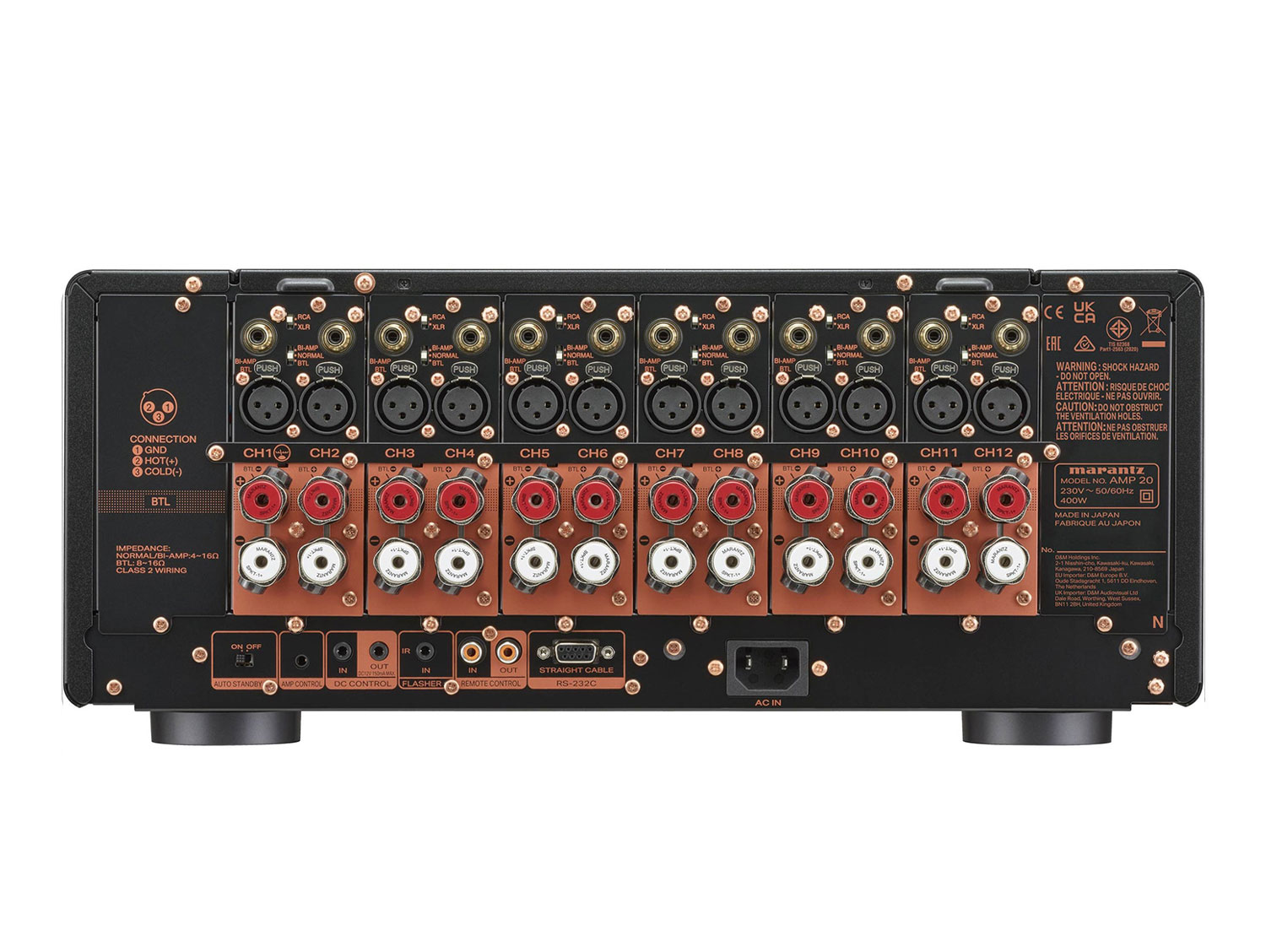

Inputs Outputs
  • Main Amplifier in Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
  • Speaker Terminal SPKT-1+
  • Number of Speaker Terminals 12
  • Bi-Amp Drive /BTL Drive Yes / Yes
  • Level Meter Yes
  • Chassis Copper Plated
Multi-Room CI
  • RS232 Control Yes
  • IR Flasher In Yes
  • Marantz Remote Bus Yes
  • DC Trigger Input/ Output 1 / 1
Specifications
  • Number of poweramps 12
  • Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
  • Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
  • Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
General
  • Front Display Level Meter
  • Auto Power Off Yes
  • Metal Front Panel Yes
  • Power Consumption 400W
  • Power Consumption, No-Sound 110W
  • Standby Consumption 0.2W
  • Maximum Dimensions (W × D × H) 17.4 × 17.4 × 7.5 in.
  • Weight 39.7 lbs
  • What's in the box Main unit, quick start guide,
    AC cord,Amp control cable,
    Remote control cable,
    SP terminal wrench
