B&W CCM-662 x 2
2-way in-ceiling system
Drive Units

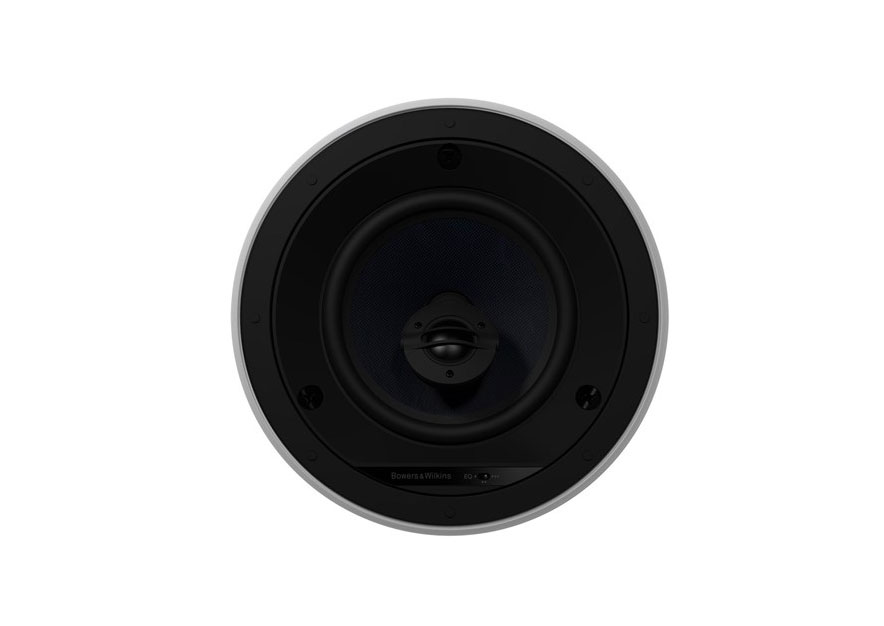

The top 6in in-ceiling speaker in the CI 600 series. This high-performance speaker features a Nautilus swirl-loaded 25mm (1in) aluminium dome tweeter that pivots for adjustable off-axis treble response. Other highlights include a bass/midrange driver with a rigid die-cast chassis, a three-position EQ switch, superior crossover components, gold plated terminals and an impressive maximum amp power of 150W. Installation couldn’t be easier, thanks to our QuickDogs™ fixing system and plug-and-play connection
Specifications
| Description | 2-way in-ceiling system |
| Drive Units | 1x ø25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter 1x ø150mm (6in) blue Kevlar® cone bass/midrange |
| Frequency Range (-6dB) | 45Hz – 50kHz |
| Recommended Amp Power | 25 – 150w |
| Sensitivity SPL (2.83V, 1m) | 88dB |
| Impedance Nominal (min) | 8Ω (4.5Ω) |
| Frame diameter | 240mm (9.5in) |
| Cut-out diameter | 202mm (8in) |
| Depth behind surface | 133mm (5.2in) |
| Protrusion | 4mm (0.2in) |
| Pre-mount Kit | C6 |
| Back Box | 6C |
