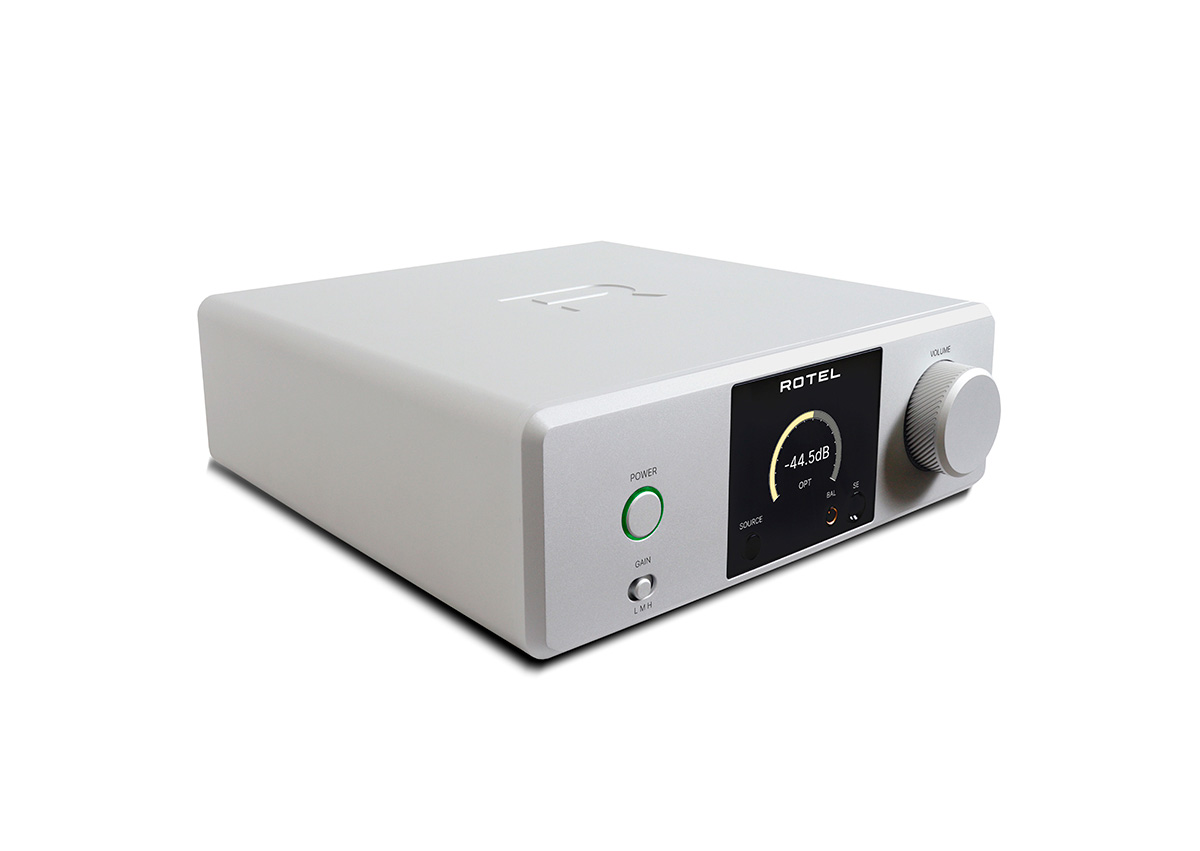

DX-5 Integrated Amp (Silver)

The Rotel DX-5 is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design. Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.

Features

• Certified Roon Tested
• ICESS premium 32-bit Digital to Analog Converter
• Bluetooth with aptX™ HD and AAC
• 2 x 33 Watts of Robust Class AB power, 4 Ohms
• Includes Remote Control

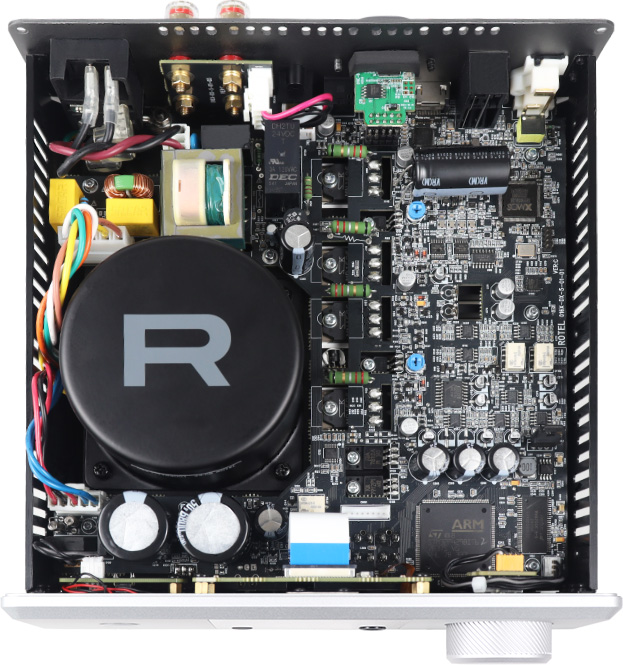

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).

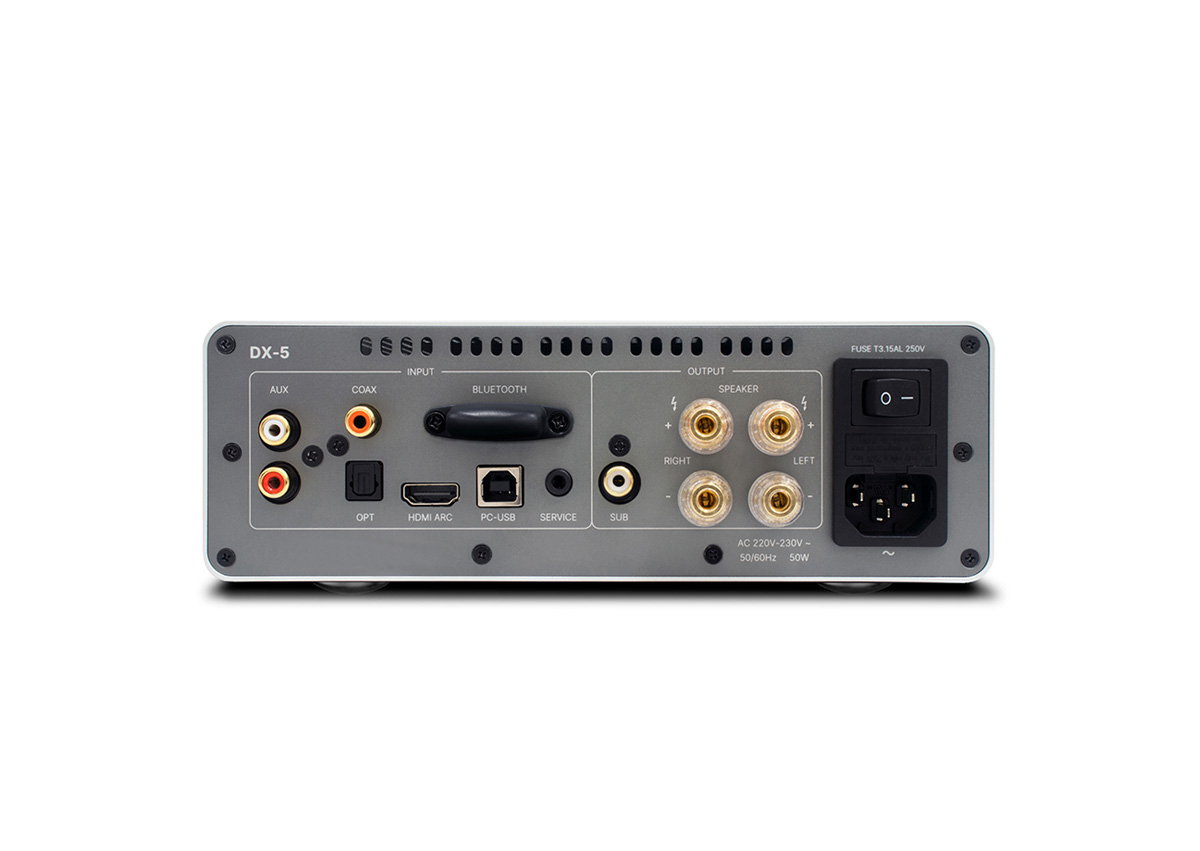

The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.

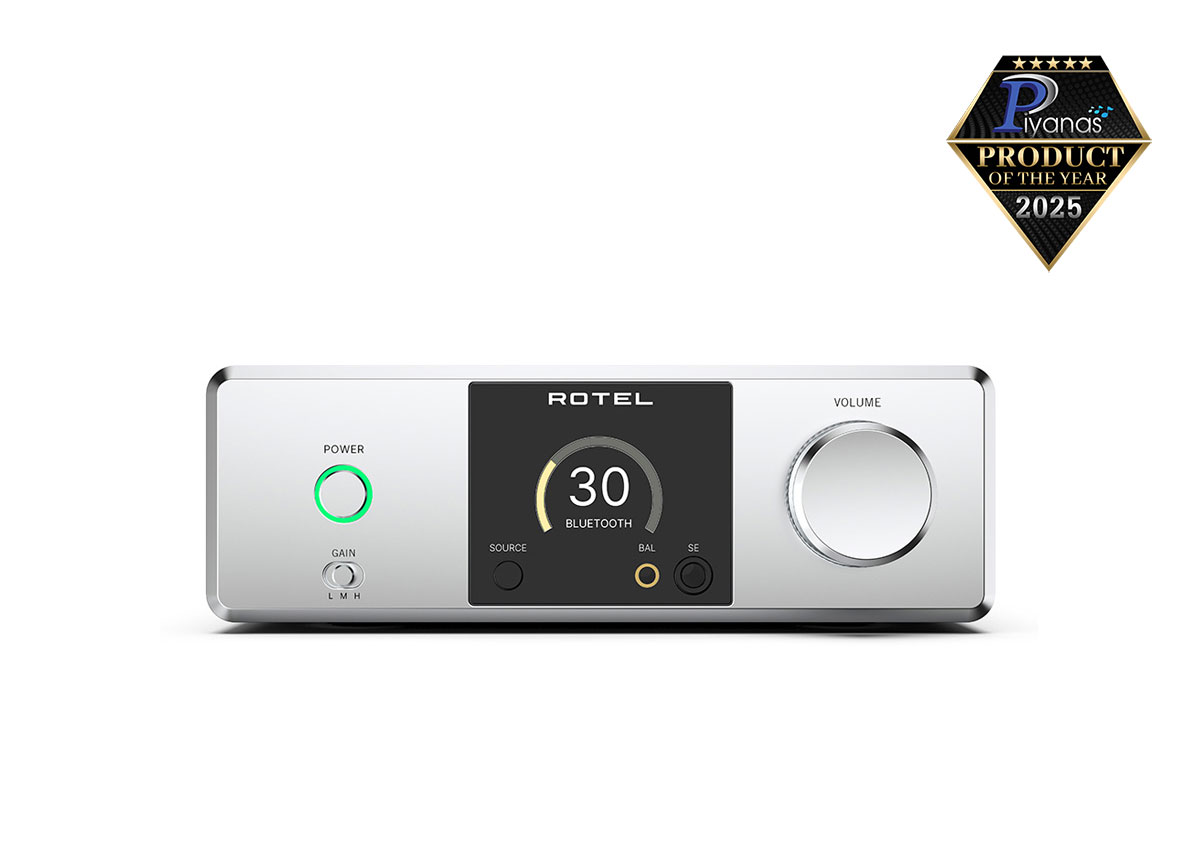

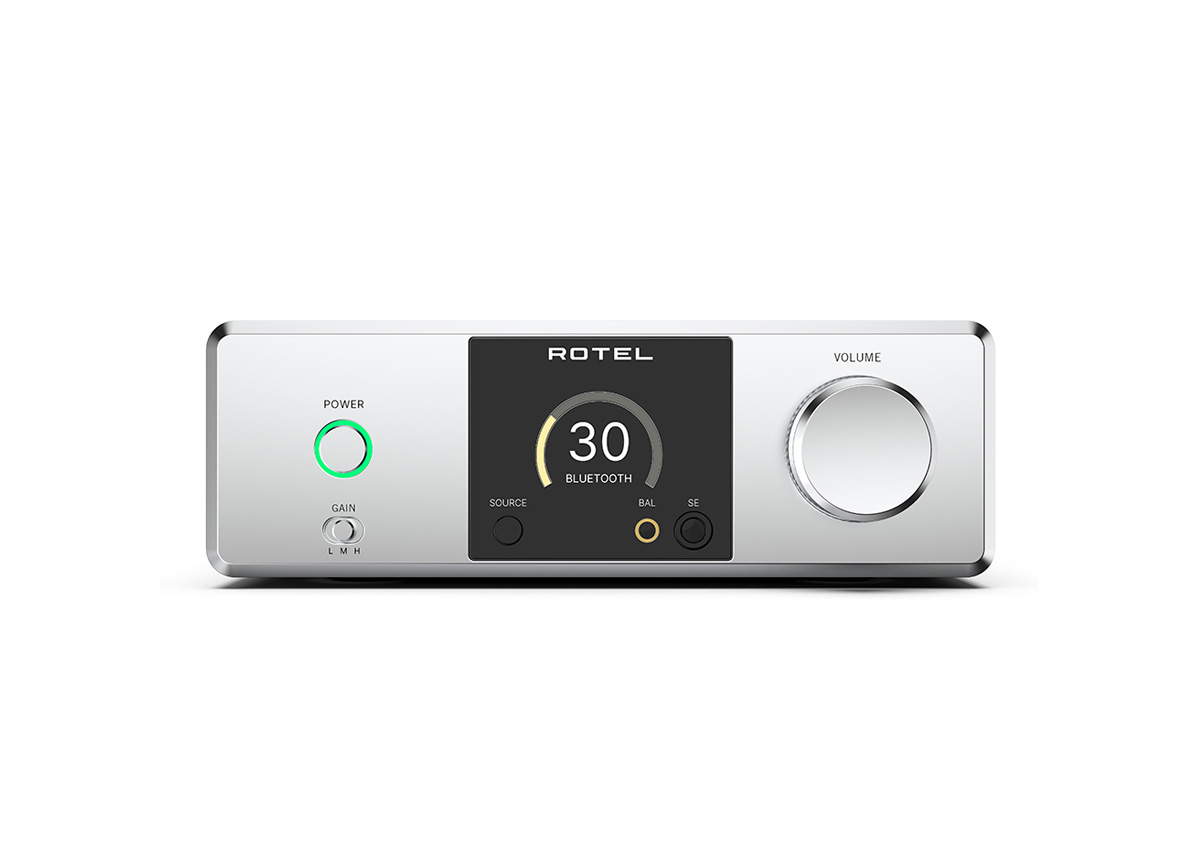

The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.

Specification

Power Output (FTC)
25 W / ch

Maximum Power Output (Non FTC)
33 W / ch, (4 Ω)

Continuous Power Output (Non FTC)
25 W / ch, (8 Ω)

Total Harmonic Distortion
< 0.03%

Frequency Response
10 Hz – 100k Hz (0 ± 0.19 dB)

Damping Factor (20 Hz – 20k Hz, 8 Ω)
140

Input Sensitivity / Impedance
680 mV / 100k Ω

Input Overload
4.2V

S/N Ratio (IHF "A" Weighted)
>100 dB

Intermodulation Distortion (60 Hz : 7k Hz, 4:1)
< 0.03%

Frequency Response (10 Hz – 80k Hz)
10 Hz – 80k Hz
(0 ± 2 dB, Max)

Input Sensitivity / Impedance
-10.3 dBFS / 75 Ω

S/N Ratio (IHF "A" Weighted)
>100 dB

HDMI
Support ARC function

Digital Inputs
SPDIF LPCM (up to 24-bit / 192k Hz)

PC-USB
USB Audio Class 2.0
(up to 32-bit / 384k Hz )*
*Driver installation required
Support DSD (up to 4X, 11.2M Hz)
and DoP (up to 2X, 5.6M Hz)
Roon Tested

Dimensions (W × H × D)
215 x 76 x 251mm
8 1/2 x 3 x 10"

Front Panel Height
70 mm (2 3/4")

Power Requirements
220 V, 50 Hz

Power Consumption
80 W

Standby Power Consumption
<0.5 W

Net Weight
4.1 kg (9.1 lbs.)

BTU
241 BTU/h
