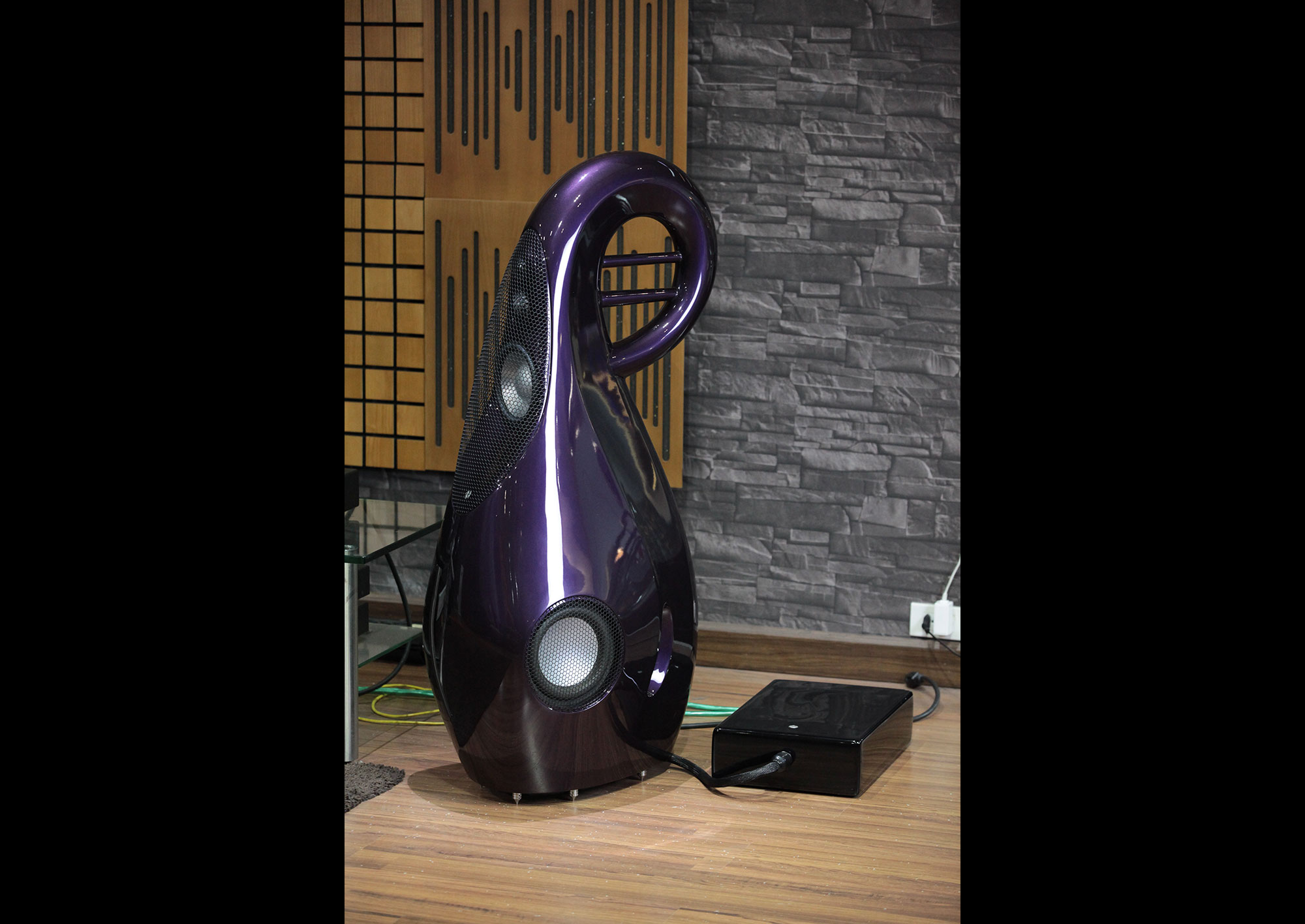

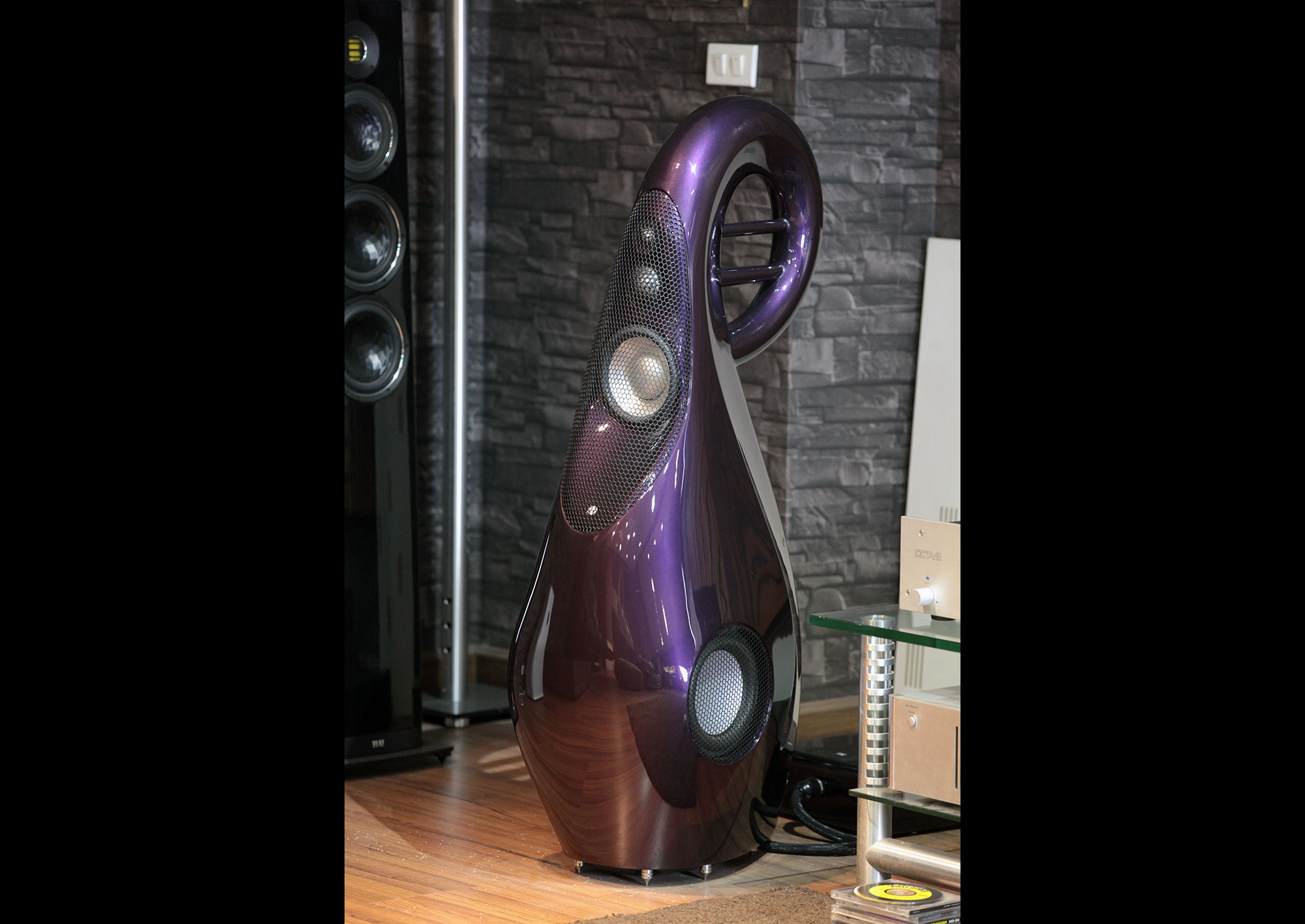

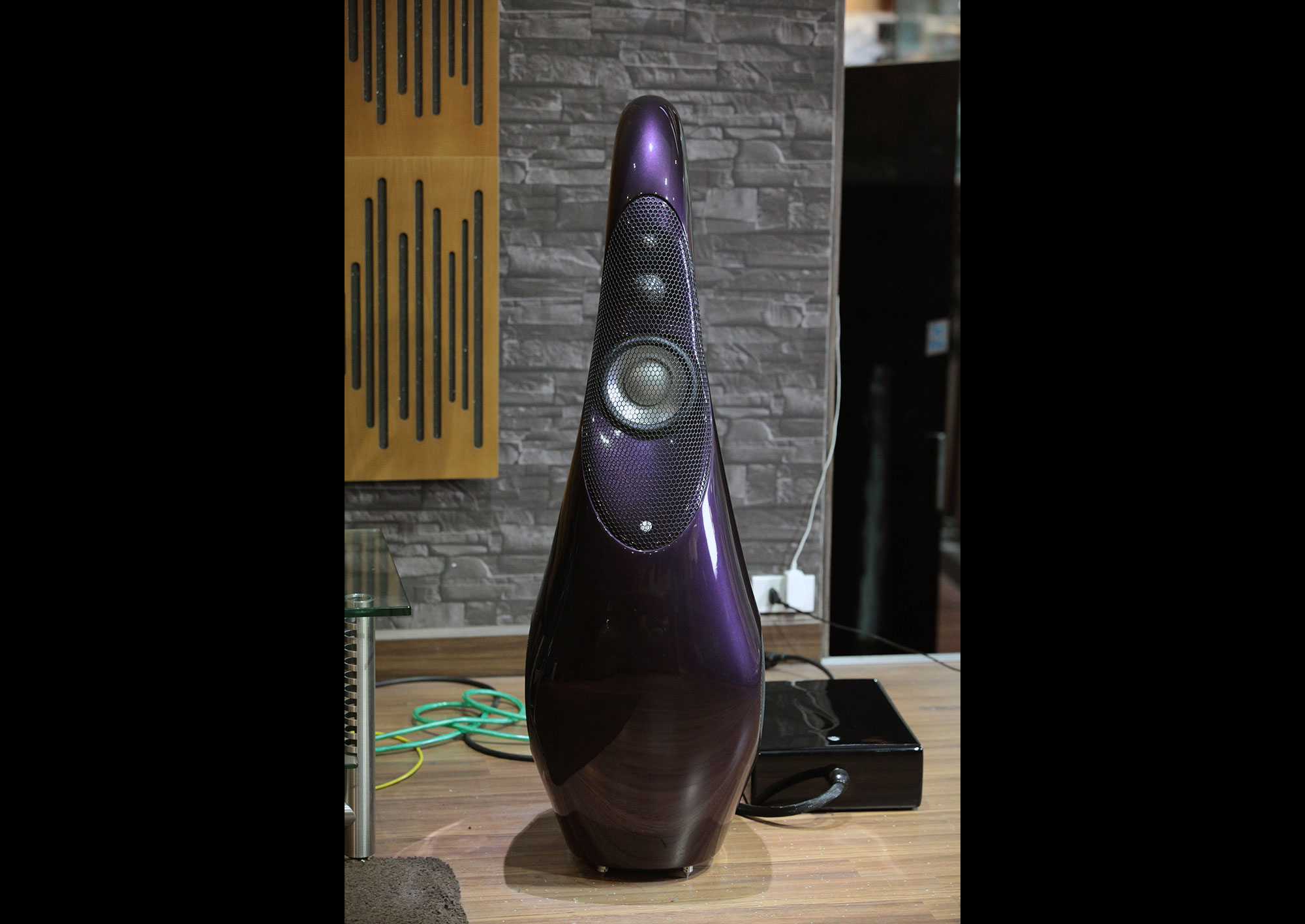

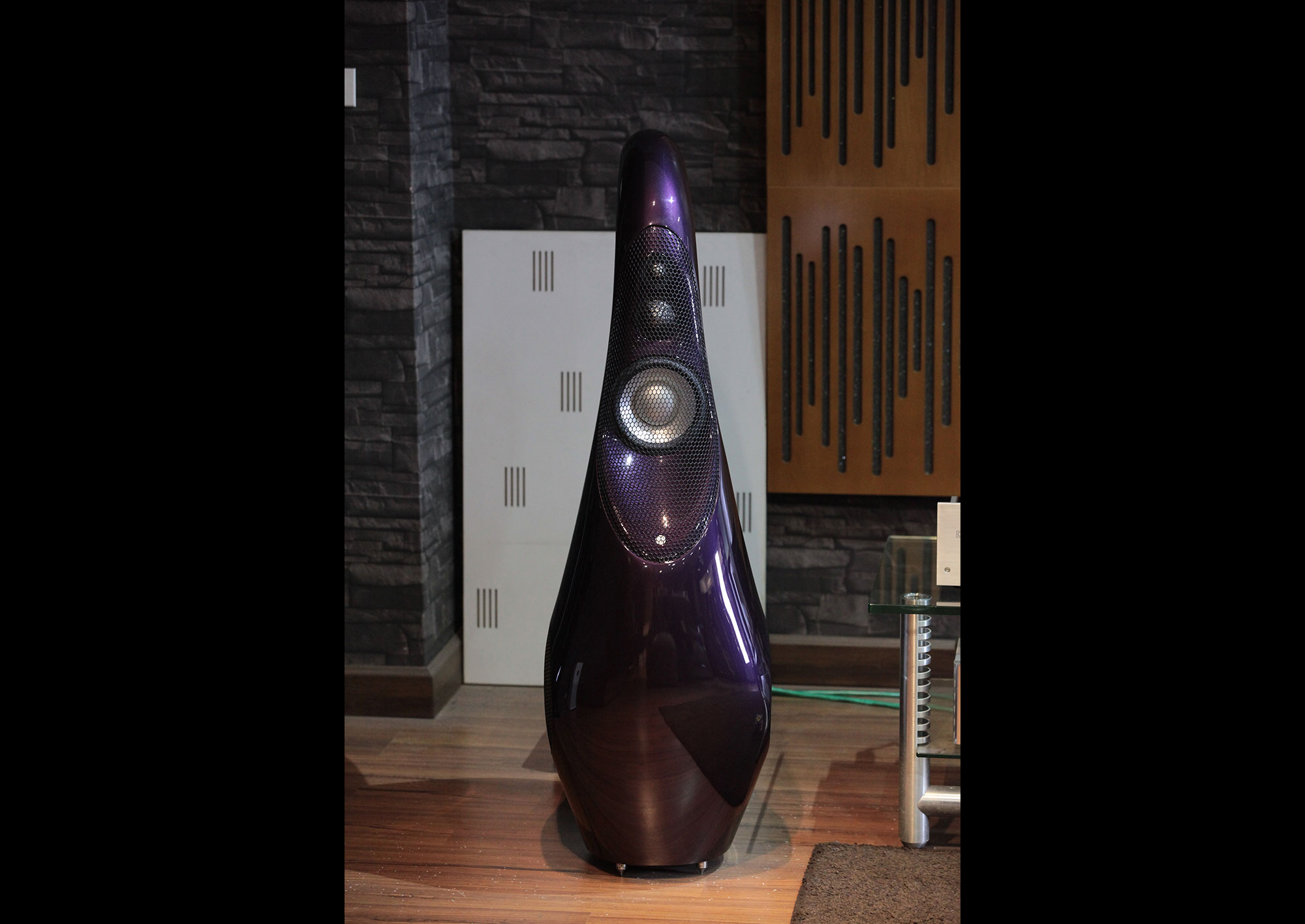

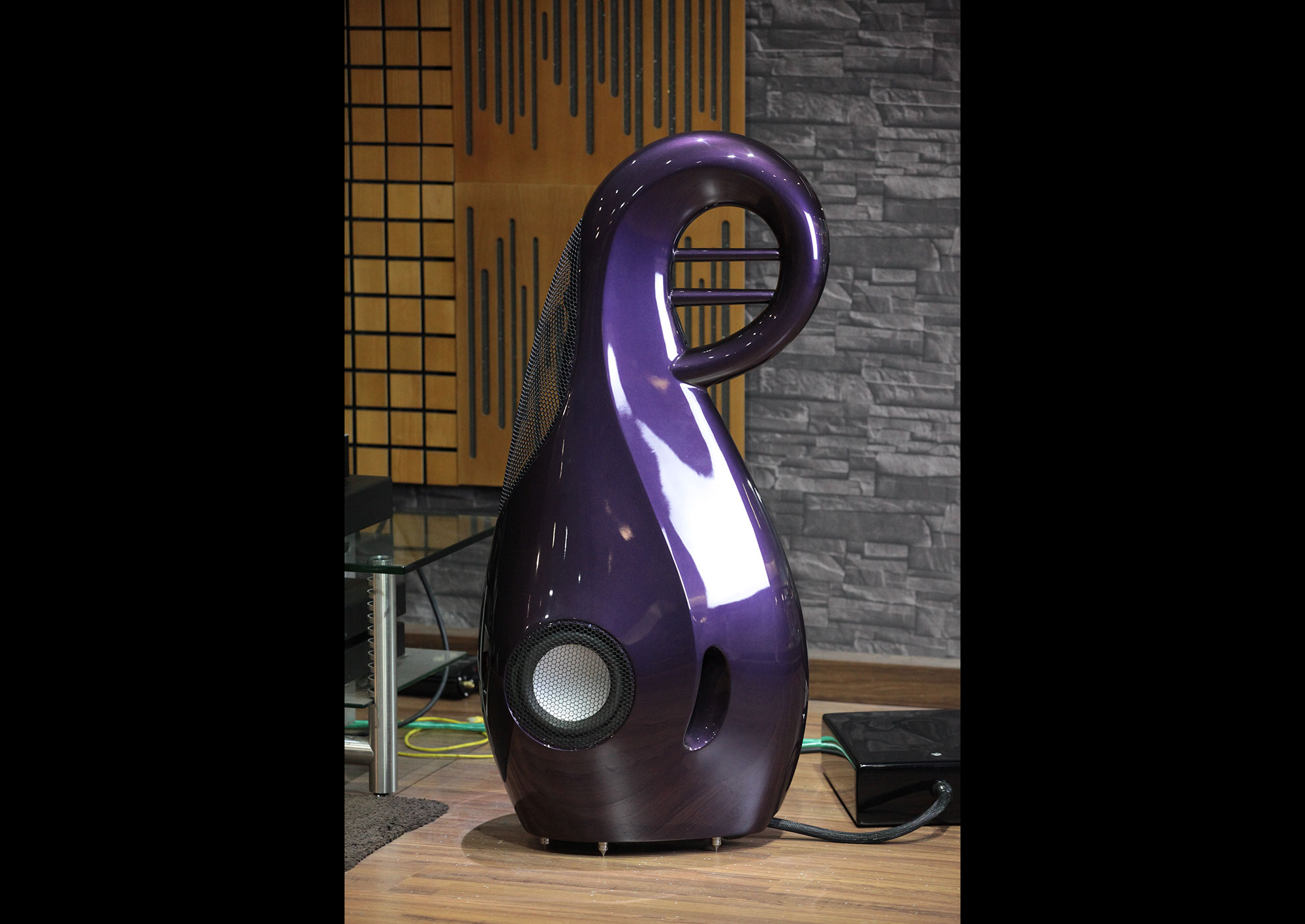

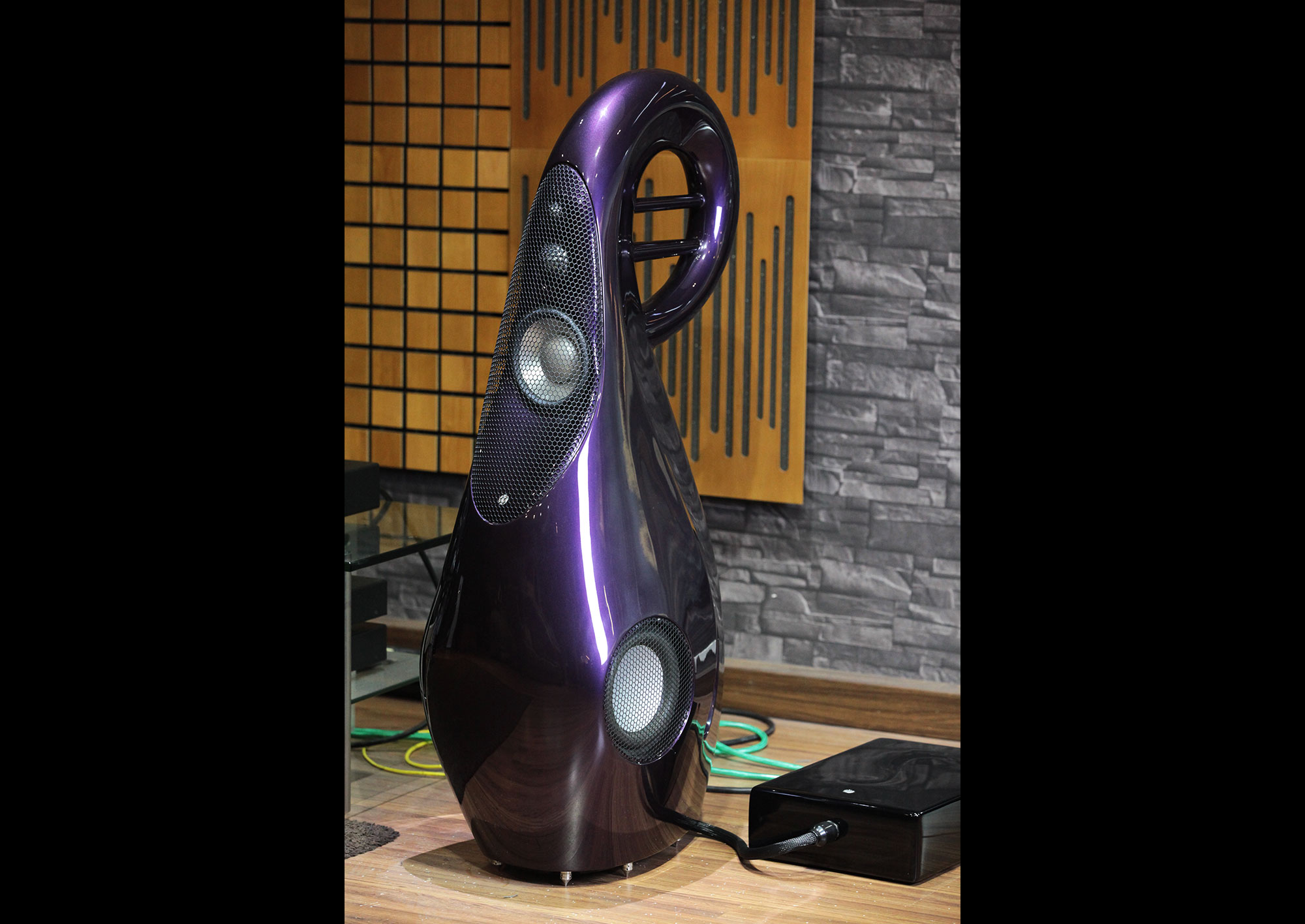

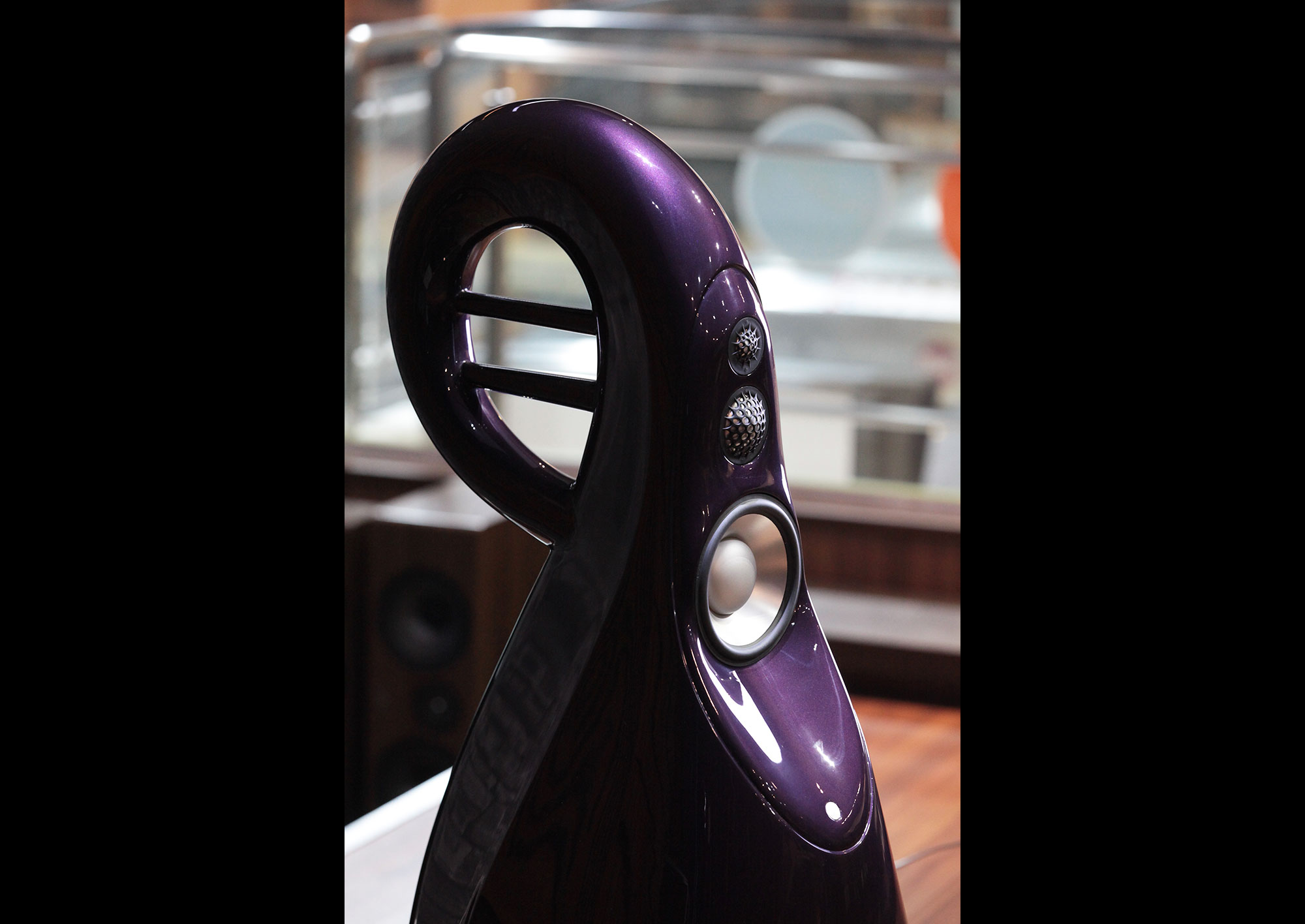

Vivid Audio Giya G3 S2 External Crossover (Gloss Monarch)

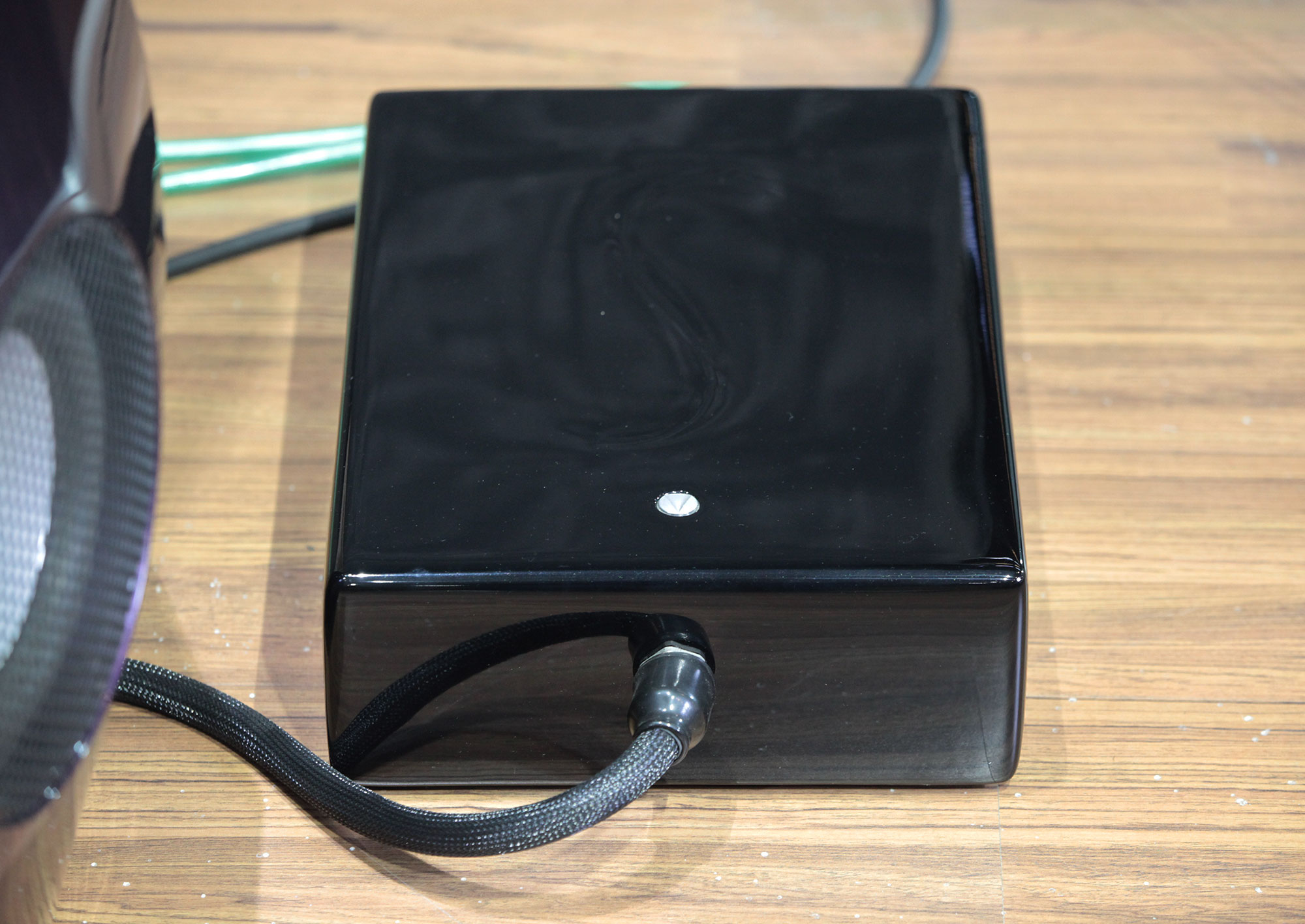

The Vivid Audio Giya G3 Series 2 (G3 S2) is a four-way, five-driver loudspeaker. While often used with its internal crossover, the Giya series supports an external crossover configuration, which reduces the speaker's net weight and separates the filter components from the cabinet

Crossover and Technical Specifications (G3 Series 2)

• Configuration: 4-way, 5-driver system
• Crossover Frequencies: 220Hz, 880Hz, 3.5kHz
• Crossover Type: 4th-order Linkwitz-Riley slopes throughout
• Frequency Response: 36Hz – 33kHz (±2 dB on reference)
• Frequency Range (-6dB): 33Hz – 36kHz
• Sensitivity: 87dB @ 2.83VRMS at 1m on axis
• Nominal Impedance: 6 Ohm (4 Ohm minimum)
• Power Handling: 800 Watts RMS (music program)
• Weight (External Crossover): 36.9 kg (81 lbs)
• Weight (Internal Crossover): 42 kg (92.4 lbs)

Drive Units (G3 Series 2)
The speaker utilizes a 26mm metal dome tweeter (D26), a 50mm metal dome midrange (D50), and a 125mm alloy cone lower-midrange driver (C125s), all featuring Tapered Tube loading. For bass, it employs two 135mm alloy cone units (C135) with a short-coil long-gap motor design.

Design Features
The G3 S2 cabinet is constructed from a glass-reinforced balsa-cored sandwich composite with a carbon fiber base. It is a 4-way, 5-driver system incorporating exponentially tapered tubes and enhanced bass reflex. The bass drivers are configured for force-cancellation, mounted on opposite sides of the cabinet
